Installation - 4.7L
WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
- Install end of cable to speed Control servo. Refer to SERVO .
- Slide speed control cable plastic mount into bracket.
- Install speed control cable connector onto throttle body bellcrank pin (snaps on).

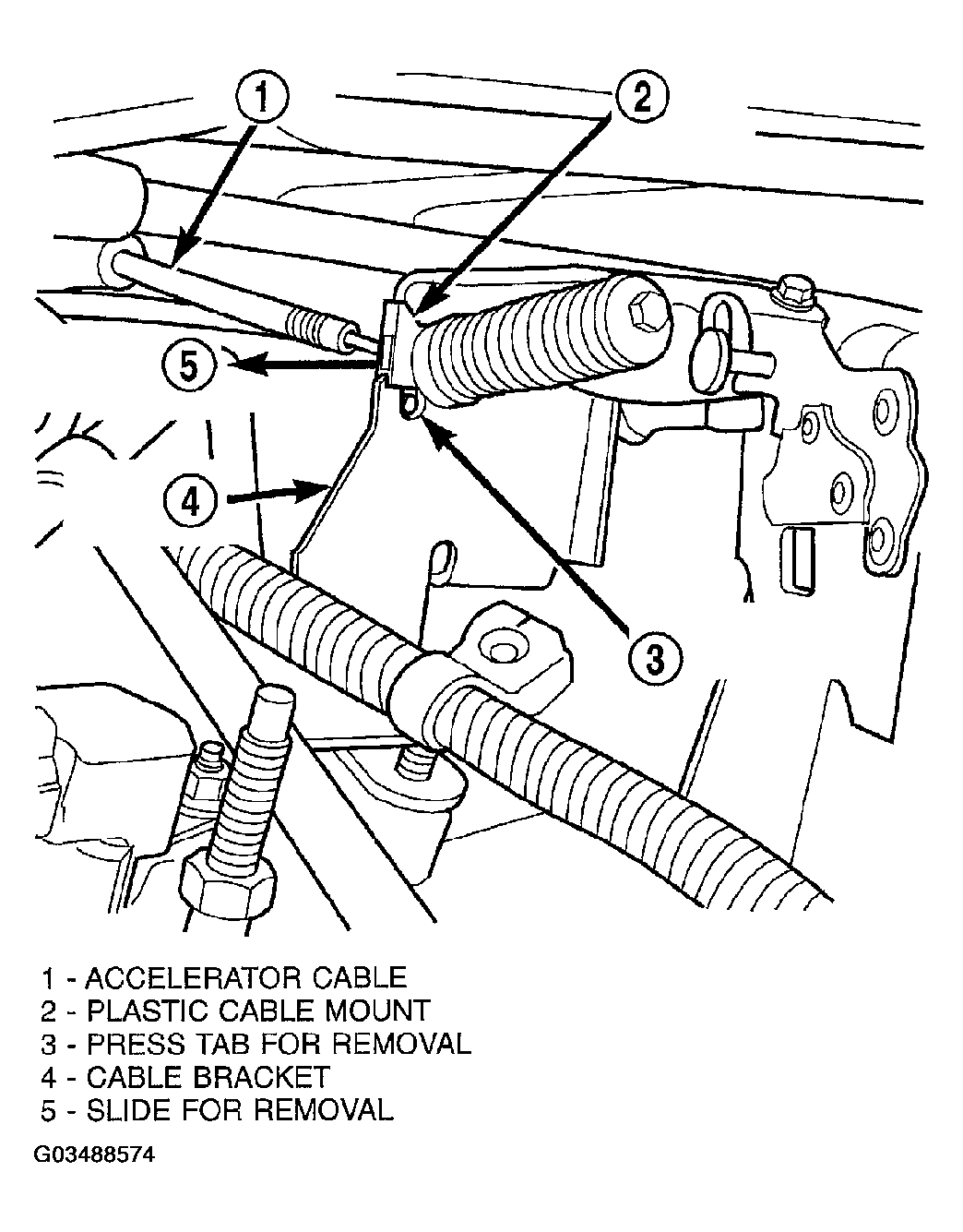

- Slide accelerator cable plastic mount into bracket. Continue sliding until tab ( Figure ) is aligned to hole in mounting bracket.
- Route accelerator cable over top of cable cam ( Figure ).
- Install accelerator cable connector onto throttle body bellcrank pin (snaps on).
- Install air box housing to throttle body.
- Connect negative battery cable at battery.
- Before starting engine, operate accelerator pedal to check for any binding.
