Park/Turn Signal Lamp: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the park and turn signal lamp.
  3. Rotate bulb socket 1/4 turn counterclockwise and remove the turn signal lamp socket from the back of the lamp ( Fig 1 ).

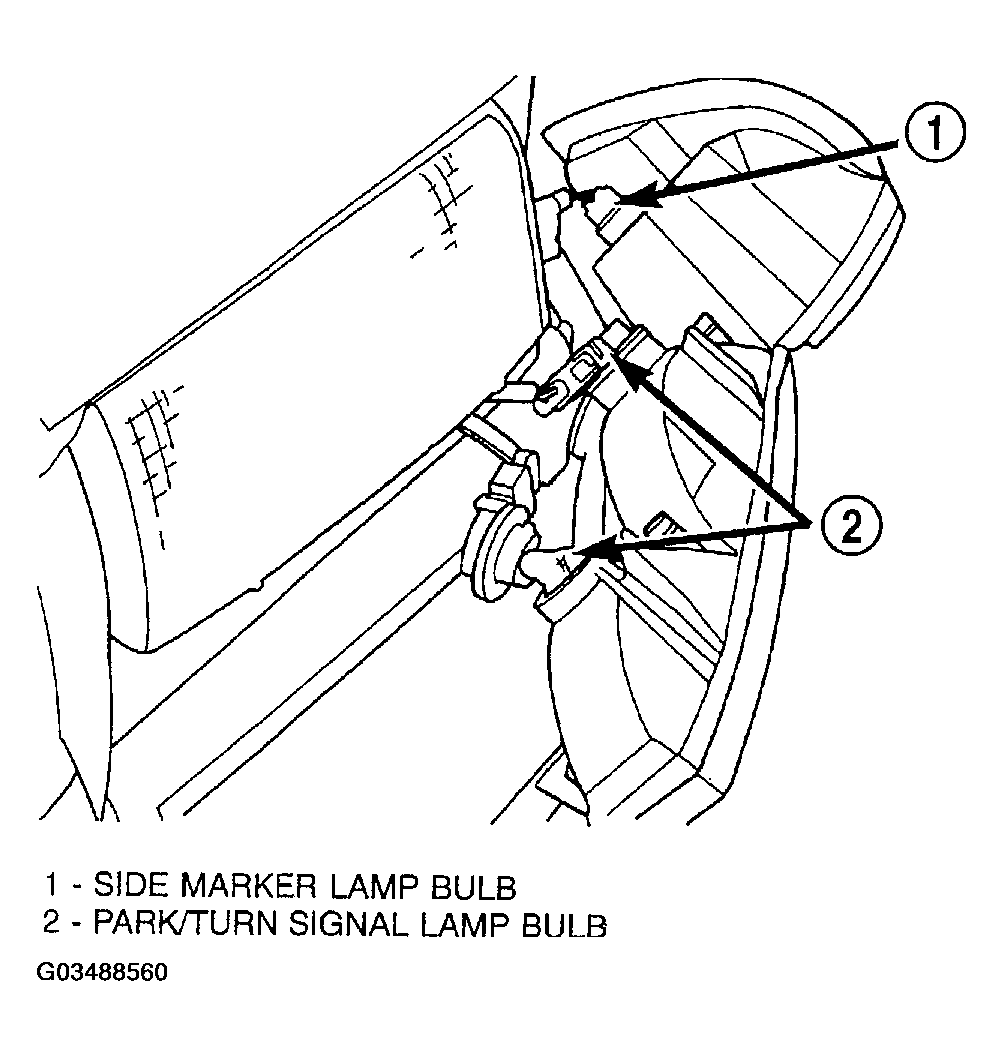

    Fig 1: Removing Park And Turn Signal Lamp Bulb
    G03488560Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove the park and turn signal lamp bulb from the socket.
