Diagnosis And Testing - Headlamp Switch: Notes
WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
ON VEHICLES EQUIPPED WITH AIRBAGS, REFER TO AIR BAG RESTRAINT SYSTEMS
BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.
- Remove the headlamp switch. (Refer to REMOVAL ).

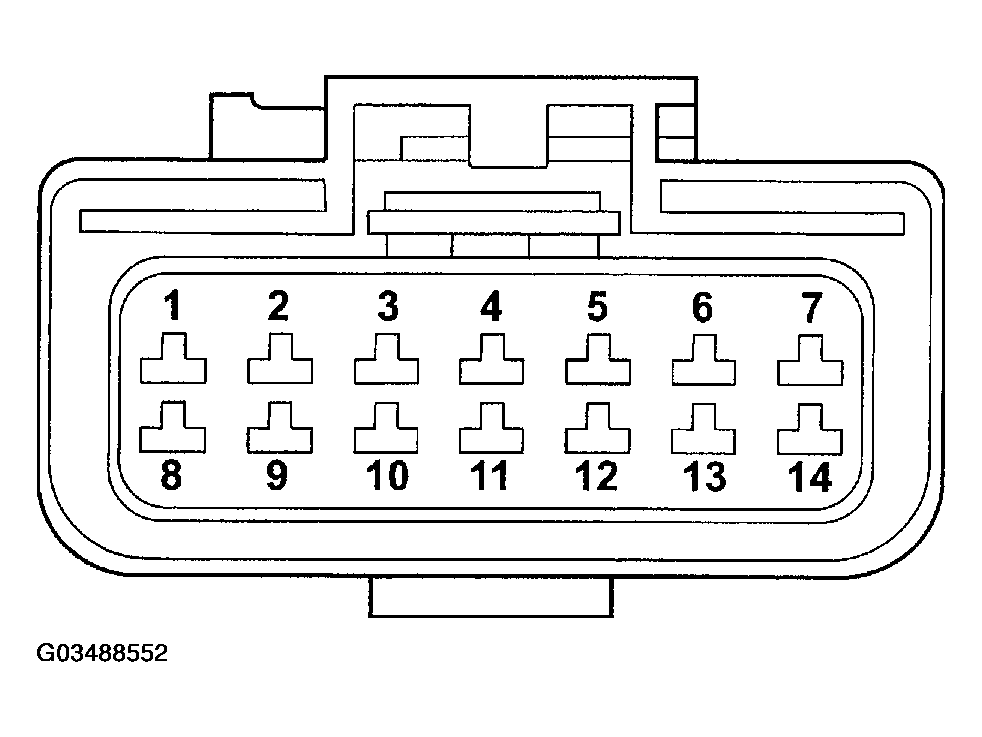

- Using an ohmmeter, test for continuity between the terminals of the switch as shown in the Headlamp Switch Continuity table ( Fig 1 ).
- If test results are not obtained as shown in the Headlamp Switch Continuity table, replace the headlamp switch.
For circuit descriptions and diagrams, refer to SYSTEM WIRING DIAGRAMS .
