Spark Plug Overheating

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Overheating is indicated by a white or gray center electrode insulator that also appears blistered ( Fig 1 ). The increase in electrode gap will be considerably in excess of 0.001 inch per 2000 miles of operation. This suggests that a plug with a cooler heat range rating should be used. Over advanced ignition timing, detonation and cooling system malfunctions can also cause spark plug overheating.

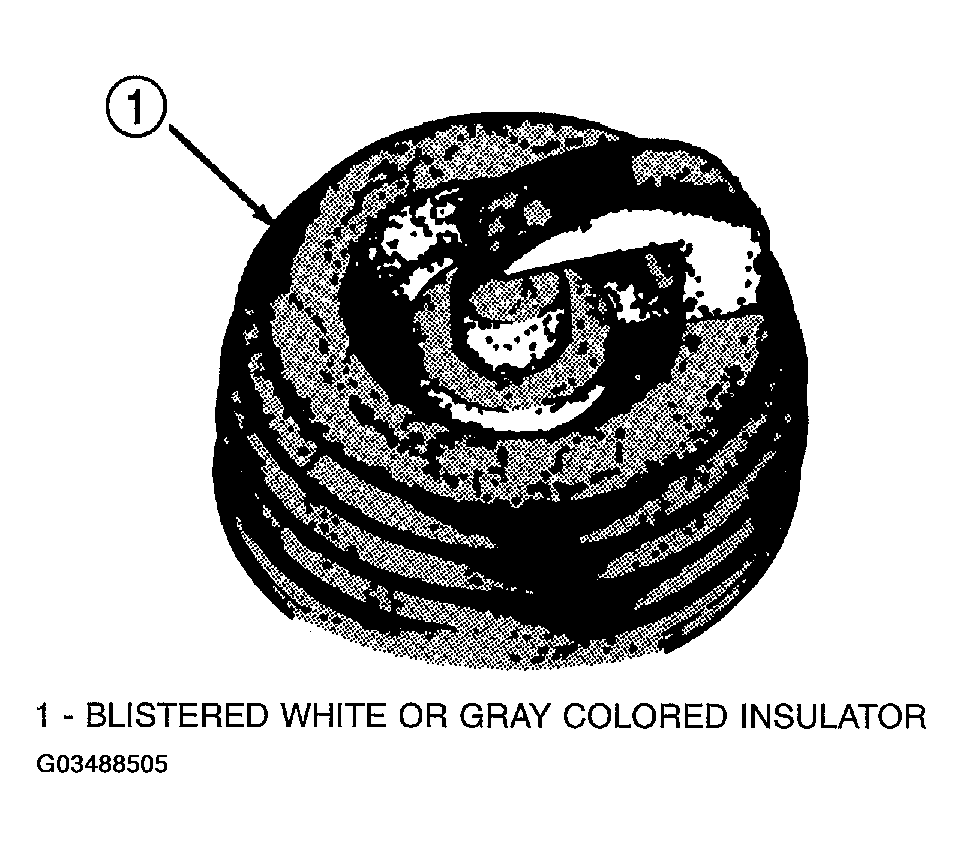

Fig 1: Identifying Spark Plug Overheating
G03488505Courtesy of DAIMLERCHRYSLER CORP.
