Electrode Gap Bridging

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Electrode gap bridging may be traced to loose deposits in the combustion chamber. These deposits accumulate on the spark plugs during continuous stop-and-go driving. When the engine is suddenly subjected to a high torque load, deposits partially liquefy and bridge the gap between electrodes ( Fig 1 ). This short circuits the electrodes. Spark plugs with electrode gap bridging can be cleaned using standard procedures.

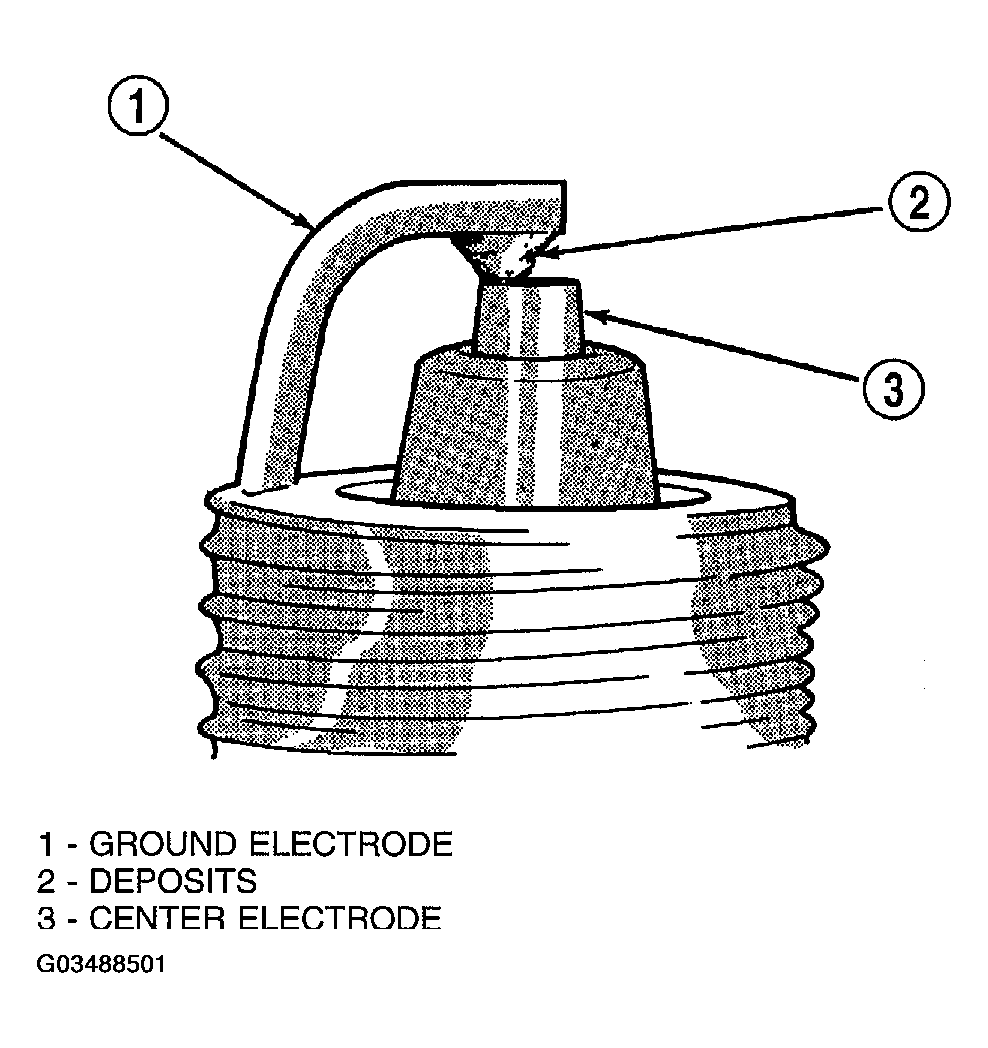

Fig 1: Identifying Electrode Gap Bridging
G03488501Courtesy of DAIMLERCHRYSLER CORP.
