Description - 4.7L

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

The 4.7L V-8 engine uses 8 dedicated, and individually fired coil ( Fig 1 ) for each spark plug. Each coil is mounted directly to the top of each spark plug ( Fig 2 ).

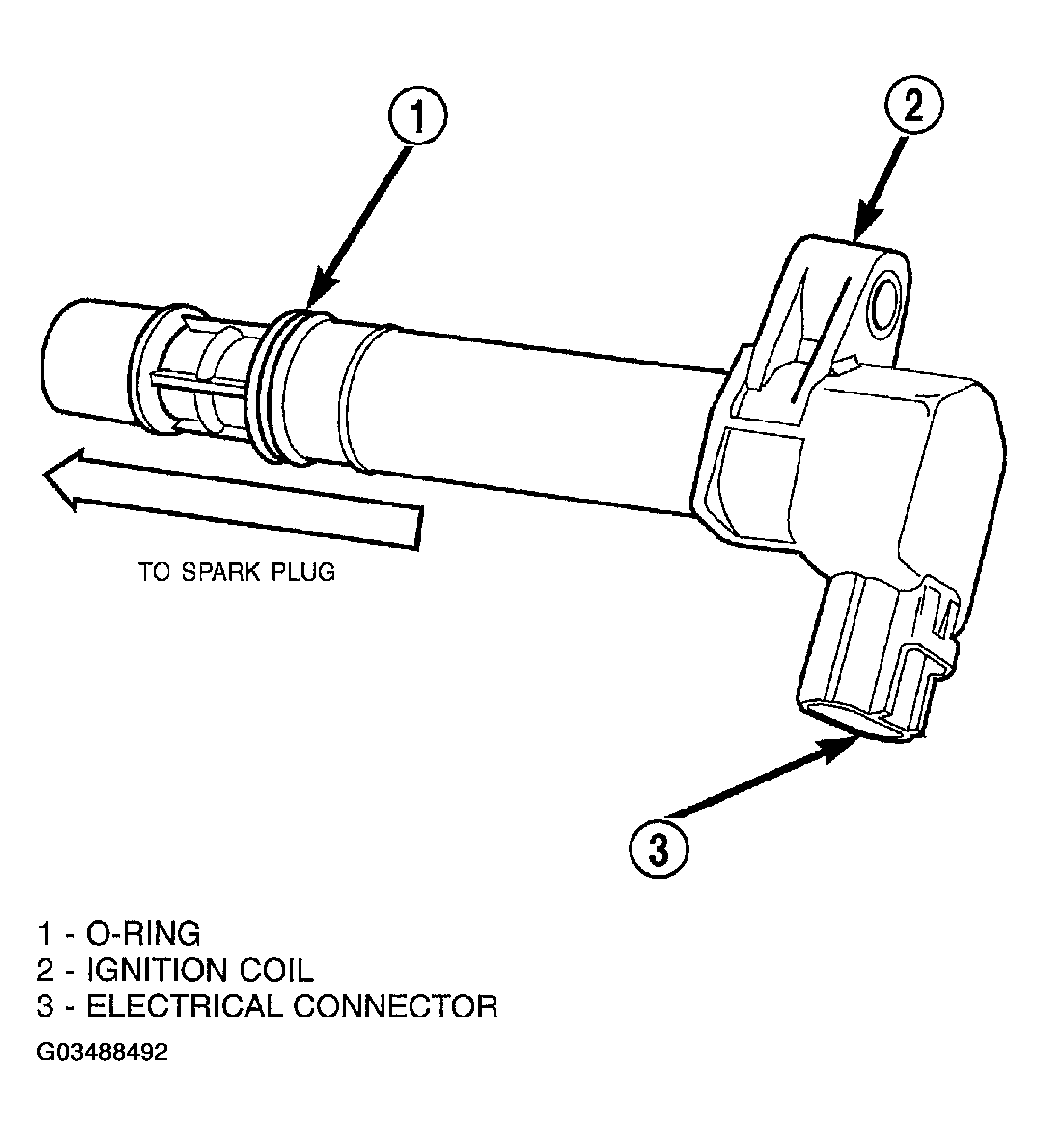

Fig 1: Identifying Ignition Coil-4.7L Engine

Courtesy of DAIMLERCHRYSLER CORP.

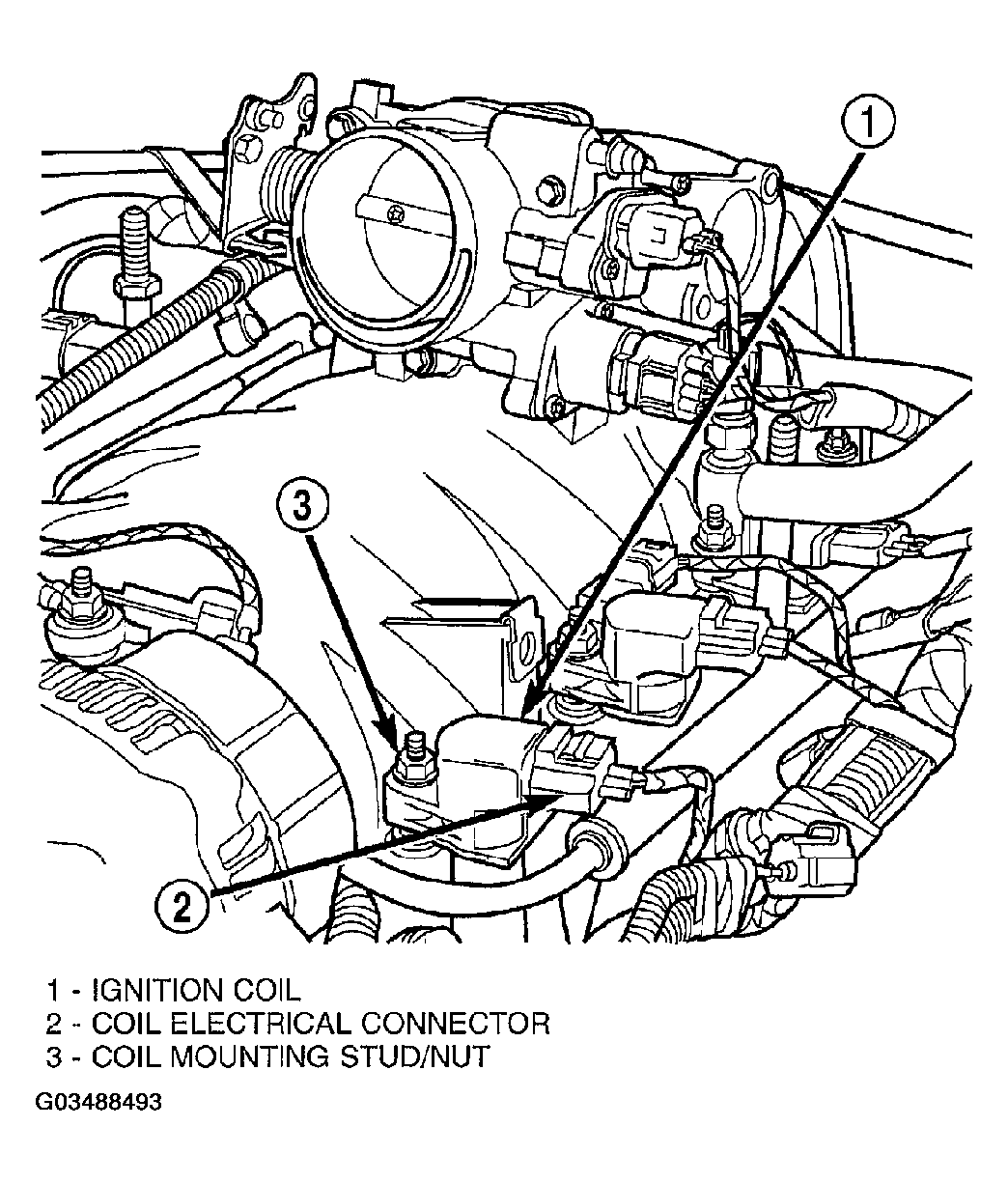

Fig 2: Identifying Ignition Coil Location-4.7L Engine

Courtesy of DAIMLERCHRYSLER CORP.
