Description - 3.7L
WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

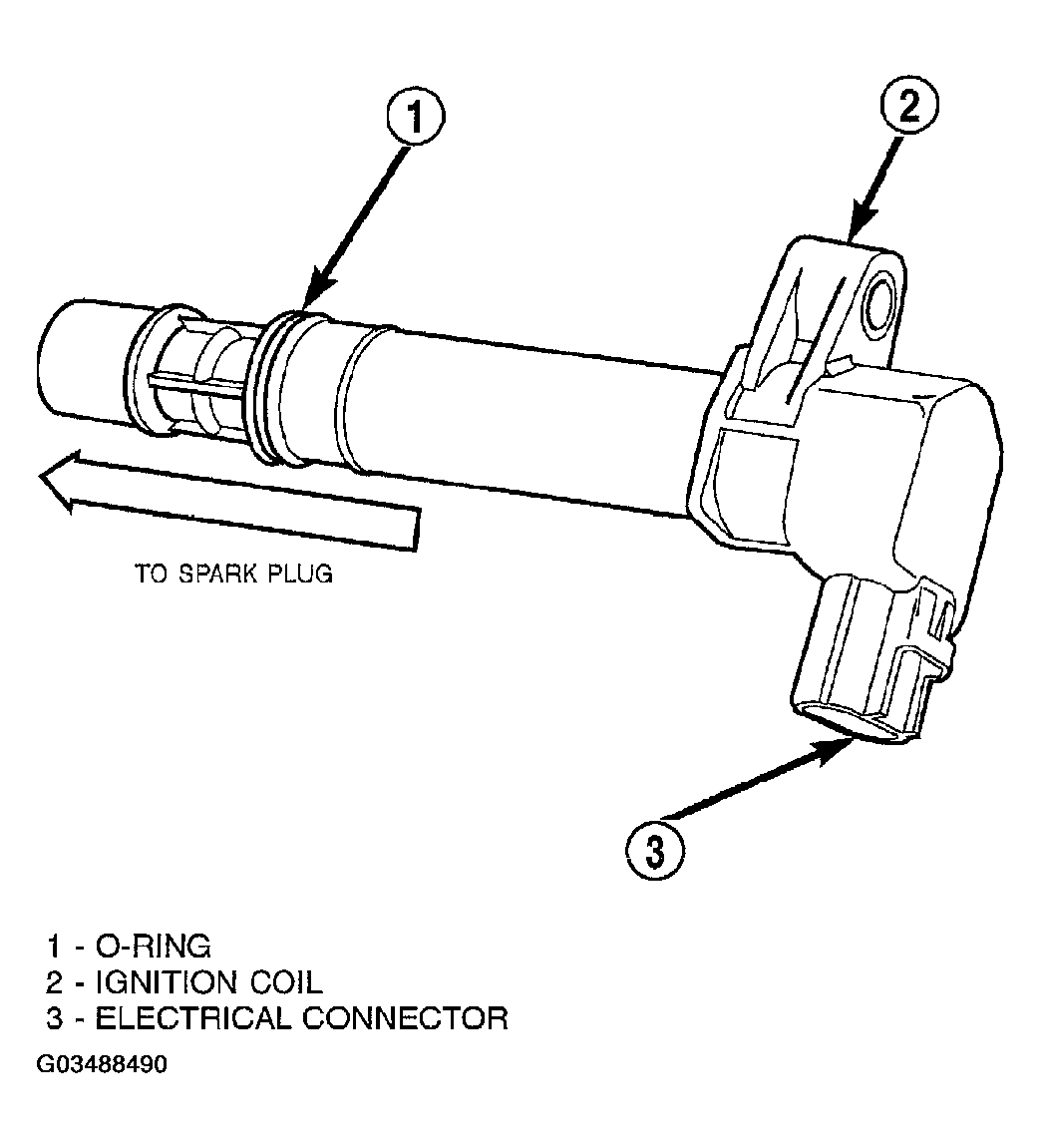

The 3.7L V-6 engine uses 6 dedicated, and individually fired coil for each spark plug ( Fig 1

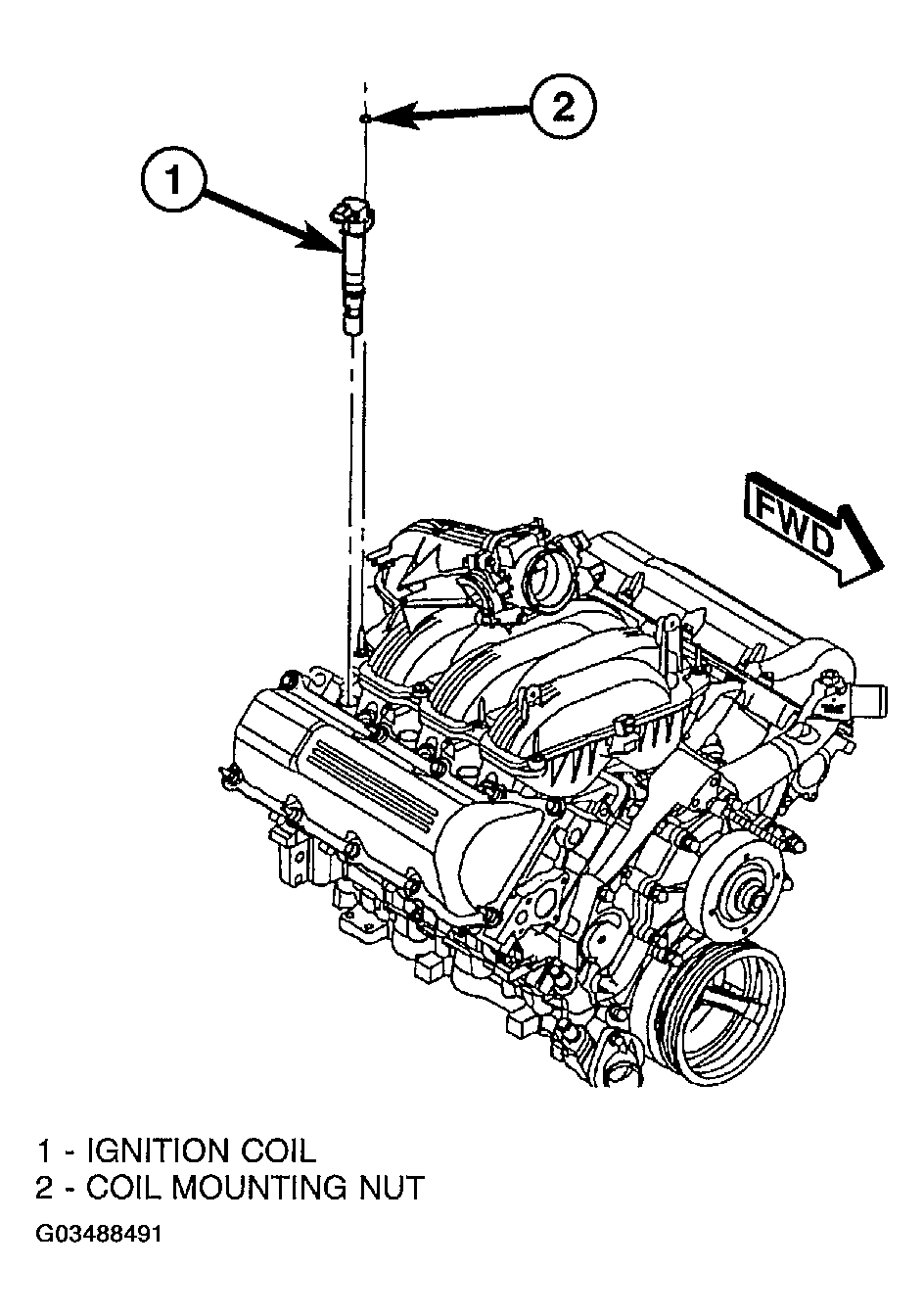

). Each coil is mounted directly into the cylinder head and onto the top of each spark plug ( Fig 2
).
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
