Description - 4.7L

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

The Camshaft Position Sensor (CMP) on the 4.7L V-8 engine is bolted to the front/top of the right cylinder head ( Fig 1 ).

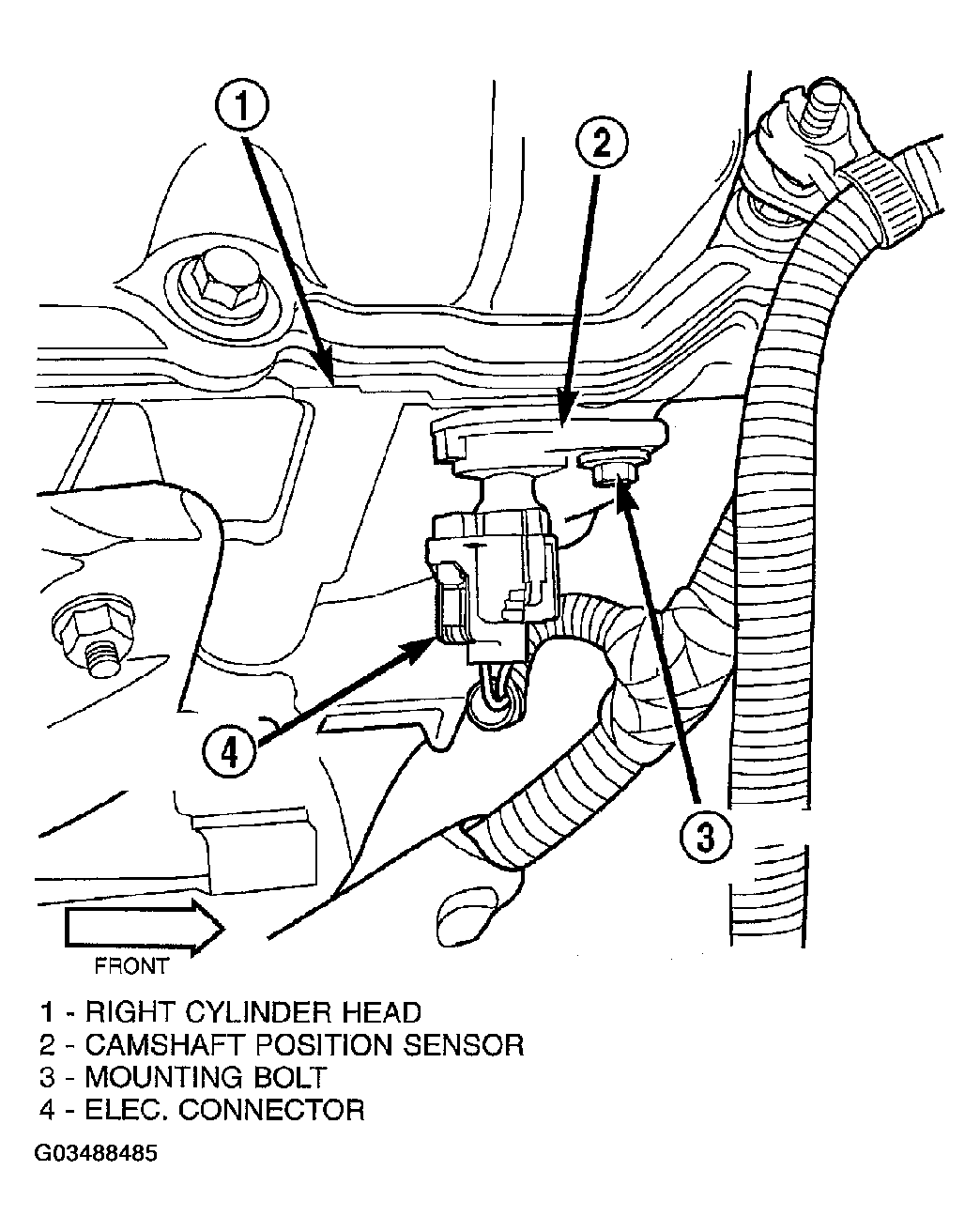

Fig 1: Identifying Camshaft Position Sensor - 4.7L

Courtesy of DAIMLERCHRYSLER CORP.
