Radiator Fan - Electric: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

If the fan blade is bent, warped, cracked or damaged in any way, it must be replaced only with a replacement fan blade. Do not attempt to repair a damaged fan blade.

Disconnect battery negative cable.

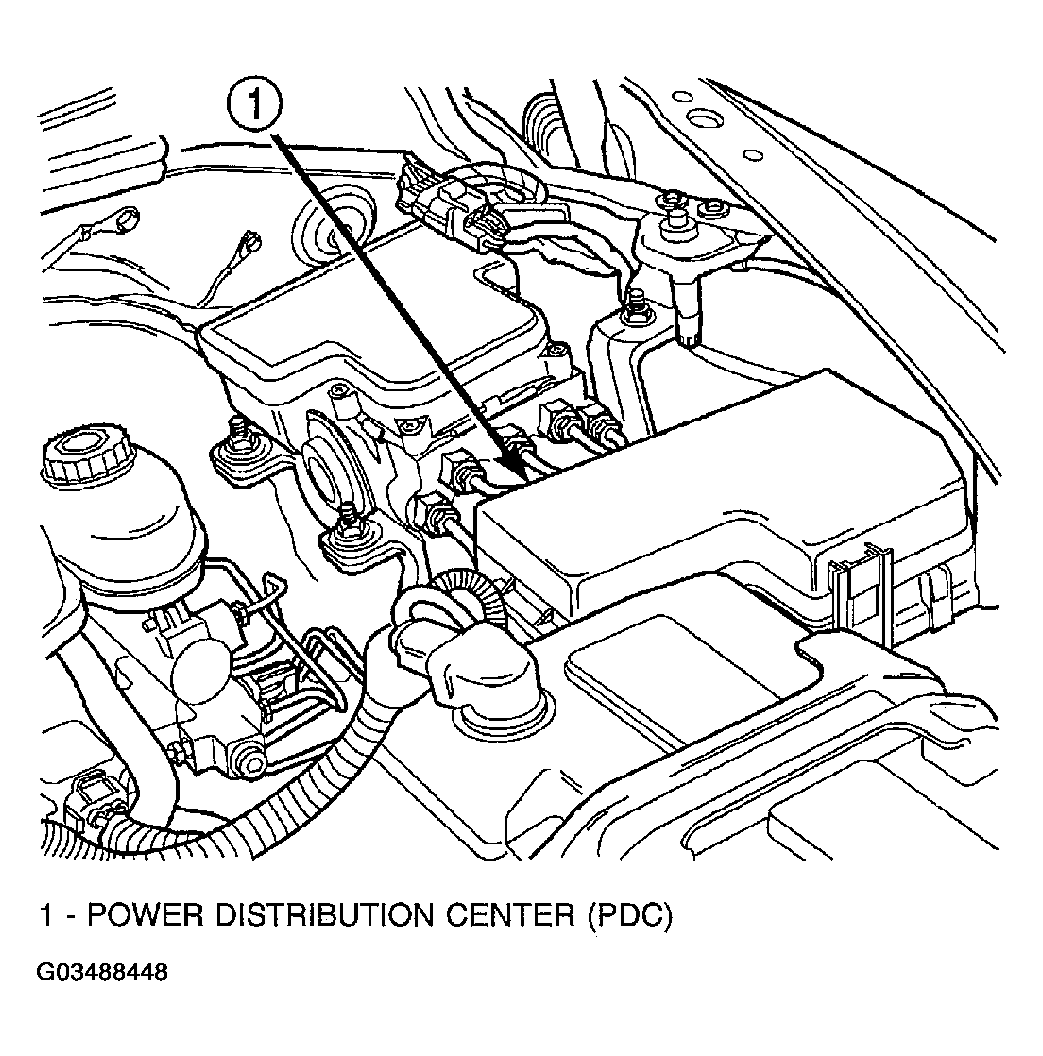

Fig 1: Identifying Power Distribution Center (PDC)
Courtesy of DAIMLERCHRYSLER CORP.

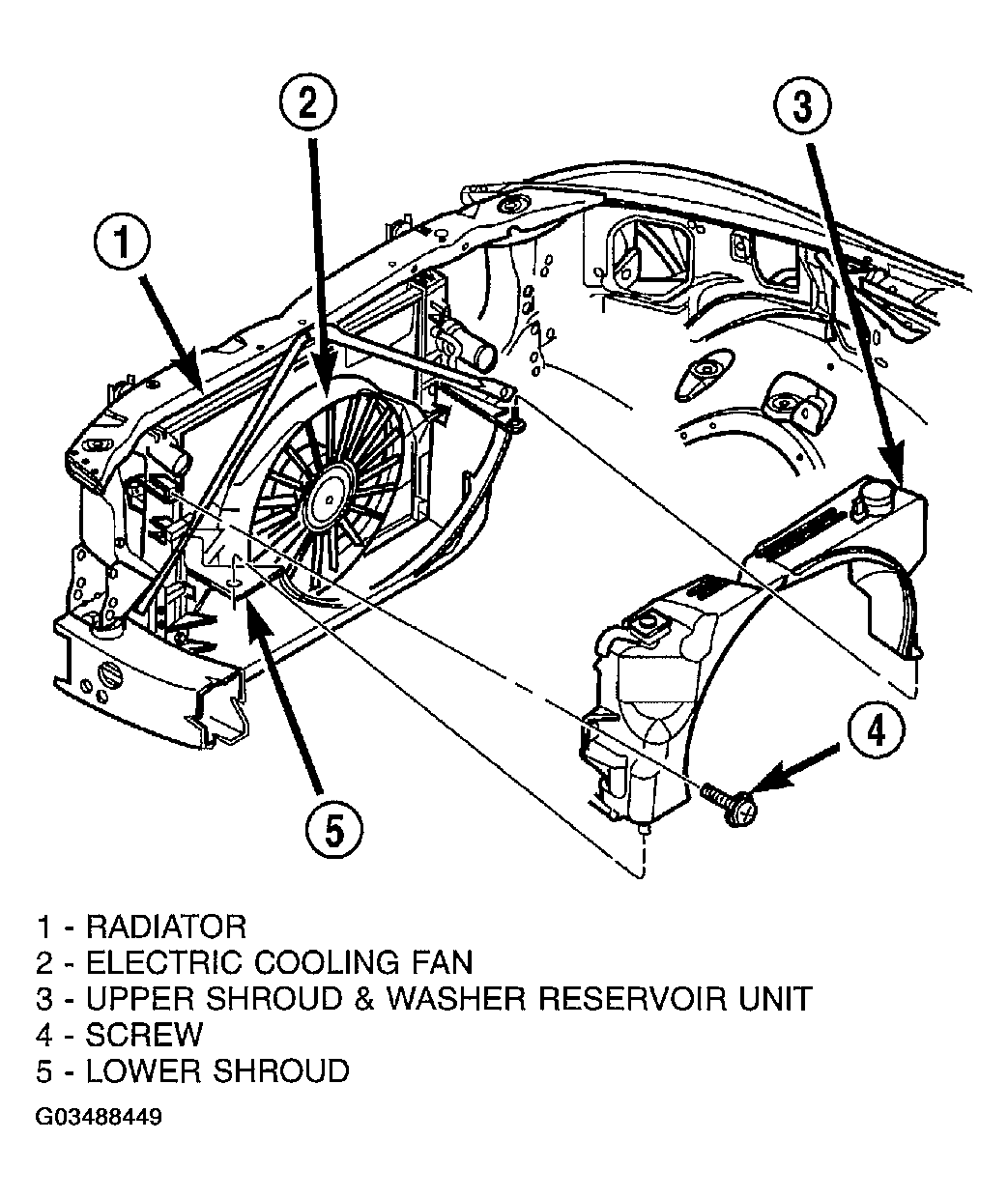

Fig 2: Identifying Fan Shroud Components - Typical
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect fan motor wire connector.
Remove the two fan shroud mounting clips connecting the upper part of fan shroud to the radiator ( Fig 2).
Remove fan assembly from radiator.
