Fan Drive Viscous Clutch: Installation

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

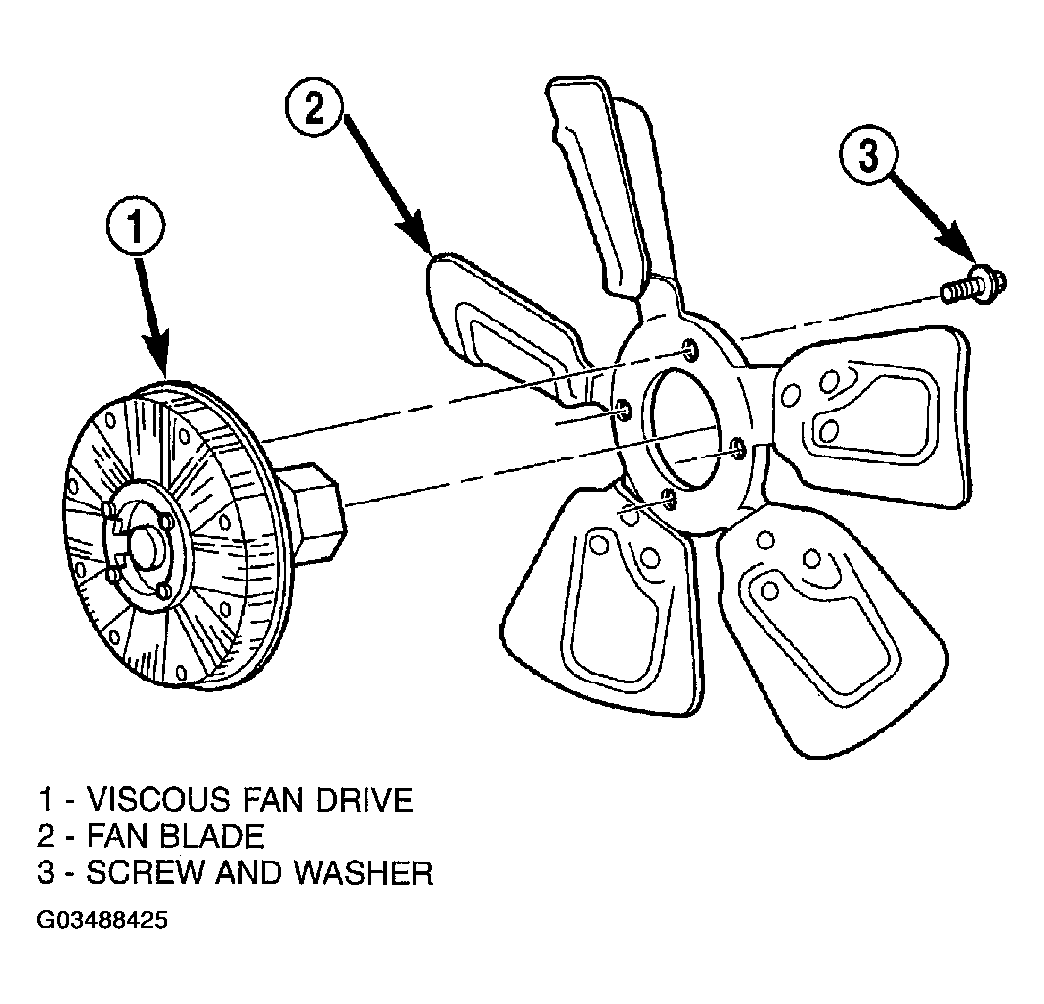

  1. Install fan blade assembly to viscous fan drive. Tighten bolts ( Figure) to 23 N.m (17 ft. lbs.) torque.
  2. Position fan blade/viscous fan drive assembly and upper shroud into vehicle.
  3. Install fan shroud retaining screws ( Fig 1).

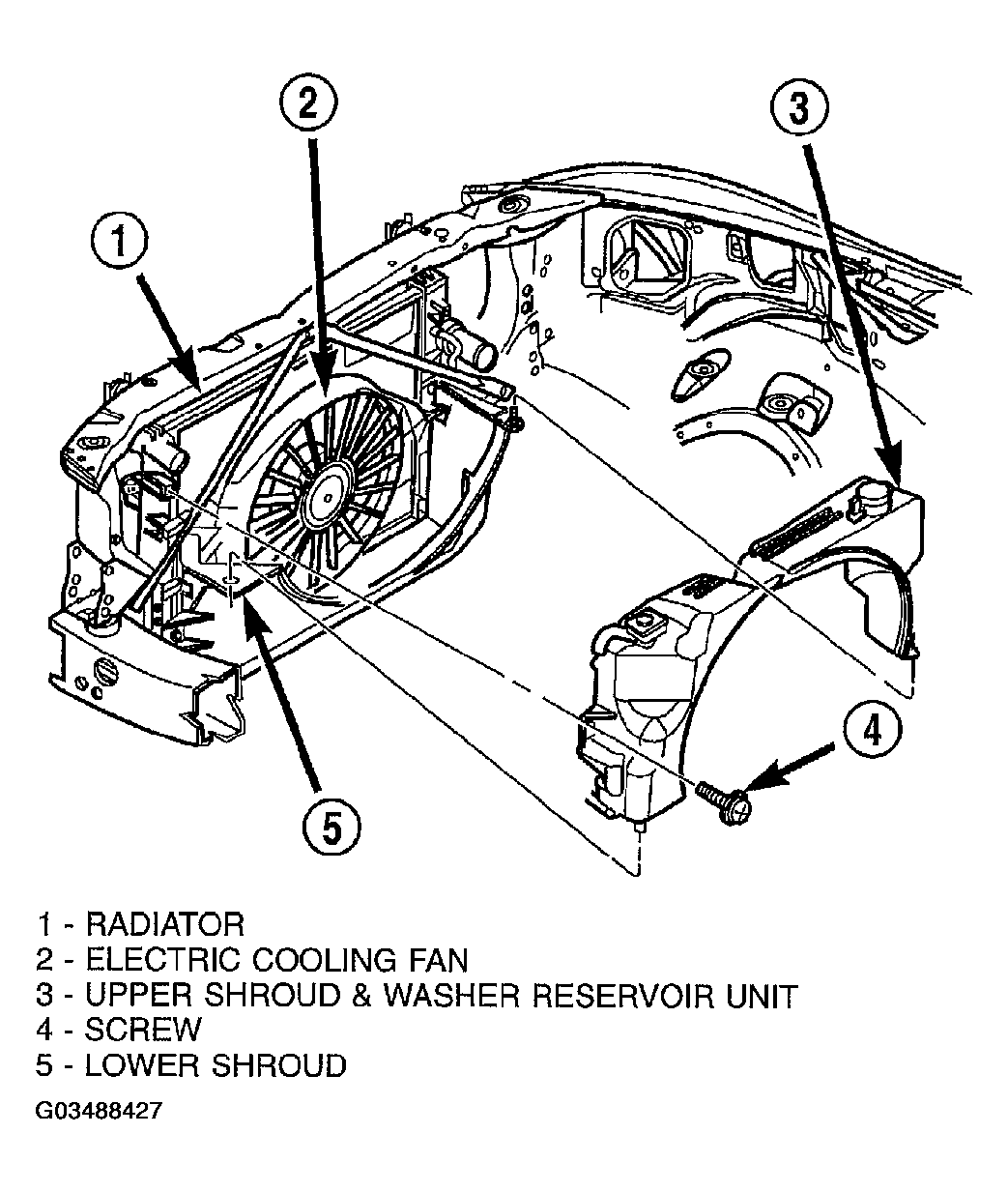

    Fig 1: Identifying Upper Fan Shroud Components
    G03488427Courtesy of DAIMLERCHRYSLER CORP.

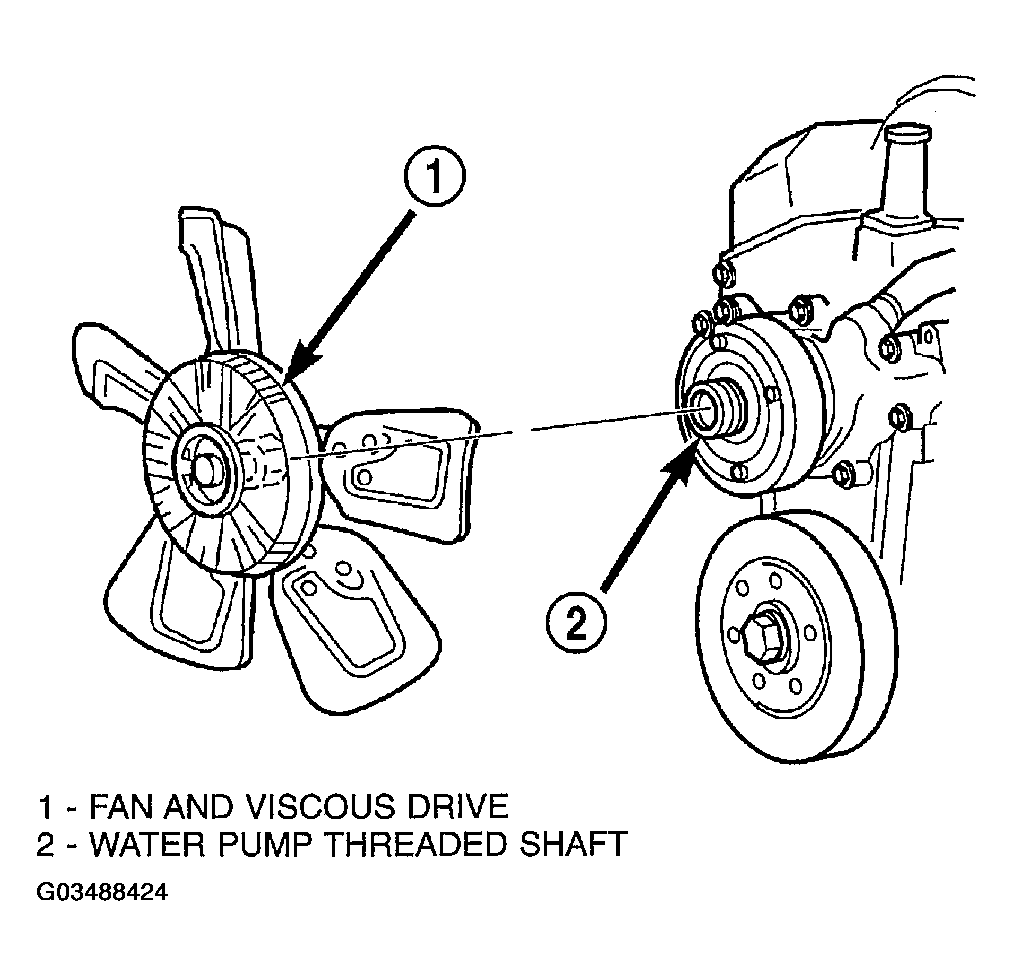

  4. Install fan blade/viscous fan drive assembly to water pump shaft ( Figure).
  5. Connect battery negative cable.
