Engine Coolant Temperature Sensor: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: HOT, PRESSURIZED COOLANT CAN CAUSE INJURY BY SCALDING/COOLING SYSTEM MUST BE PARTIALLY DRAINED BEFORE REMOVING THE ENGINE COOLANT TEMPERATURE (ECT) SENSOR.

The ECT sensor is located near the front of the intake manifold ( Fig 1).

Partially drain cooling system (Refer to STANDARD PROCEDURE - DRAINING COOLING SYSTEM ).
Disconnect electrical connector from ECT sensor.
Remove sensor from intake manifold.

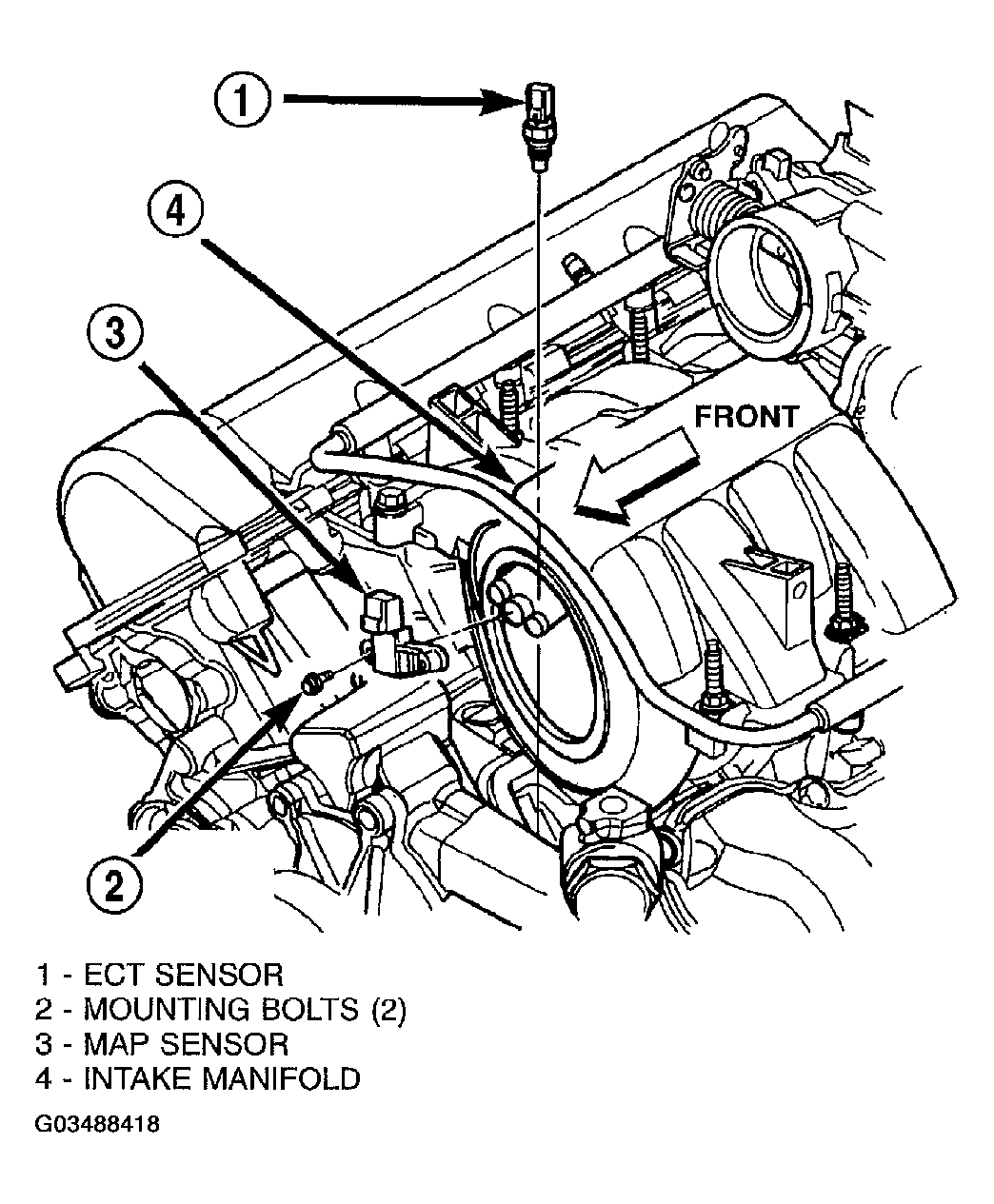

Fig 1: Removing Engine Coolant Temperature Sensor From Intake Manifold
Courtesy of DAIMLERCHRYSLER CORP.
