Description - Hose Clamps

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

The cooling system utilizes both worm drive and Spring type hose clamps. If a spring type clamp replacement is necessary, replace with the original Mopar® equipment spring type clamp.

CAUTION: A number or letter is stamped into the tongue of constant tension clamps. If replacement is necessary, use only a original equipment clamp with matching number or letter ( Fig 1).

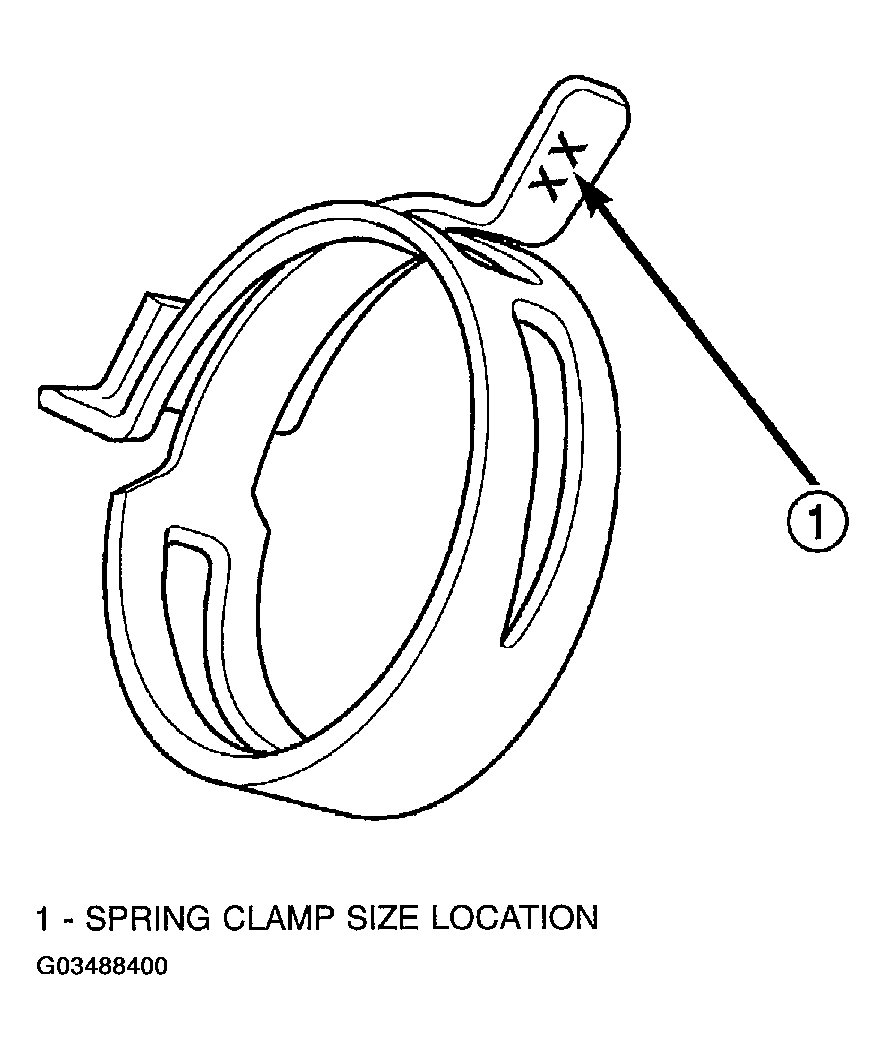

Fig 1: Locating Spring Clamp Size Location
G03488400Courtesy of DAIMLERCHRYSLER CORP.
