EBC 325 - Controller Antilock Brake

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

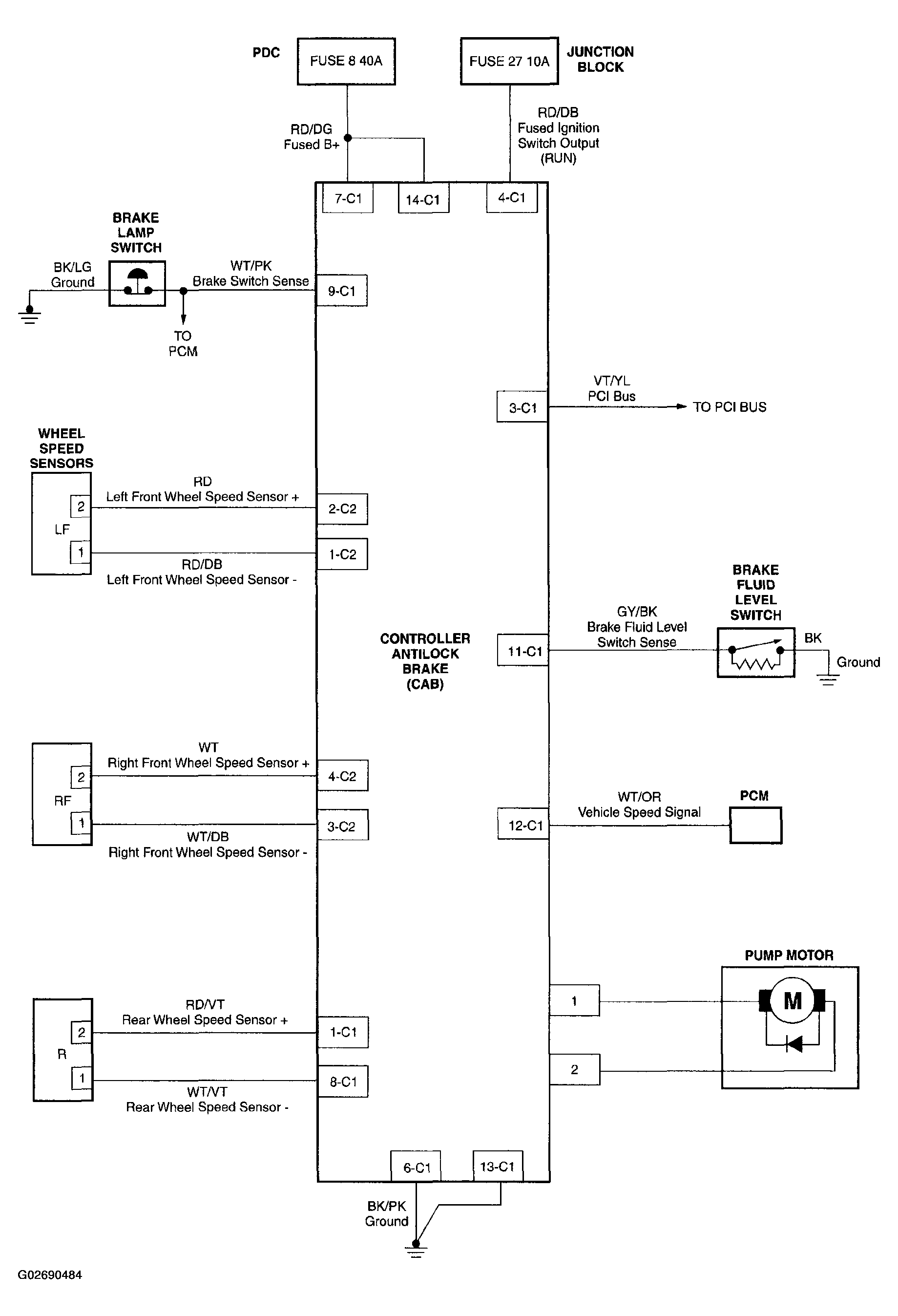

Fig 1: EBC 325 - Controller Antilock Brake Schematic Diagram
G02690484Courtesy of DAIMLERCHRYSLER CORP.
