Diagnostic Procedure

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

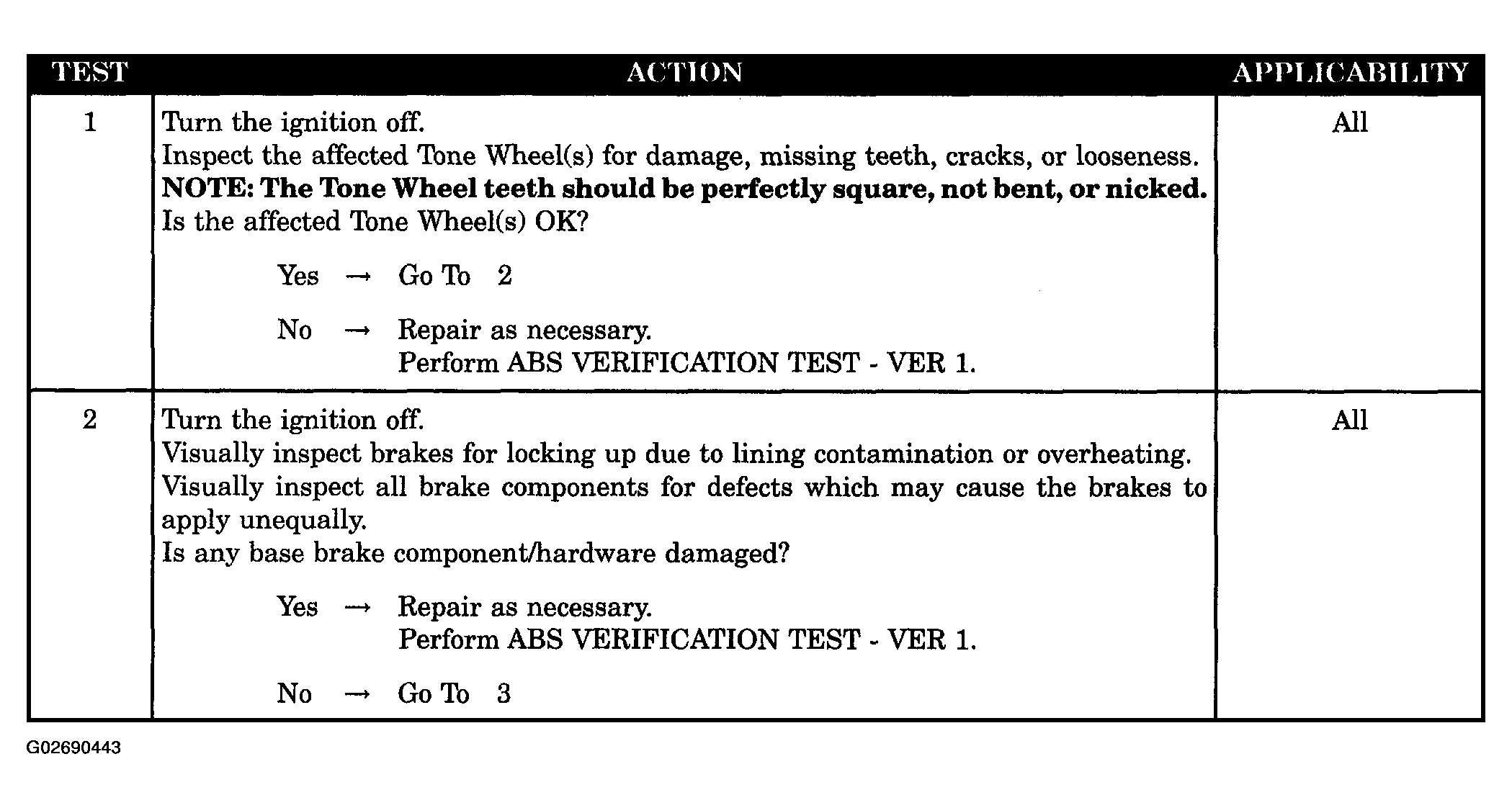

Fig 1: System Control Mode Timeout Diagnostic Procedure (1 Of 3)
G02690443Courtesy of DAIMLERCHRYSLER CORP.

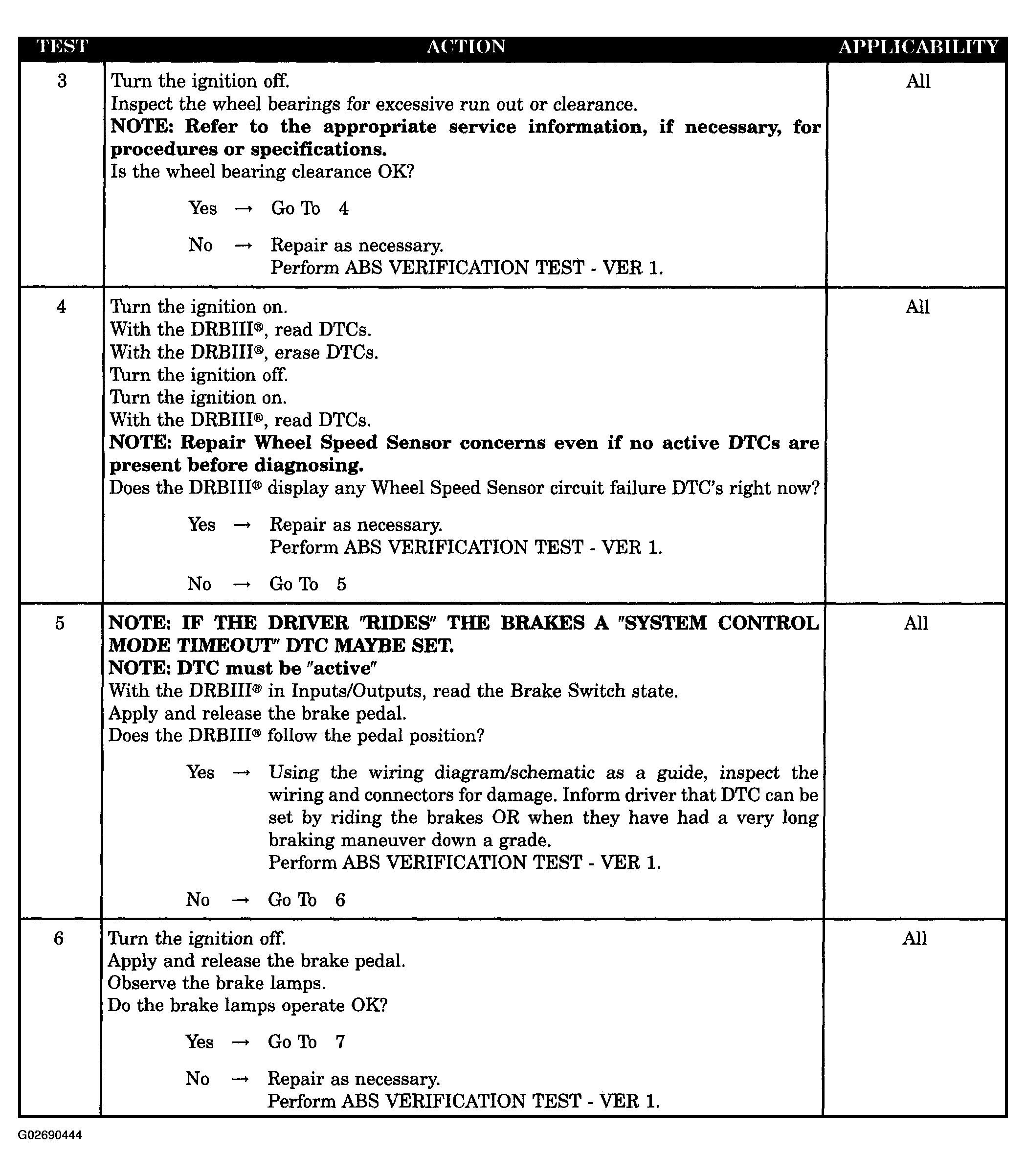

Fig 2: System Control Mode Timeout Diagnostic Procedure (2 Of 3)
G02690444Courtesy of DAIMLERCHRYSLER CORP.

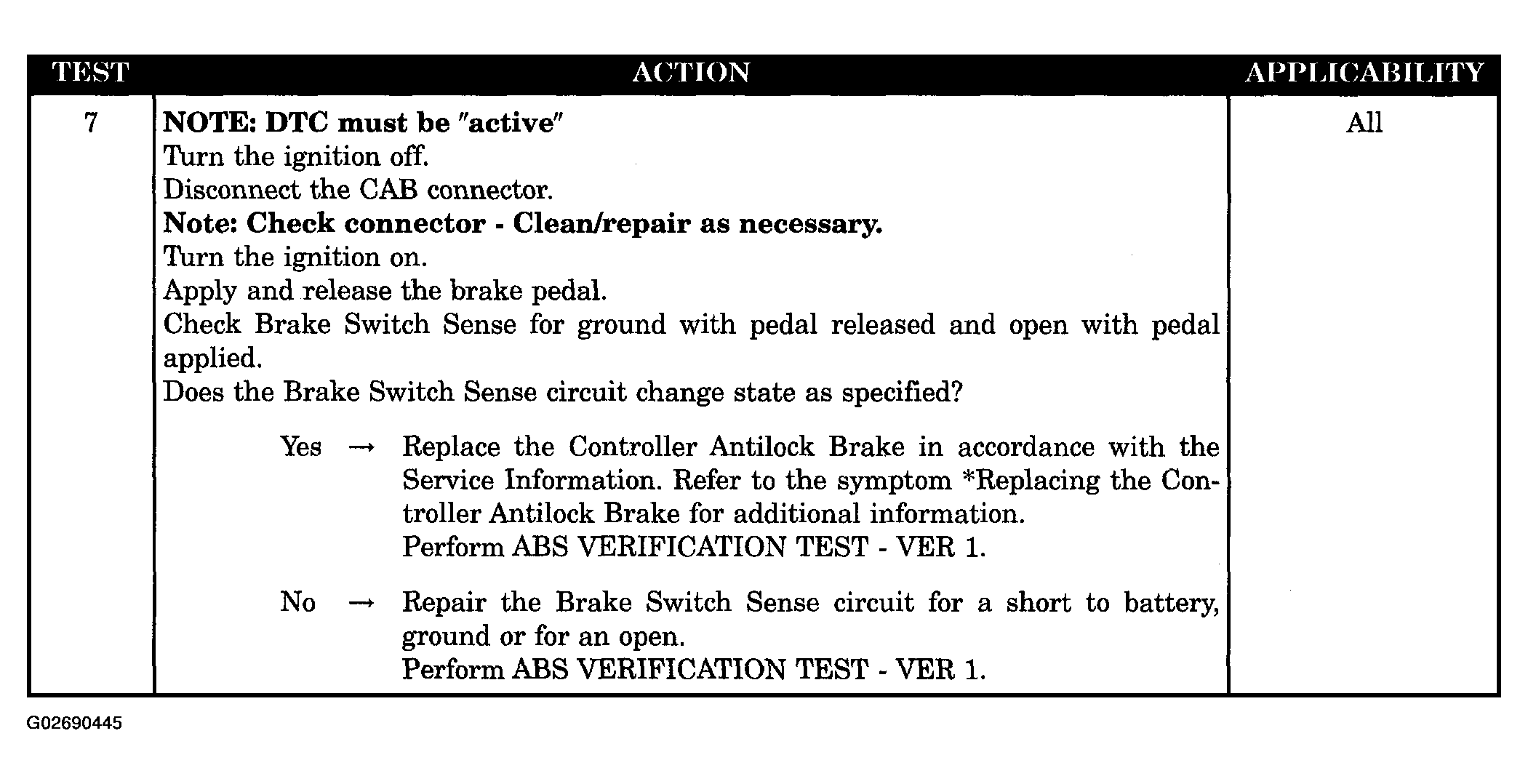

Fig 3: System Control Mode Timeout Diagnostic Procedure (3 Of 3)
G02690445Courtesy of DAIMLERCHRYSLER CORP.
