Diagnostic Procedure

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

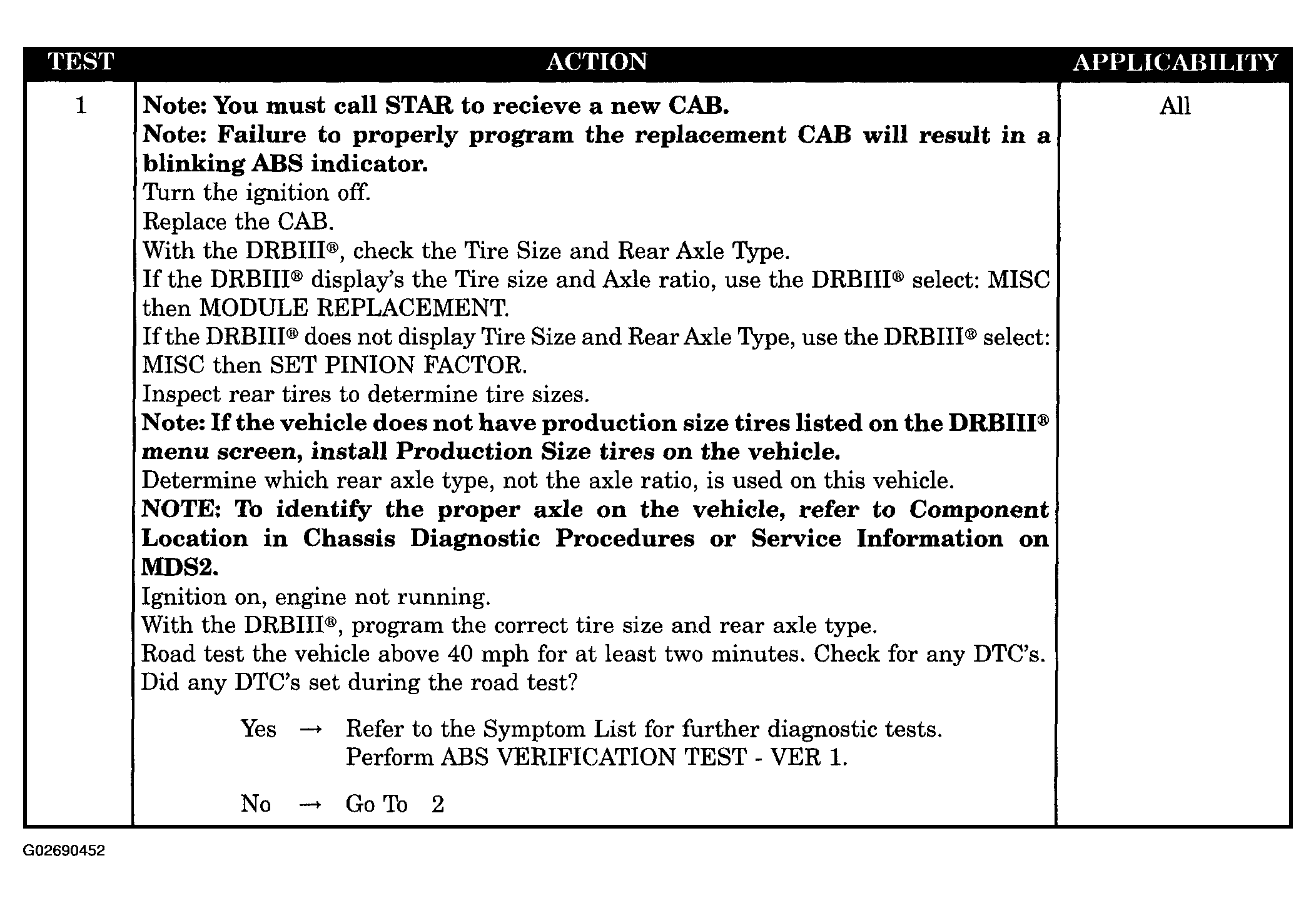

Fig 1: Replacing Controller Antilock Brake Diagnostic Procedure (1 Of 2)
G02690452Courtesy of DAIMLERCHRYSLER CORP.

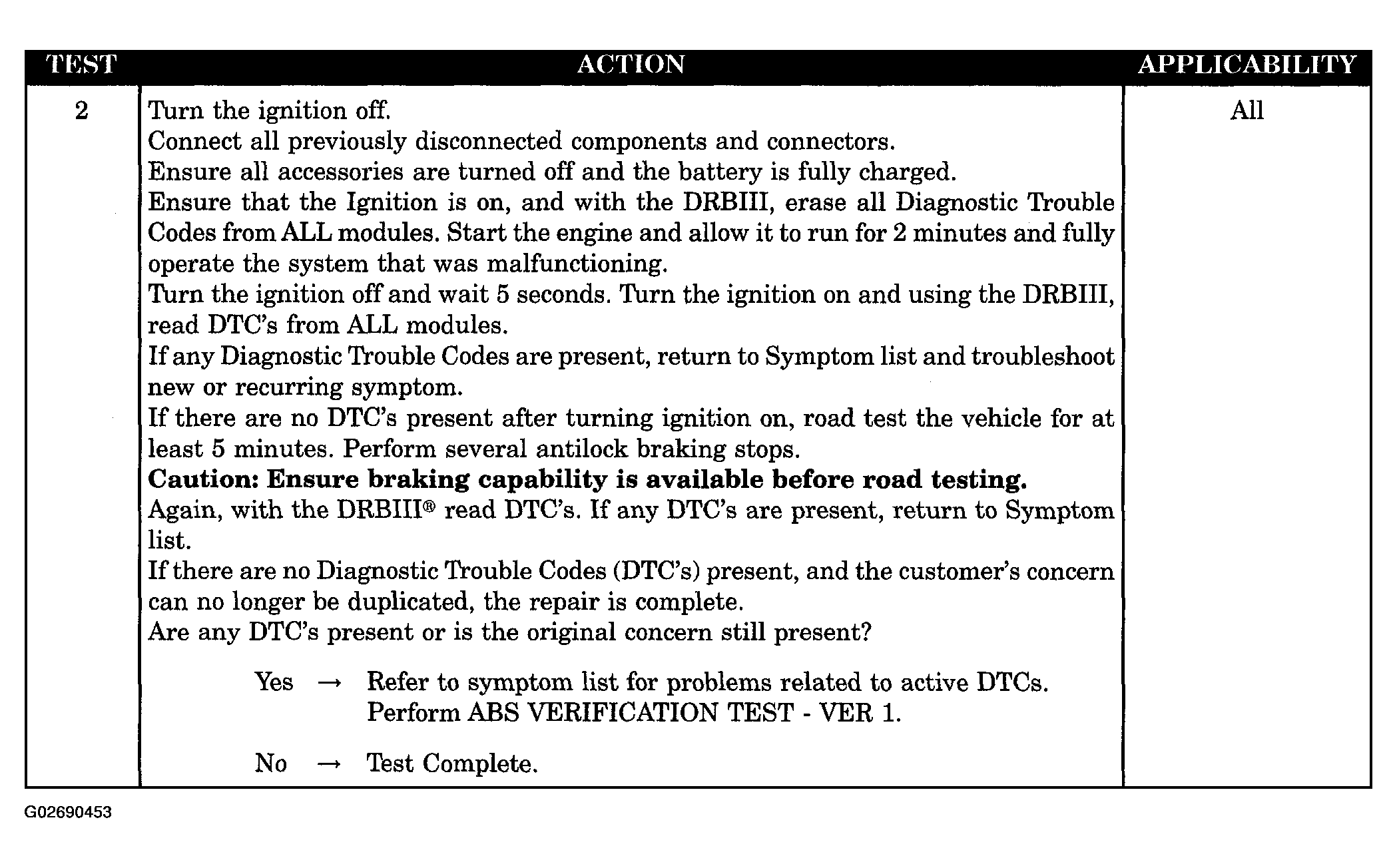

Fig 2: Replacing Controller Antilock Brake Diagnostic Procedure (2 Of 2)
G02690453Courtesy of DAIMLERCHRYSLER CORP.
