Section 77 (Chassis Diagnostic Procedures - Anti-Lock Brake System)
>>
Connector PINOUTS
>>
Rear Wheel Speed Sensor
Rear Wheel Speed Sensor
WARNING:
This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

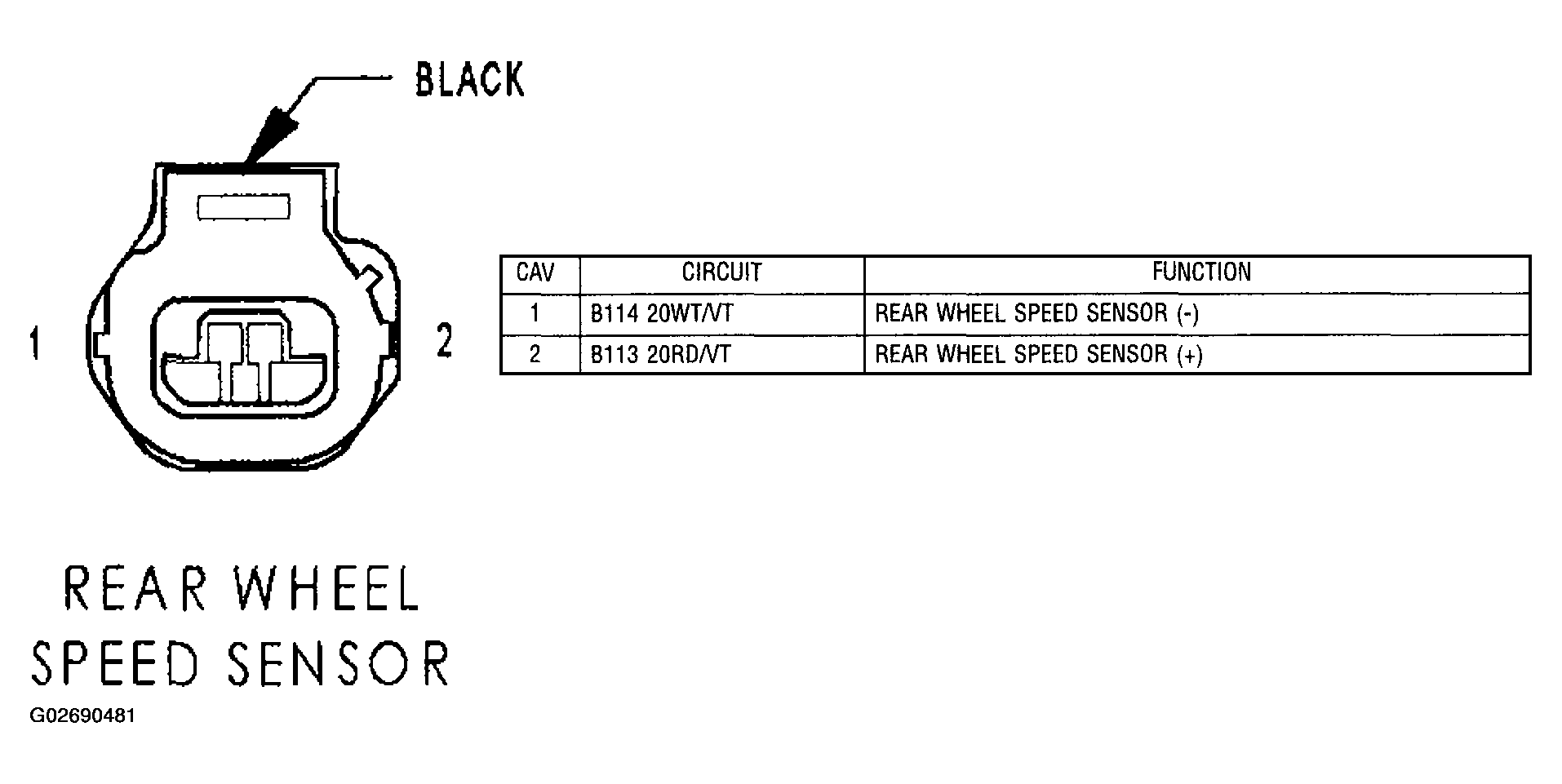

Fig 1: Identifying Rear Wheel Speed Sensor Connector Pinouts
Courtesy of DAIMLERCHRYSLER CORP.
