Brake Lamp Switch

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

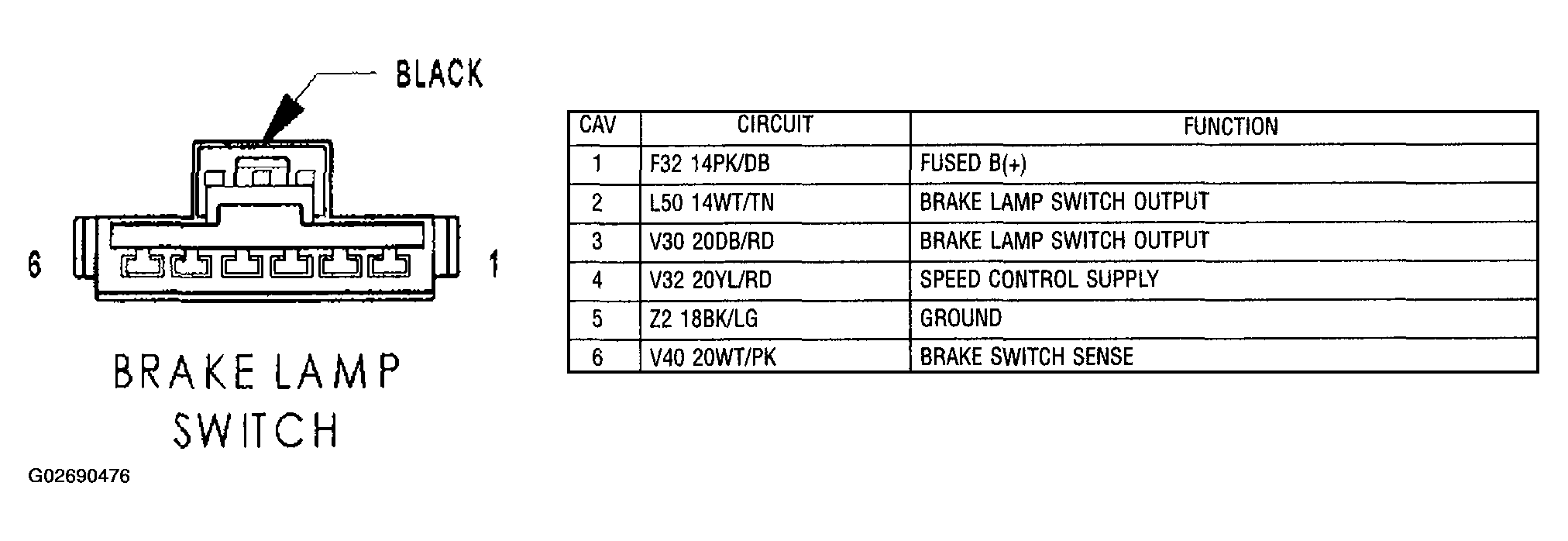

Fig 1: Identifying Brake Lamp Switch Connector Pinouts
G02690476Courtesy of DAIMLERCHRYSLER CORP.
