Wheel Speed Sensors/Tone Wheels: Rear

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

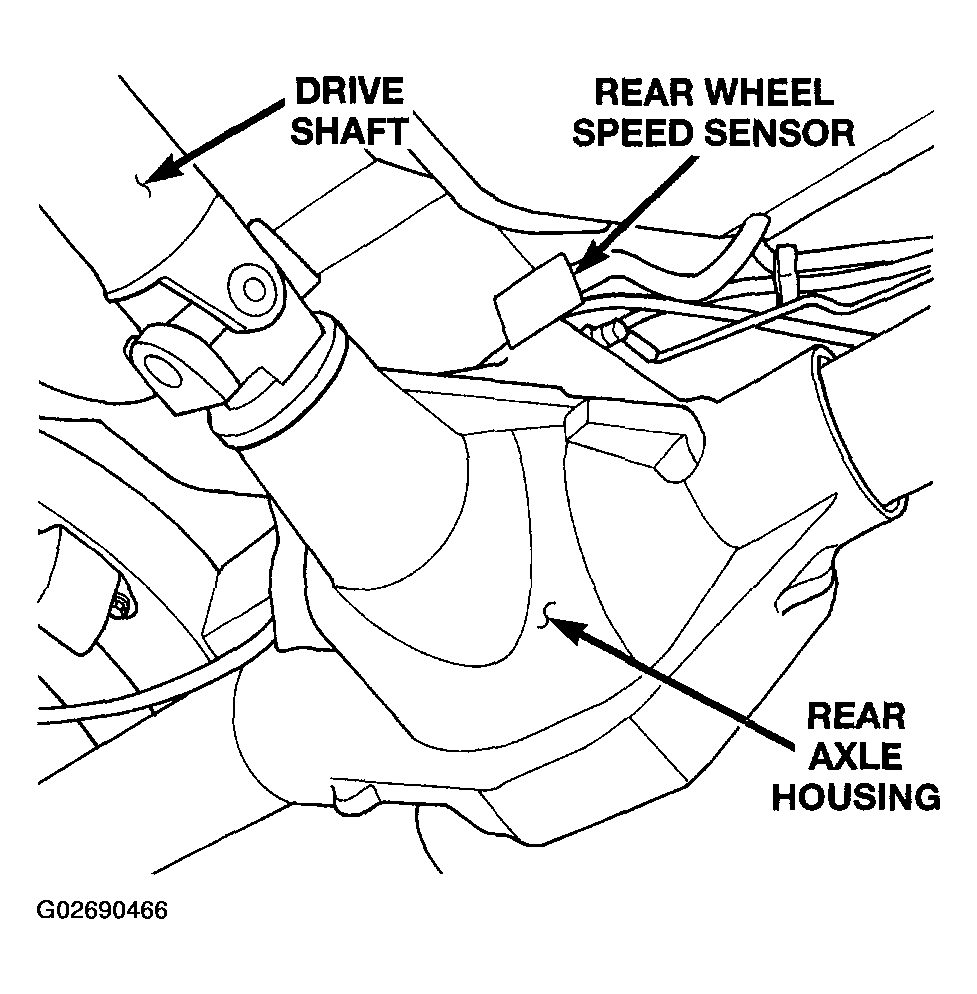

Fig 1: Locating Rear Wheel Speed Sensor
G02690466Courtesy of DAIMLERCHRYSLER CORP.

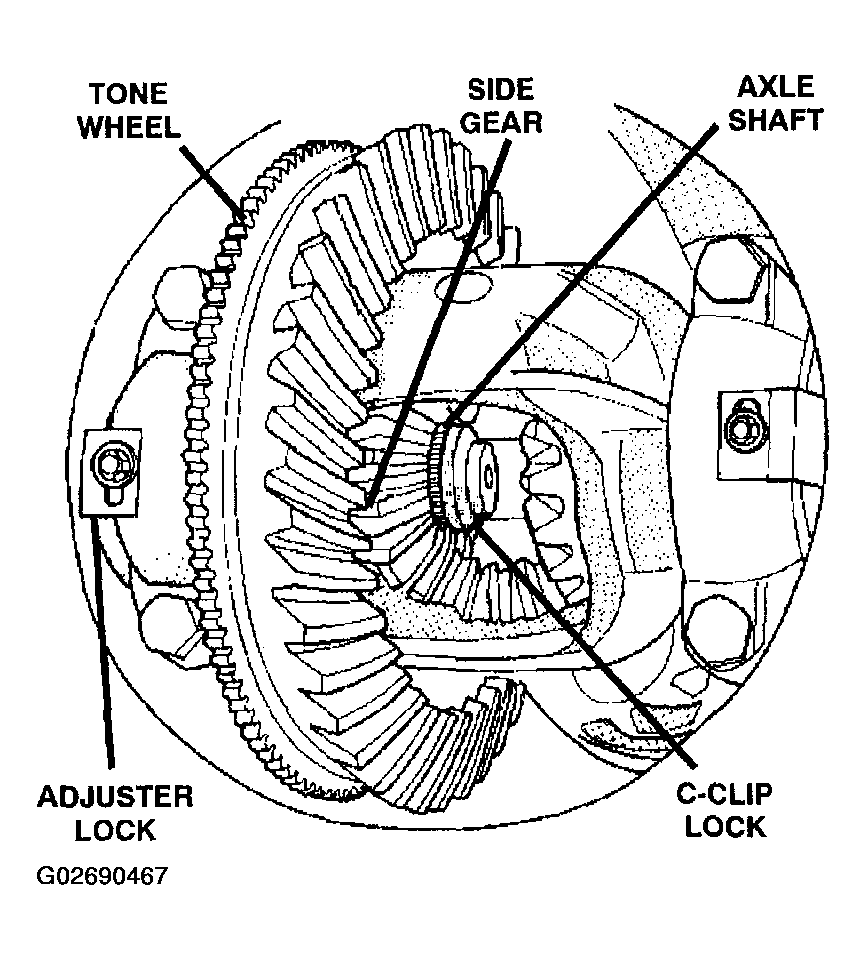

Fig 2: Locating Tone Wheel
G02690467Courtesy of DAIMLERCHRYSLER CORP.
