Section 77 (Chassis Diagnostic Procedures - Anti-Lock Brake System)
>>
Component Locations
>>
Controller Antilock Brake (Cab)
Controller Antilock Brake (Cab)
WARNING:
This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

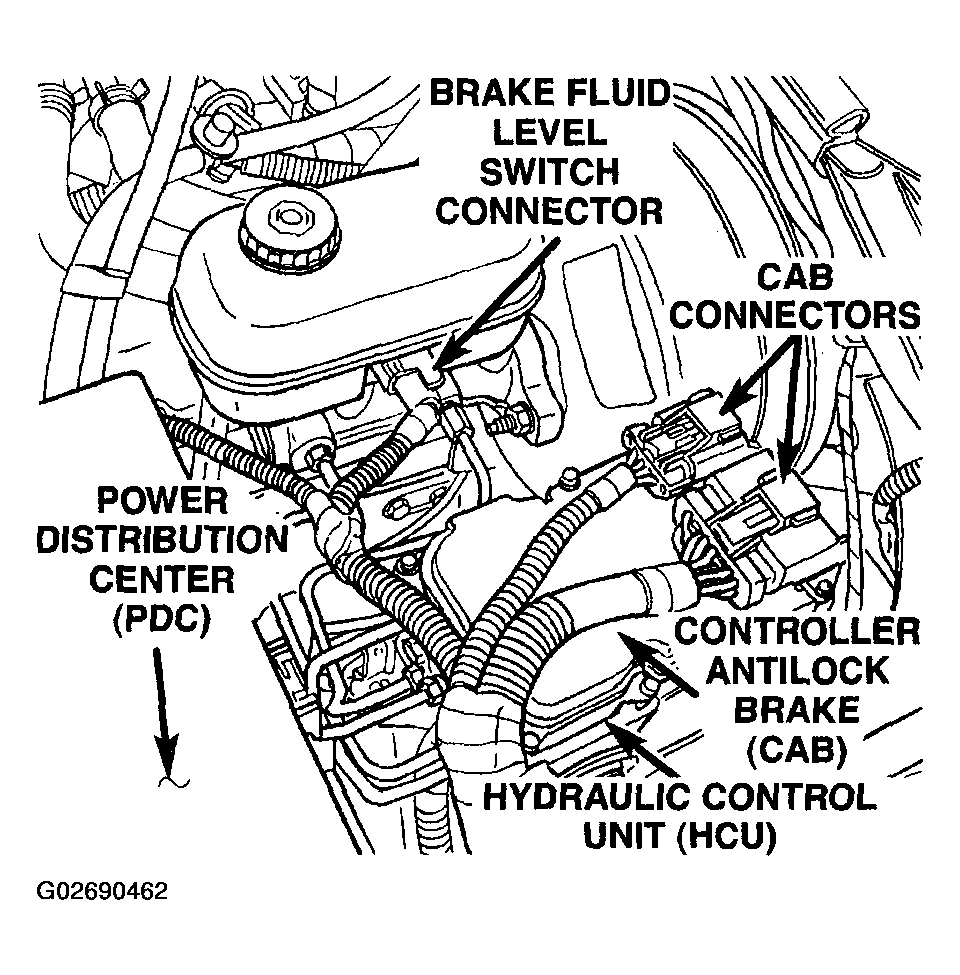

Fig 1: Locating Controller Antilock Brake (CAB) EBC 125 (RWAL)
Courtesy of DAIMLERCHRYSLER CORP.

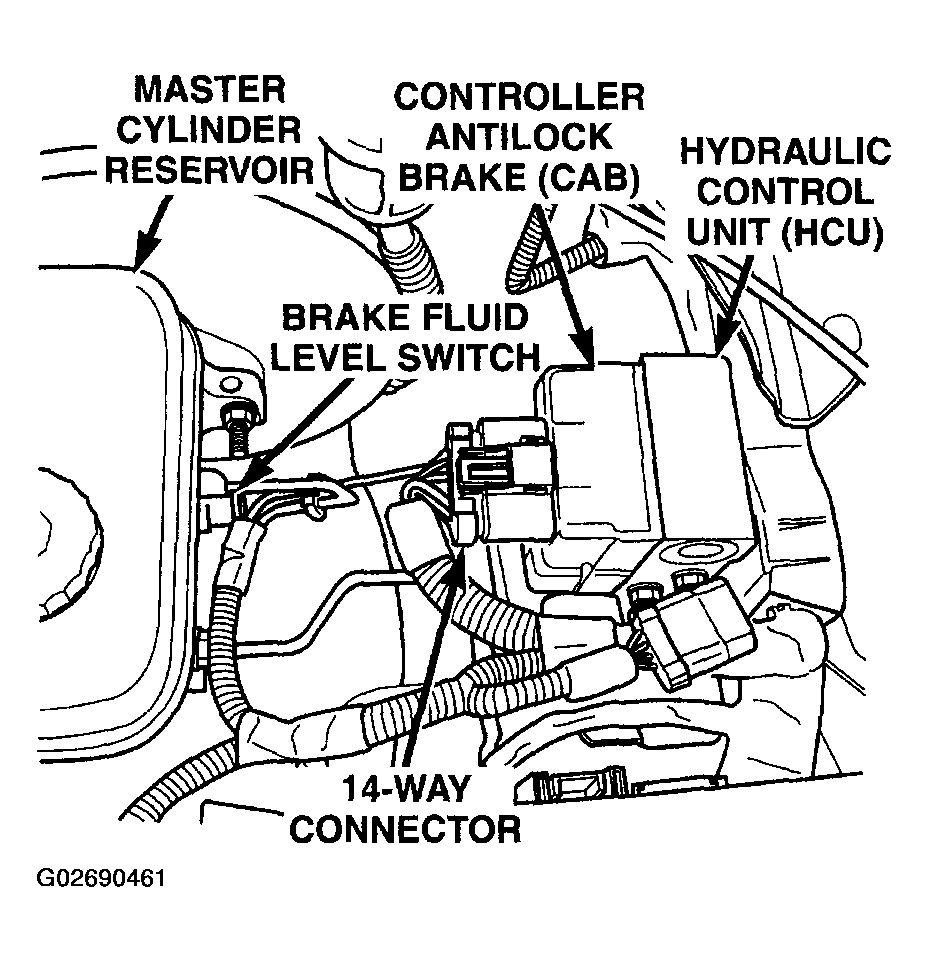

Fig 2: Locating Controller Antilock Brake (CAB) EBC 325 (ABS)
Courtesy of DAIMLERCHRYSLER CORP.
