When Monitored and Set Condition: FRONT WIPER RELAY CONTROL CIRCUIT SHORT TO GROUND

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

When Monitored: Ignition On. Front wipers in the intermittent mode.

Set Condition: Central Timer Module detects a short to ground on the Front Wiper Relay Control circuit.

POSSIBLE CAUSES

INTERMITTENT WIRING AND CONNECTORS

RELAY CONTROL CIRCUIT SHORT TO GROUND

FRONT WIPER RELAY

CENTRAL TIMER MODULE

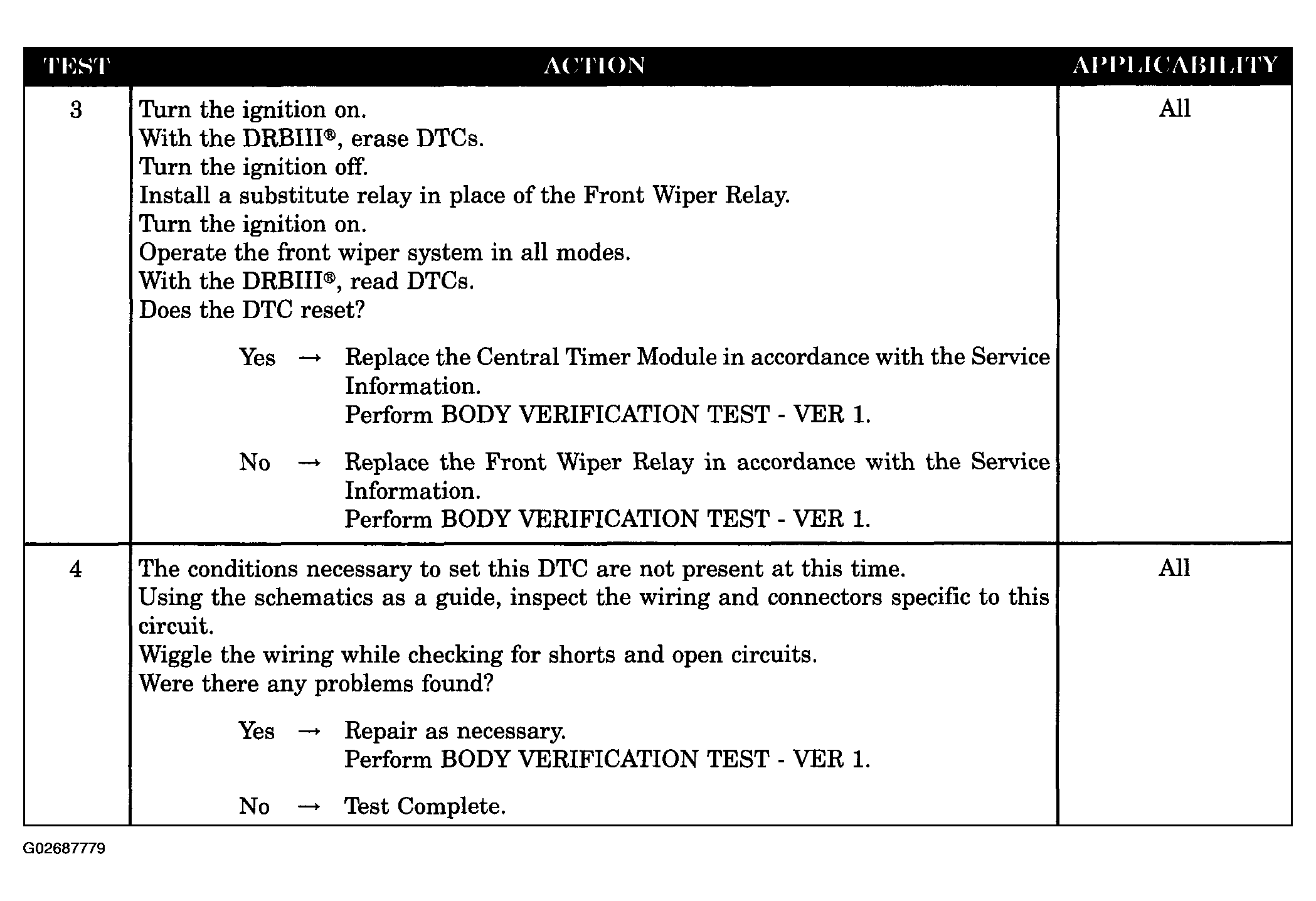

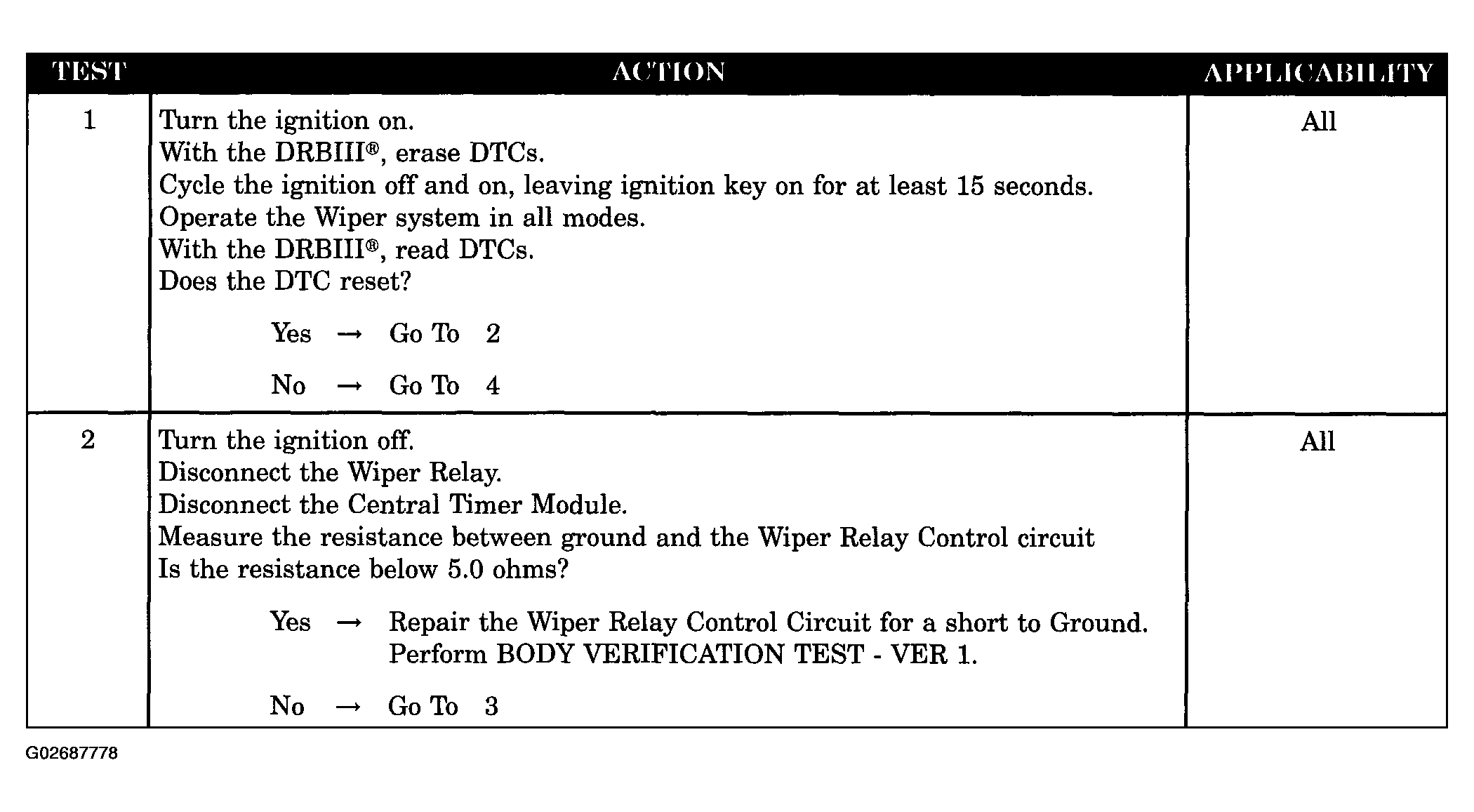

Fig 1: Front Wiper Relay Control Circuit Short To Ground Diagnostic Procedure (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Front Wiper Relay Control Circuit Short To Ground Diagnostic Procedure (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.
