WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

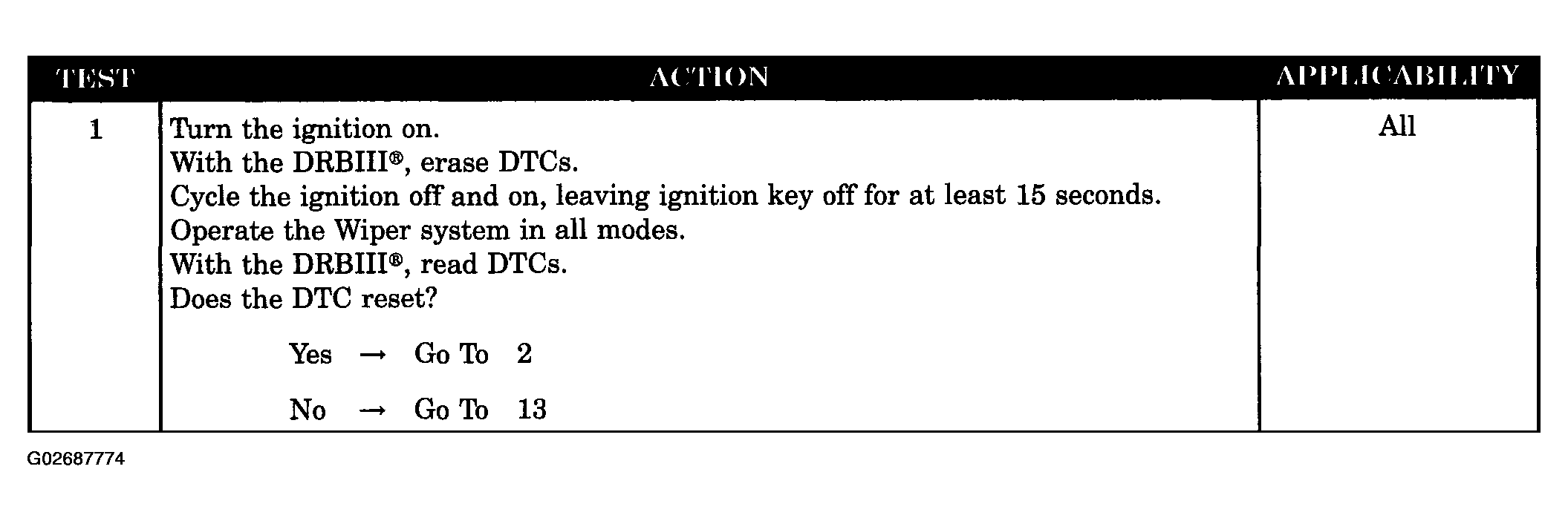

Fig 1: Front Wiper Park Switch Sense Circuit High Diagnostic Procedure (1 Of 4)
Courtesy of DAIMLERCHRYSLER CORP.

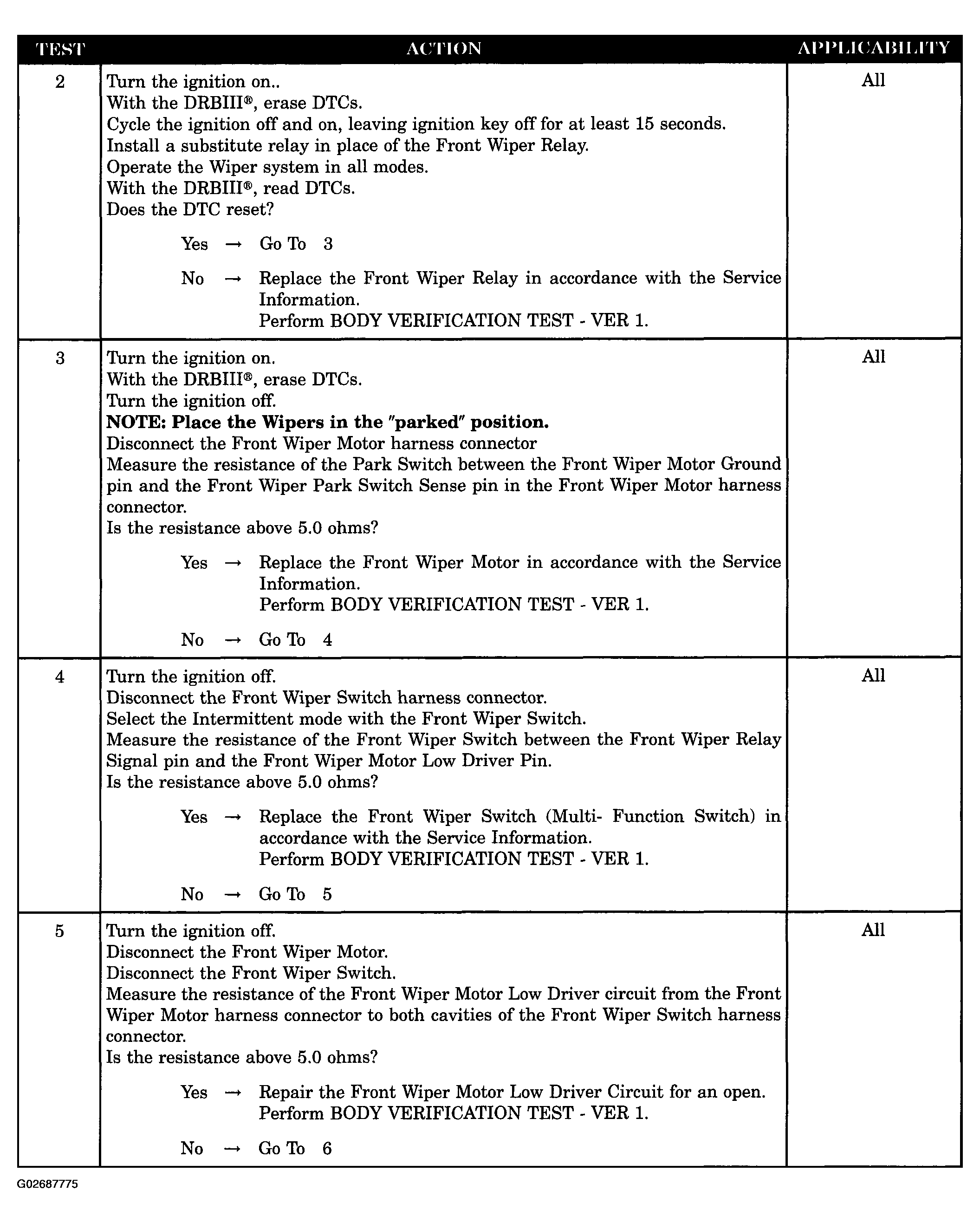

Fig 2: Front Wiper Park Switch Sense Circuit High Diagnostic Procedure (2 Of 4)
Courtesy of DAIMLERCHRYSLER CORP.

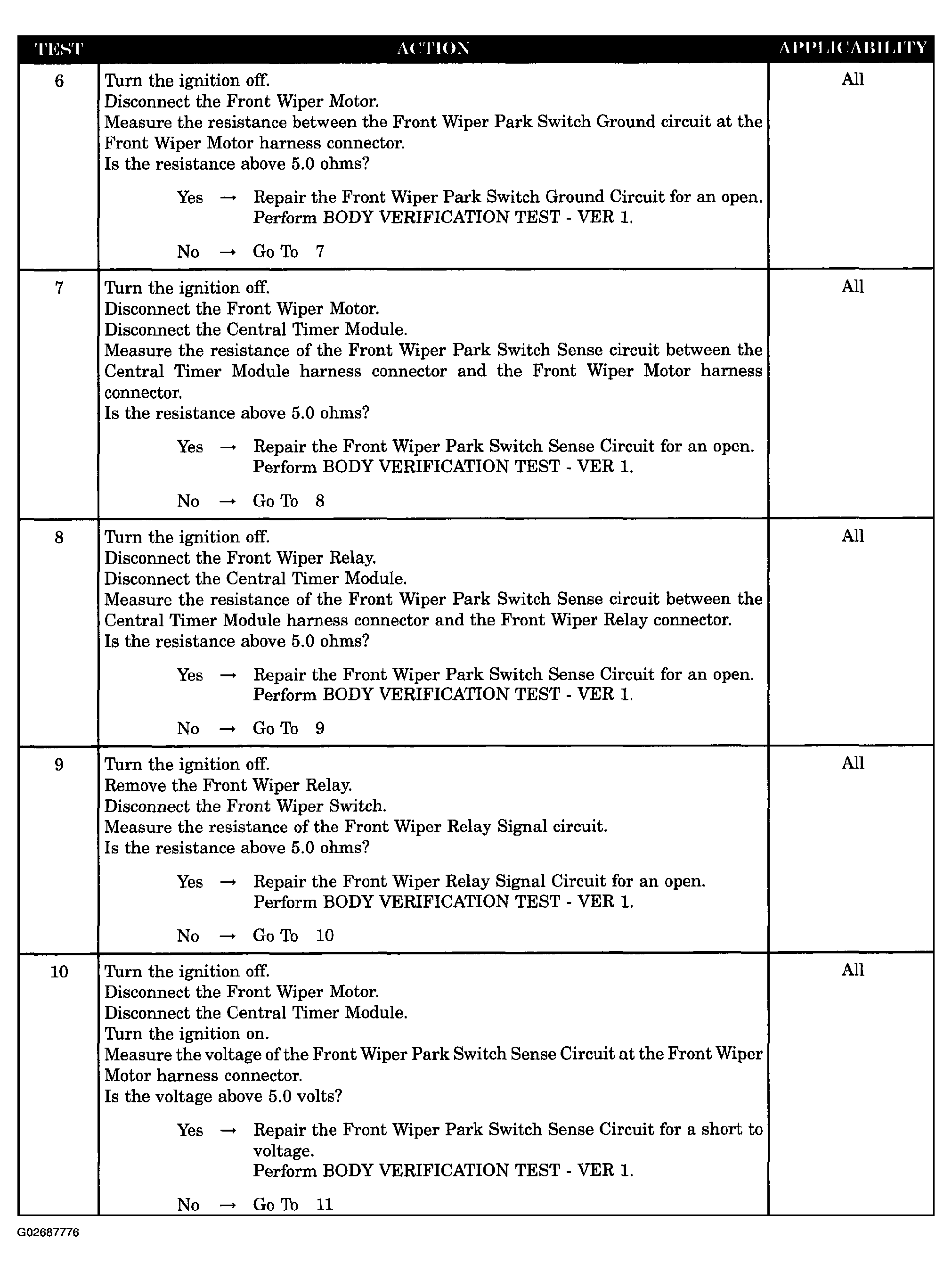

Fig 3: Front Wiper Park Switch Sense Circuit High Diagnostic Procedure (3 Of 4)
Courtesy of DAIMLERCHRYSLER CORP.

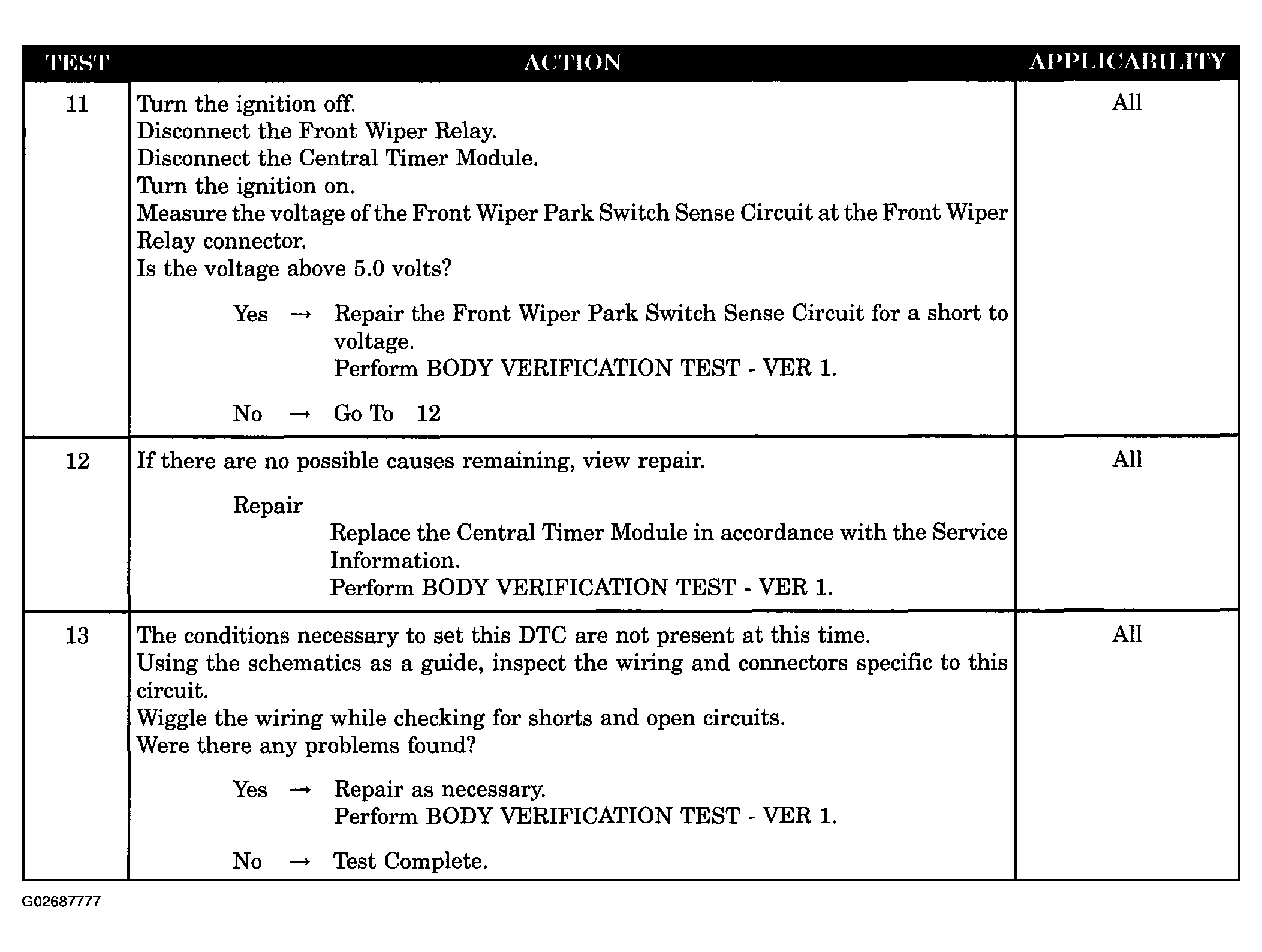

Fig 4: Front Wiper Park Switch Sense Circuit High Diagnostic Procedure (4 Of 4)
