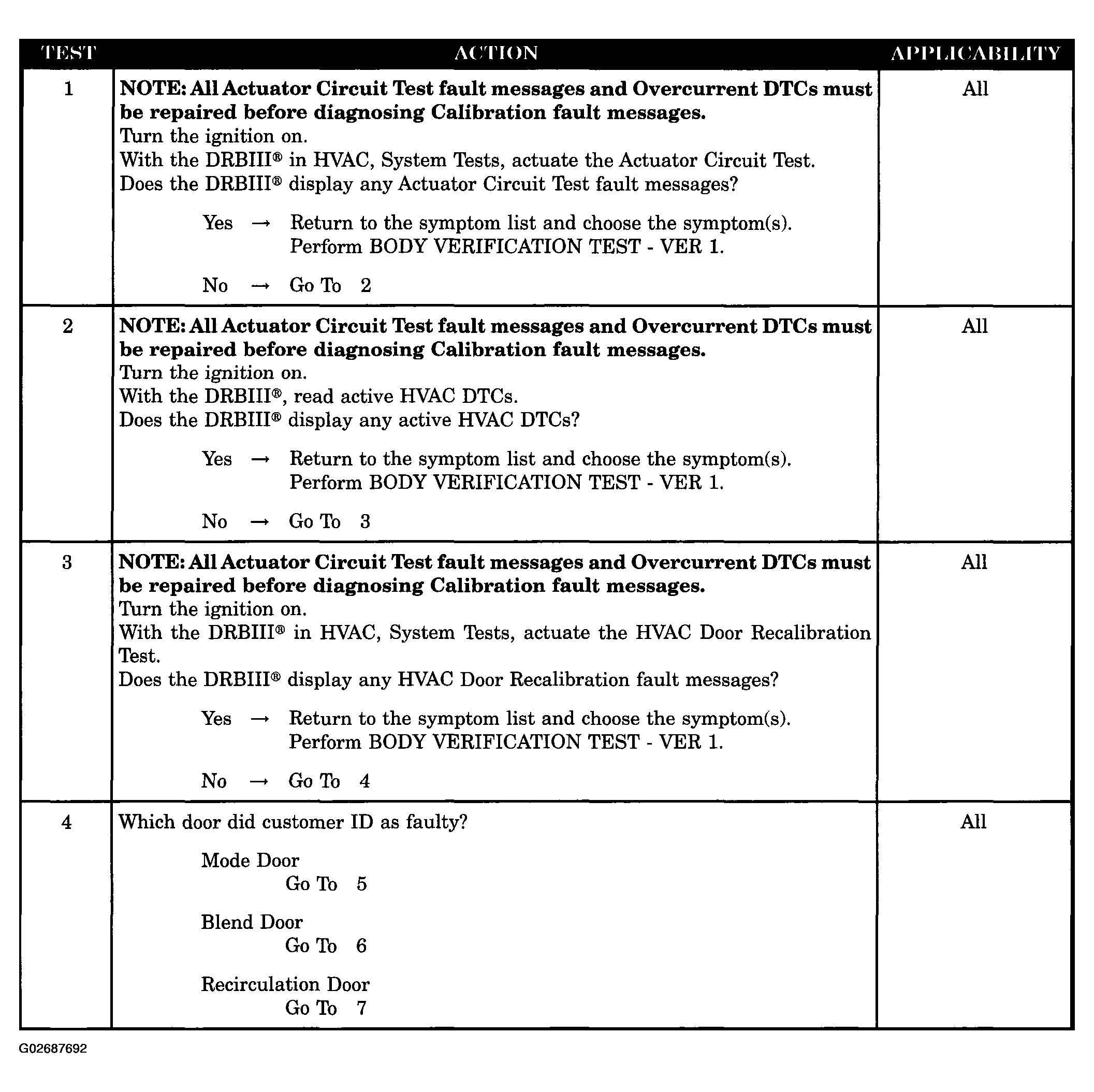

Fig 1: *Blend/Mode/Recirc Door Operation Improper Diagnostic Procedure (1 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.

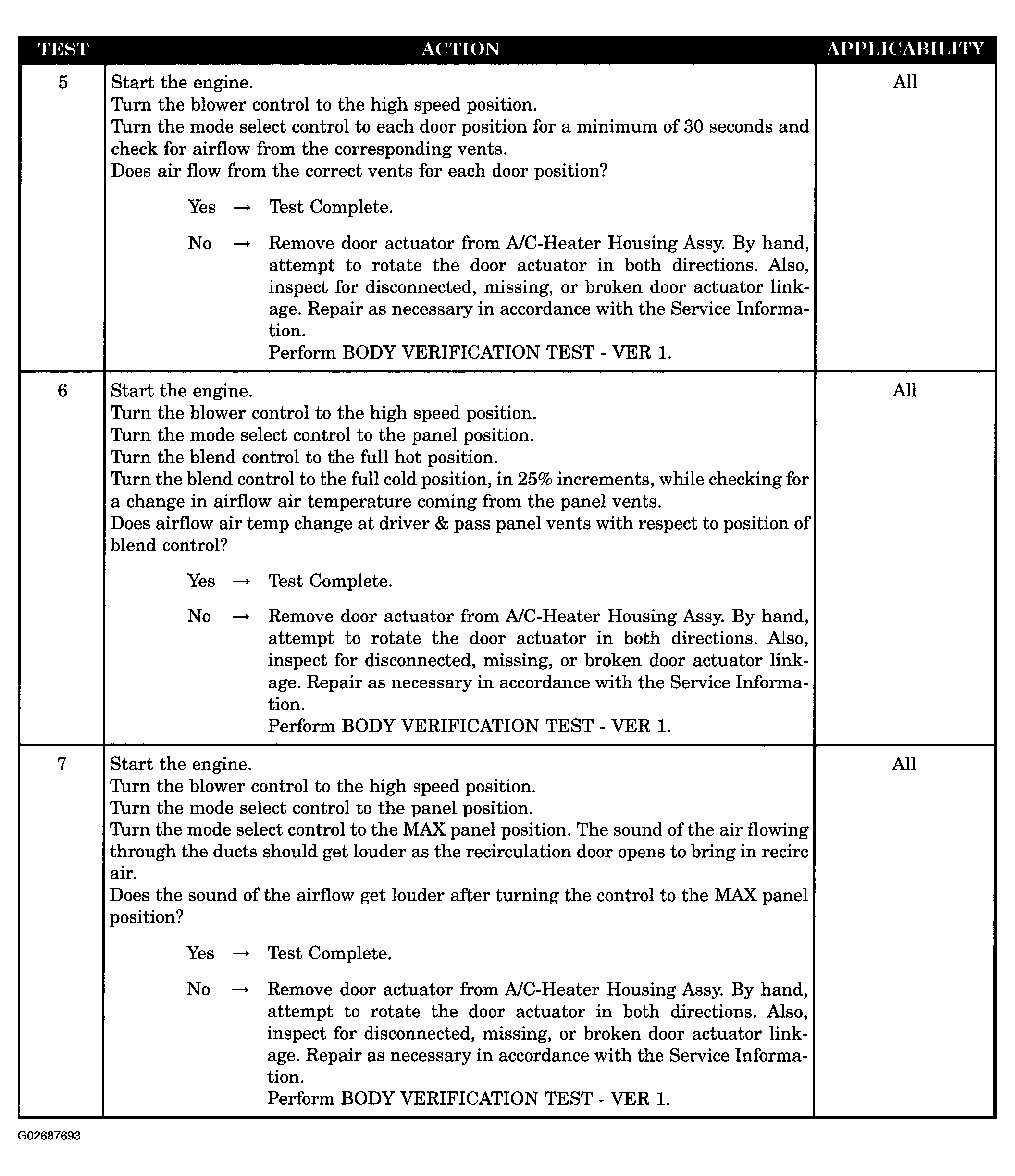

Fig 2: *Blend/Mode/Recirc Door Operation Improper Diagnostic Procedure (2 Of 2)
