Diagnostic Procedure

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

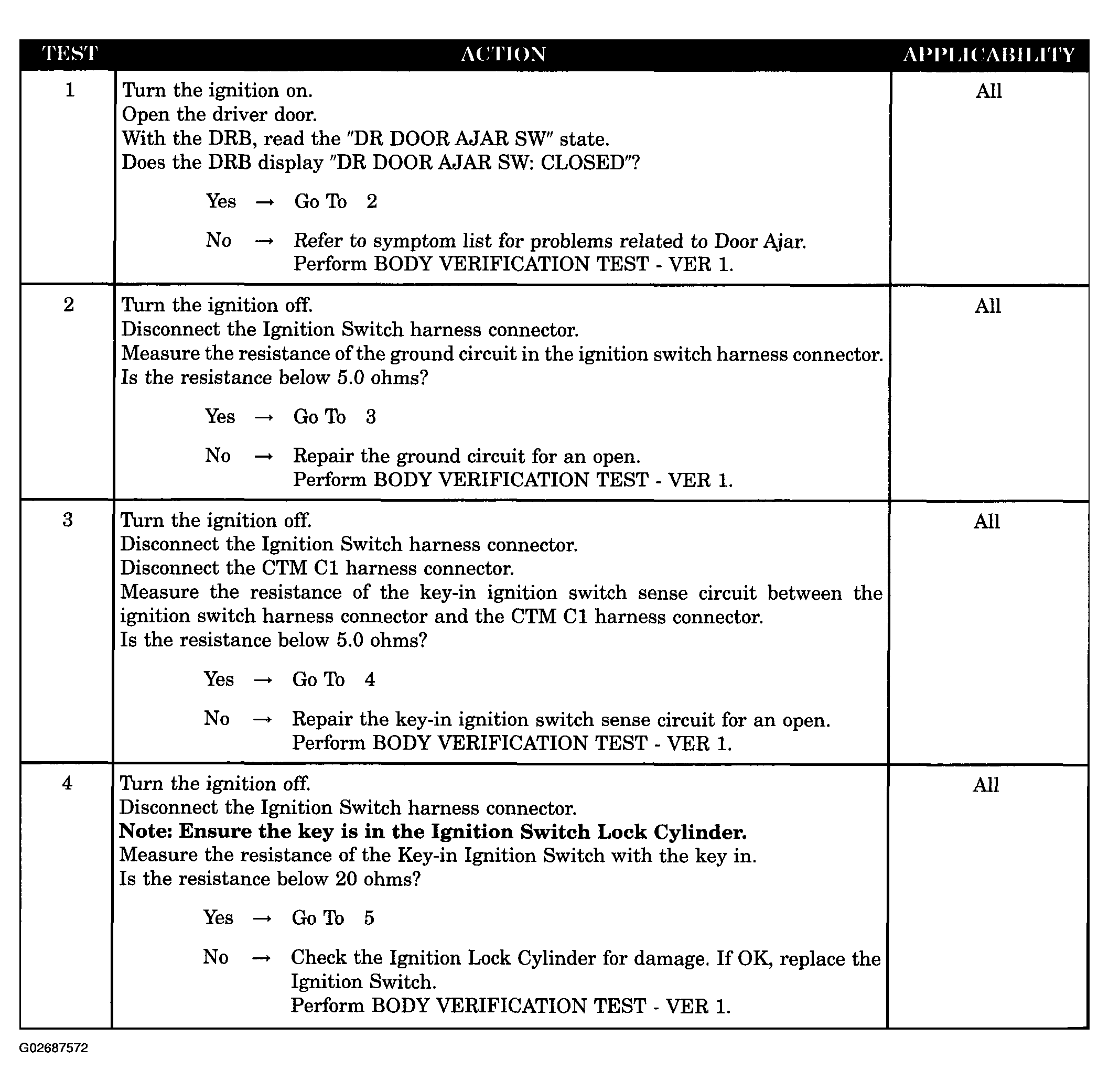

Fig 1: *Chime Inoperative With Key In Ignition, Driver'S Door Open Diagnostic Procedure (1 Of 2)
G02687572Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: *Chime Inoperative With Key In Ignition, Driver'S Door Open Diagnostic Procedure (2 Of 2)
G02687573Courtesy of DAIMLERCHRYSLER CORP.
