WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

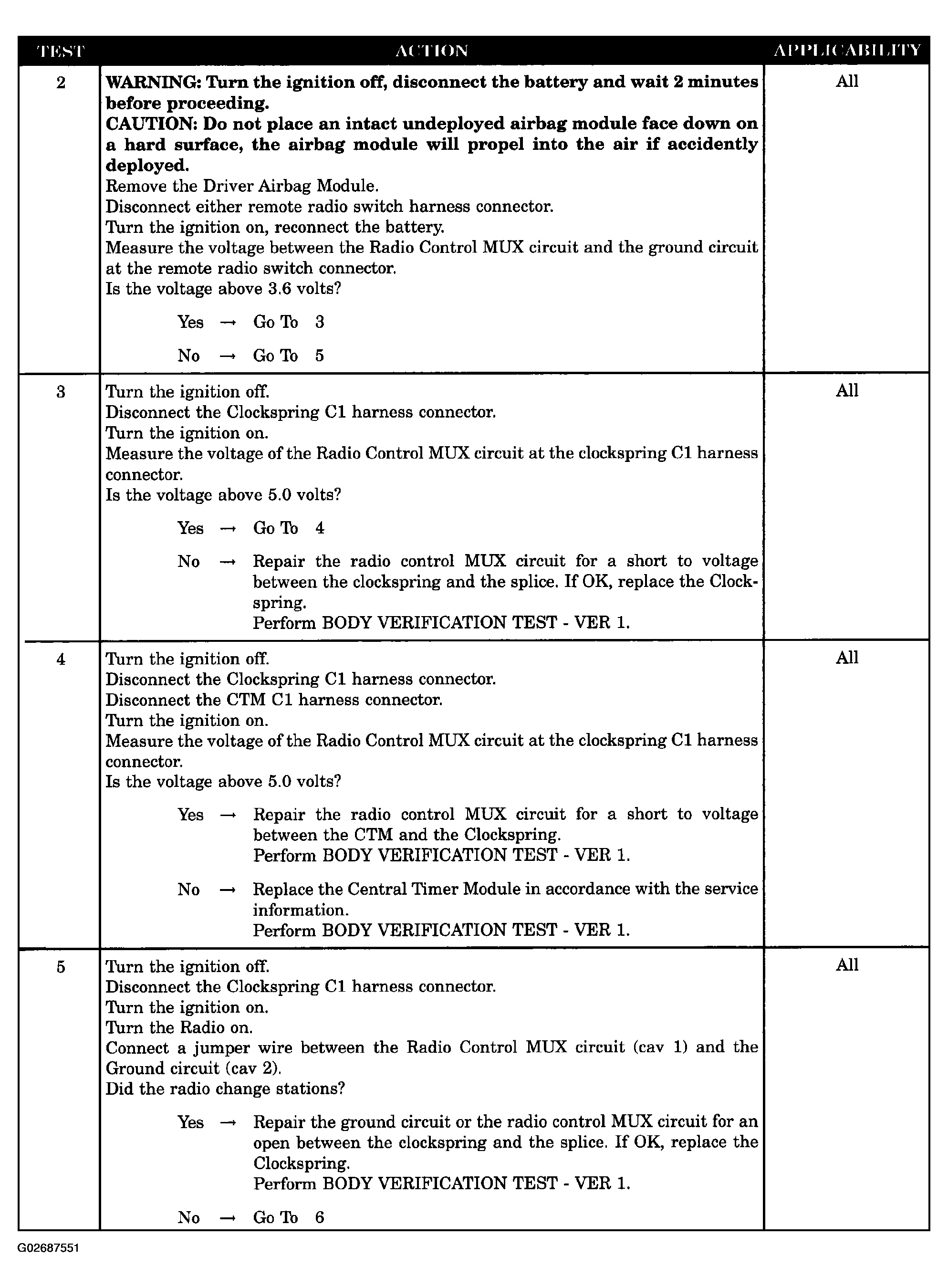

Fig 1: Remote Radio Switch Circuit Open Diagnostic Procedure (1 Of 3)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: Remote Radio Switch Circuit Open Diagnostic Procedure (2 Of 3)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 3: Remote Radio Switch Circuit Open Diagnostic Procedure (3 Of 3)
