Diagnostic Procedure

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

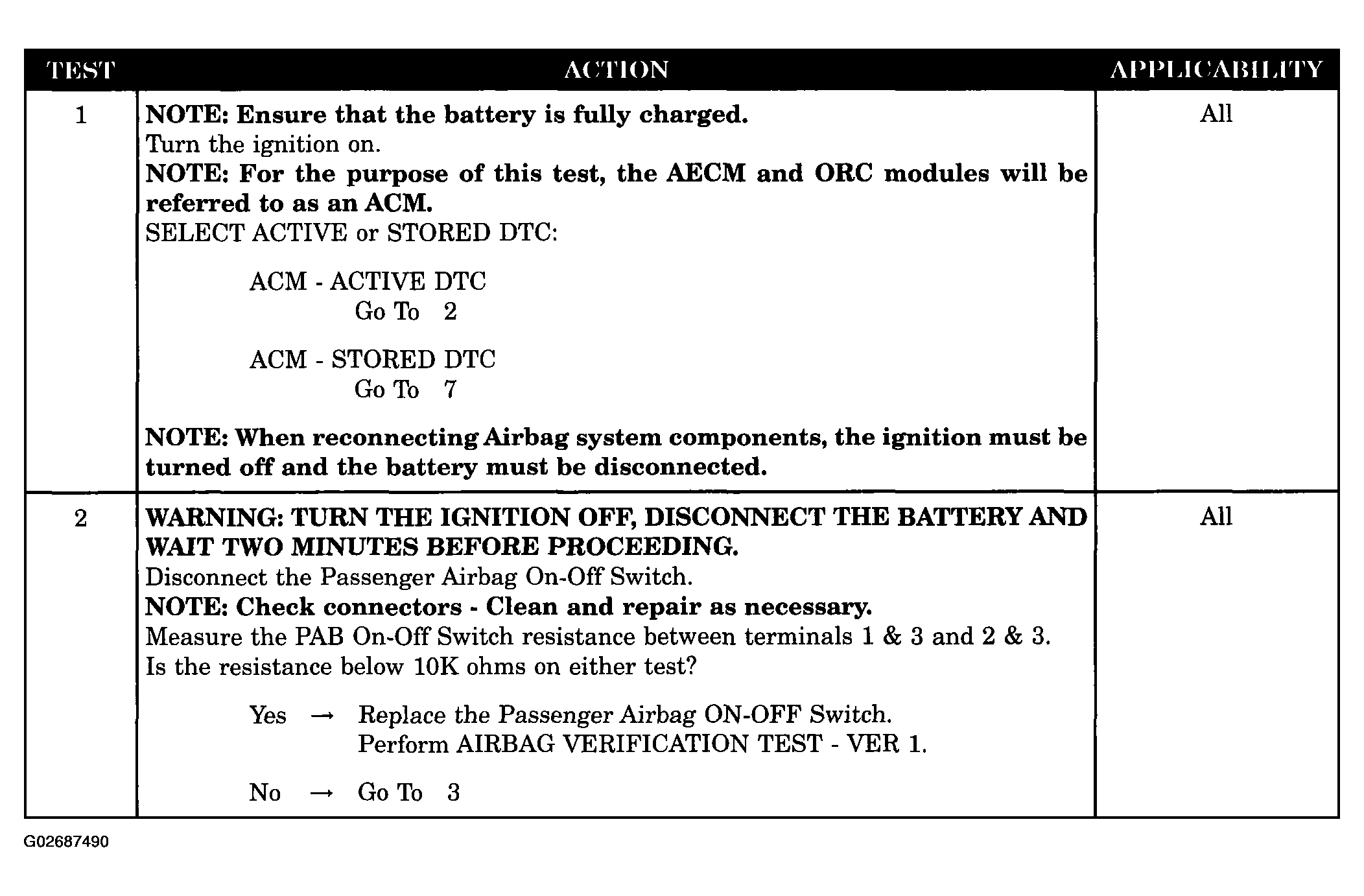

Fig 1: Passenger Airbag On-Off Switch Short To Ground Diagnostic Procedure (1 Of 3)
G02687490Courtesy of DAIMLERCHRYSLER CORP.

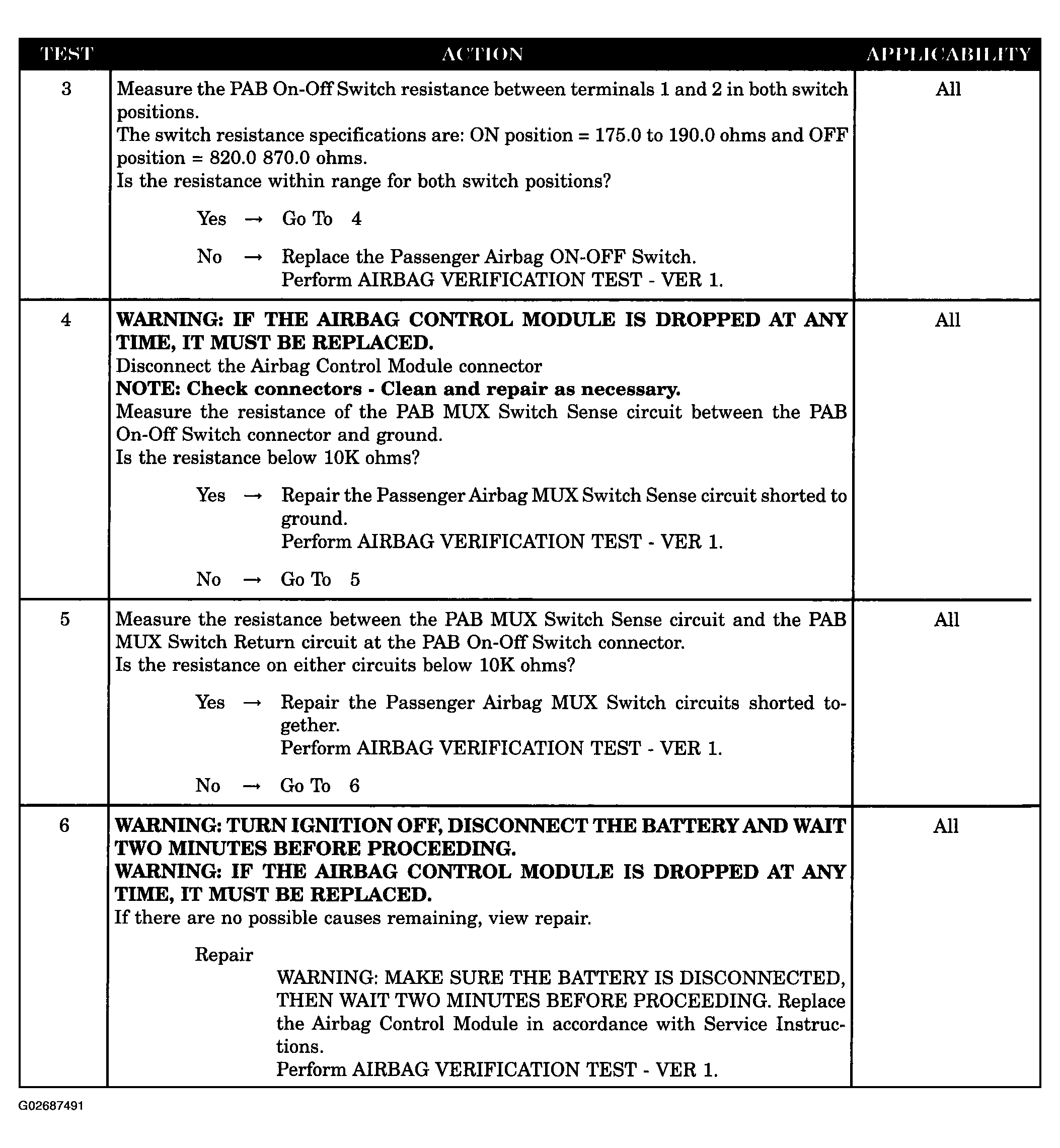

Fig 2: Passenger Airbag On-Off Switch Short To Ground Diagnostic Procedure (2 Of 3)
G02687491Courtesy of DAIMLERCHRYSLER CORP.

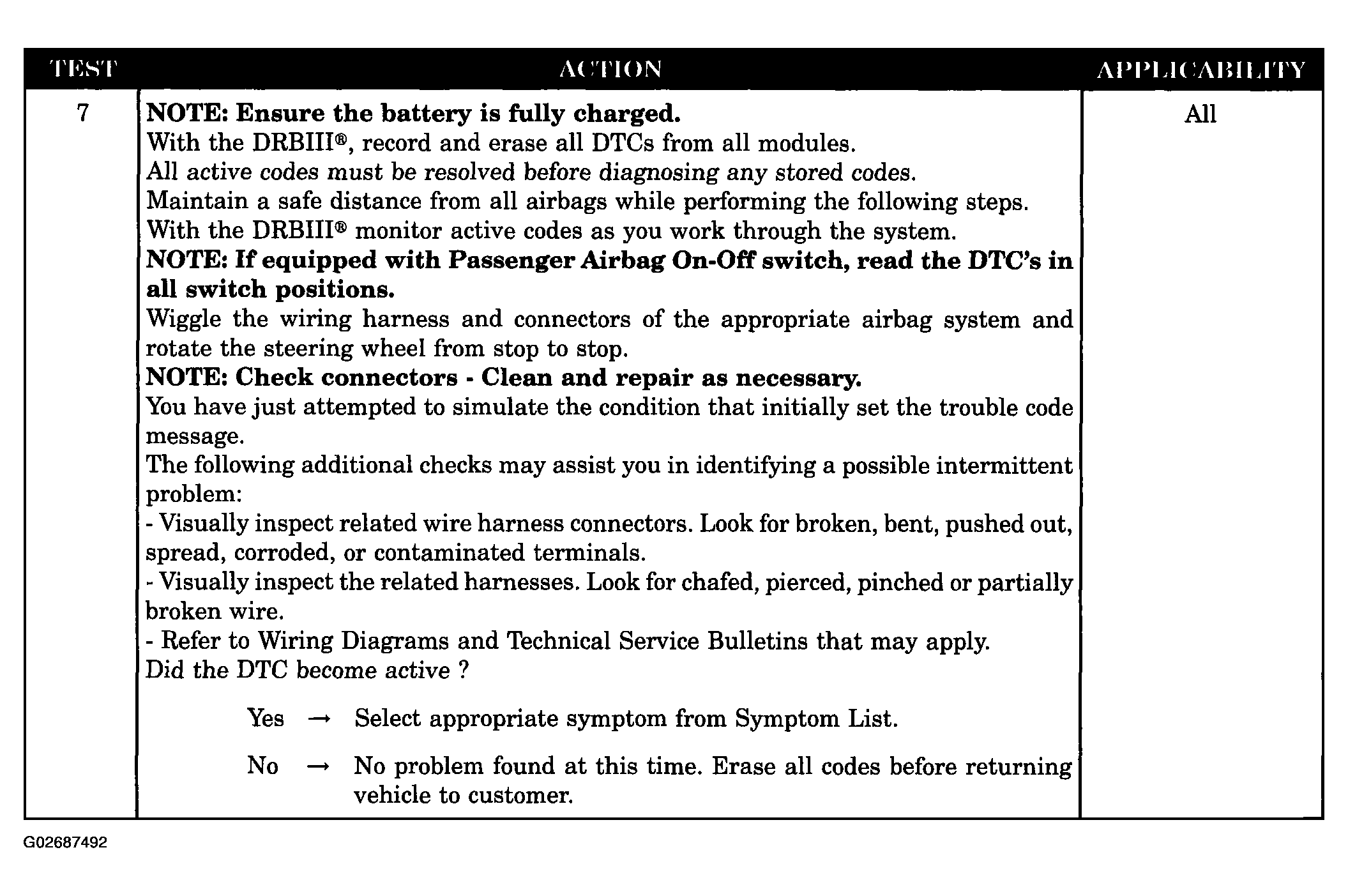

Fig 3: Passenger Airbag On-Off Switch Short To Ground Diagnostic Procedure (3 Of 3)
G02687492Courtesy of DAIMLERCHRYSLER CORP.
