Diagnostic Procedure

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Driver Squib 1 Circuit Short Diagnostic Procedure (1 Of 2)
G02687466Courtesy of DAIMLERCHRYSLER CORP.

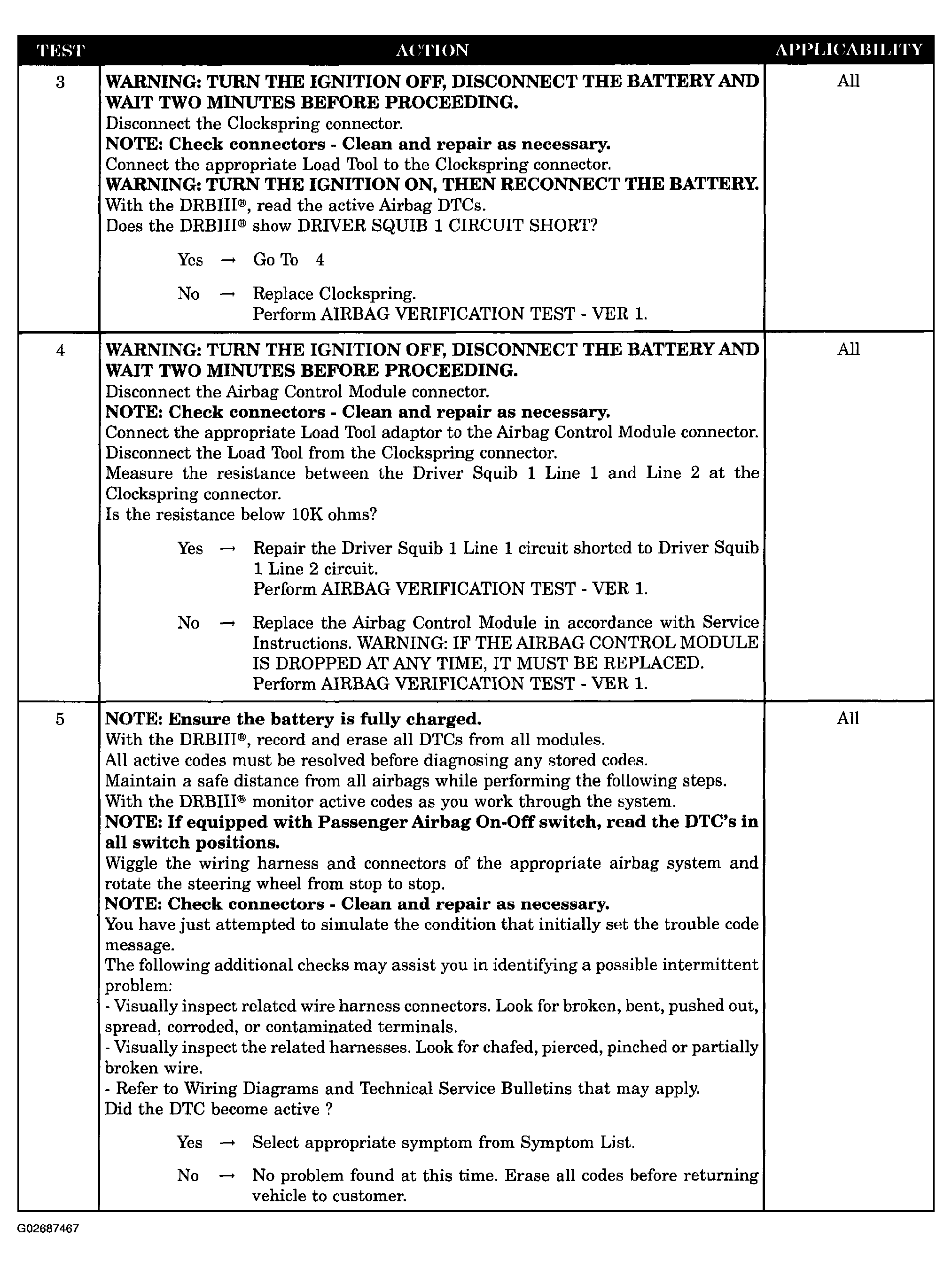

Fig 2: Driver Squib 1 Circuit Short Diagnostic Procedure (2 Of 2)
G02687467Courtesy of DAIMLERCHRYSLER CORP.
