Section 76 (Body Diagnostic Procedures)
>>
Connector PINOUTS
Connector PINOUTS
WARNING:
This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying A/C-Heater Control C1
Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: Identifying A/C-Heater Control C2
Courtesy of DAIMLERCHRYSLER CORP.

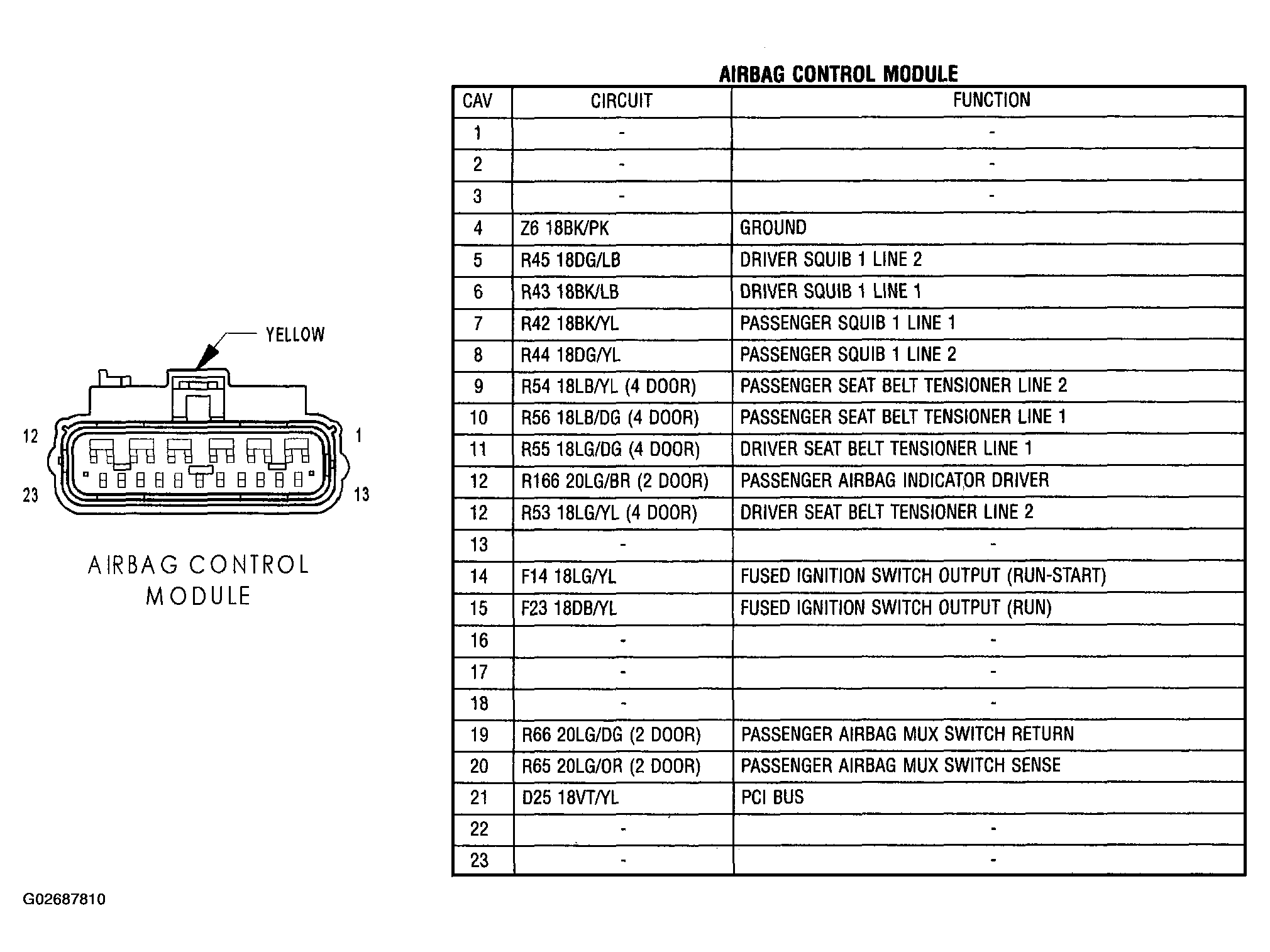

Fig 3: Identifying Airbag Control Module
Courtesy of DAIMLERCHRYSLER CORP.
Fig 4: Identifying Ambient Temperature Sensor
Courtesy of DAIMLERCHRYSLER CORP.
Fig 5: Identifying Amplifier C1 (Premium Sound)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 6: Identifying Amplifier C2 (Premium Sound)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 7: Identifying Blend Door Actuator
Courtesy of DAIMLERCHRYSLER CORP.
Fig 8: Identifying Blower Motor
Courtesy of DAIMLERCHRYSLER CORP.

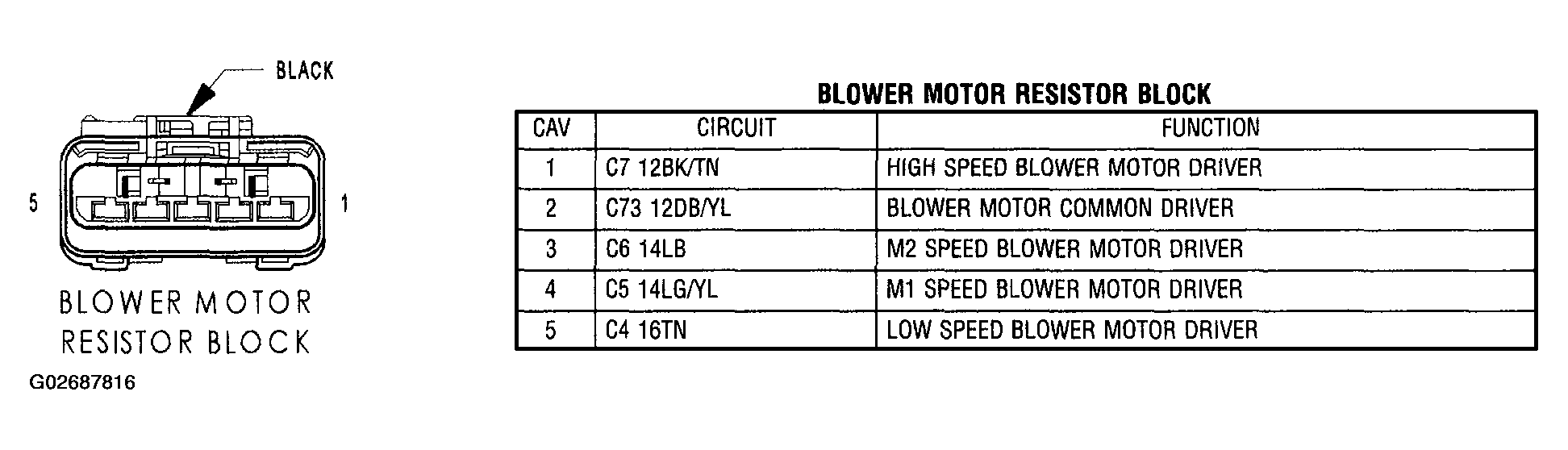

Fig 9: Identifying Blower Motor Resistor Block
Courtesy of DAIMLERCHRYSLER CORP.

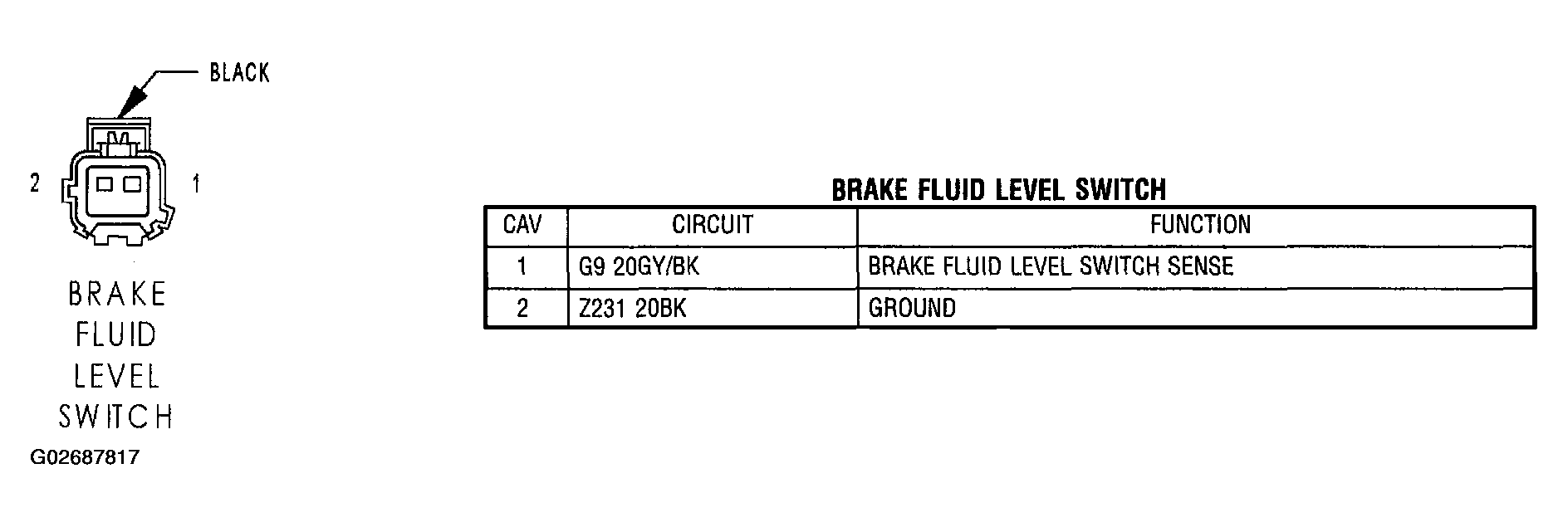

Fig 10: Identifying Brake Fluid Level Switch
Courtesy of DAIMLERCHRYSLER CORP.

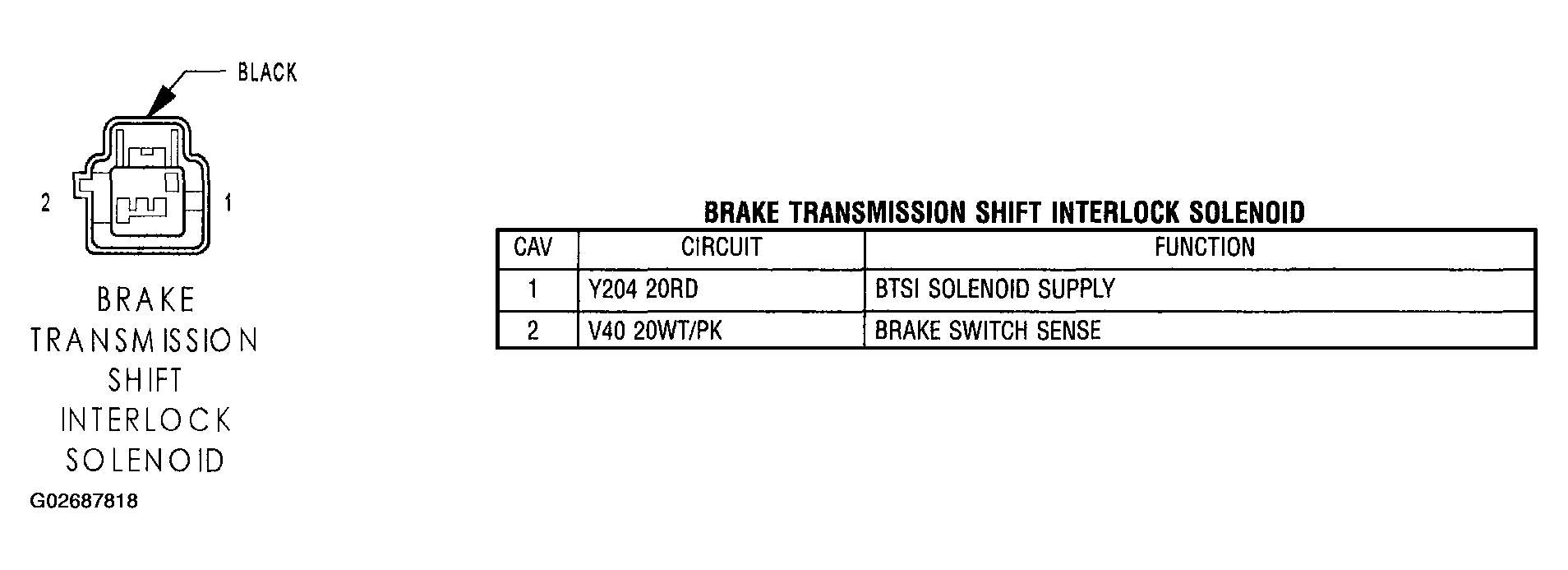

Fig 11: Identifying Brake Transmission Shift Interlock Solenoid
Courtesy of DAIMLERCHRYSLER CORP.
Fig 12: Identifying C201 (4 Door)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 13: Identifying C201 (4 Door)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 14: Identifying Cargo Lamp No. 1
Courtesy of DAIMLERCHRYSLER CORP.
Fig 15: Identifying Central Timer Module C1
Courtesy of DAIMLERCHRYSLER CORP.

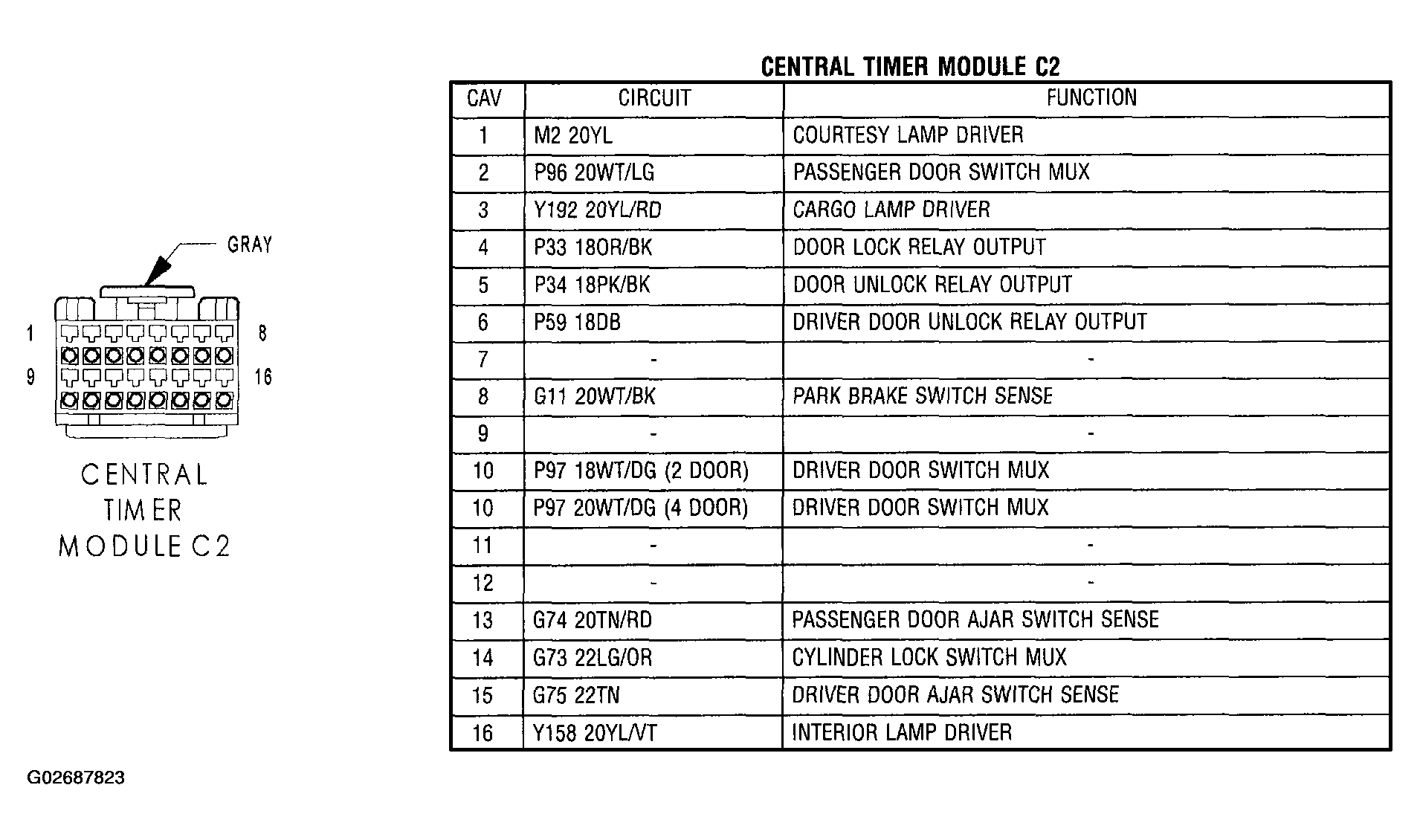

Fig 16: Identifying Central Timer Module C2
Courtesy of DAIMLERCHRYSLER CORP.

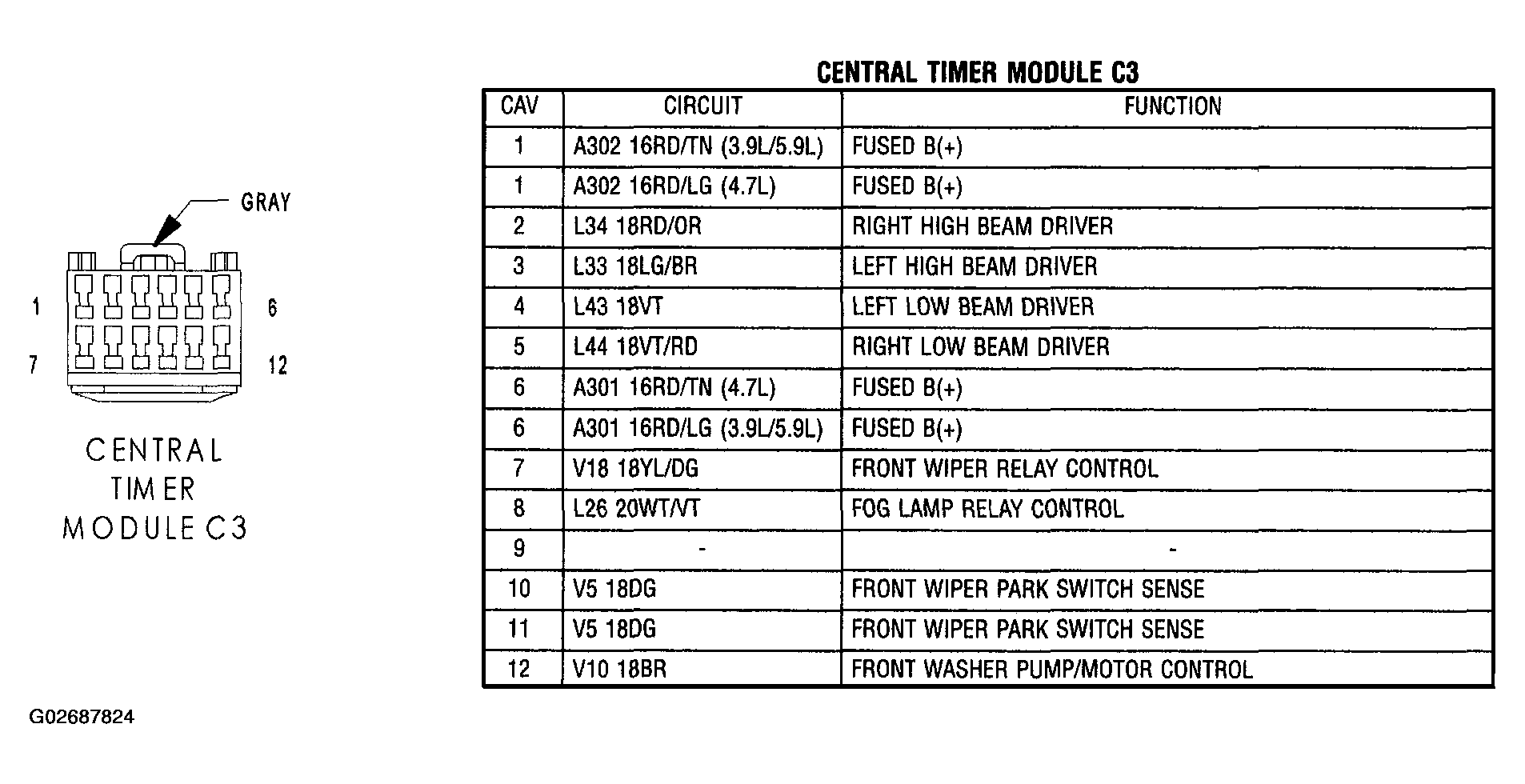

Fig 17: Identifying Central Timer Module C3
Courtesy of DAIMLERCHRYSLER CORP.

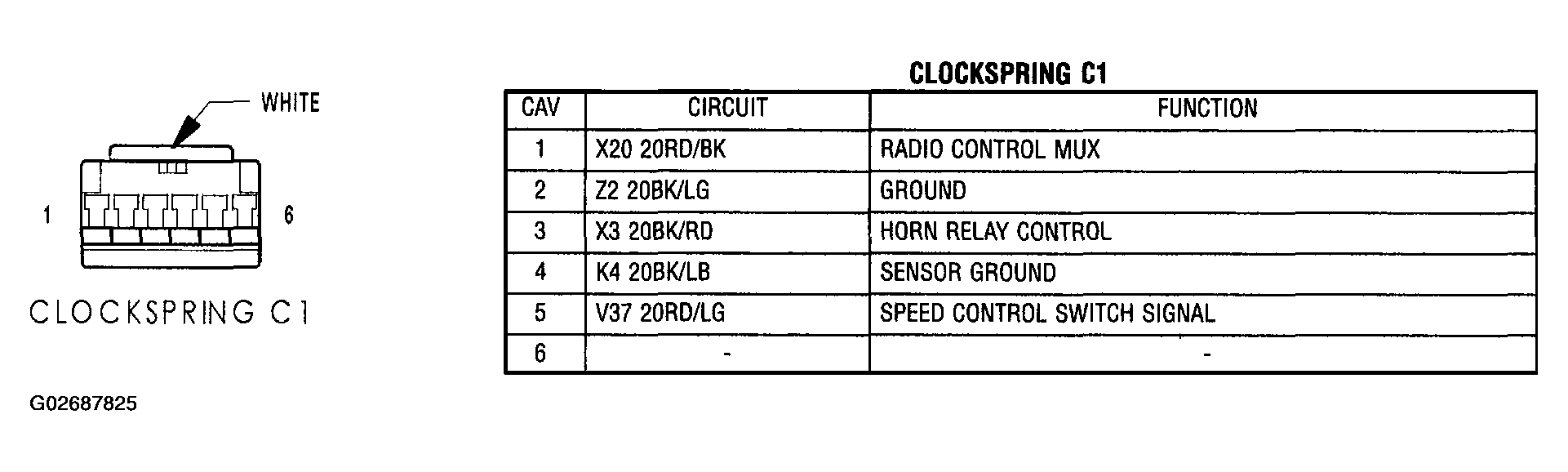

Fig 18: Identifying Clockspring C1
Courtesy of DAIMLERCHRYSLER CORP.
Fig 19: Identifying Clockspring C2
Courtesy of DAIMLERCHRYSLER CORP.
Fig 20: Identifying Clockspring C3
Courtesy of DAIMLERCHRYSLER CORP.

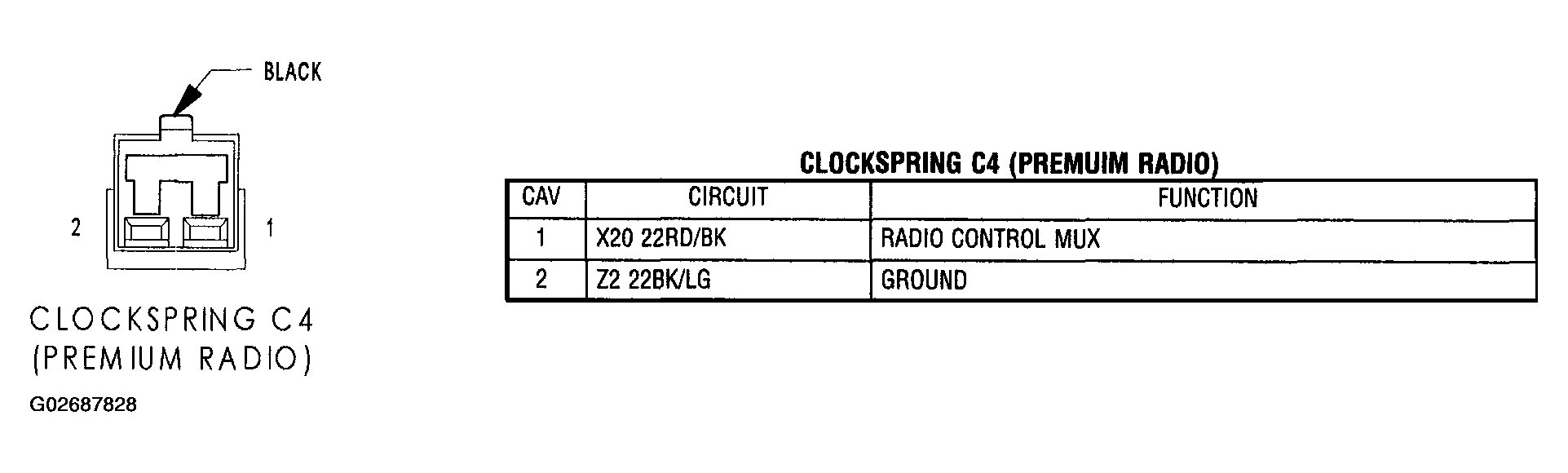

Fig 21: Identifying Clockspring C4 (Premium Radio)
Courtesy of DAIMLERCHRYSLER CORP.

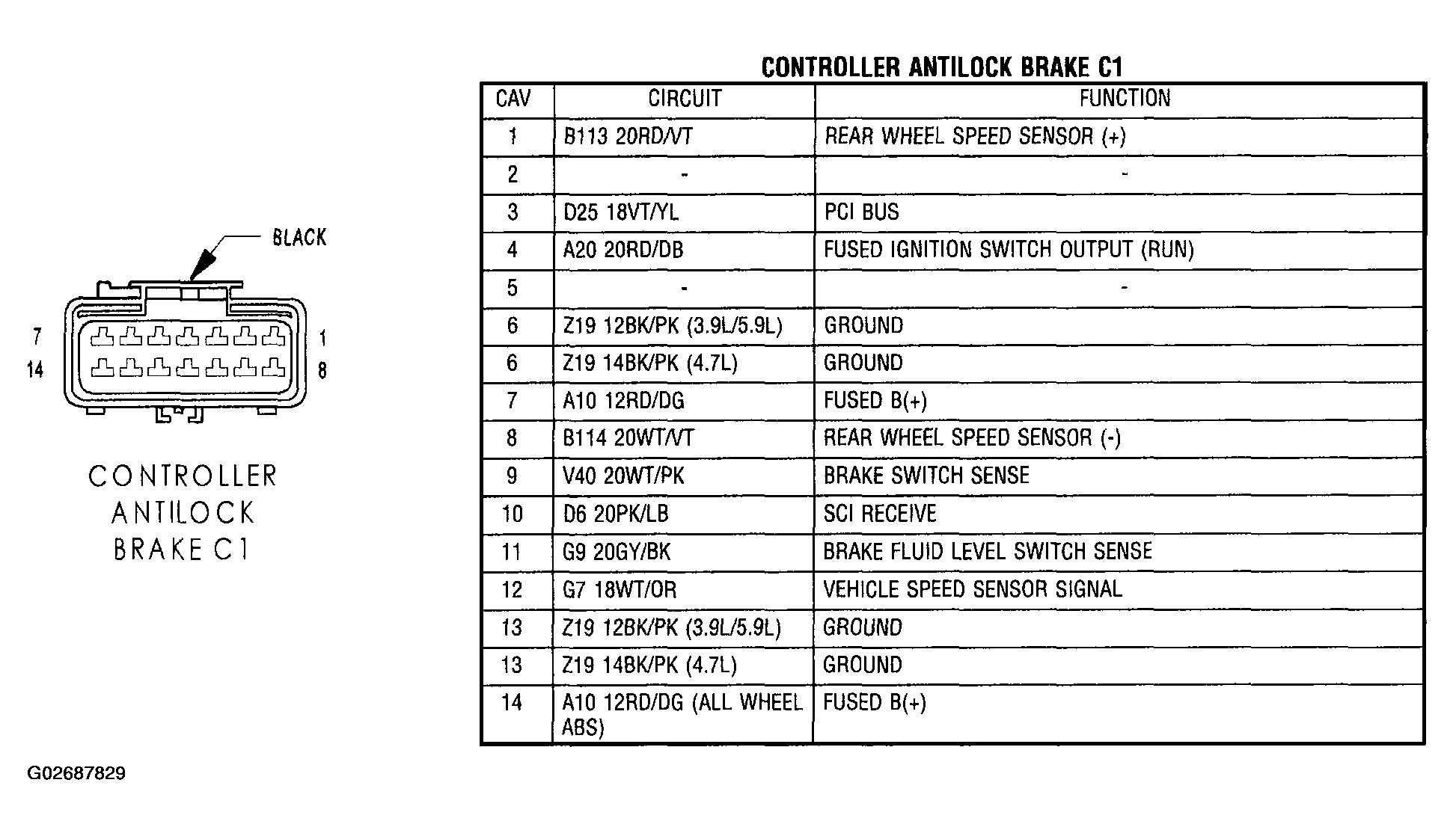

Fig 22: Identifying Controller Antilock Brake C1
Courtesy of DAIMLERCHRYSLER CORP.

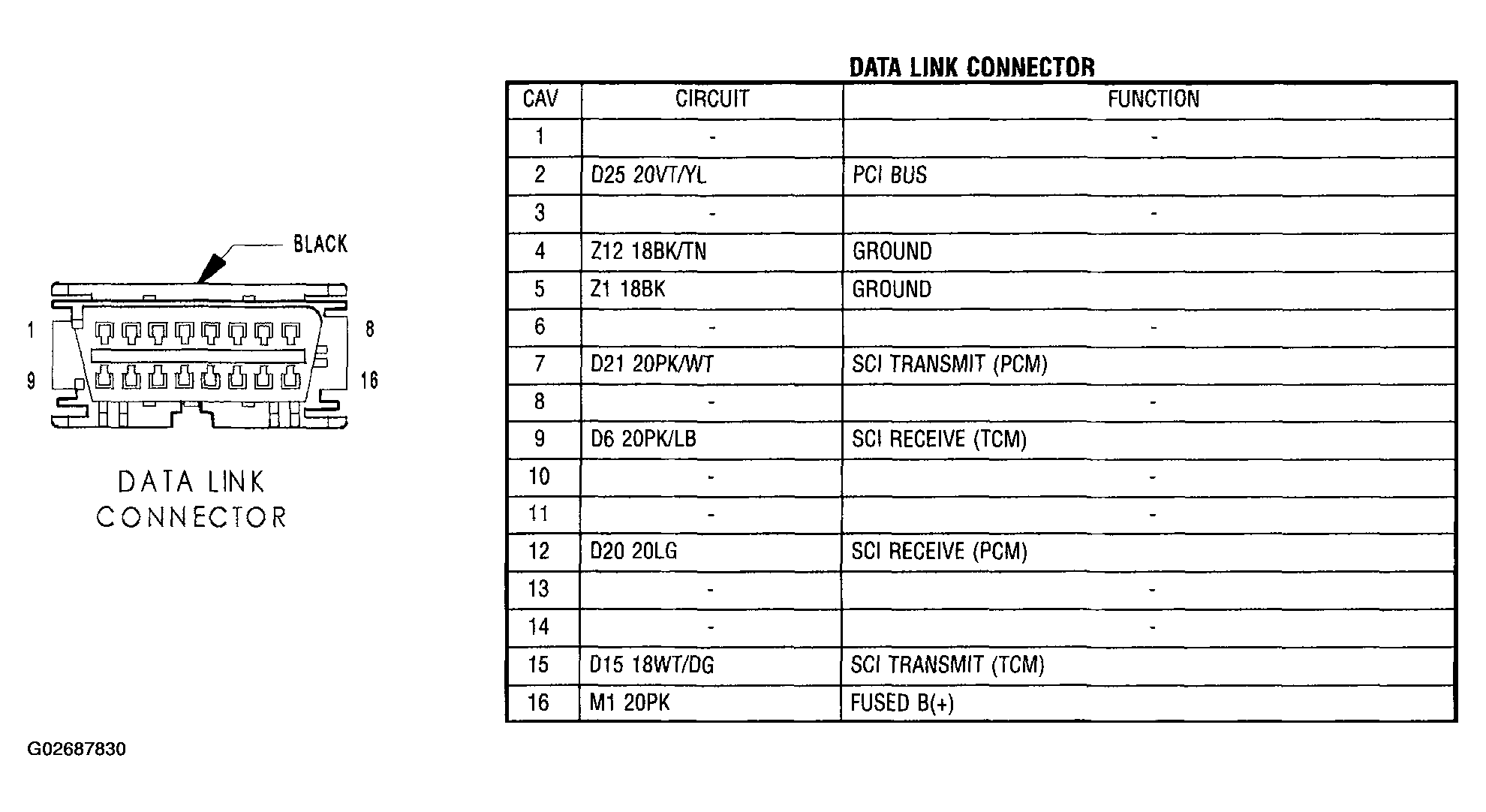

Fig 23: Identifying Data Link Connector
Courtesy of DAIMLERCHRYSLER CORP.
Fig 24: Identifying Dome Lamp
Courtesy of DAIMLERCHRYSLER CORP.
Fig 25: Identifying Driver Airbag Squib 1
Courtesy of DAIMLERCHRYSLER CORP.
Fig 26: Identifying Driver Cylinder Lock Switch (Premium)
Courtesy of DAIMLERCHRYSLER CORP.

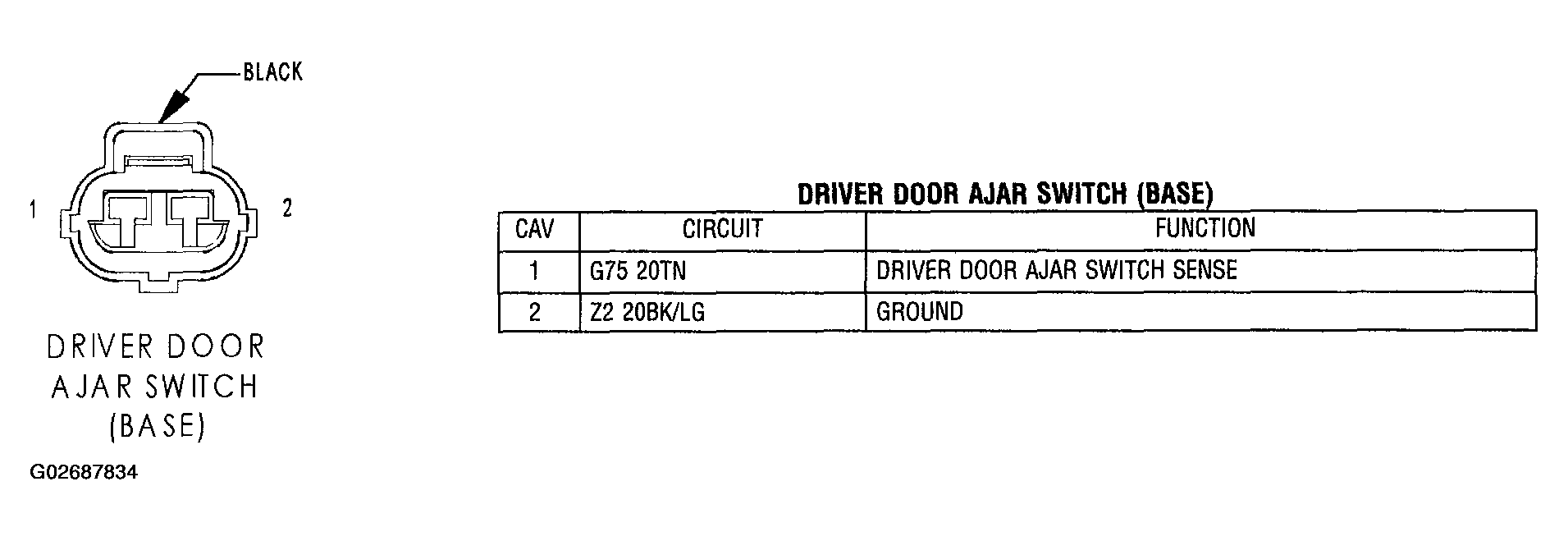

Fig 27: Identifying Driver Door Ajar Switch (Base)
Courtesy of DAIMLERCHRYSLER CORP.

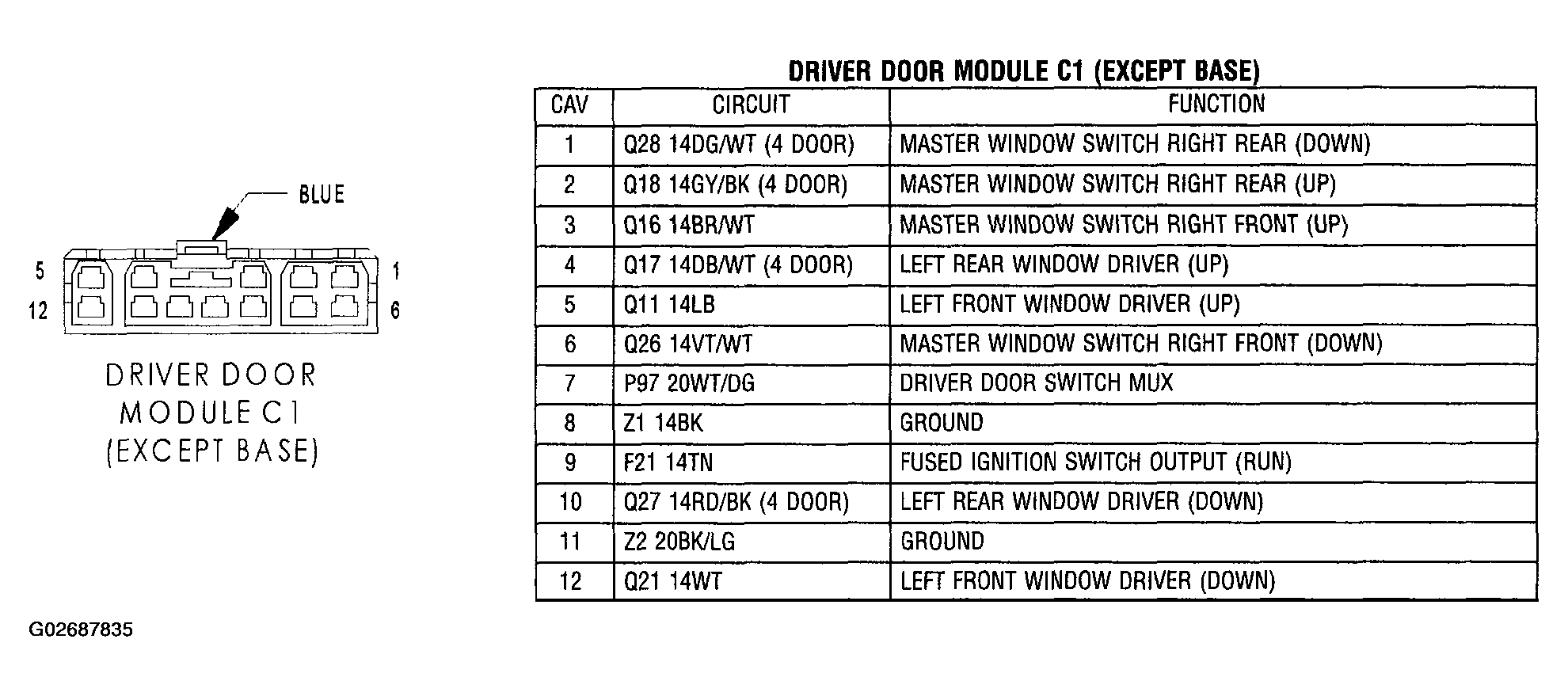

Fig 28: Identifying Driver Door Module C1 (Except Base)
Courtesy of DAIMLERCHRYSLER CORP.

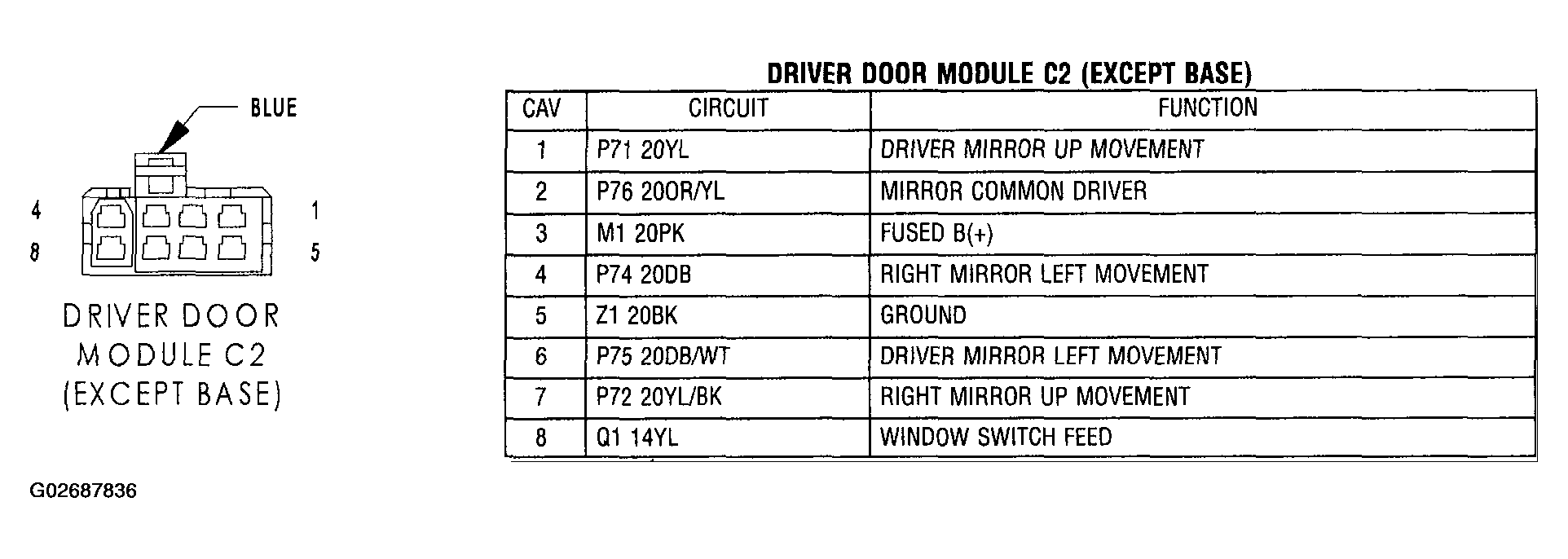

Fig 29: Identifying Driver Door Module C2 (Except Base)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 30: Identifying Driver Door Power Lock Motor/Ajar Switch (Except Base)
Courtesy of DAIMLERCHRYSLER CORP.

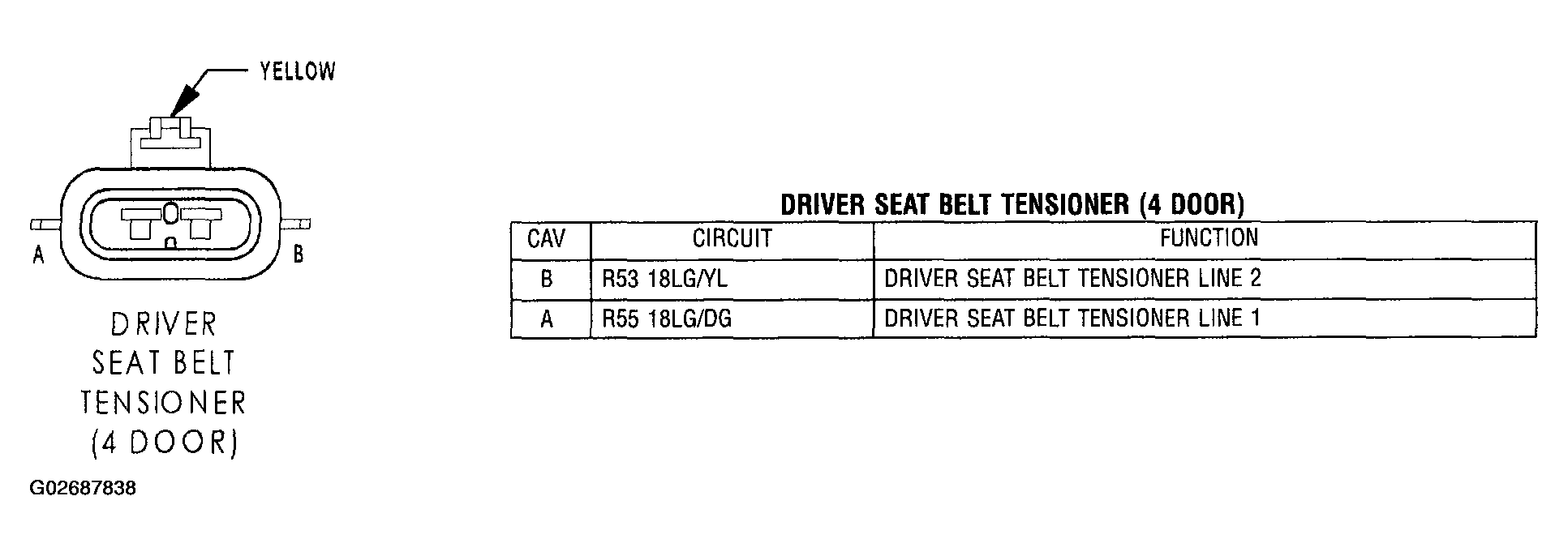

Fig 31: Identifying Driver Seat Belt Tensioner (4 Door)
Courtesy of DAIMLERCHRYSLER CORP.

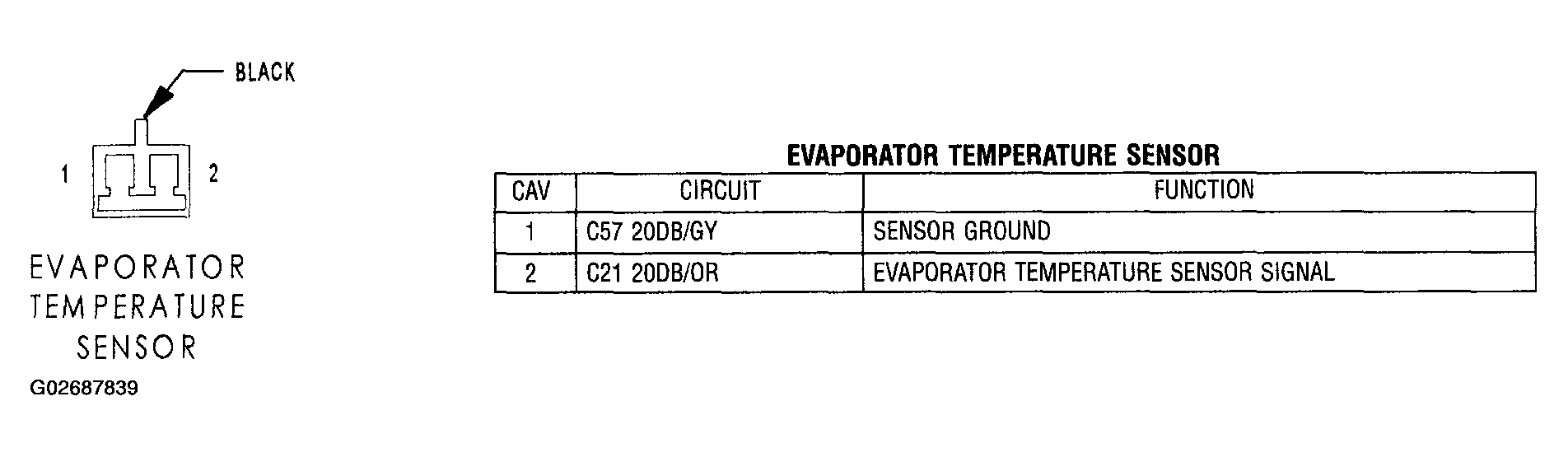

Fig 32: Identifying Evaporator Temperature Sensor
Courtesy of DAIMLERCHRYSLER CORP.

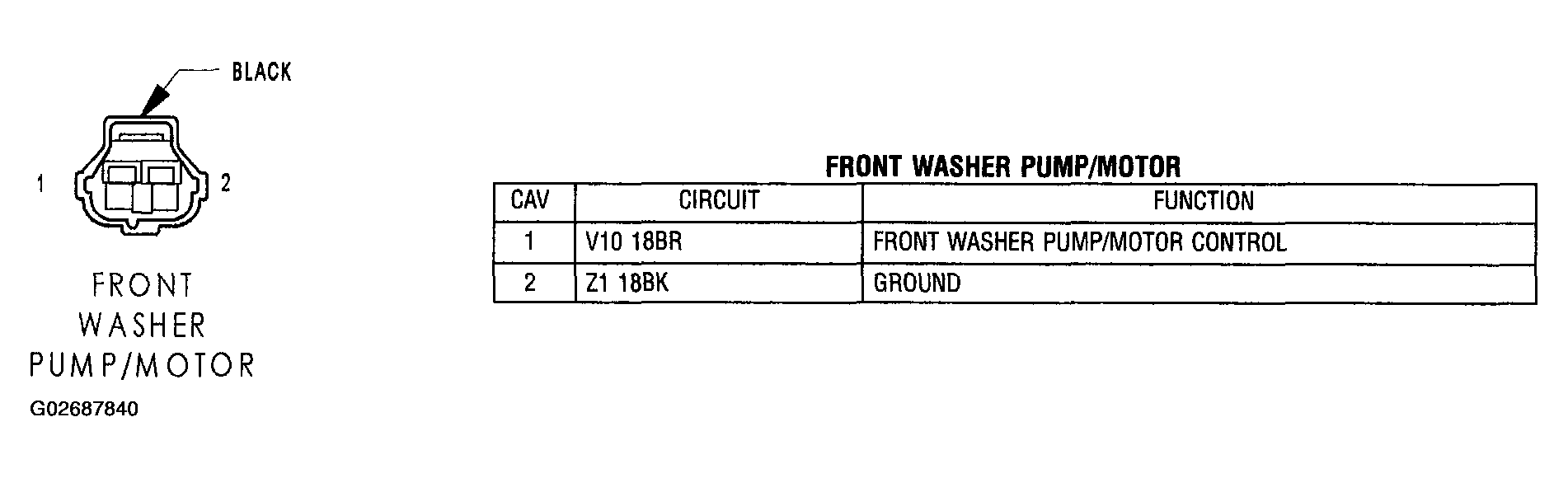

Fig 33: Identifying Front Washer Pump/Motor
Courtesy of DAIMLERCHRYSLER CORP.
Fig 34: Identifying Front Wiper Motor
Courtesy of DAIMLERCHRYSLER CORP.

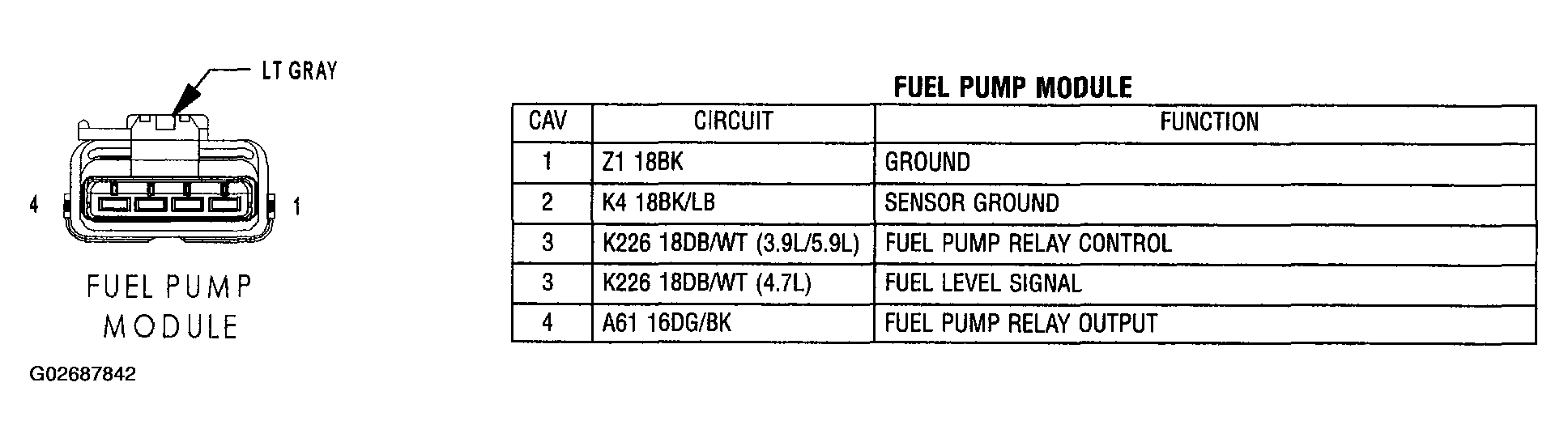

Fig 35: Identifying Fuel Pump Module
Courtesy of DAIMLERCHRYSLER CORP.
Fig 36: Identifying Glove Box Lamp And Switch
Courtesy of DAIMLERCHRYSLER CORP.
Fig 37: Identifying Headlamp Switch
Courtesy of DAIMLERCHRYSLER CORP.
Fig 38: Identifying High Note Horn
Courtesy of DAIMLERCHRYSLER CORP.

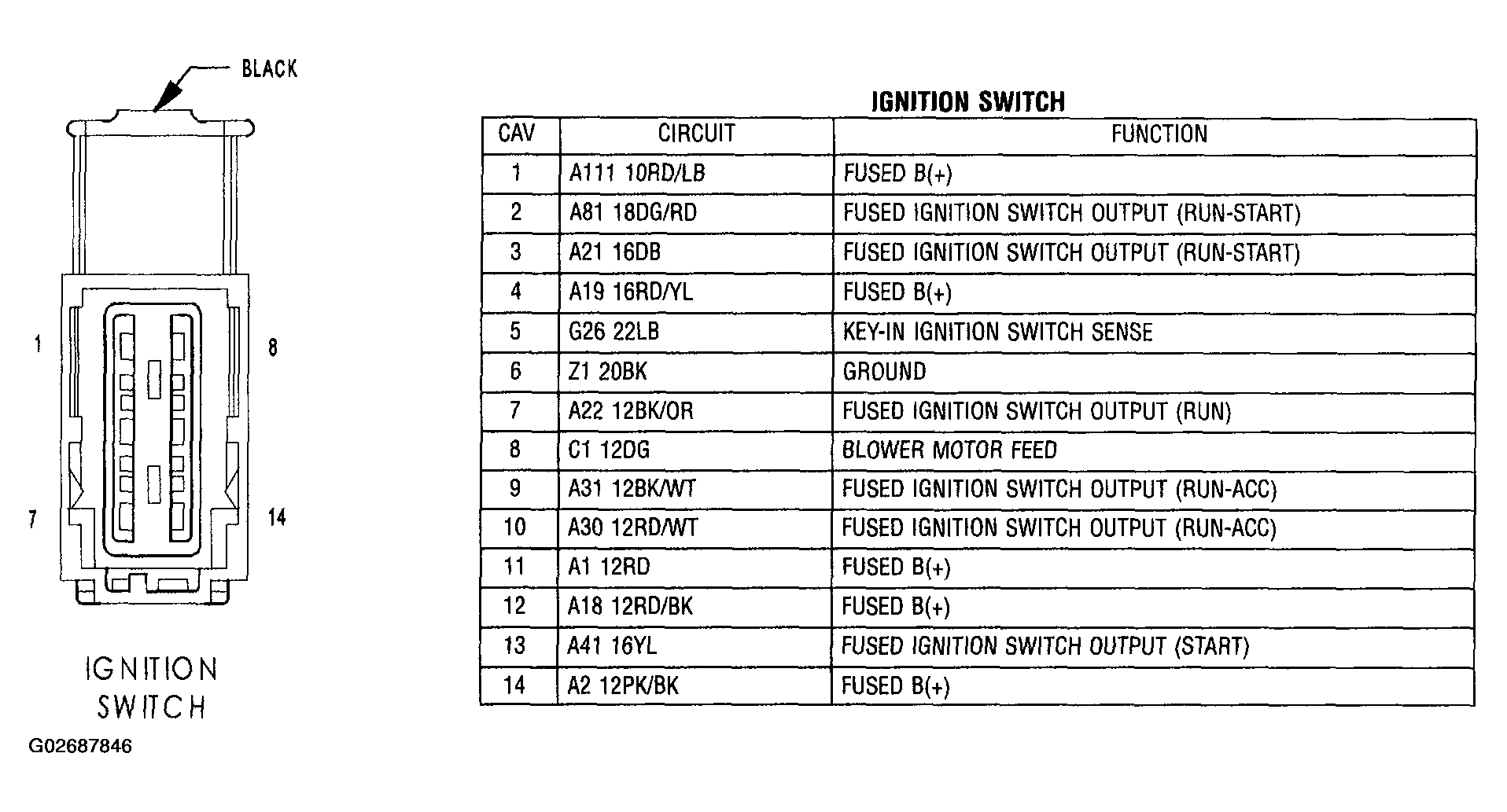

Fig 39: Identifying Ignition Switch
Courtesy of DAIMLERCHRYSLER CORP.
Fig 40: Identifying Instrument Cluster C1
Courtesy of DAIMLERCHRYSLER CORP.

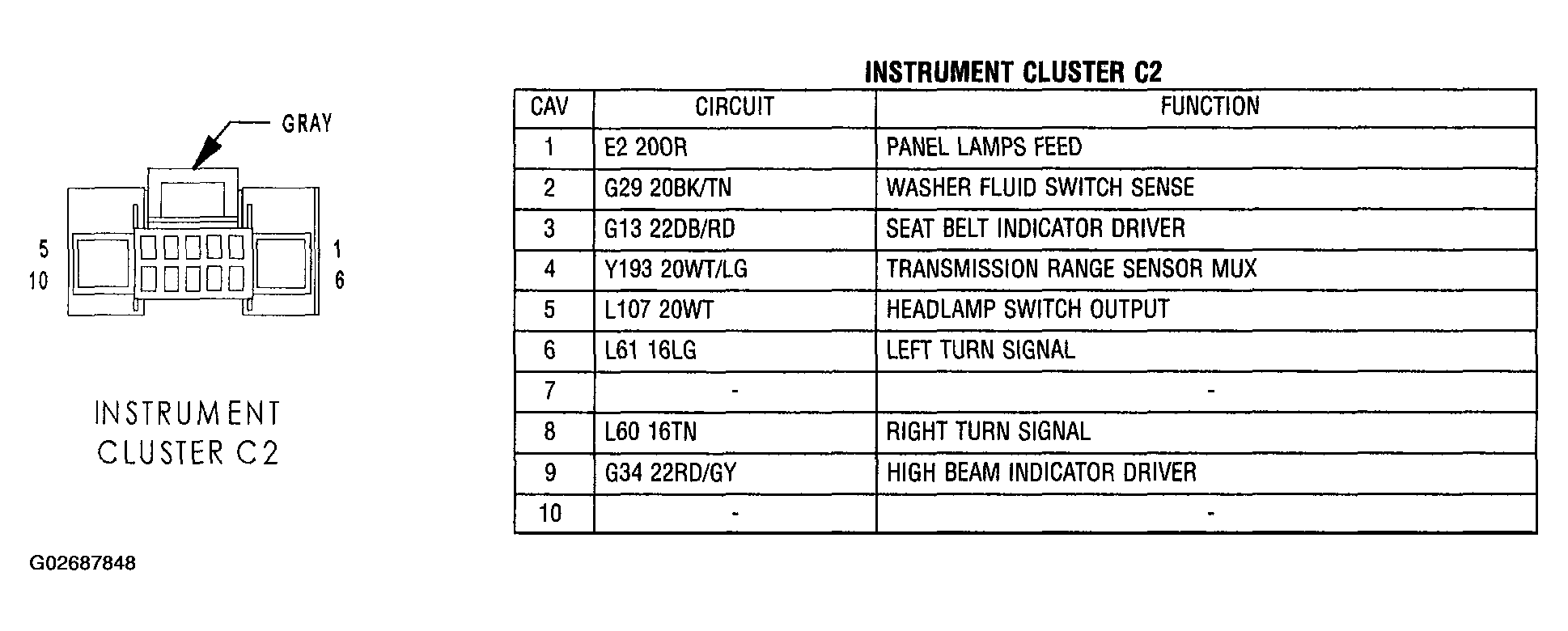

Fig 41: Identifying Instrument Cluster C2
Courtesy of DAIMLERCHRYSLER CORP.
Fig 42: Identifying Joint Connector No. 1 (In PDC)
Courtesy of DAIMLERCHRYSLER CORP.

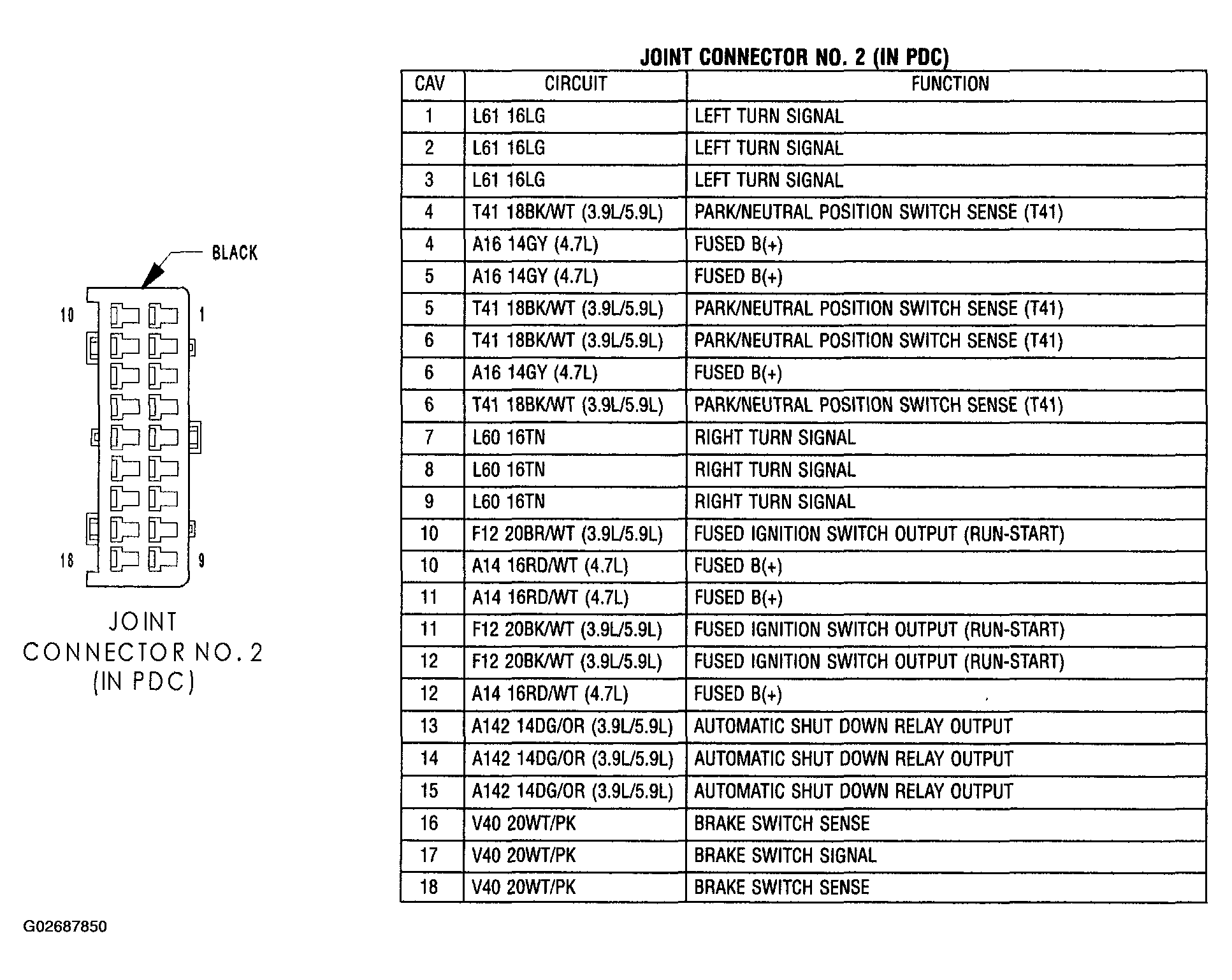

Fig 43: Identifying Joint Connector No. 2 (In PDC)
Courtesy of DAIMLERCHRYSLER CORP.

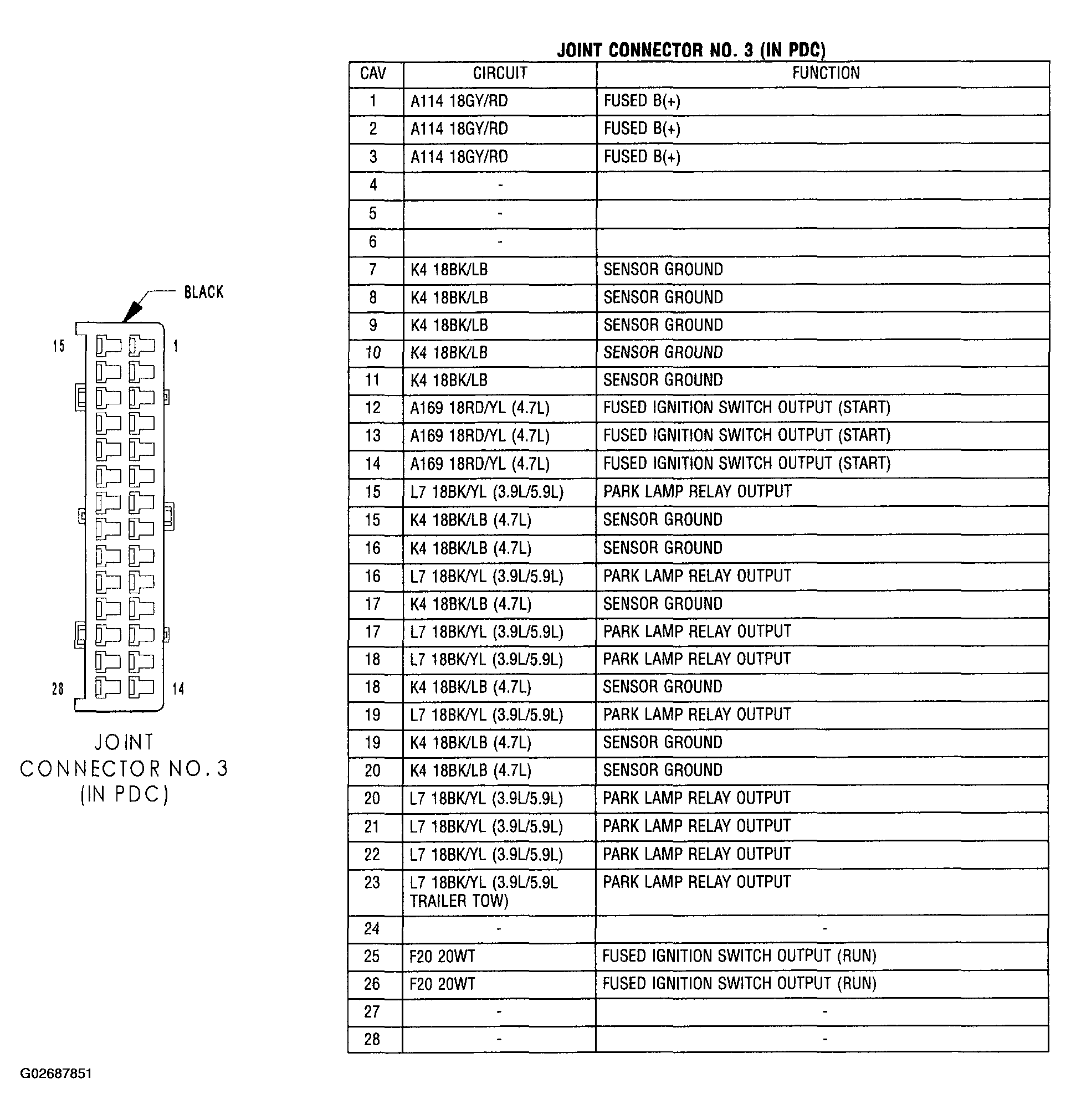

Fig 44: Identifying Joint Connector No. 3 (In PDC)
Courtesy of DAIMLERCHRYSLER CORP.

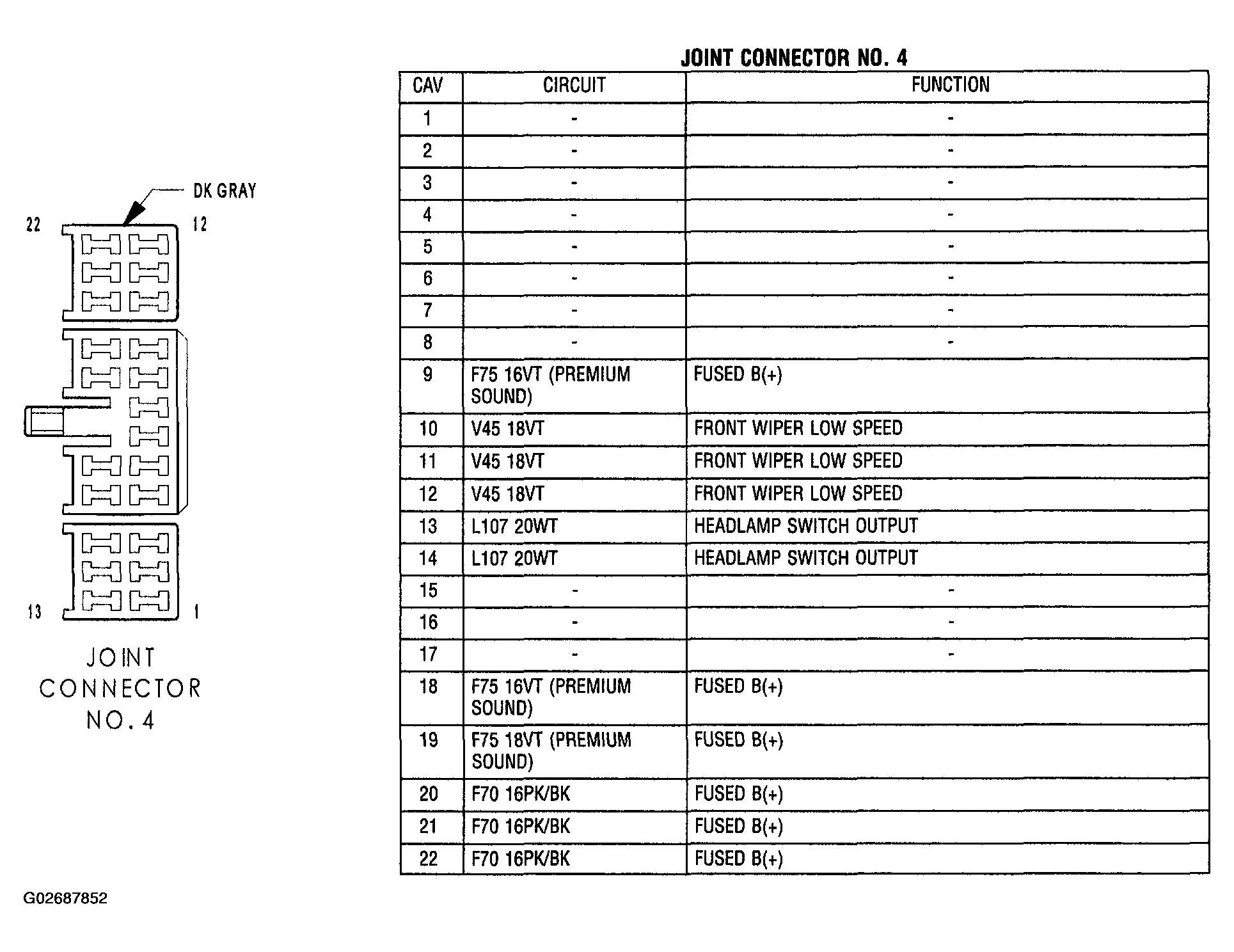

Fig 45: Identifying Joint Connector No. 4
Courtesy of DAIMLERCHRYSLER CORP.

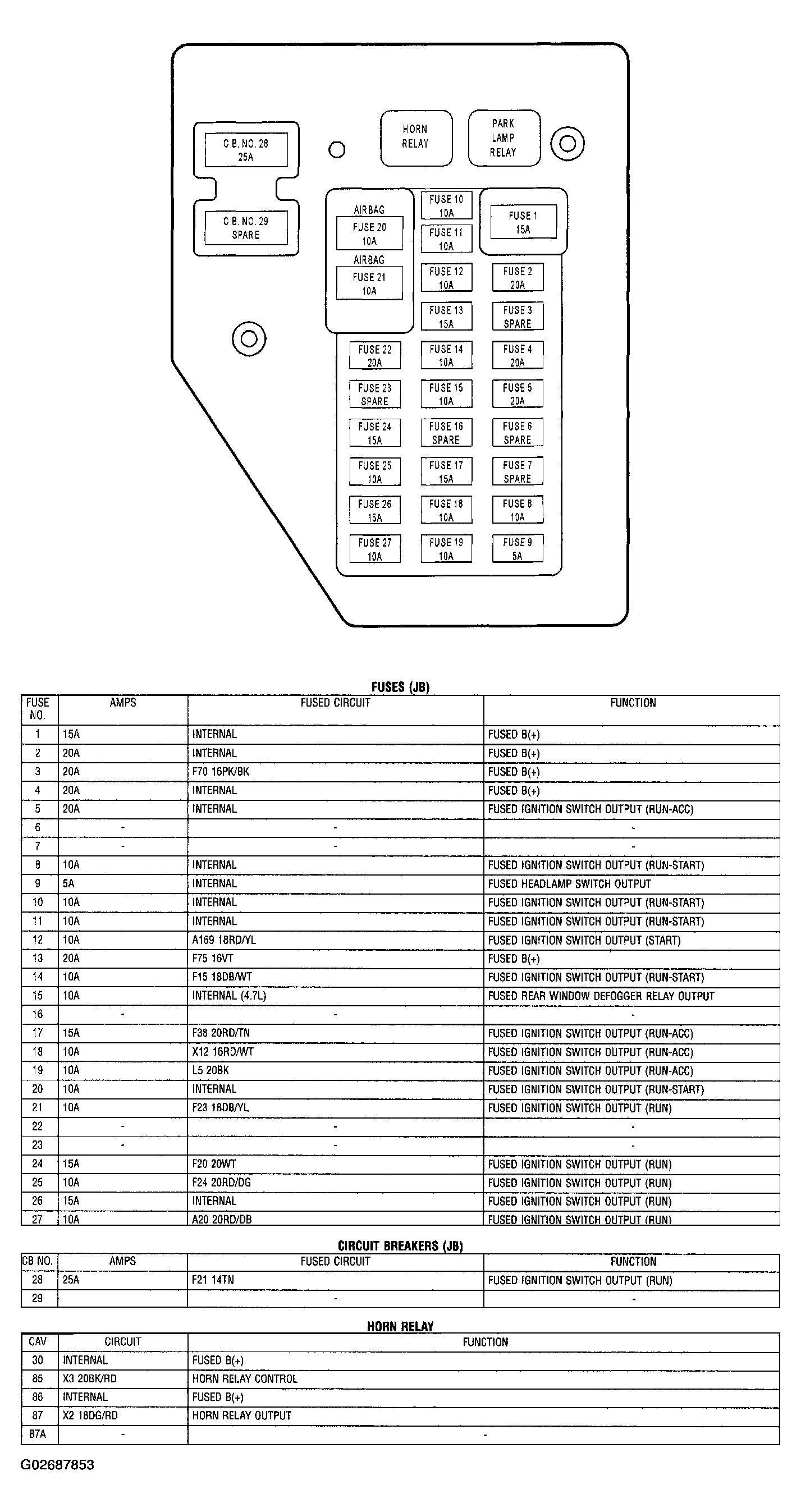

Fig 46: Identifying Junction Block (Front View)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 47: Identifying Junction Block C1
Courtesy of DAIMLERCHRYSLER CORP.
Fig 48: Identifying Junction Block C2
Courtesy of DAIMLERCHRYSLER CORP.

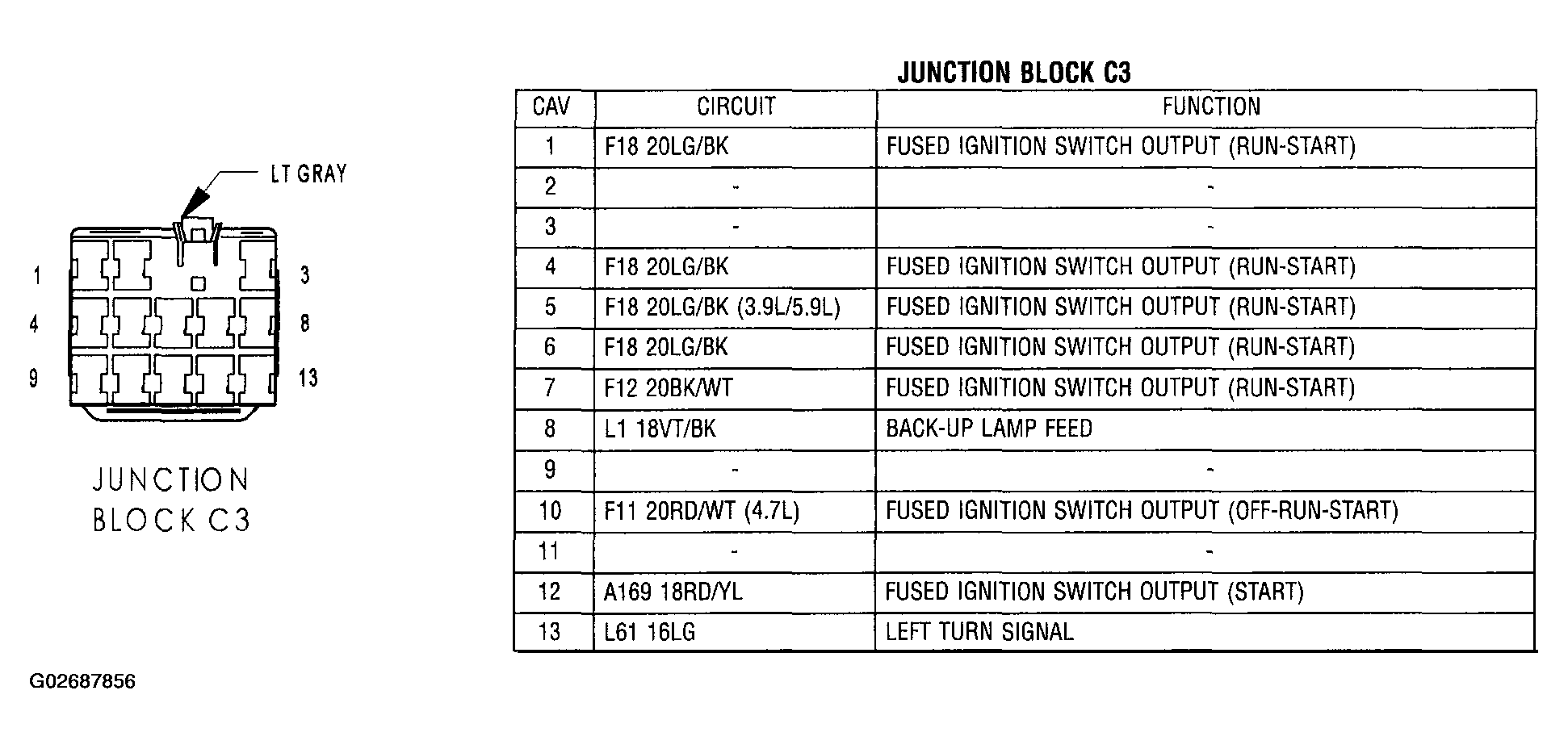

Fig 49: Identifying Junction Block C3
Courtesy of DAIMLERCHRYSLER CORP.
Fig 50: Identifying Junction Block C4
Courtesy of DAIMLERCHRYSLER CORP.
Fig 51: Identifying Junction Block C5
Courtesy of DAIMLERCHRYSLER CORP.

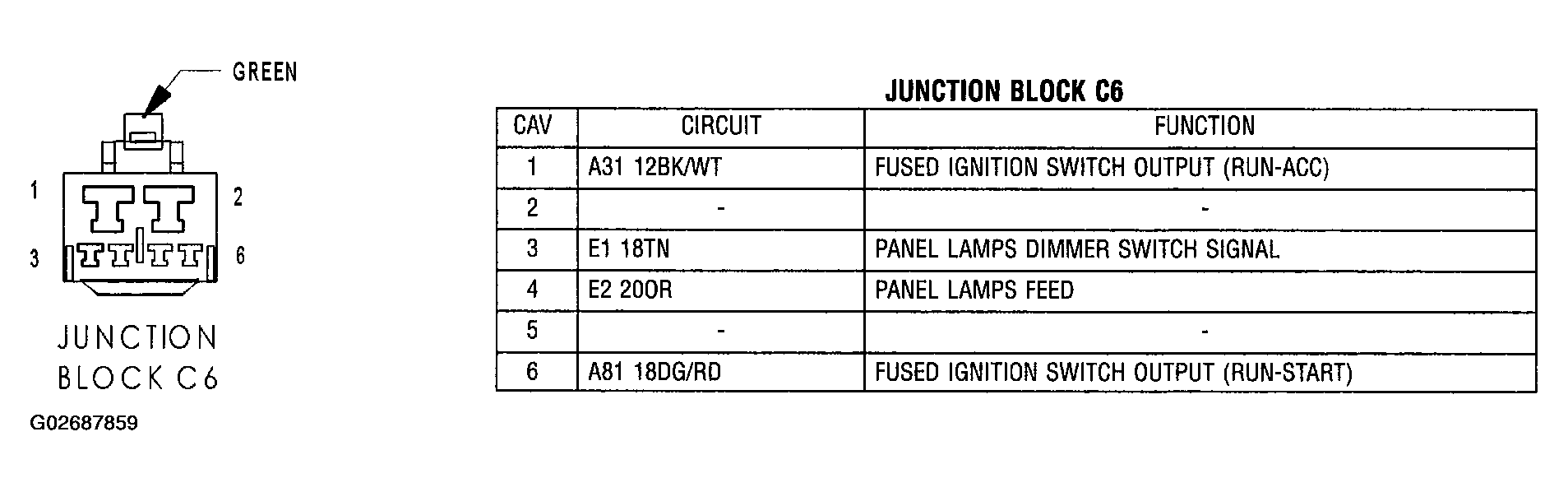

Fig 52: Identifying Junction Block C6
Courtesy of DAIMLERCHRYSLER CORP.

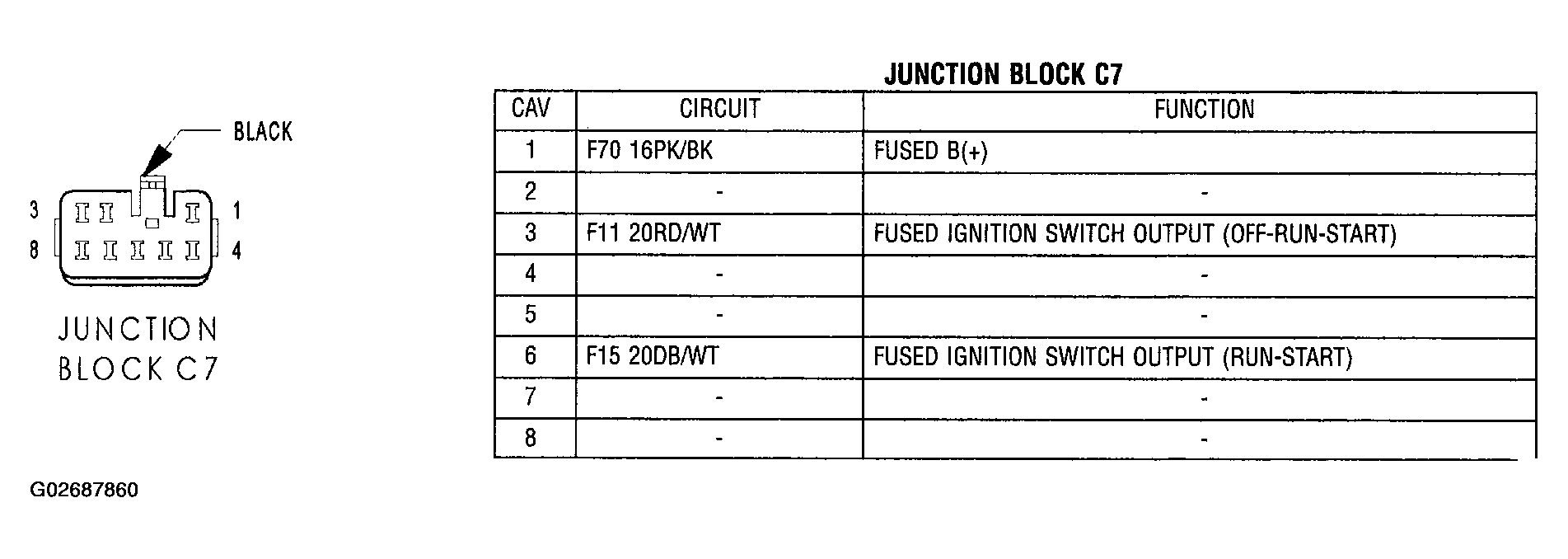

Fig 53: Identifying Junction Block C7
Courtesy of DAIMLERCHRYSLER CORP.

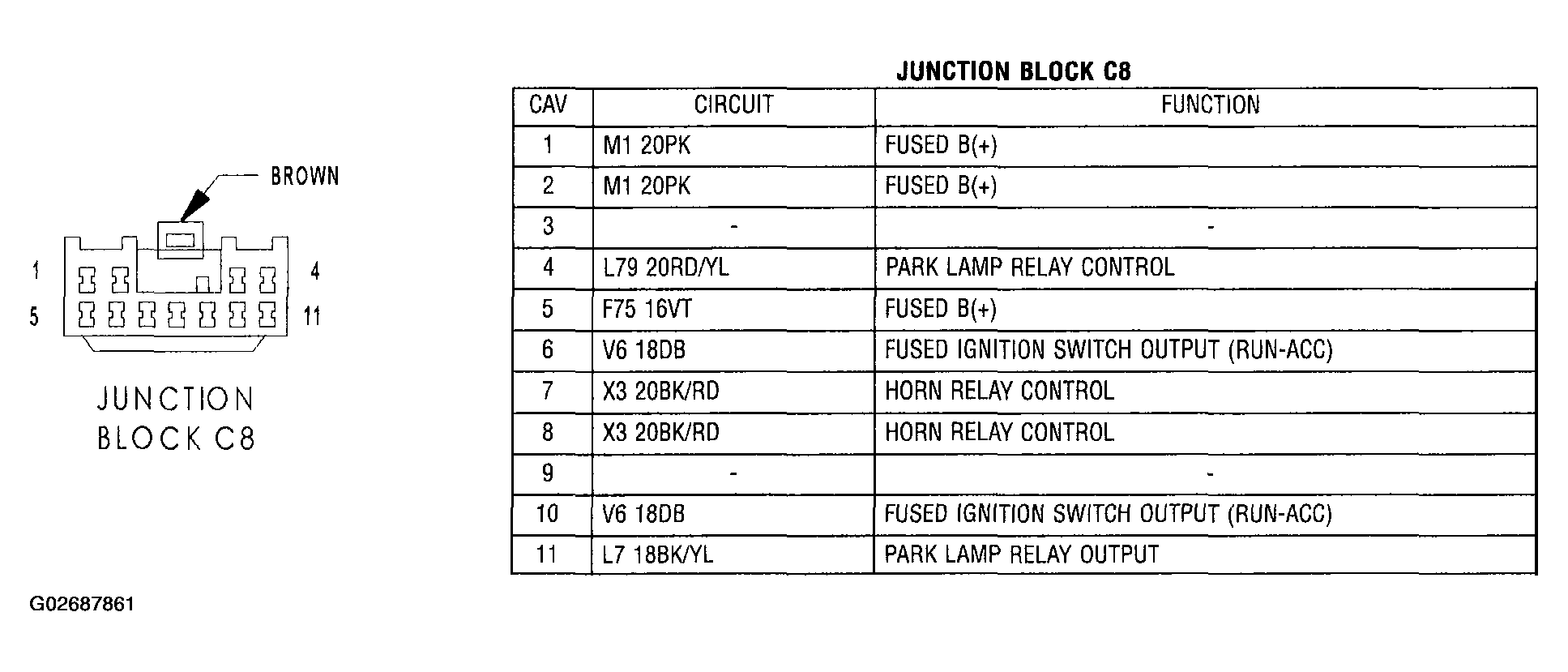

Fig 54: Identifying Junction Block C8
Courtesy of DAIMLERCHRYSLER CORP.
Fig 55: Identifying Junction Block C9
Courtesy of DAIMLERCHRYSLER CORP.
Fig 56: Identifying Junction Block C10
Courtesy of DAIMLERCHRYSLER CORP.
Fig 57: Identifying Junction Block C11
Courtesy of DAIMLERCHRYSLER CORP.
Fig 58: Identifying Junction Block C12
Courtesy of DAIMLERCHRYSLER CORP.
Fig 59: Identifying Left Front Door Speaker (Base)
Courtesy of DAIMLERCHRYSLER CORP.

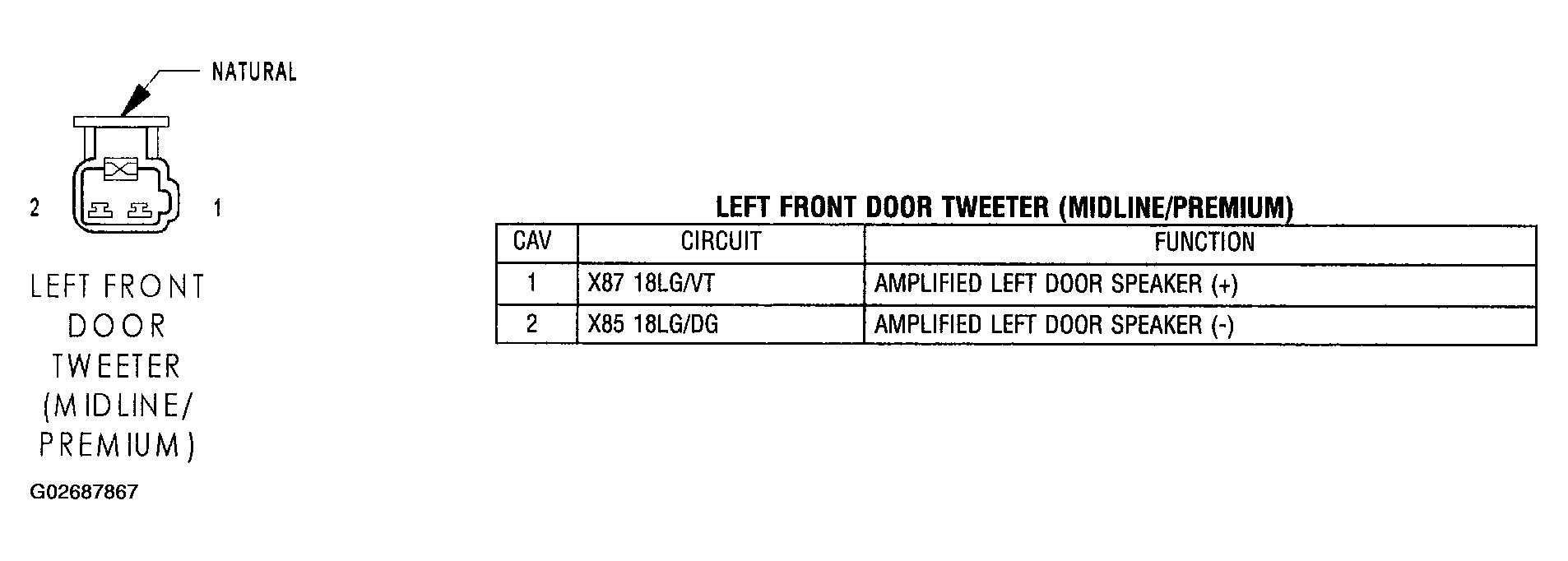

Fig 60: Identifying Left Front Door Tweeter (Midline/Premium)
Courtesy of DAIMLERCHRYSLER CORP.

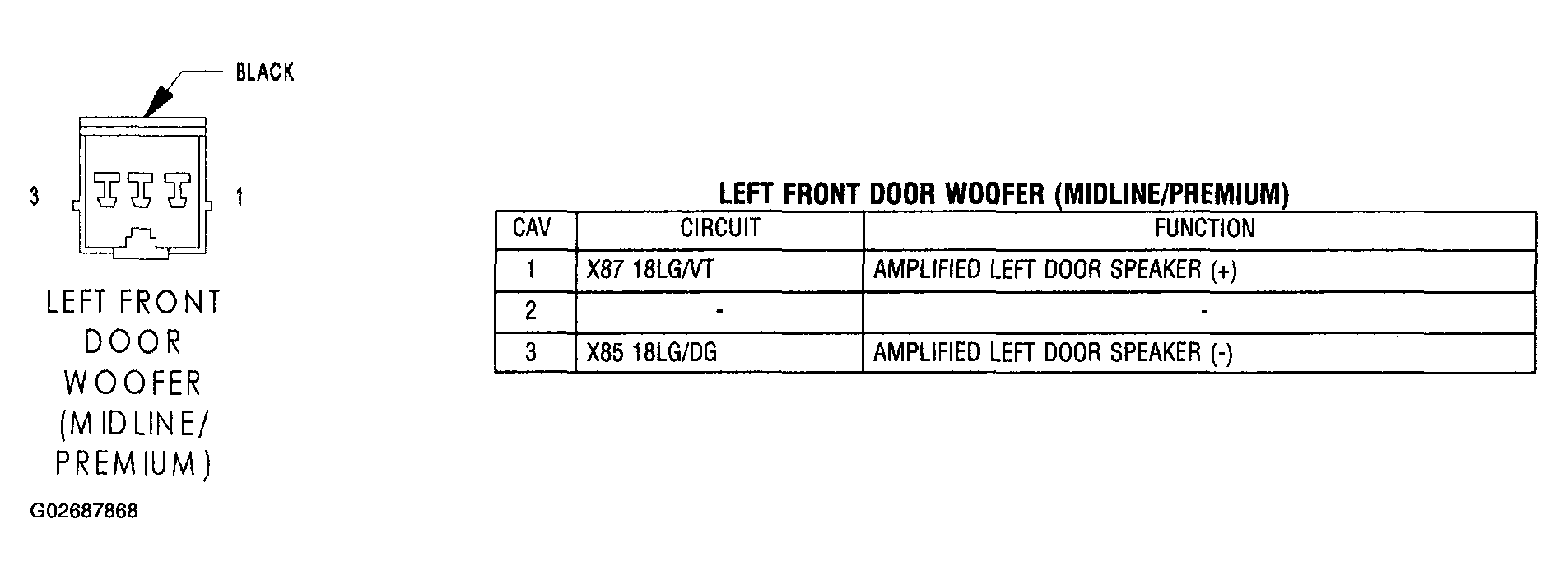

Fig 61: Identifying Left Front Door Woofer (Midline/Premium)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 62: Identifying Left Rear Door Ajar Switch (Base)
Courtesy of DAIMLERCHRYSLER CORP.

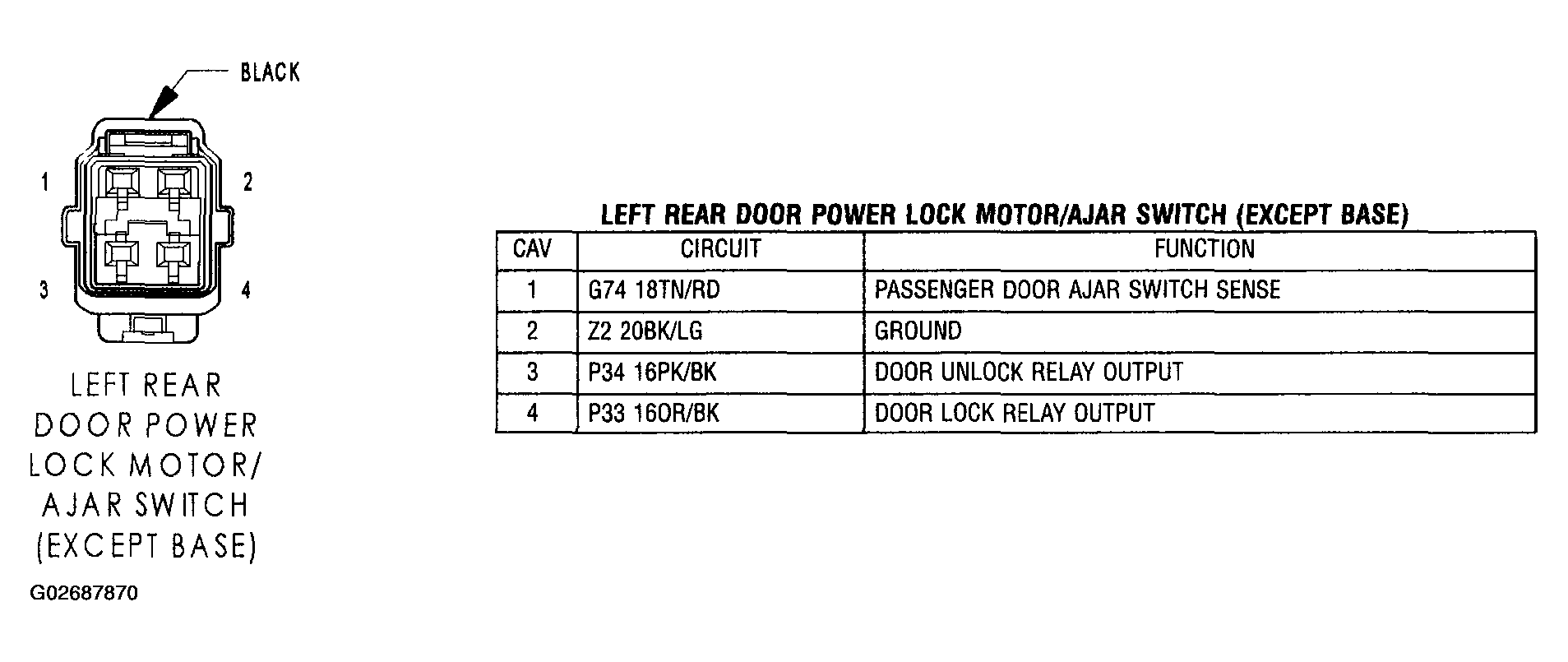

Fig 63: Identifying Left Rear Door Power Lock Motor/Ajar Switch (Except Base)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 64: Identifying Left Rear Speaker
Courtesy of DAIMLERCHRYSLER CORP.
Fig 65: Identifying Left Remote Radio Switch (Premium)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 66: Identifying Low Note Horn
Courtesy of DAIMLERCHRYSLER CORP.
Fig 67: Identifying Mode Door Actuator
Courtesy of DAIMLERCHRYSLER CORP.
Fig 68: Identifying Overhead Console (Base)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 69: Identifying Overhead Console (Premium)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 70: Identifying Junction Block (Front View)
Courtesy of DAIMLERCHRYSLER CORP.

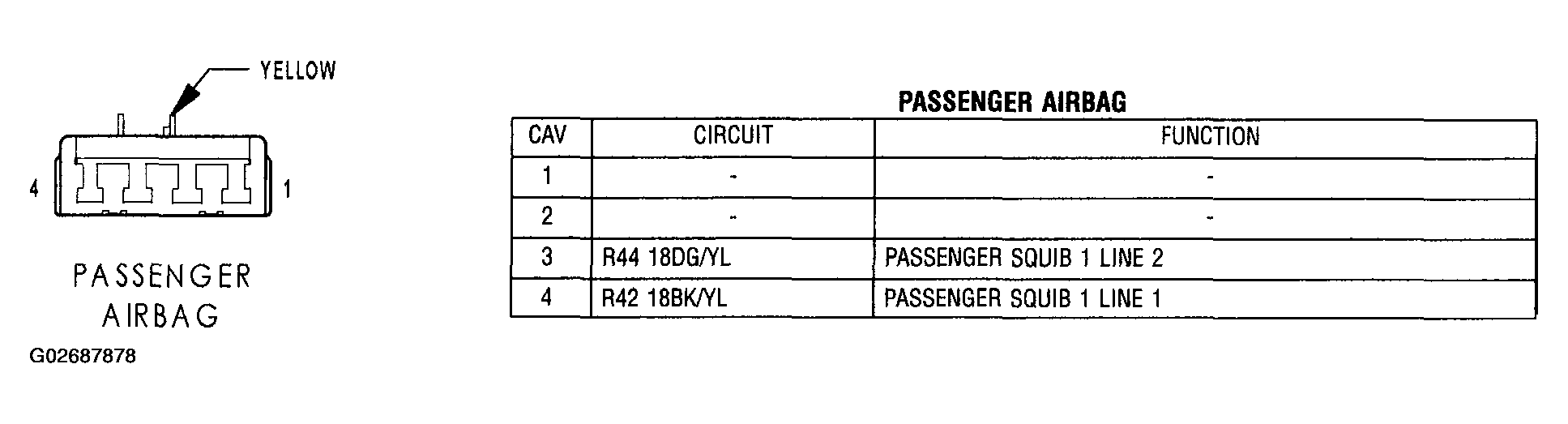

Fig 71: Identifying Passenger Airbag
Courtesy of DAIMLERCHRYSLER CORP.
Fig 72: Identifying Passenger Airbag On-Off Switch
Courtesy of DAIMLERCHRYSLER CORP.

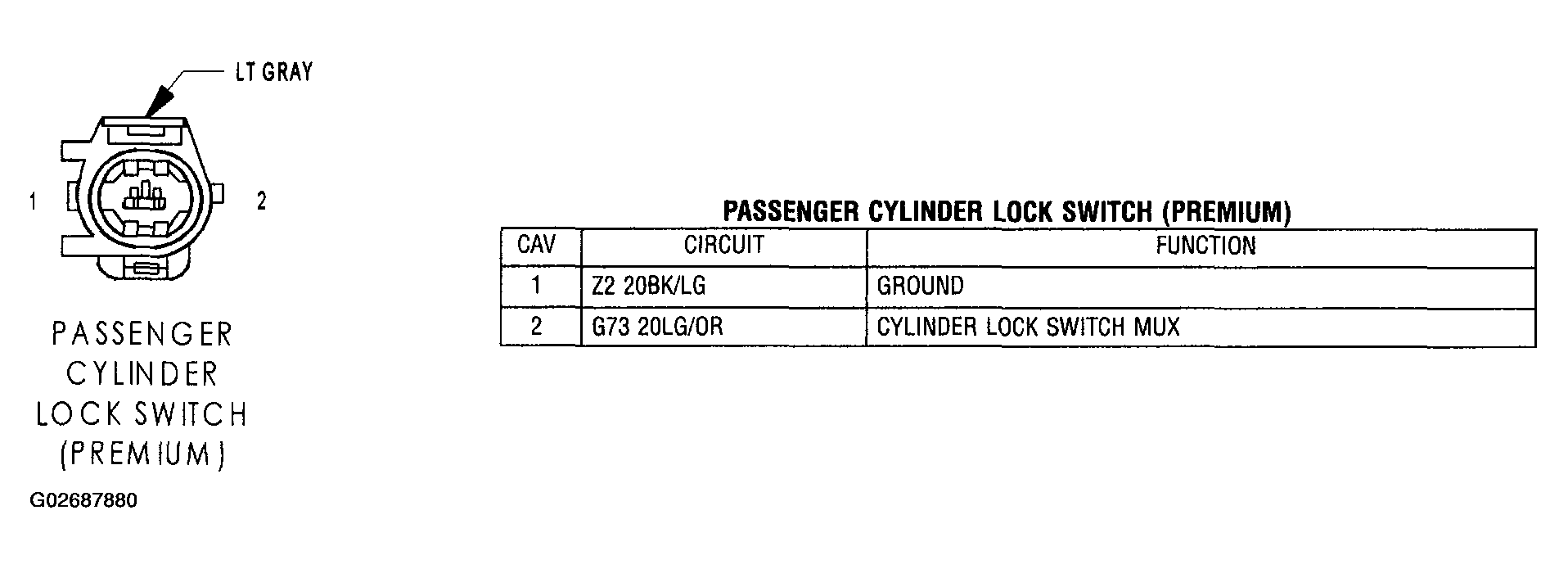

Fig 73: Identifying Passenger Cylinder Lock Switch (Premium)
Courtesy of DAIMLERCHRYSLER CORP.

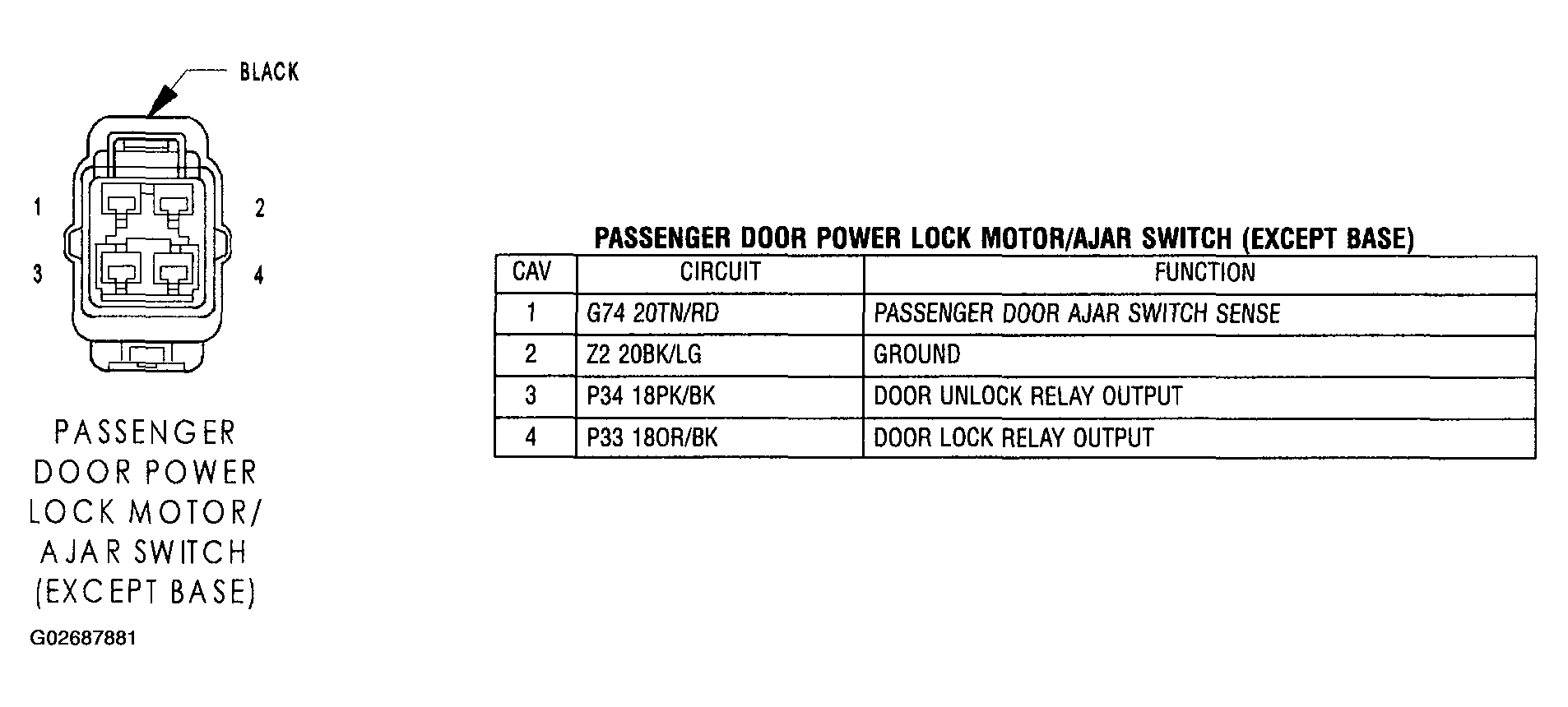

Fig 74: Identifying Passenger Door Power Lock Motor/Ajar Switch (Except Base)
Courtesy of DAIMLERCHRYSLER CORP.

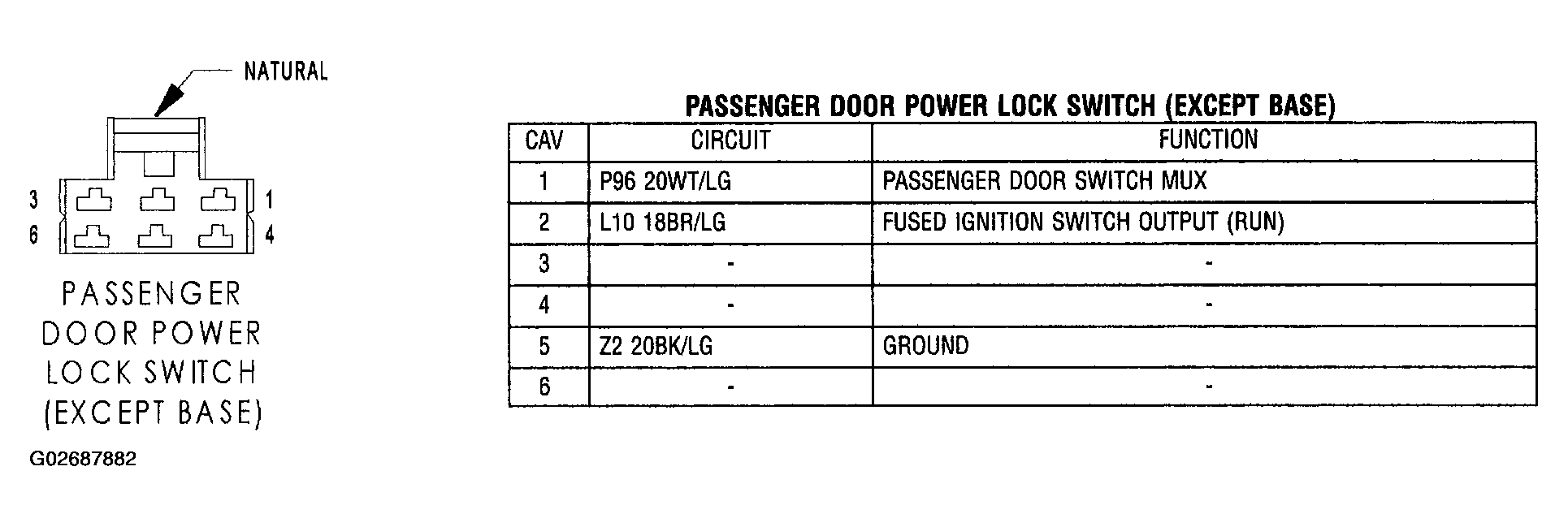

Fig 75: Identifying Passenger Door Power Lock Switch (Except Base)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 76: Identifying Passenger Seat Belt Tensioner (4 Door)
Courtesy of DAIMLERCHRYSLER CORP.

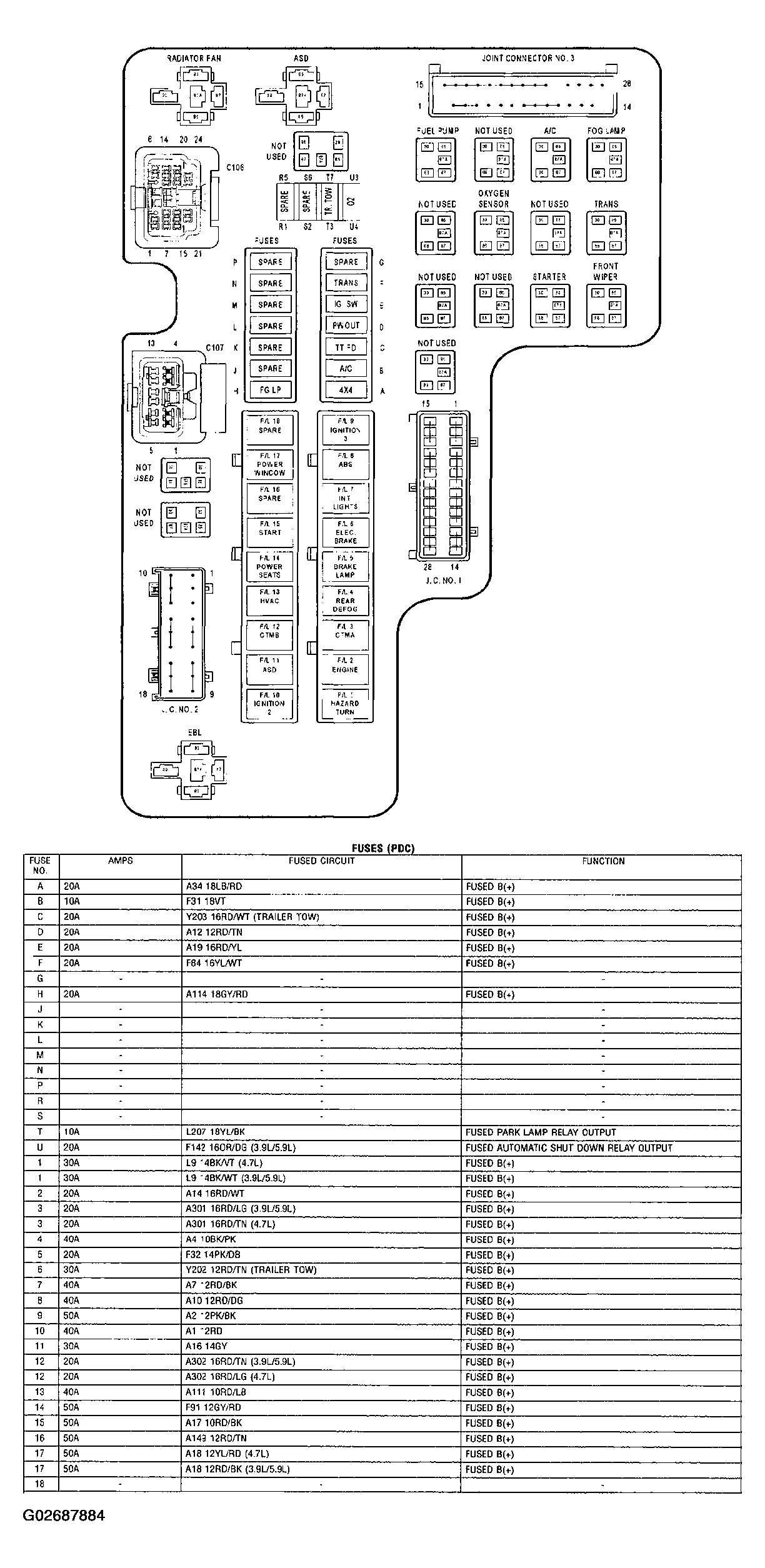

Fig 77: Identifying Power Distribution Center
Courtesy of DAIMLERCHRYSLER CORP.
Fig 78: Identifying Fog Lamp Relay Circuits
Courtesy of DAIMLERCHRYSLER CORP.

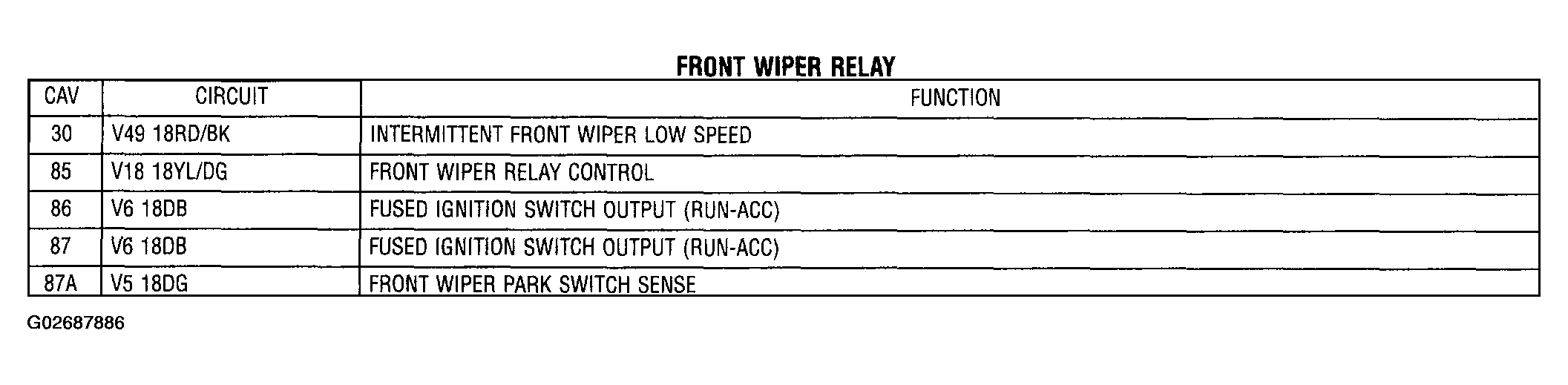

Fig 79: Identifying Front Wiper Relay Circuits
Courtesy of DAIMLERCHRYSLER CORP.

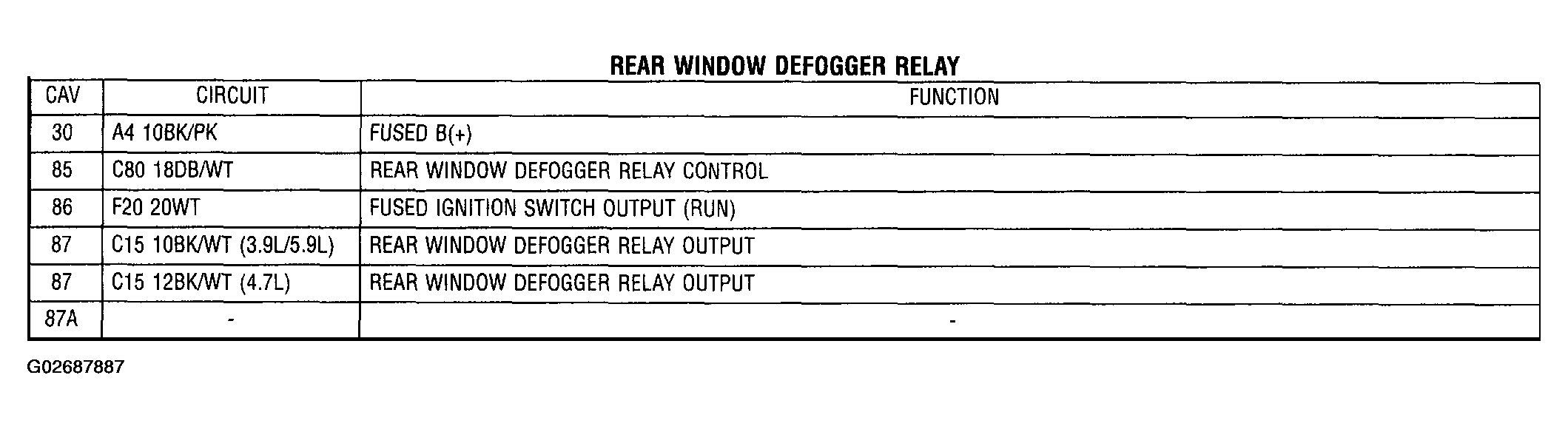

Fig 80: Identifying Rear Window Defogger Relay Circuits
Courtesy of DAIMLERCHRYSLER CORP.

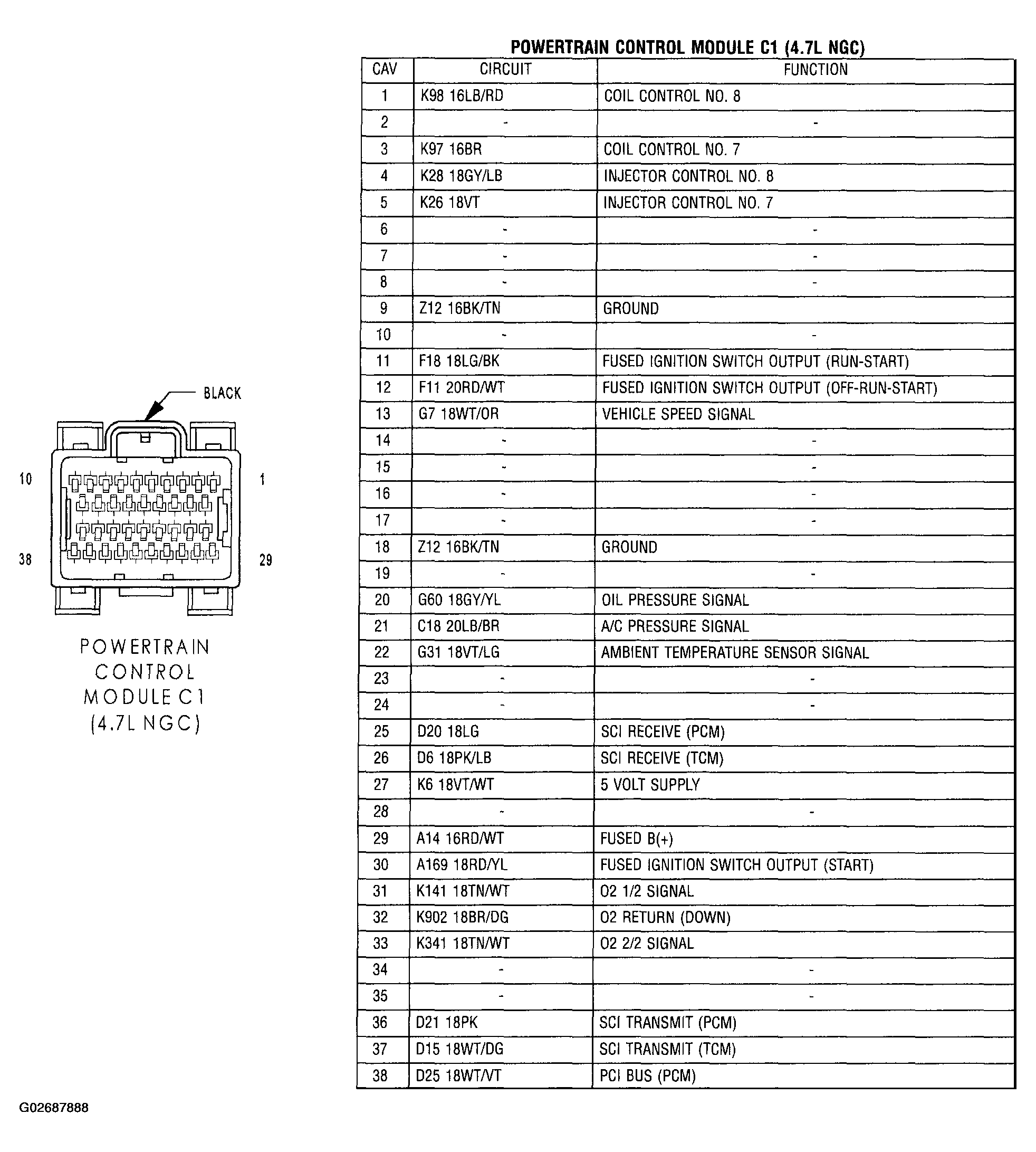

Fig 81: Identifying Powertrain Control Module C1 (4.7L NGC)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 82: Identifying Powertrain Control Module C3 (3.9L/5.9L JTEC)
Courtesy of DAIMLERCHRYSLER CORP.

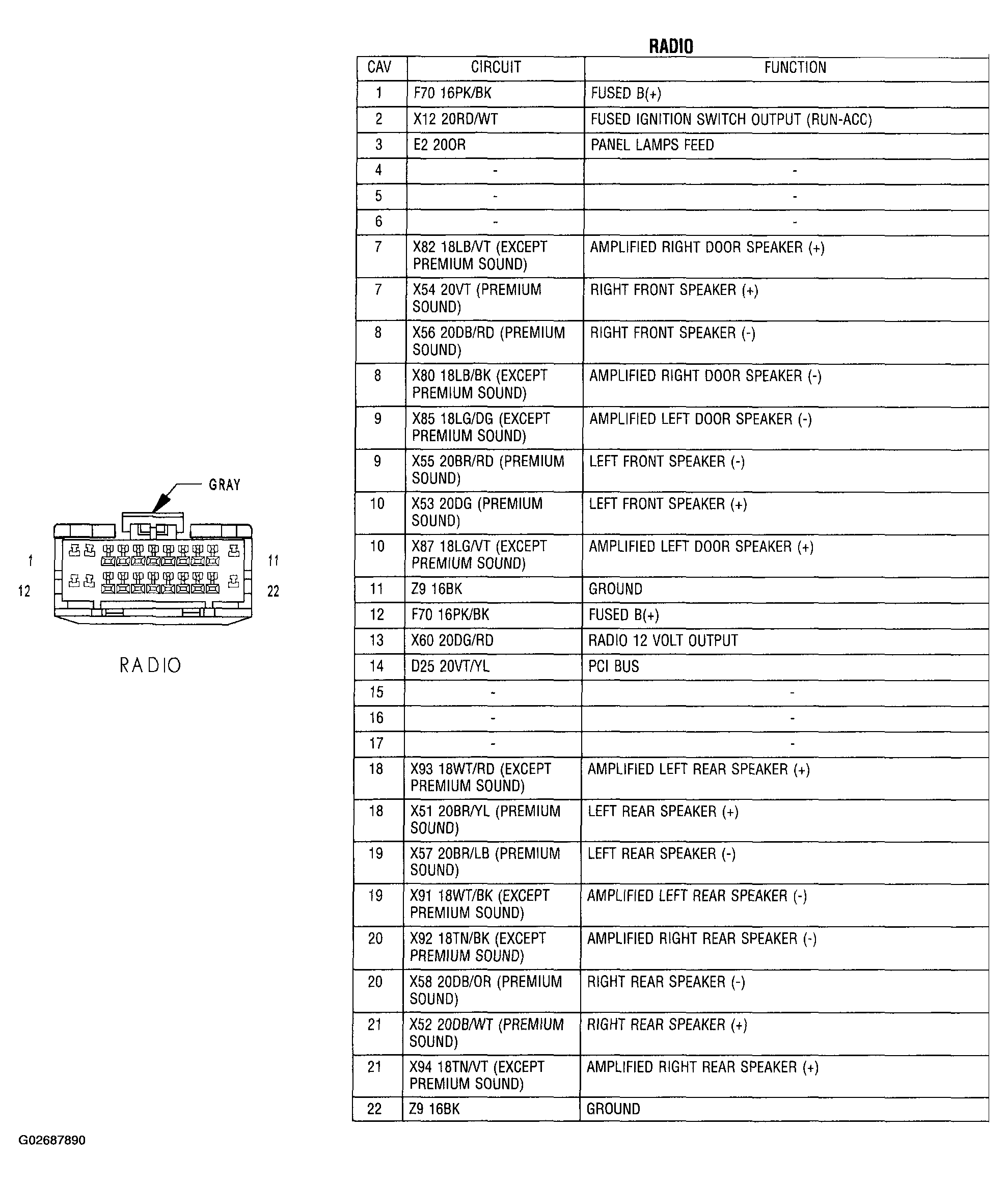

Fig 83: Identifying Radio
Courtesy of DAIMLERCHRYSLER CORP.
Fig 84: Identifying Recirculation Door Actuator
Courtesy of DAIMLERCHRYSLER CORP.

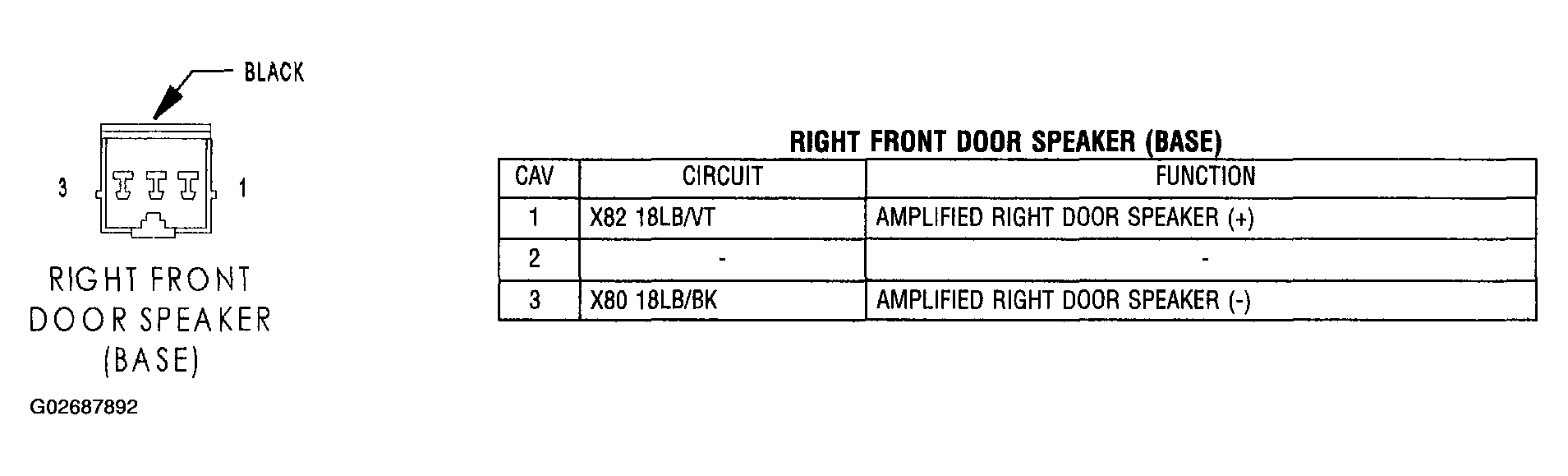

Fig 85: Identifying Right Front Door Speaker (Base)
Courtesy of DAIMLERCHRYSLER CORP.

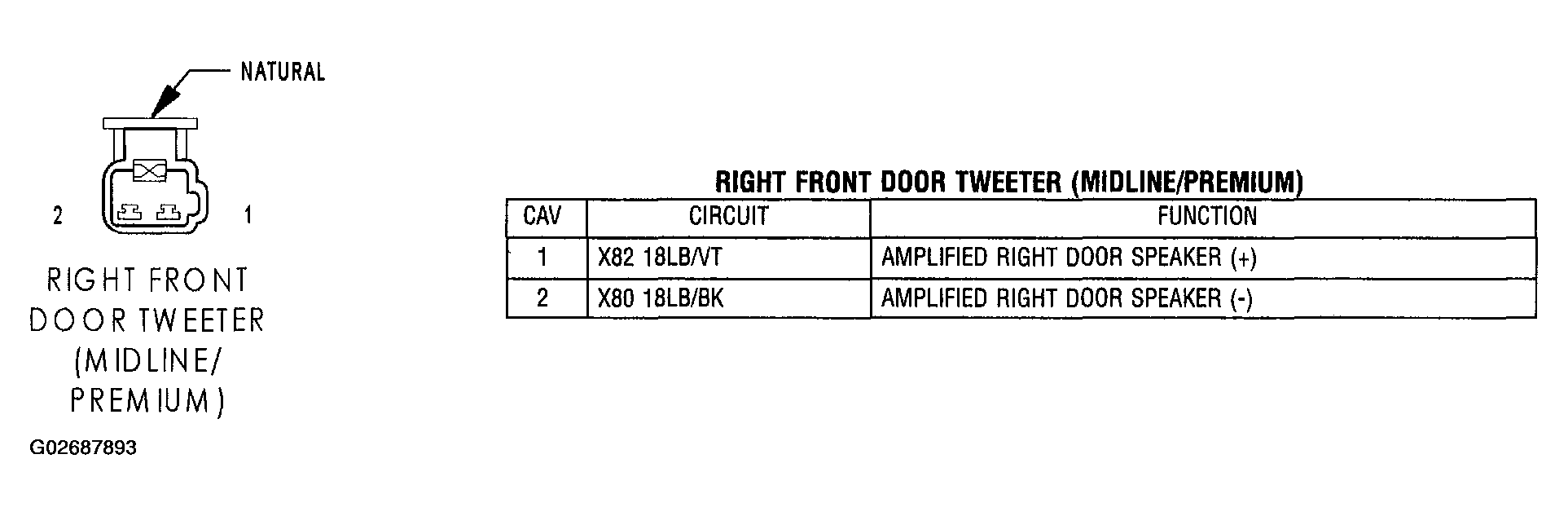

Fig 86: Identifying Right Front Door Tweeter (Midline/Premium)
Courtesy of DAIMLERCHRYSLER CORP.

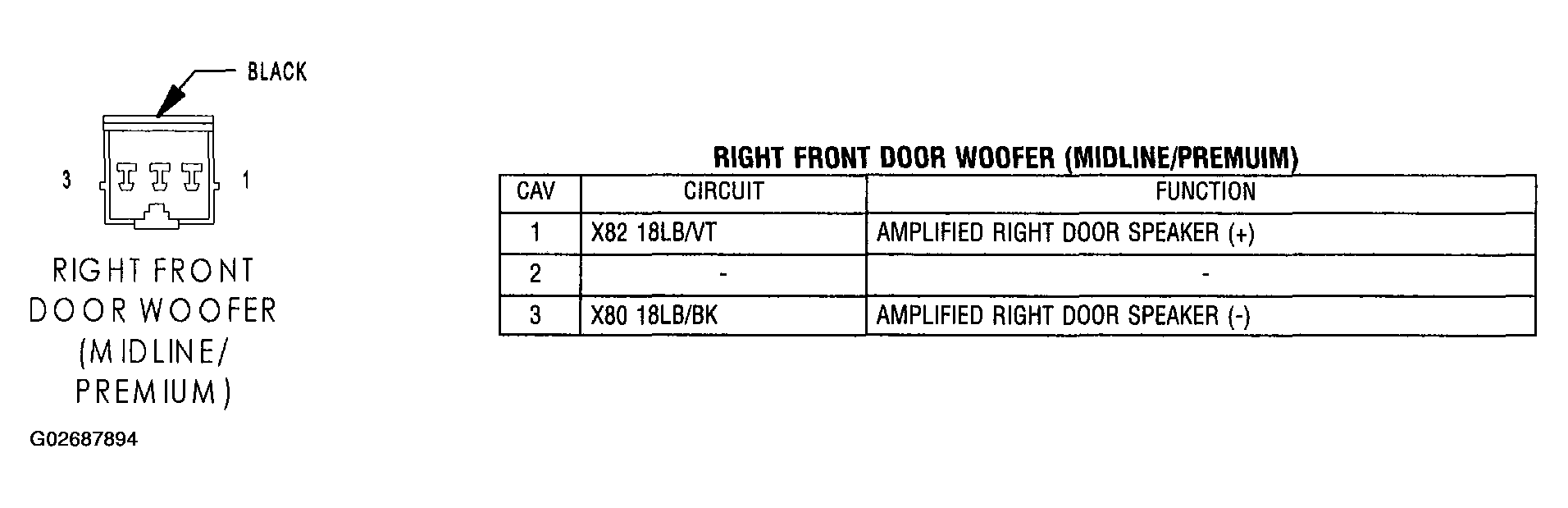

Fig 87: Identifying Right Front Door Woofer (Midline/Premium)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 88: Identifying Right Headlamp
Courtesy of DAIMLERCHRYSLER CORP.

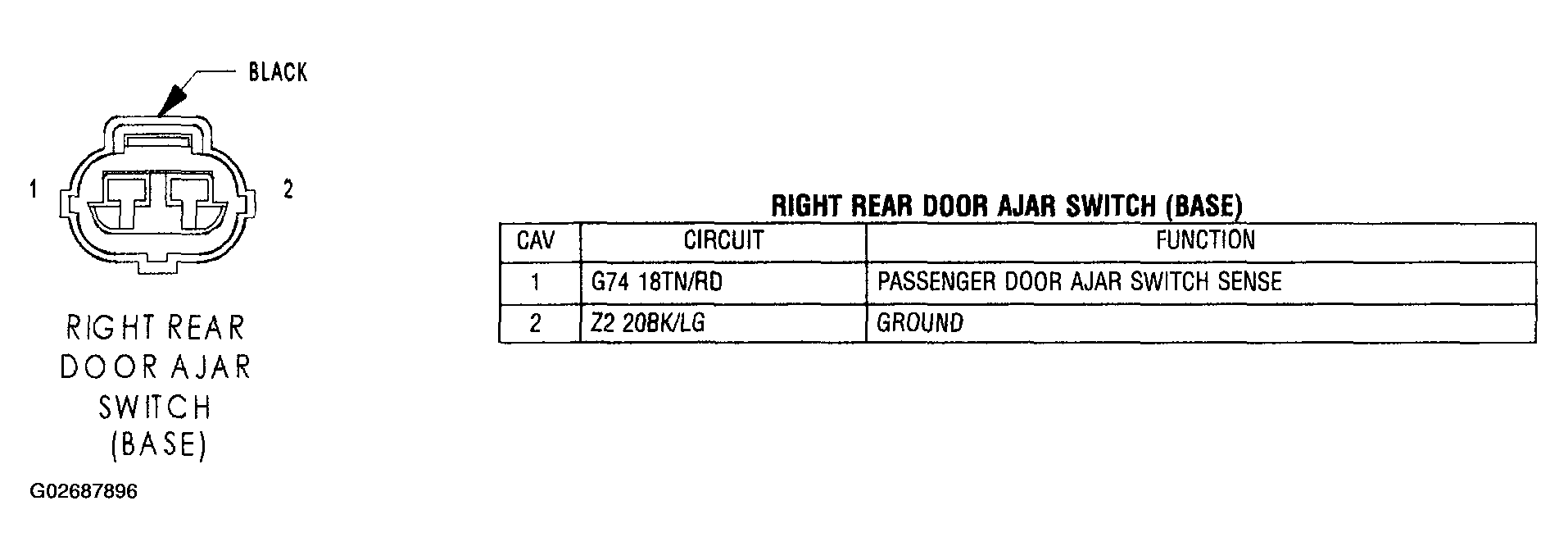

Fig 89: Identifying Right Rear Door Ajar Switch (Base)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 90: Identifying Right Rear Door Power Lock Motor/Ajar Switch (Except Base)
Courtesy of DAIMLERCHRYSLER CORP.

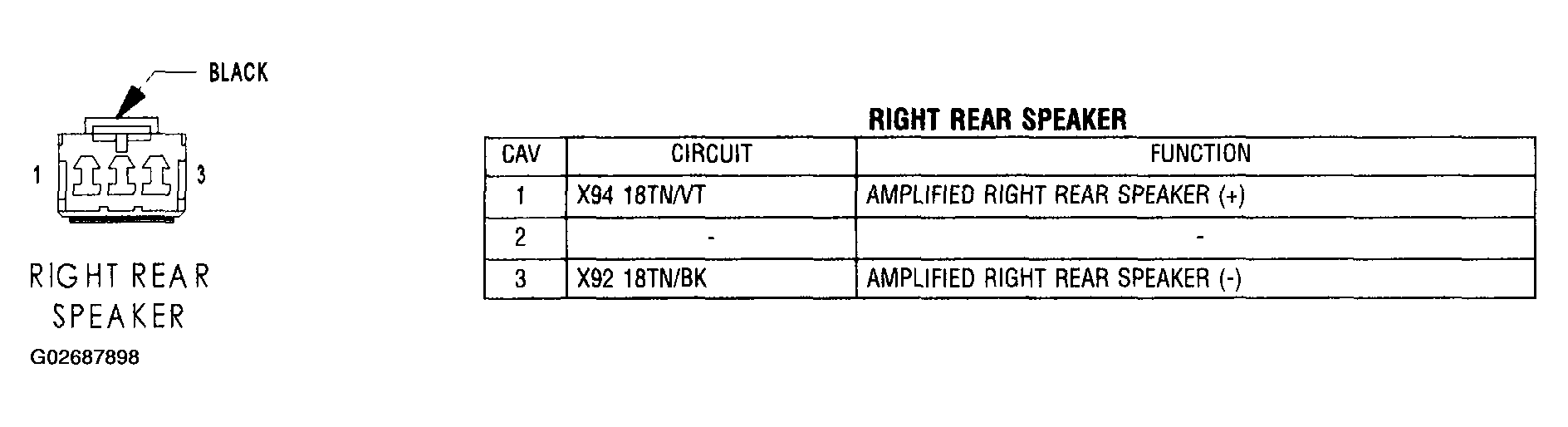

Fig 91: Identifying Right Rear Speaker
Courtesy of DAIMLERCHRYSLER CORP.
Fig 92: Identifying Right Remote Radio Switch (Premium)
Courtesy of DAIMLERCHRYSLER CORP.

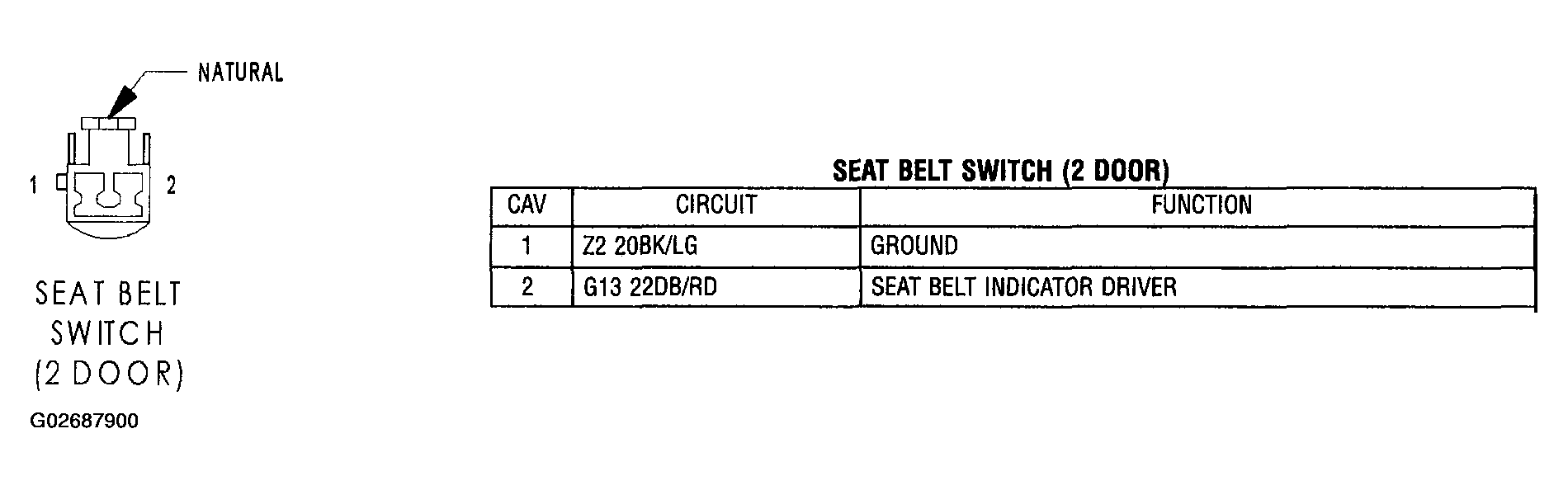

Fig 93: Identifying Seat Belt Switch (2 Door)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 94: Identifying Seat Belt Switch (4 Door)
Courtesy of DAIMLERCHRYSLER CORP.

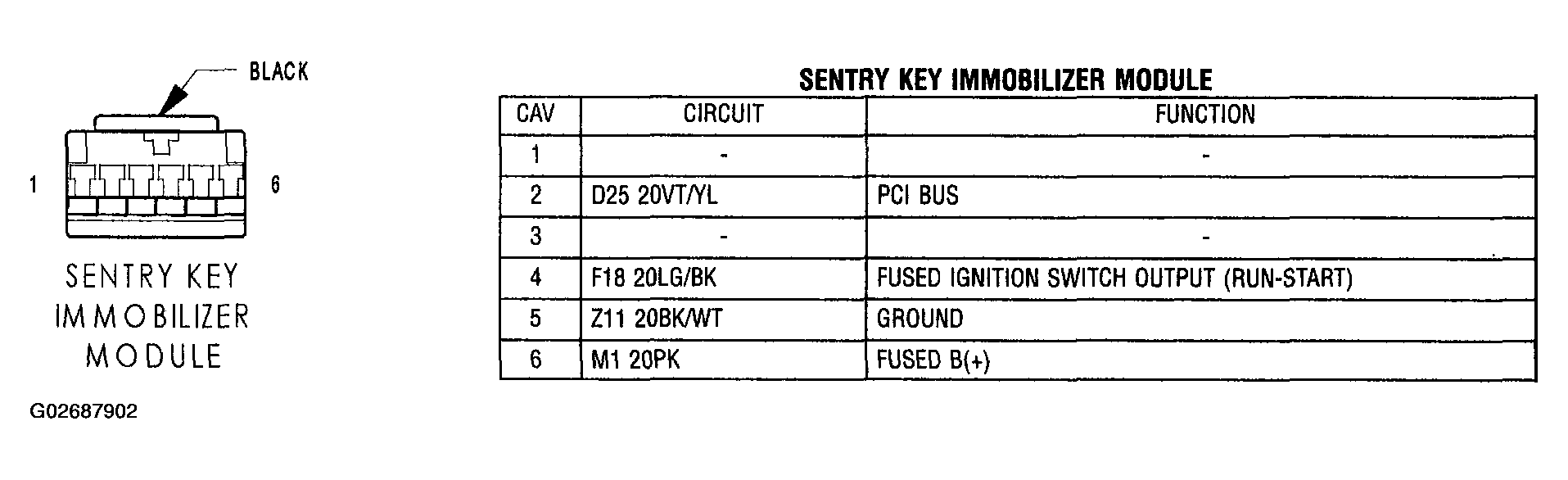

Fig 95: Identifying Sentry Key Immobilizer Module
Courtesy of DAIMLERCHRYSLER CORP.
Fig 96: Identifying Transfer Case Control Module C1
Courtesy of DAIMLERCHRYSLER CORP.
Fig 97: Identifying Transfer Case Control Module C2
Courtesy of DAIMLERCHRYSLER CORP.
Fig 98: Identifying Transfer Case Control Module C3
Courtesy of DAIMLERCHRYSLER CORP.
Fig 99: Identifying Transmission Range Sensor (3.9L/5.9L A/T)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 100: Identifying Washer Fluid Level Switch
Courtesy of DAIMLERCHRYSLER CORP.
