Evaporator Temperature Sensor: Removal

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove and isolate the battery negative cable.
  2. Remove the access panel from the passenger side of the HVAC housing below the glove box housing to gain access to the evaporator temperature sensor.
  3. Remove the evaporator temperature sensor from the evaporator (Fig 1 ).
  4. Disconnect the evaporator temperature sensor lead wire from the wiring harness.

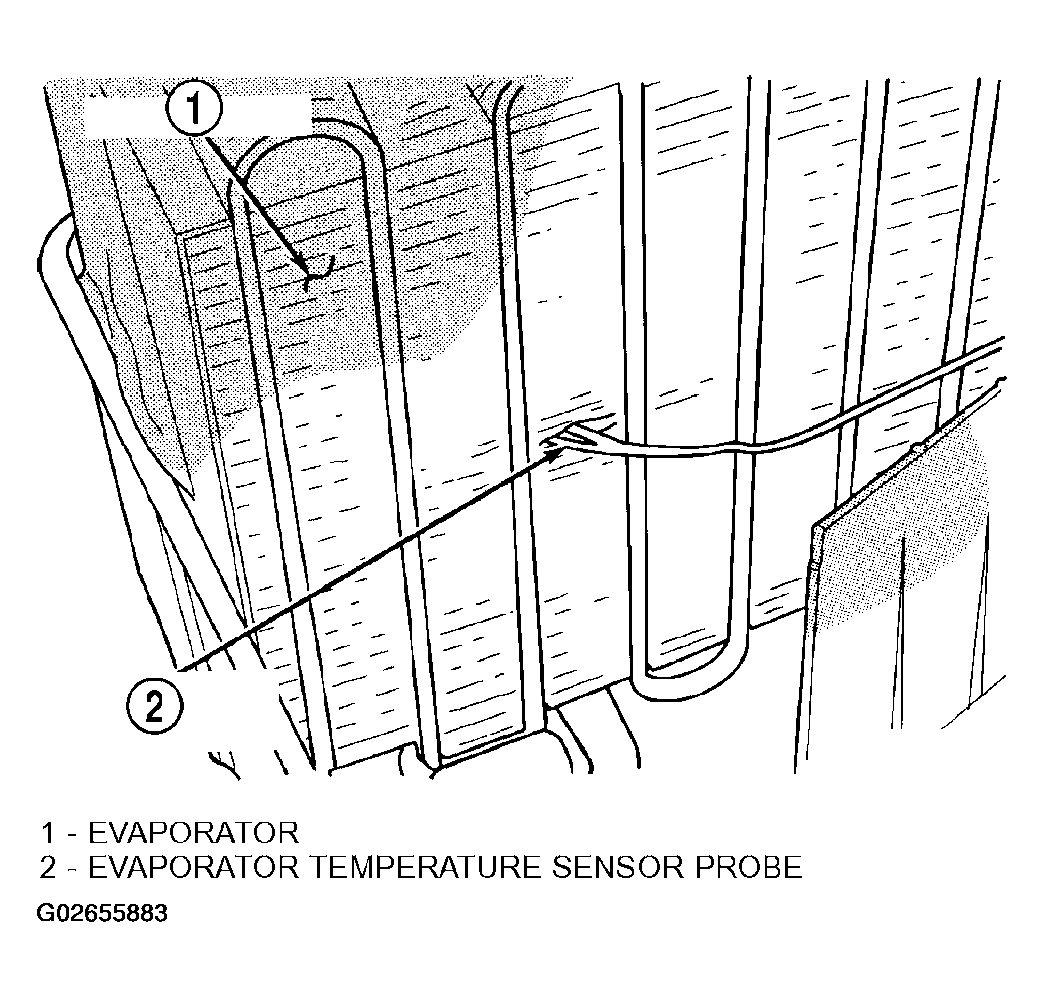

    Fig 1: Removing Evaporator Sensing Probe (Typical) From Evaporator
    G02655883Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove the evaporator temperature sensor from the HVAC housing.
