Specifications - Weld Locations

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

WELD LOCATIONS INDEX

DESCRIPTION	FIGURE
FRONT FENDER AND INNER WHEELHOUSE	Fig 1
ROOF PANEL - REGULAR CAB	Fig 2
ROOF PANEL - CLUB CAB	Fig 3
BODY SIDE APERTURE - REGULAR CAB	Fig 4
BODY SIDE APERTURE - REGULAR CAB	Fig 5
BODY SIDE APERTURE - REGULAR CAB	Fig 6
BODY SIDE APERTURE - REGULAR CAB	Fig 7
BODY SIDE APERTURE - CLUB CAB	Fig 8
BODY SIDE APERTURE - CLUB CAB	Fig 9
BODY SIDE APERTURE - CLUB CAB	Fig 10
BODY SIDE APERTURE - CLUB CAB	Fig 11
CAB BACK PANEL - REGULAR CAB	Fig 12
CAB BACK PANEL - CLUB CAB	Fig 13
FLOOR PAN - REGULAR CAB	Fig 14
FLOOR PAN - REGULAR CAB	Fig 15
FLOOR PAN - CLUB CAB	Fig 16
FLOOR PAN - CLUB CAB	Fig 17
FLOOR PAN - CLUB CAB	Fig 18
COWL AND DASH PANEL	Fig 19
COWL AND DASH PANEL	Fig 20
COWL AND DASH	Fig 21
CARGO BOX INNER SIDE PANEL	Fig 22
CARGO BOX INNER SIDE PANEL	Fig 23
CARGO BOX INNER SIDE PANEL	Fig 24
CARGO BOX FRONT PANELS	Fig 25
CARGO BOX FLOOR	Fig 26
CARGO BOX FLOOR	Fig 27

Fig 1: Identifying Weld Locations Of Front Fender And Inner Wheelhouse

G02655833

Courtesy of DAIMLERCHRYSLER CORP.

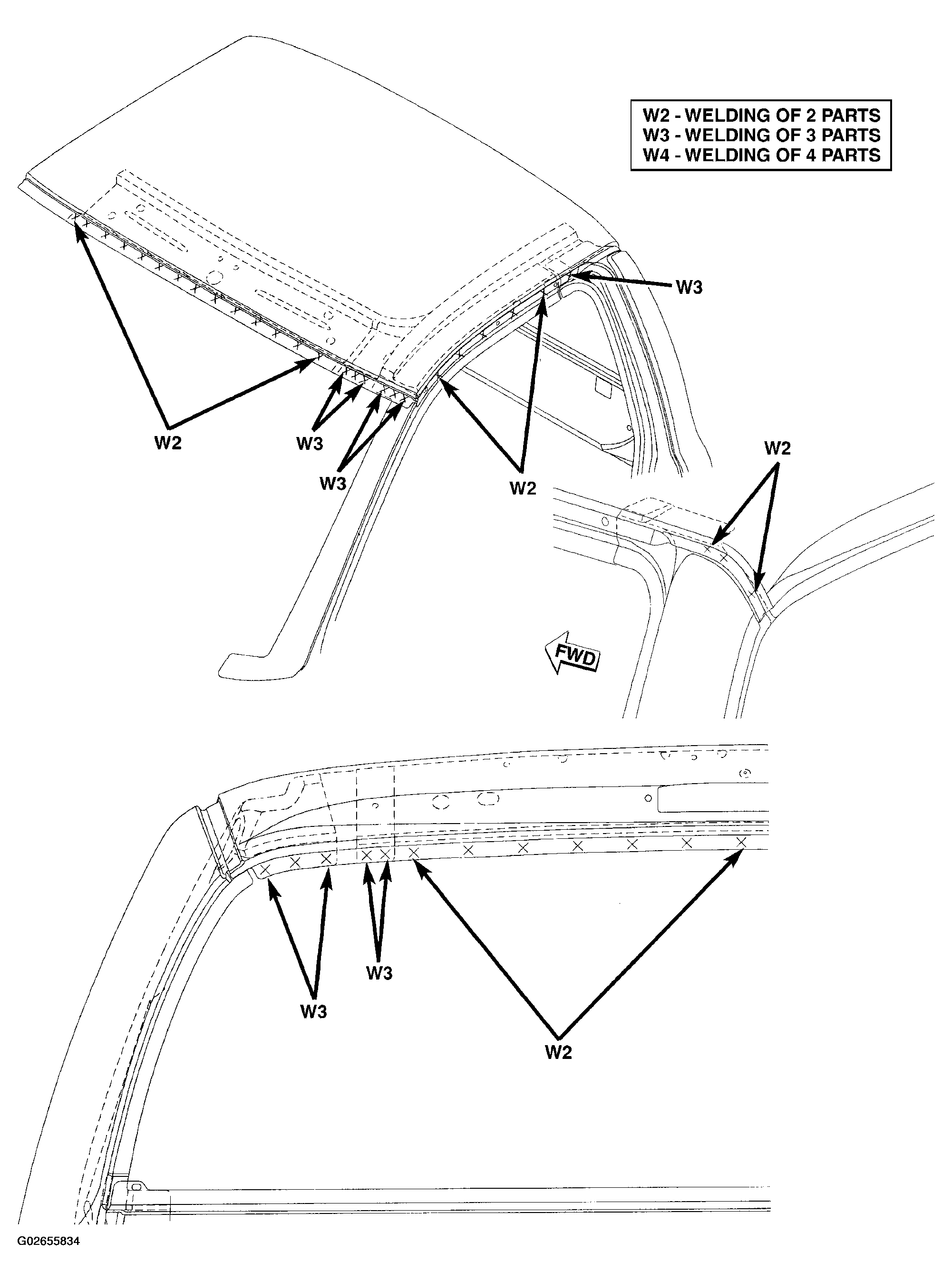

Fig 2: Identifying Weld Locations Of Roof Panel - Regular Cab

G02655834

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Identifying Weld Locations Of Roof Panel - Club Cab

G02655835

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Identifying Weld Locations Of Body Side Aperture - Regular Cab (1 Of 4)

G02655836

Courtesy of DAIMLERCHRYSLER CORP.

Fig 5: Identifying Weld Locations Of Body Side Aperture - Regular Cab (2 Of 4)

G02655837

Courtesy of DAIMLERCHRYSLER CORP.

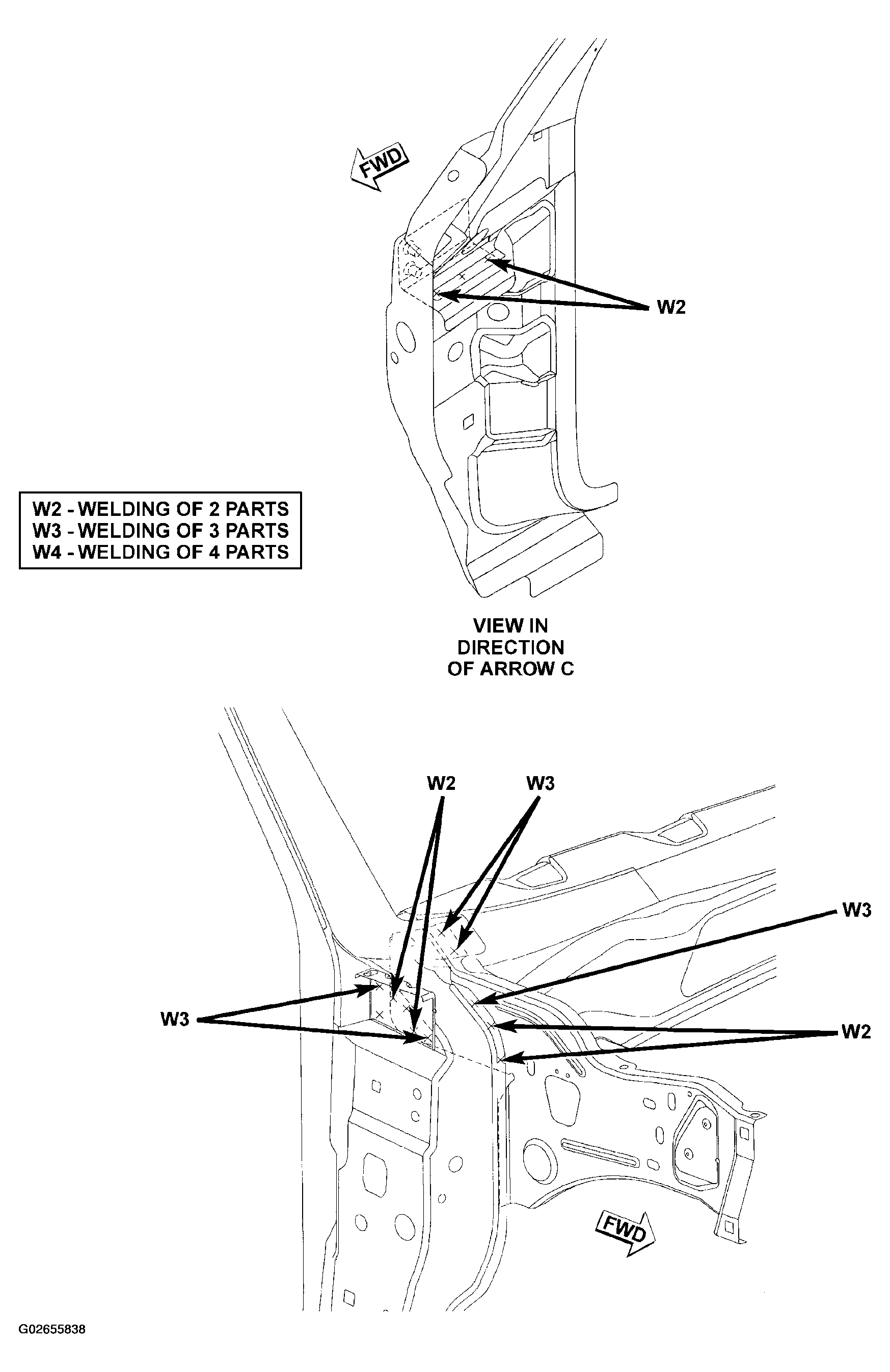

Fig 6: Identifying Weld Locations Of Body Side Aperture - Regular Cab (3 Of 4)

G02655838

Courtesy of DAIMLERCHRYSLER CORP.

Fig 7: Identifying Weld Locations Of Body Side Aperture - Regular Cab (4 Of 4)

G02655839

Courtesy of DAIMLERCHRYSLER CORP.

Fig 8: Identifying Weld Locations Of Body Side Aperture - Club Cab (1 Of 4)

G02655840

Courtesy of DAIMLERCHRYSLER CORP.

Fig 9: Identifying Weld Locations Of Body Side Aperture - Club Cab (2 Of 4)

G02655841

Courtesy of DAIMLERCHRYSLER CORP.

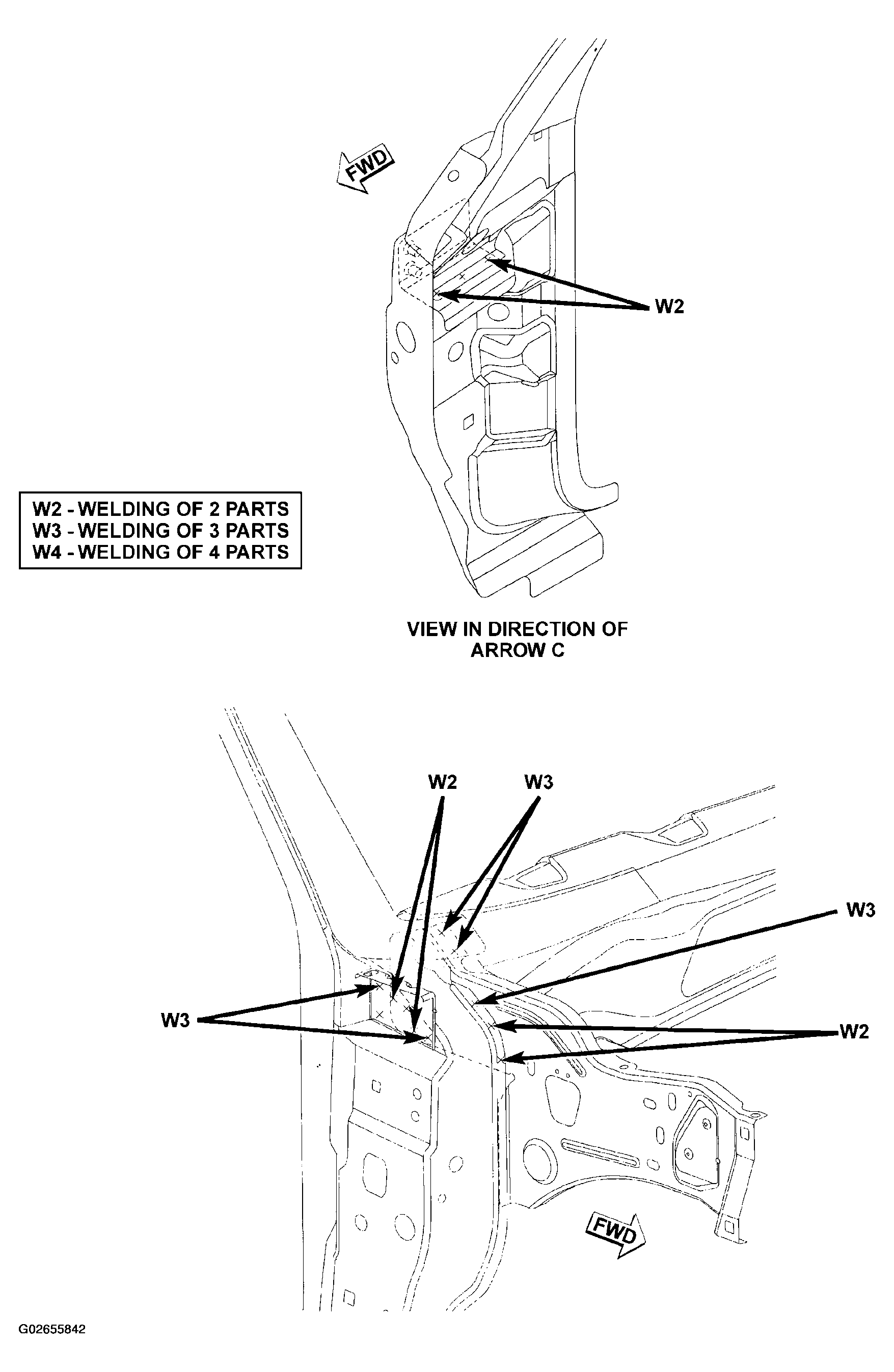

Fig 10: Identifying Weld Locations Of Body Side Aperture - Club Cab (3 Of 4)

G02655842

Courtesy of DAIMLERCHRYSLER CORP.

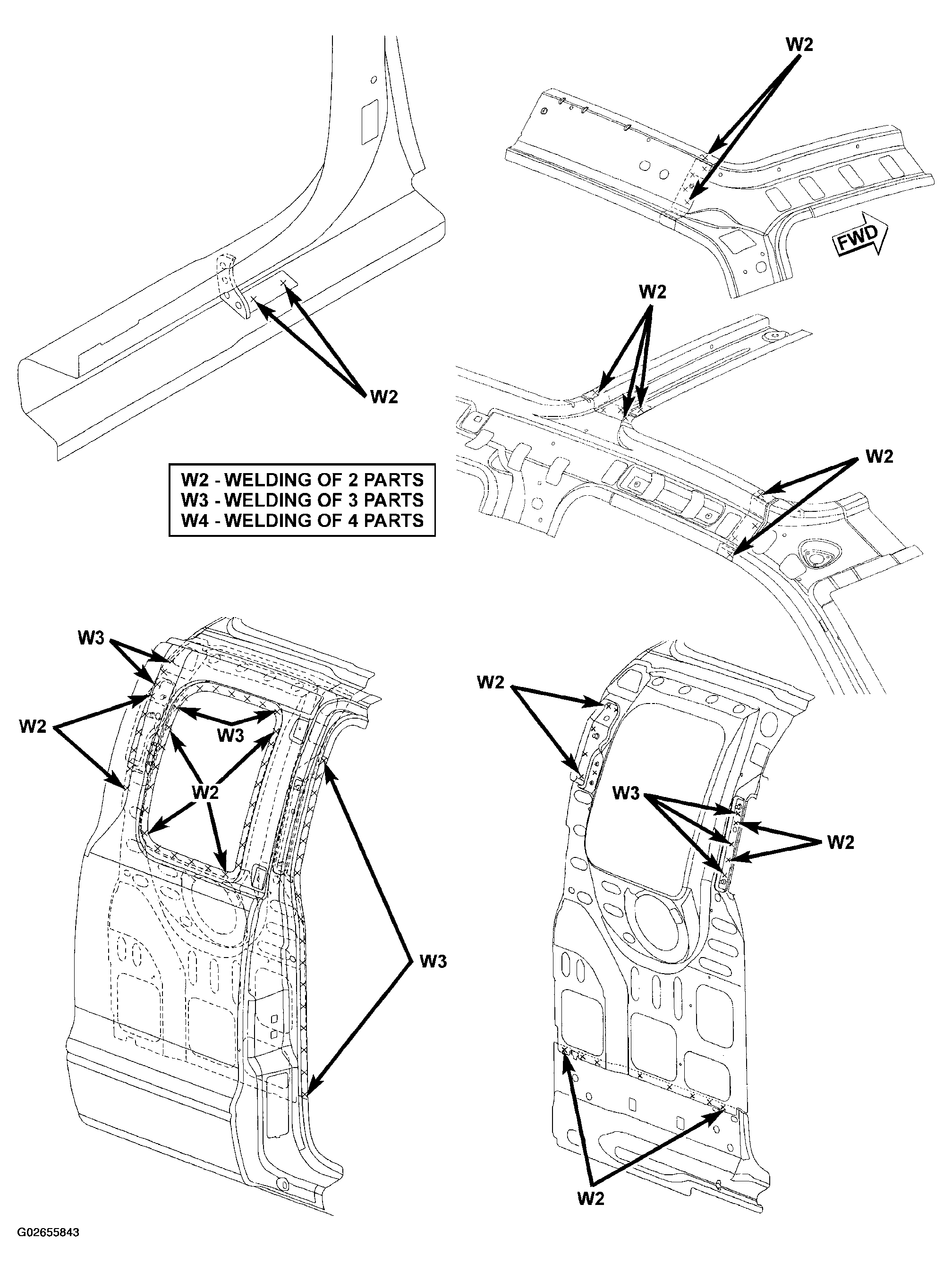

Fig 11: Identifying Weld Locations Of Body Side Aperture - Club Cab (4 Of 4)

G02655843

Courtesy of DAIMLERCHRYSLER CORP.

Fig 12: Identifying Weld Locations Of Cab Back Panel - Regular Cab

G02655844

Courtesy of DAIMLERCHRYSLER CORP.

Fig 13: Identifying Weld Locations Of Cab Back Panel - Club Cab

G02655845

Courtesy of DAIMLERCHRYSLER CORP.

Fig 14: Identifying Weld Locations Of Floor Pan - Regular Cab (1 Of 2)

G02655846

Courtesy of DAIMLERCHRYSLER CORP.

Fig 15: Identifying Weld Locations Of Floor Pan - Regular Cab (2 Of 2)

G02655847

Courtesy of DAIMLERCHRYSLER CORP.

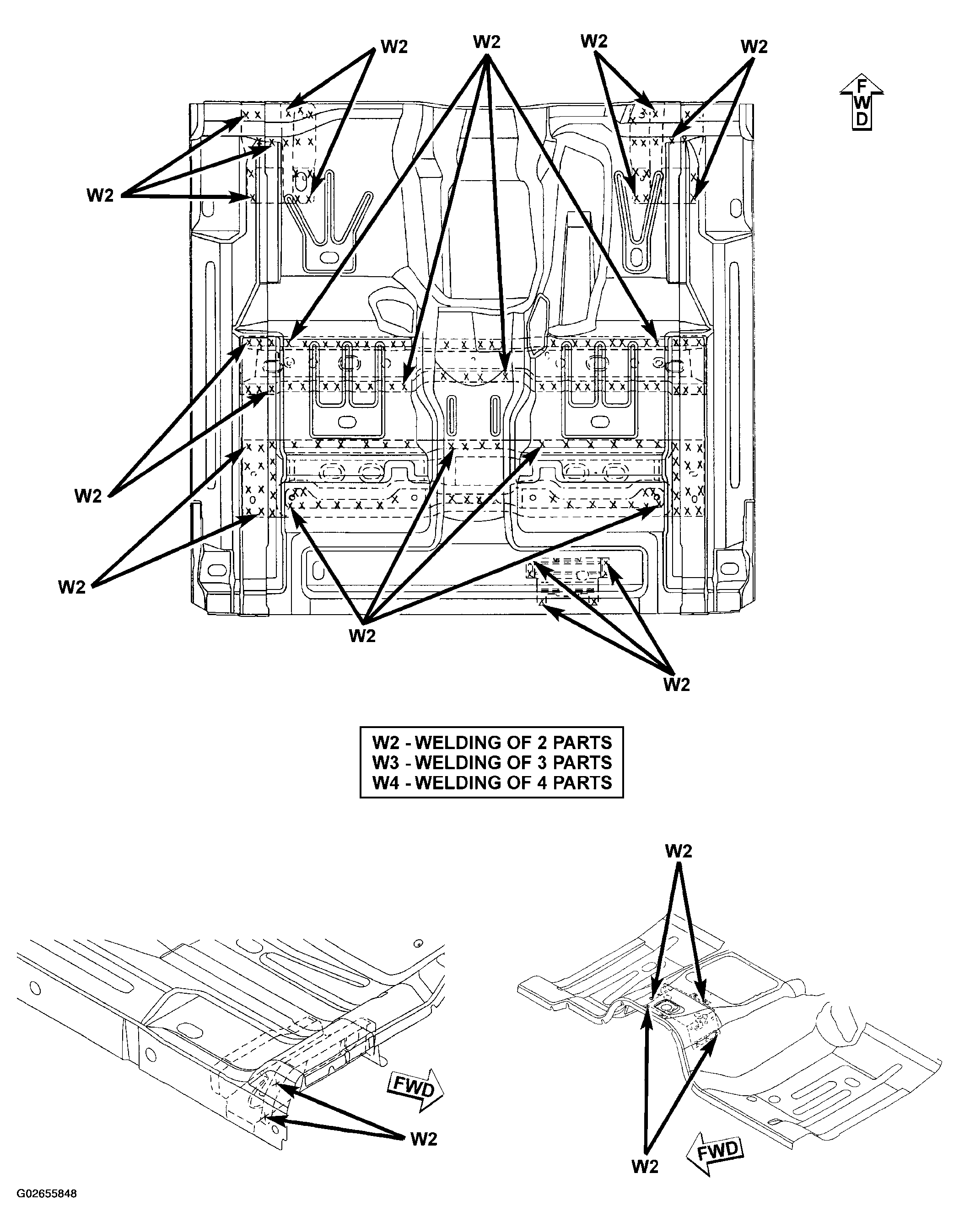

Fig 16: Identifying Weld Locations Of Floor Pan - Club Cab (1 Of 3)

G02655848

Courtesy of DAIMLERCHRYSLER CORP.

Fig 17: Identifying Weld Locations Of Floor Pan - Club Cab (2 Of 3)

G02655849

Courtesy of DAIMLERCHRYSLER CORP.

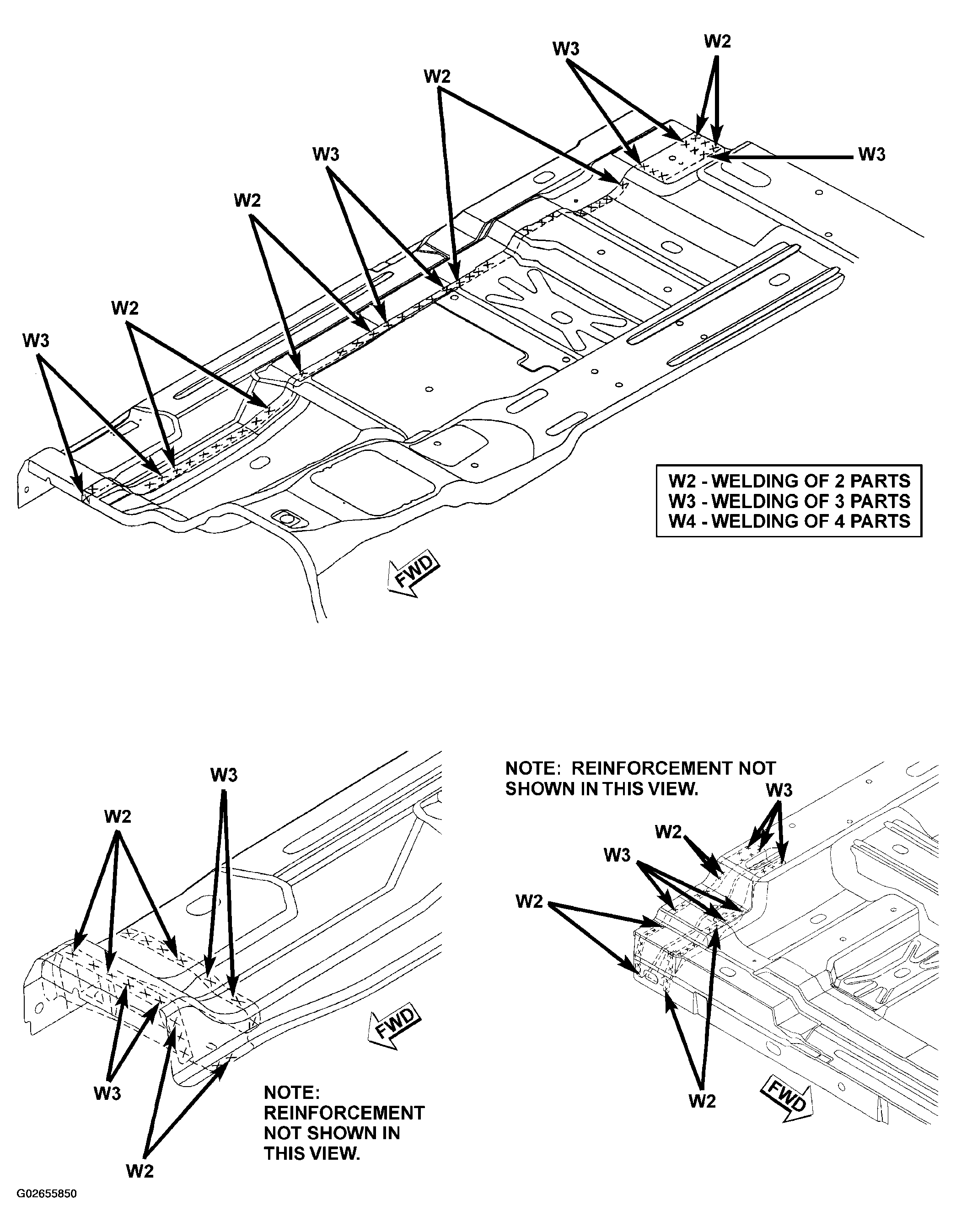

Fig 18: Identifying Weld Locations Of Floor Pan - Club Cab (3 Of 3)

G02655850

Courtesy of DAIMLERCHRYSLER CORP.

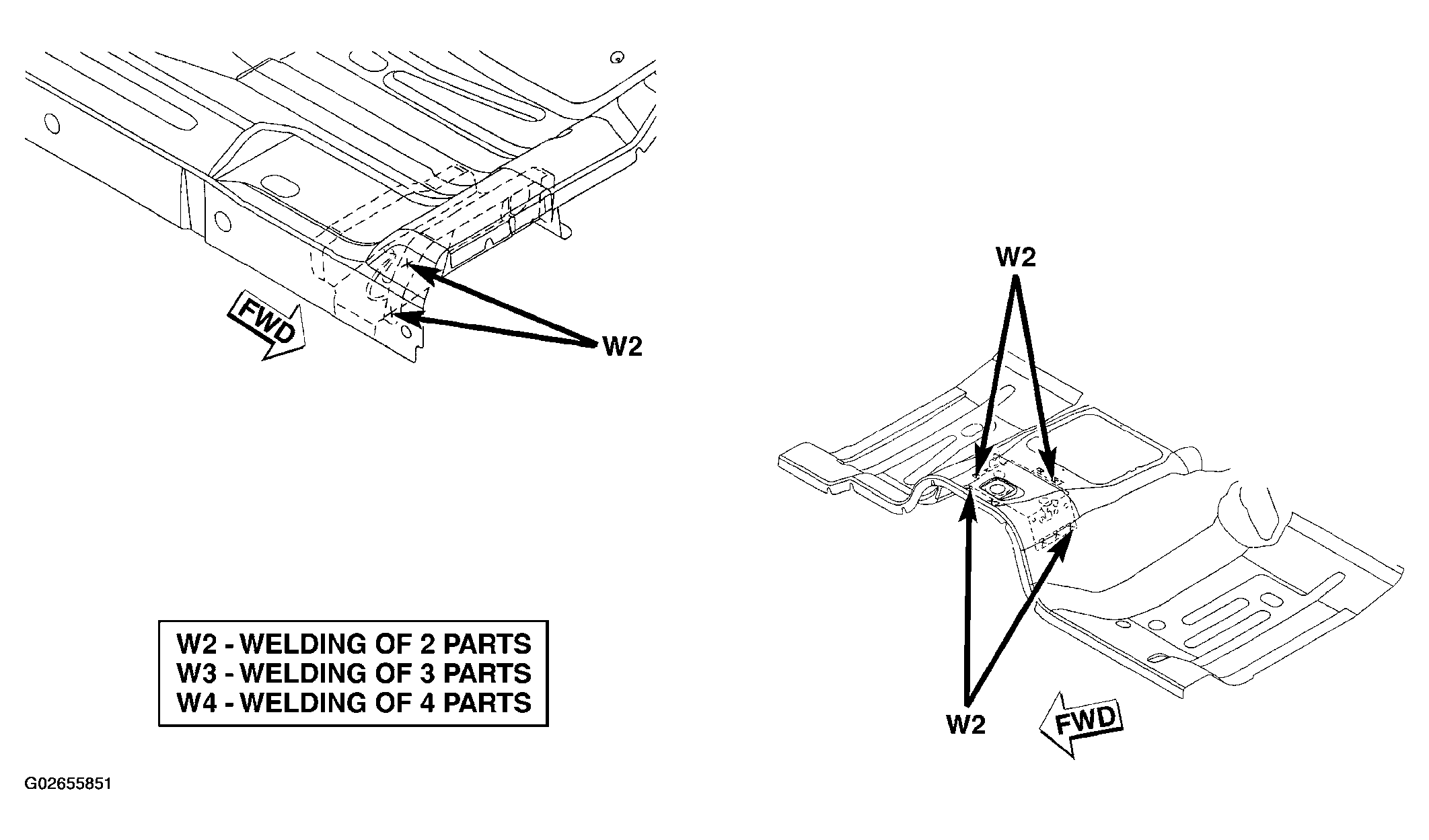

Fig 19: Identifying Weld Locations Of Cowl And Dash Panel (1 Of 2)

G02655851

Courtesy of DAIMLERCHRYSLER CORP.

Fig 20: Identifying Weld Locations Of Cowl And Dash Panel (2 Of 2)

G02655852

Courtesy of DAIMLERCHRYSLER CORP.

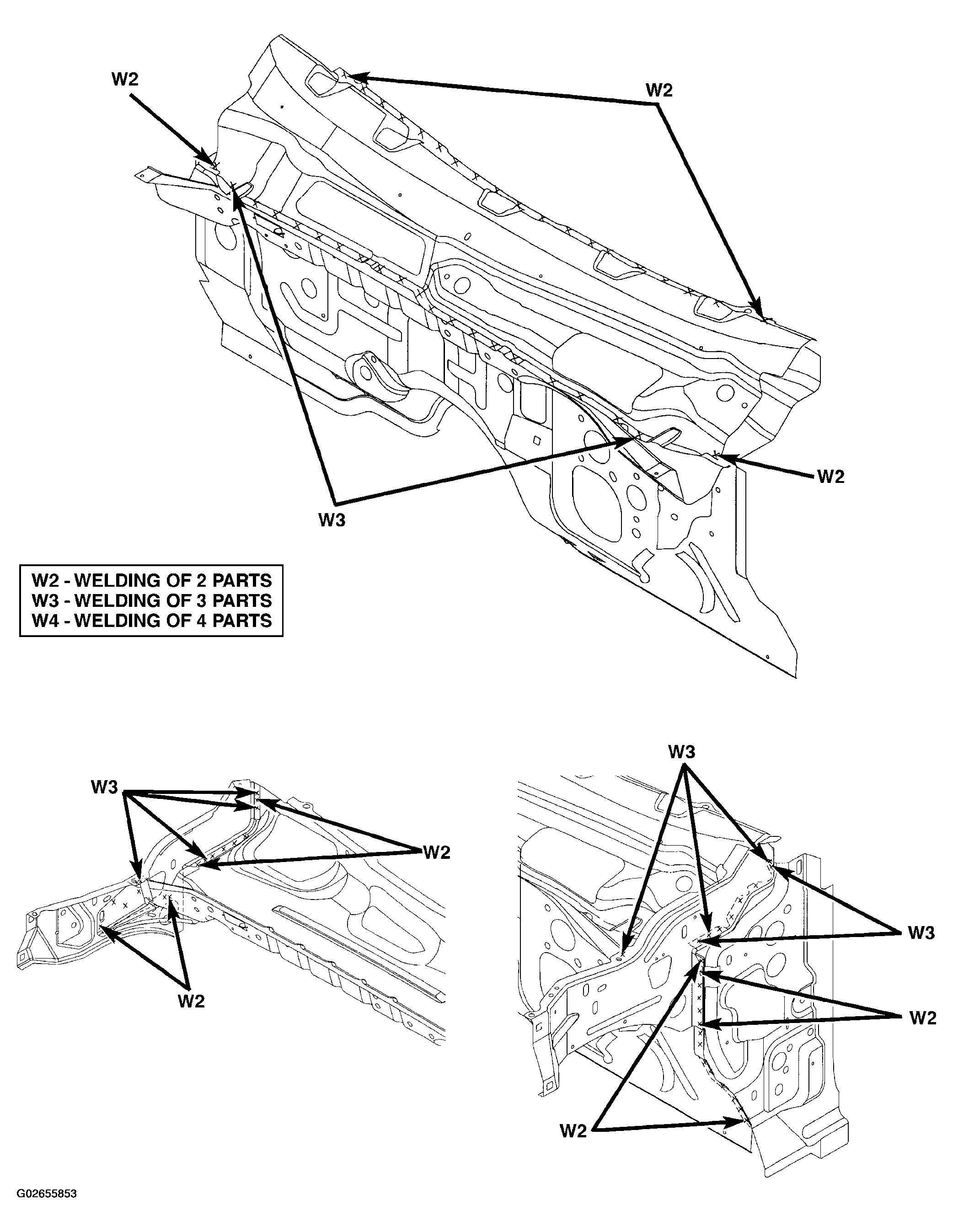

Fig 21: Identifying Weld Locations Of Cowl And Dash

G02655853

Courtesy of DAIMLERCHRYSLER CORP.

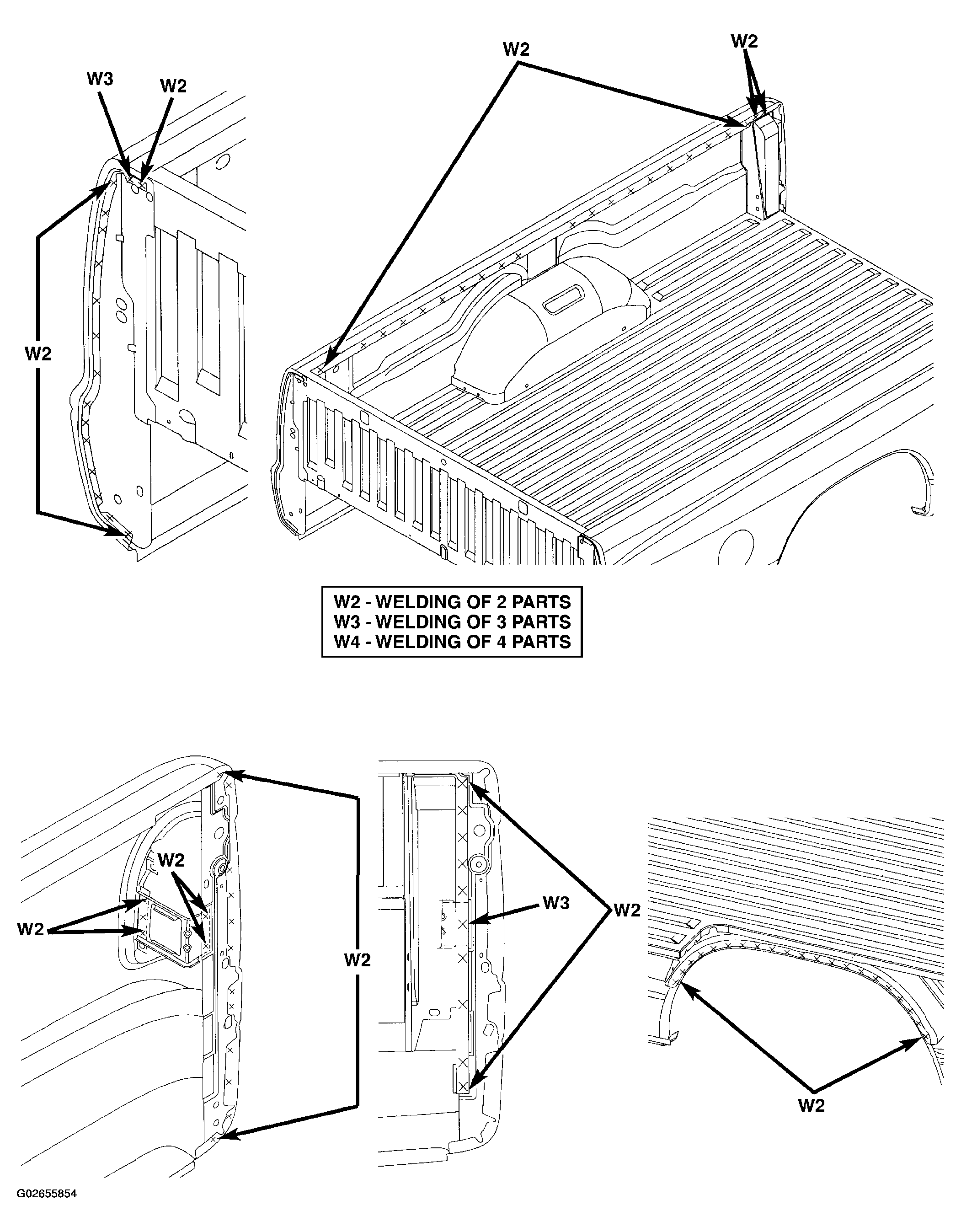

Fig 22: Identifying Weld Locations Of Cargo Box Inner Side Panel (1 Of 3)

G02655854

Courtesy of DAIMLERCHRYSLER CORP.

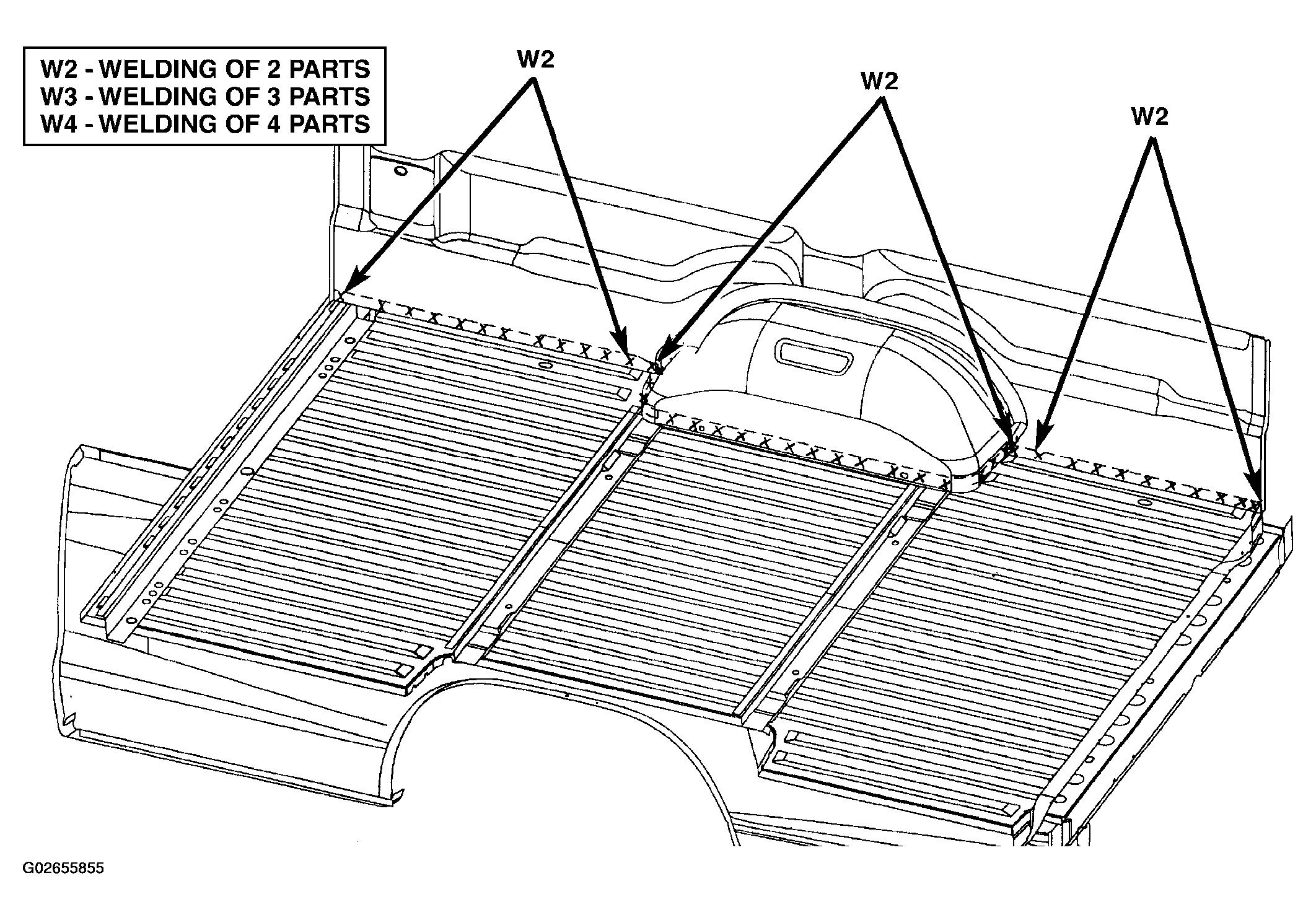

Fig 23: Identifying Weld Locations Of Cargo Box Inner Side Panel (2 Of 3)

G02655855

Courtesy of DAIMLERCHRYSLER CORP.

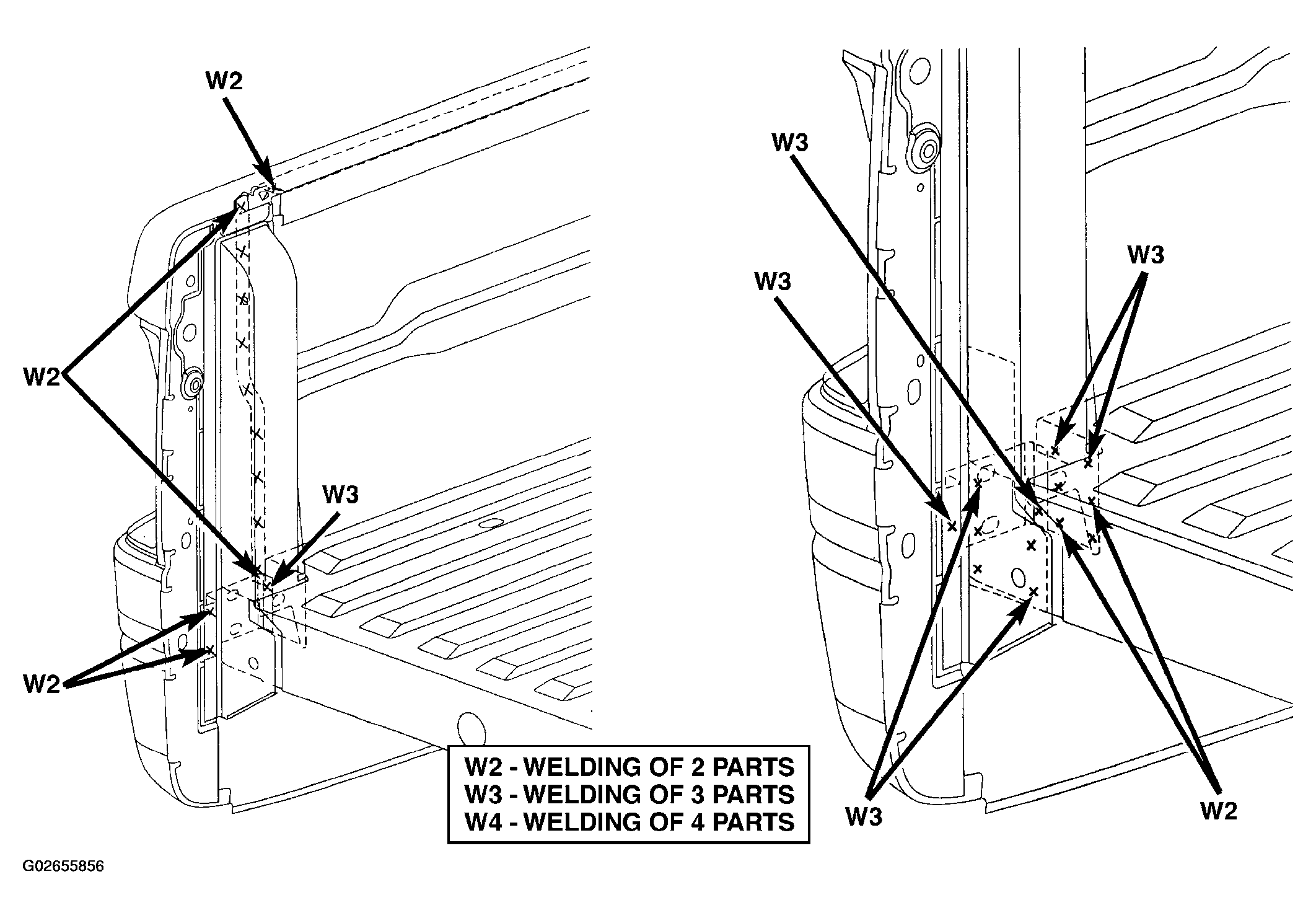

Fig 24: Identifying Weld Locations Of Cargo Box Inner Side Panel (3 Of 3)

G02655856

Courtesy of DAIMLERCHRYSLER CORP.

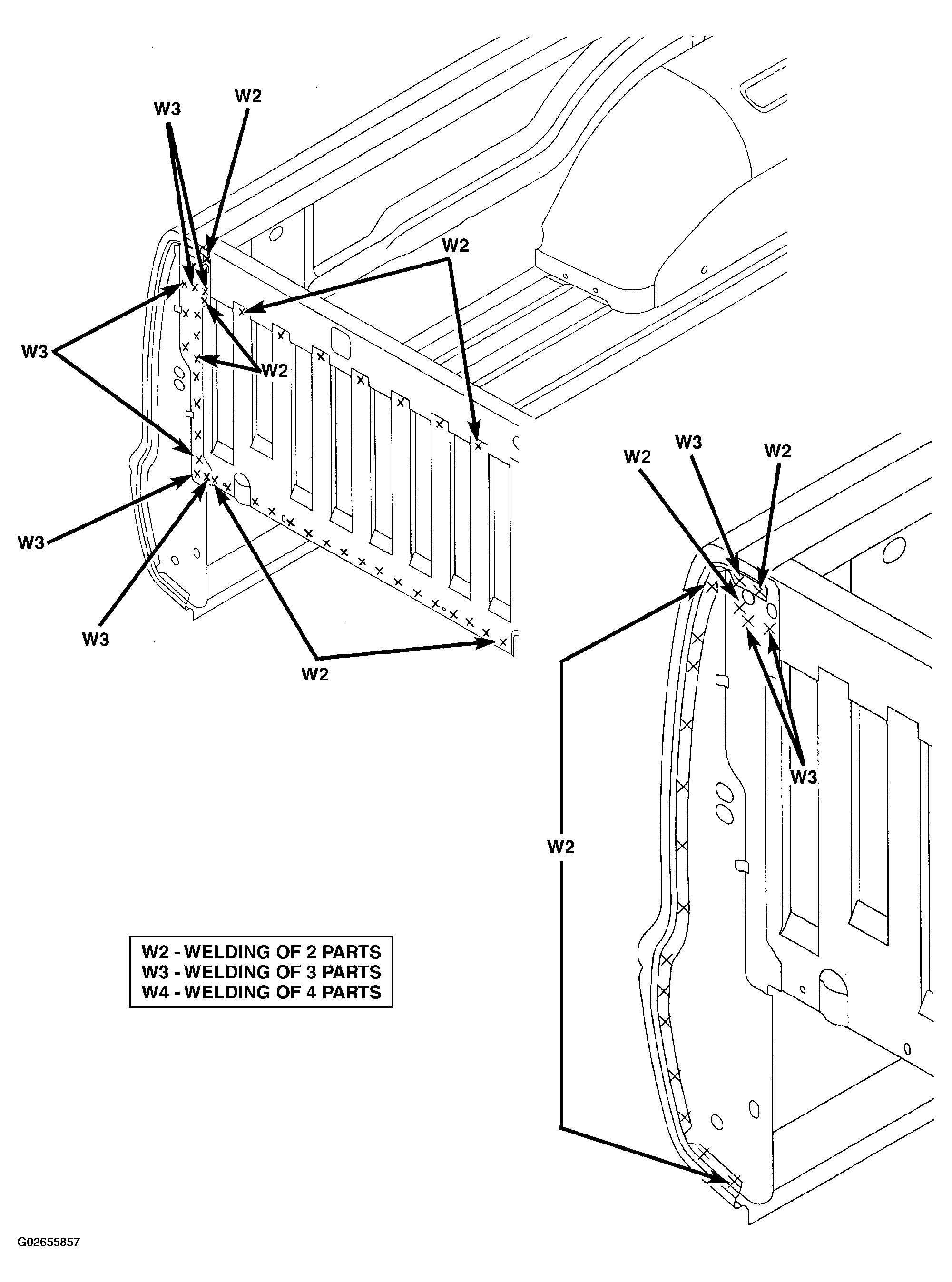

Fig 25: Identifying Weld Locations Of Cargo Box Front Panels

G02655857

Courtesy of DAIMLERCHRYSLER CORP.

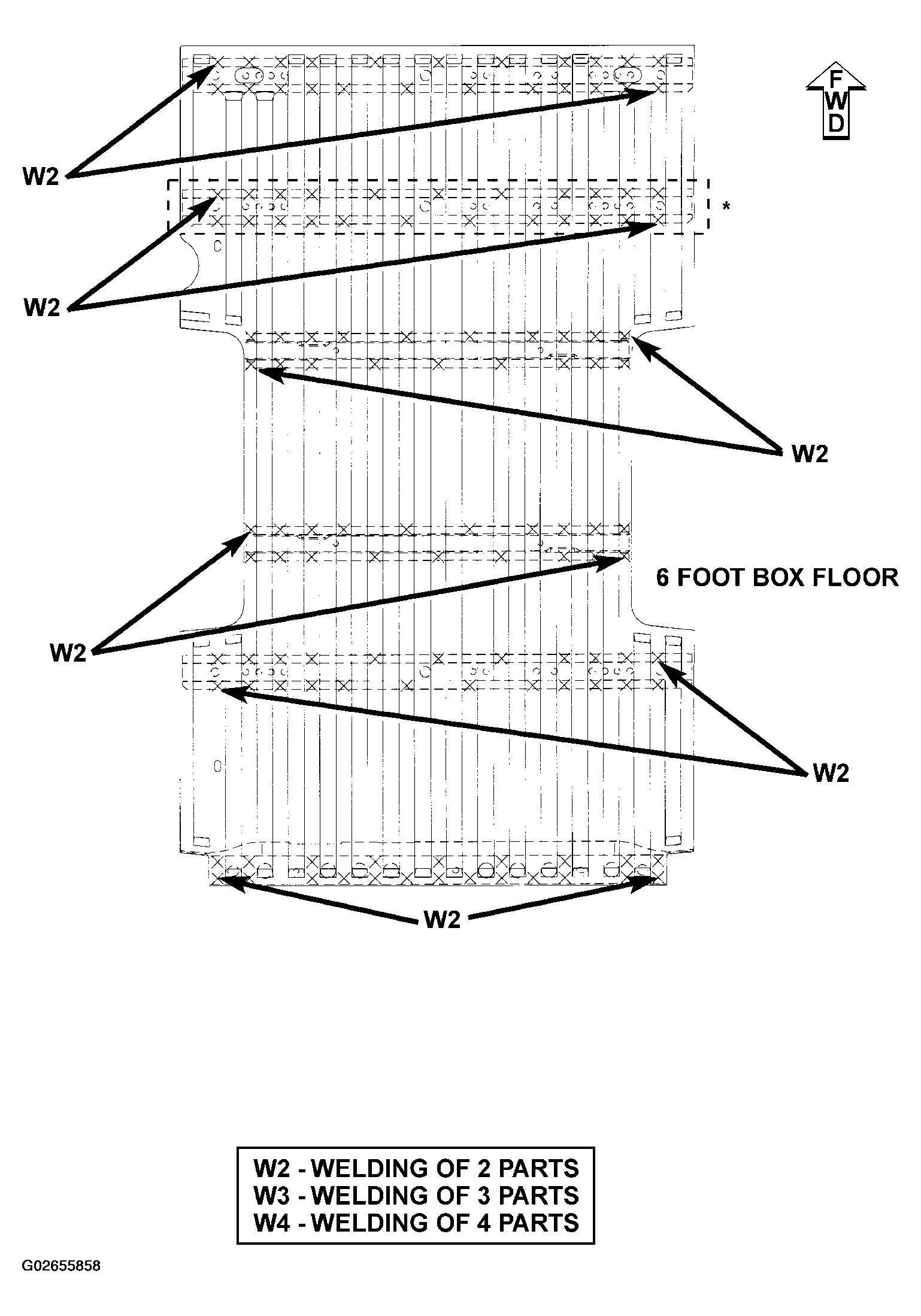

Fig 26: Identifying Weld Locations Of Cargo Box Floor (1 Of 2)

G02655858

Courtesy of DAIMLERCHRYSLER CORP.

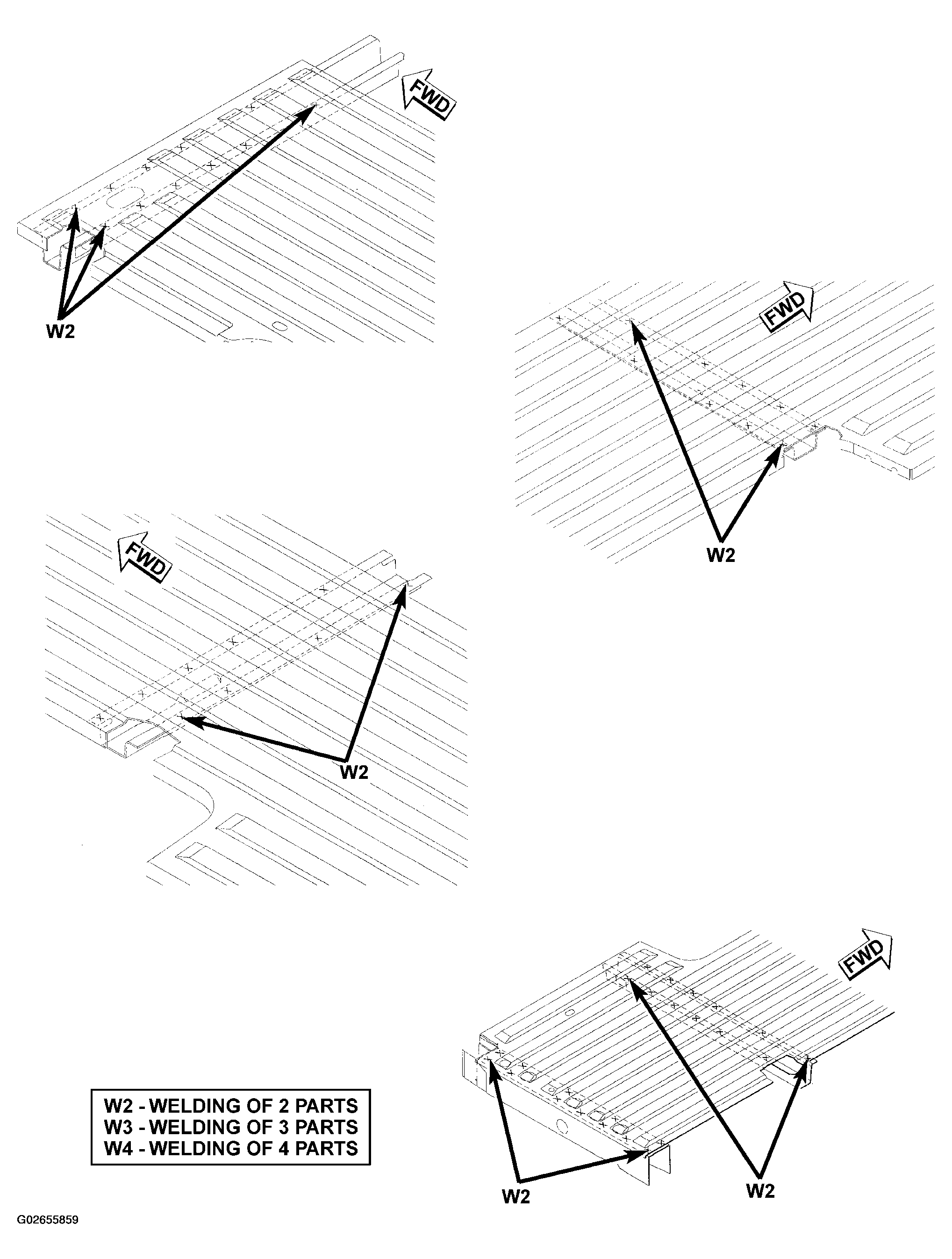

Fig 27: Identifying Weld Locations Of Cargo Box Floor (2 Of 2)

G02655859

Courtesy of DAIMLERCHRYSLER CORP.
