Specifications - Structural Adhesive Locations

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
STRUCTURAL ADHESIVE LOCATIONS INDEX

DESCRIPTION FIGURE
ROOF - EXTENDED CAB Fig 1
ROOF - REGULAR CAB Fig 2
REAR QUARTER PANEL - REGULAR CAB Fig 3
REAR QUARTER PANEL - EXTENDED CAB Fig 4
CARGO BOX INNER AND OUTER PANEL Fig 5

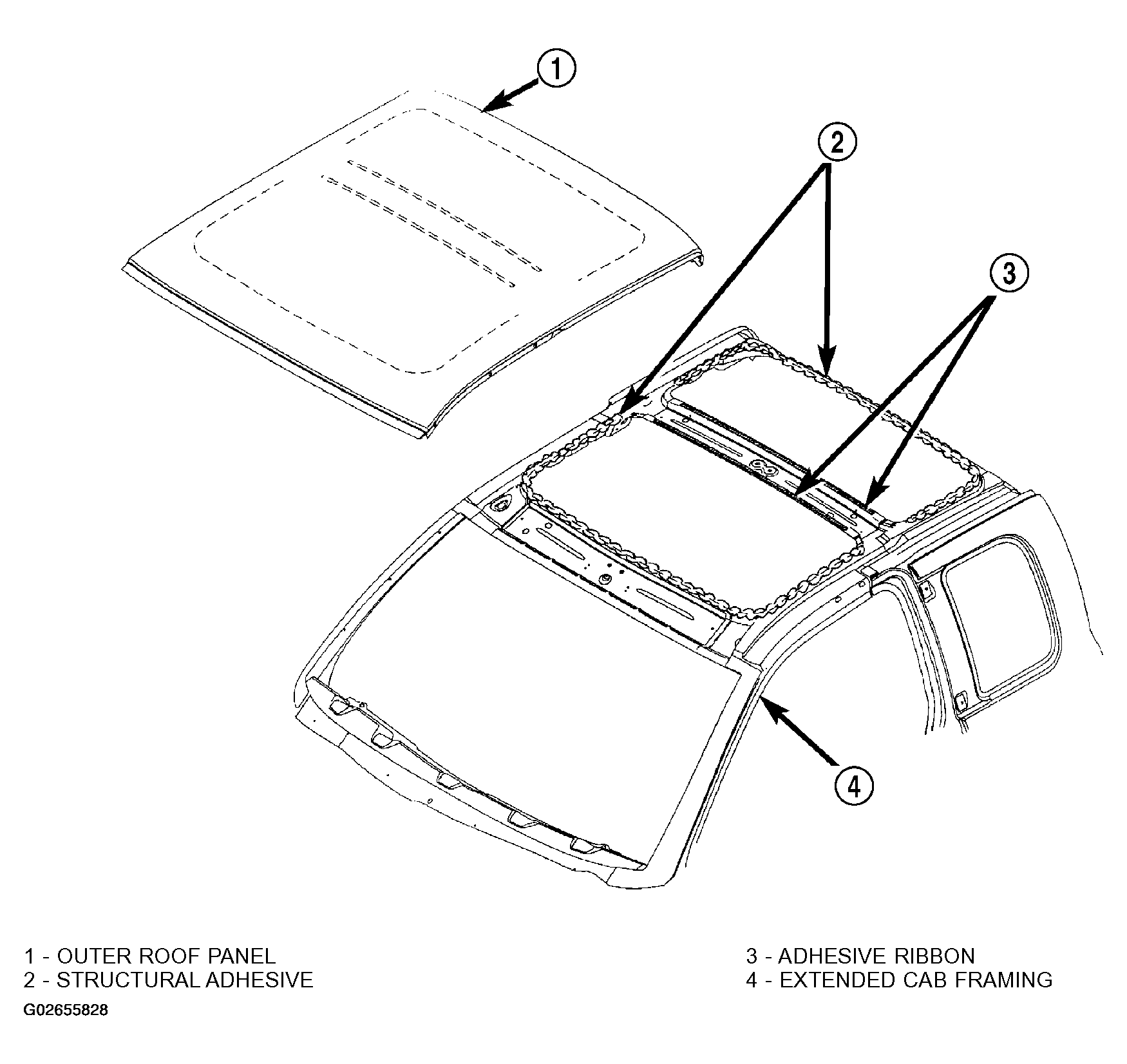

Fig 1: Identifying Structural Adhesive Locations Of Roof - Extended Cab
G02655828Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: Identifying Structural Adhesive Locations Of Roof - Regular Cab
G02655829Courtesy of DAIMLERCHRYSLER CORP.

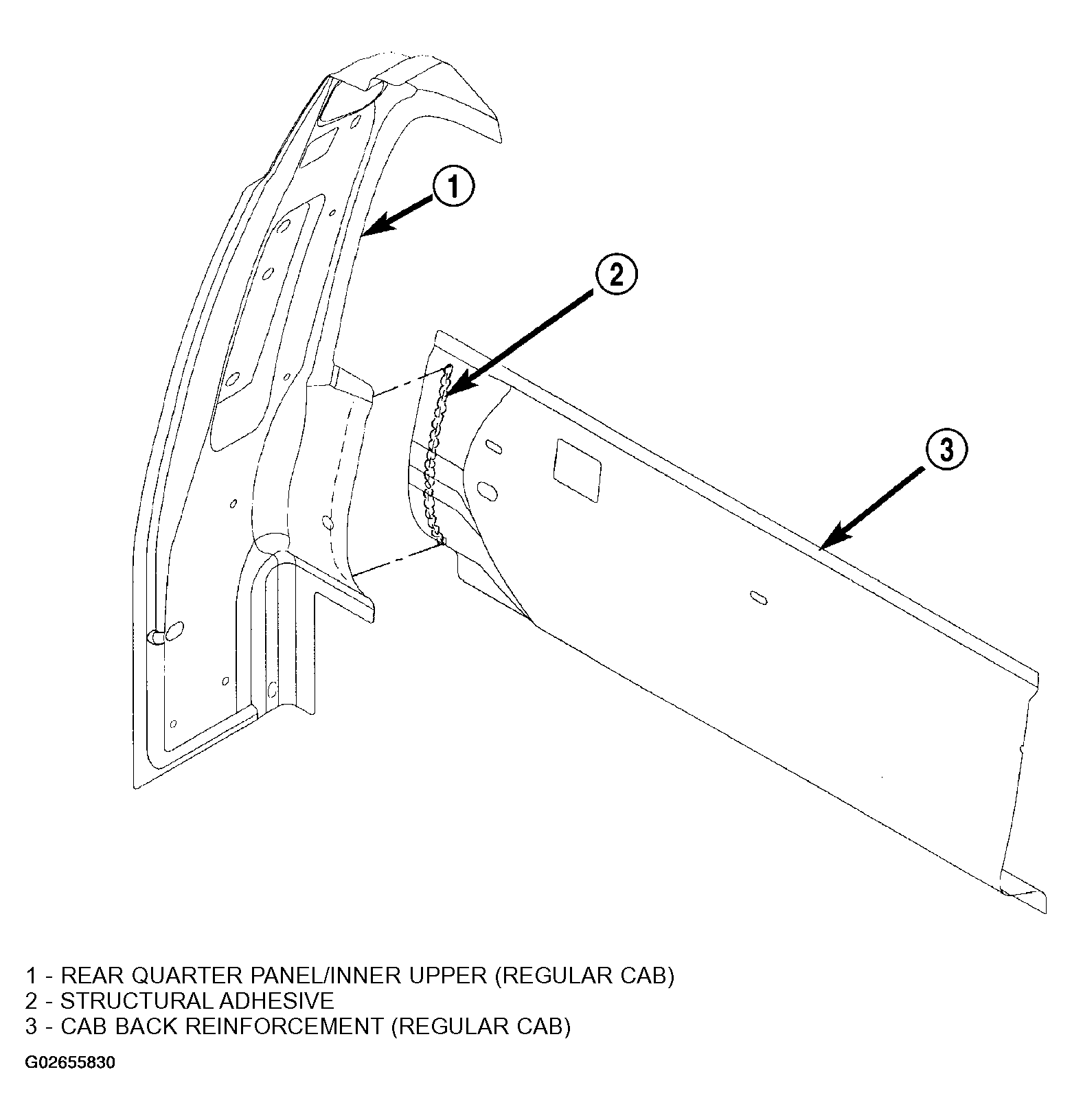

Fig 3: Identifying Structural Adhesive Locations Of Rear Quarter Panel - Regular Cab
G02655830Courtesy of DAIMLERCHRYSLER CORP.
Fig 4: Identifying Structural Adhesive Locations Of Rear Quarter Panel - Extended Cab
G02655831Courtesy of DAIMLERCHRYSLER CORP.
Fig 5: Identifying Structural Adhesive Locations Of Cargo Box Inner And Outer Panel
G02655832Courtesy of DAIMLERCHRYSLER CORP.
