Specifications - Body Opening Dimensions

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
BODY OPENING DIMENSION INDEX

DESCRIPTION FIGURE
WINDSHIELD OPENING Fig 1
DOOR OPENING Fig 2
QUARTER WINDOW OPENING Fig 3
ENGINE COMPARTMENT OPENING Fig 4
BACKLITE OPENING Fig 5
Fig 1: Identifying Windshield Opening Dimension
G02655810Courtesy of DAIMLERCHRYSLER CORP.

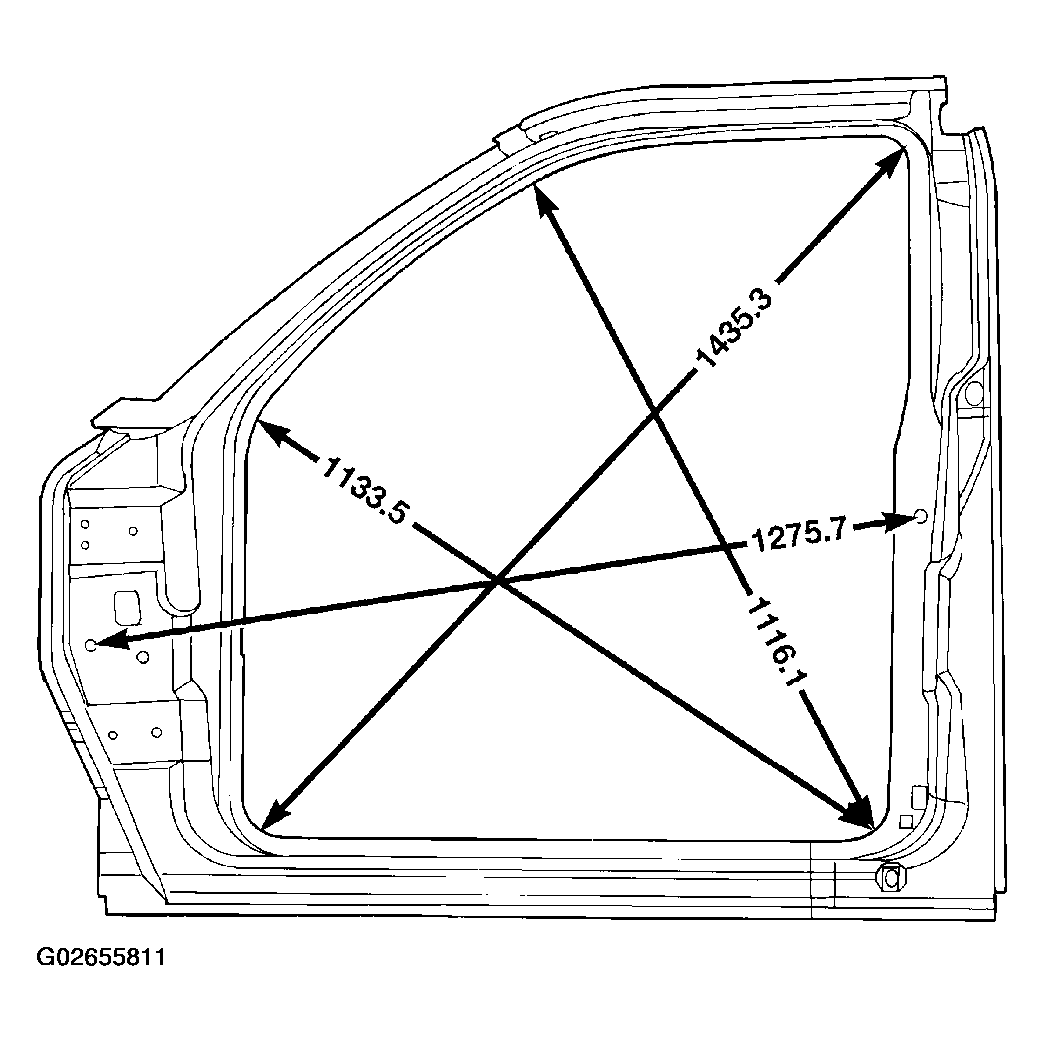

Fig 2: Identifying Door Opening Dimension
G02655811Courtesy of DAIMLERCHRYSLER CORP.

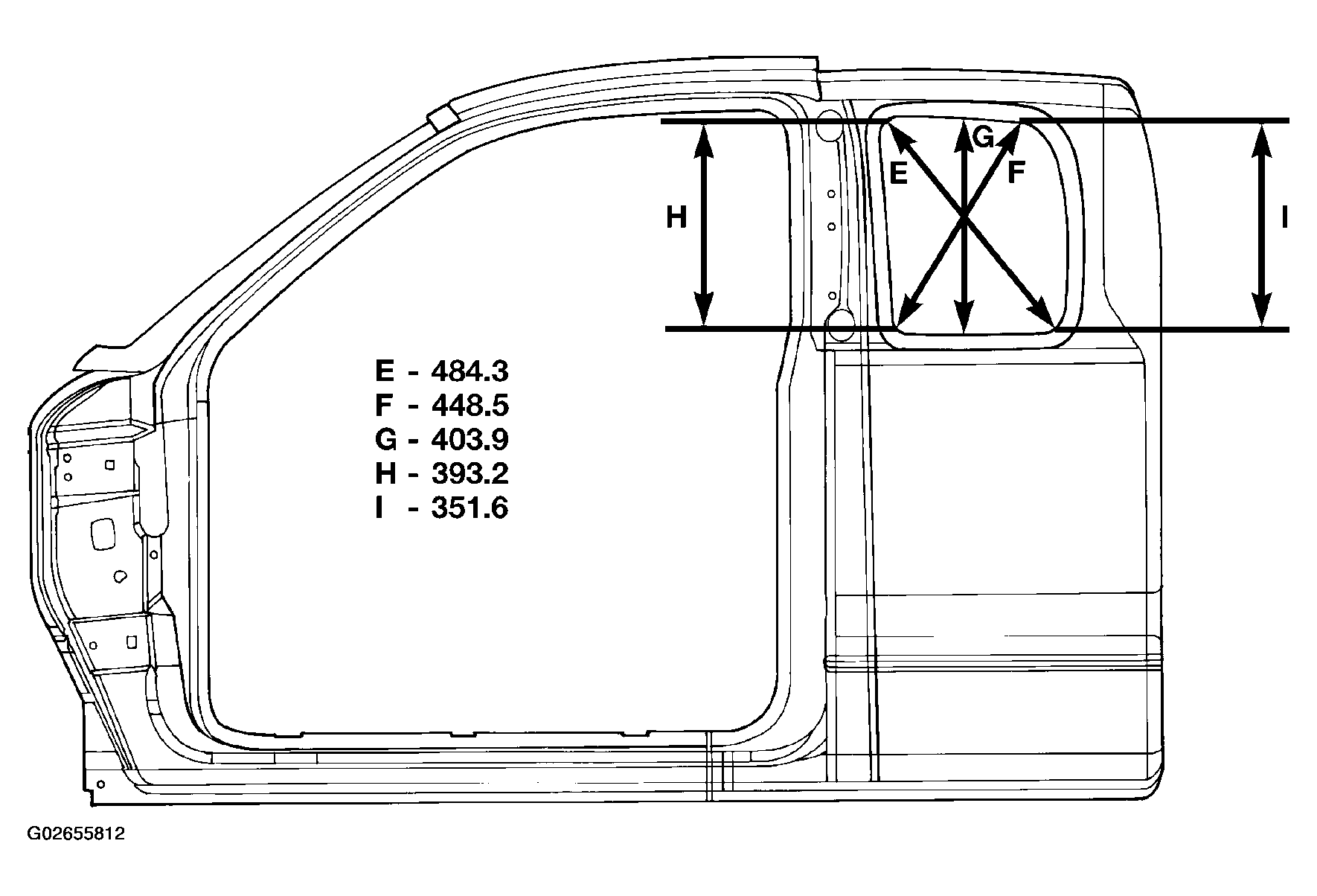

Fig 3: Identifying Quarter Window Opening Dimension
G02655812Courtesy of DAIMLERCHRYSLER CORP.
Fig 4: Identifying Engine Compartment Opening Dimension
G02655813Courtesy of DAIMLERCHRYSLER CORP.

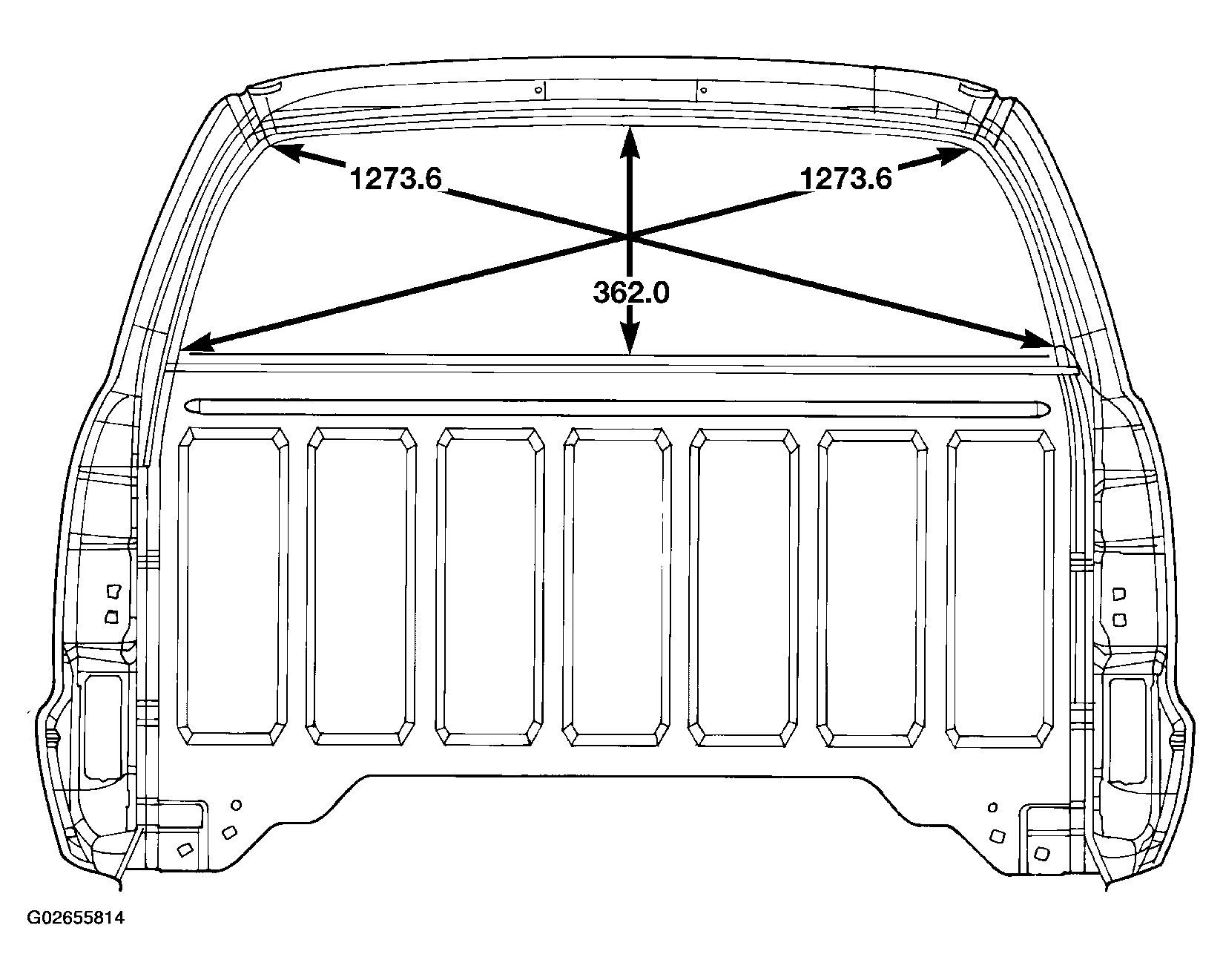

Fig 5: Identifying Backlite Opening Dimension
G02655814Courtesy of DAIMLERCHRYSLER CORP.
