Roof Rail Weatherstrip/Retainer: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the door.
  2. The rearward corner of the weatherstrip is adhesively attached to the body. Peel back the corner of the weatherstrip to release it from the body.
  3. Pull weatherstrip from retainer.
  4. Remove screws attaching retainer to roof rail (Fig 1 ).
  5. Separate retainer from vehicle.

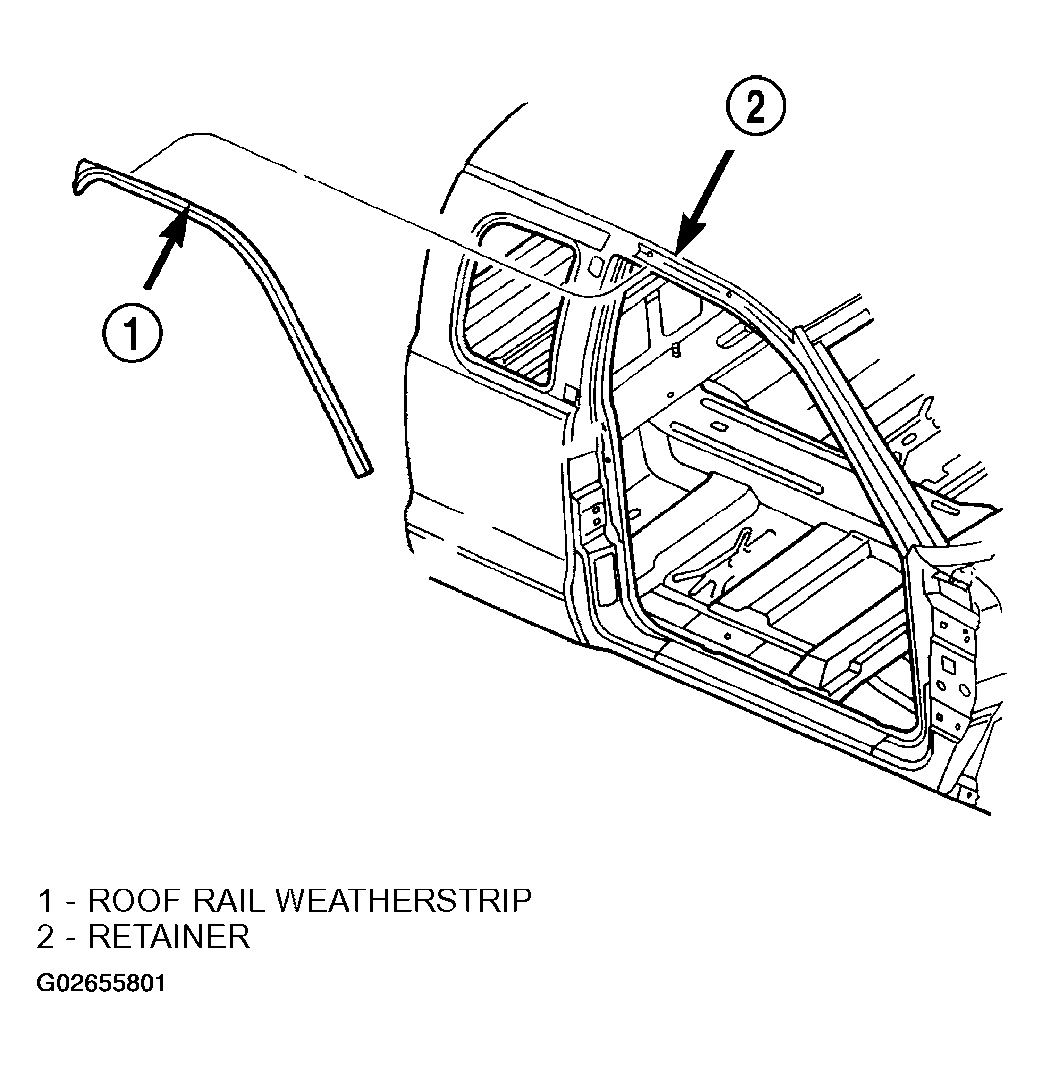

    Fig 1: Removing Screws Attaching Retainer To Roof Rail
    G02655801Courtesy of DAIMLERCHRYSLER CORP.
