Rear Door Glass Run Weatherstrip: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove inner beltline weatherstrip. (Refer to BODY/WEATHERSTRIP/SEALS/REAR DOOR INNER BELT WEATHERSTRIP-REMOVAL  )
  2. Remove outer beltline weatherstrip. (Refer to BODY/WEATHERSTRIP/SEALS/REAR DOOR OUTER BELT WEATHERSTRIP-REMOVAL  )
  3. Pull weatherstrip from door frame and divider bar channel (Fig 1 ).

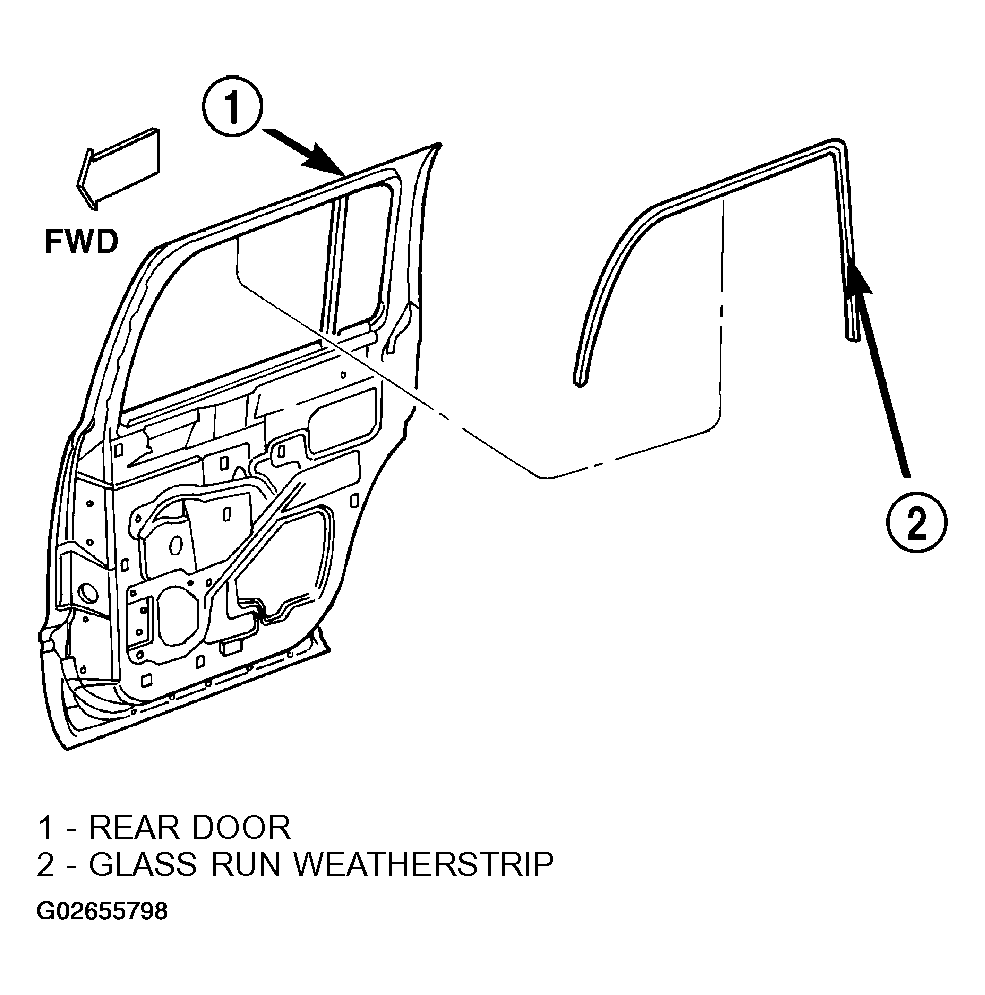

    Fig 1: Removing Glass Run Weatherstrip From Door Frame And Divider Bar Channel
    G02655798Courtesy of DAIMLERCHRYSLER CORP.
