Cowl Weatherstrip: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Grasp cowl seal and pull seal from flange (Fig 1 ).
  2. Separate cowl seal from vehicle.

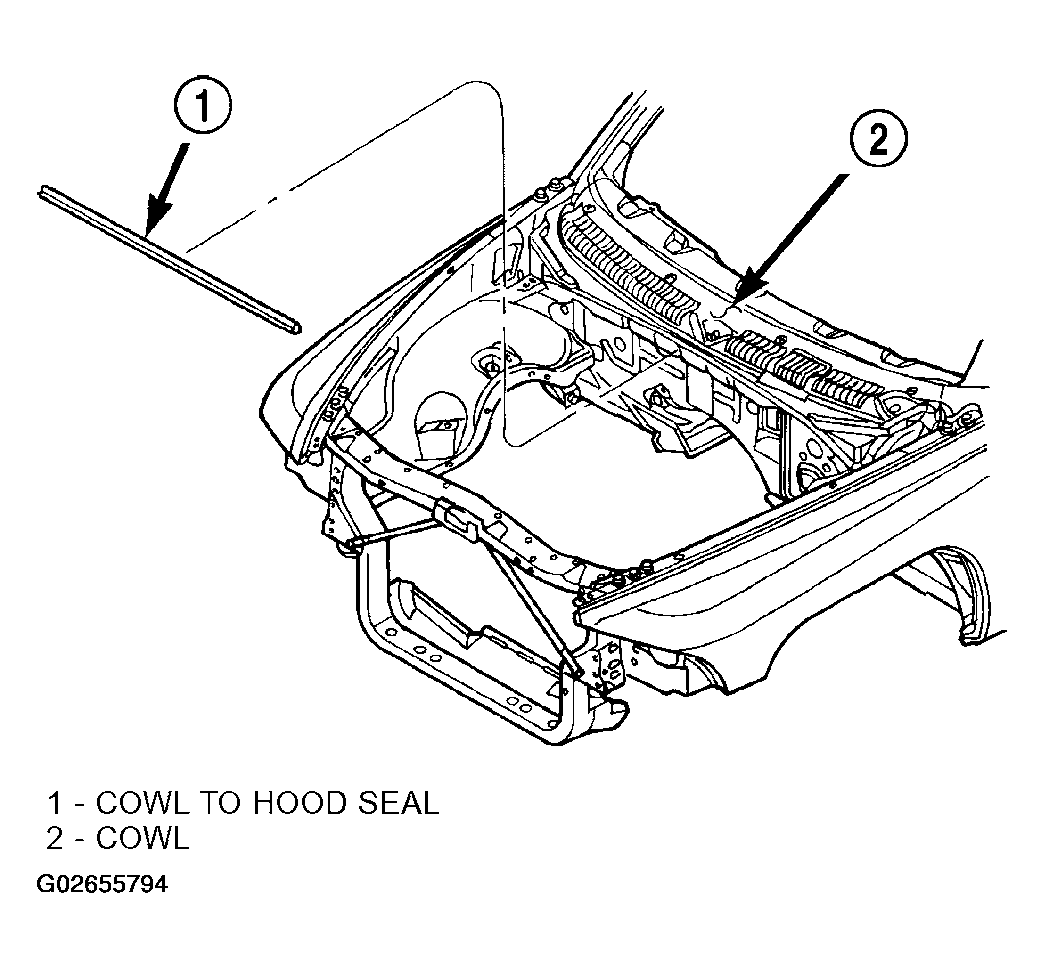

    Fig 1: Removing Cowl Seal From Flange
    G02655794Courtesy of DAIMLERCHRYSLER CORP.
