Seat-Rear/Quad Cab: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The quad cab rear seat is a 60/40 seat. Each seat is serviceable separately.
  1. Fold the seating cushion up.
  2. Remove the fasteners retaining the seat to the cab floor.

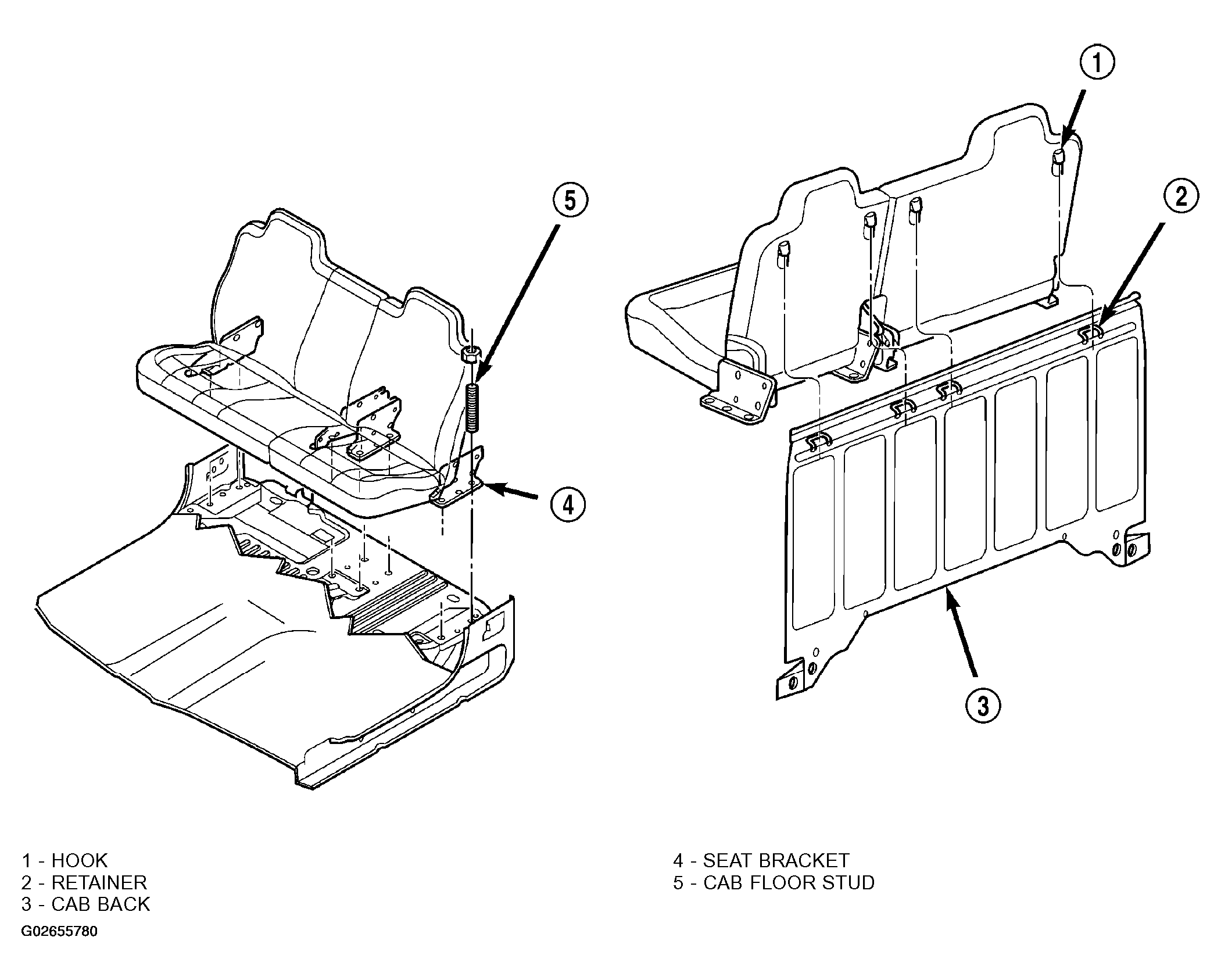

  3. Lift the seat assembly off the retaining studs and the cab back hooks (Figure ).
  4. Feed the seat belt between the seat cushion and seat back.
  5. Remove the seat through the rear door.
