Seat Track-Front Bench: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat. (Refer to BODY/SEATS/SEAT-FRONT BENCH-REMOVAL  )
  2. Adjust the tracks as necessary to remove the bolts attaching the seat tracks to the cushion frame (Fig 1 ).
  3. Remove the push nut from the seat adjuster lever.
  4. Separate the seat track from the frame.

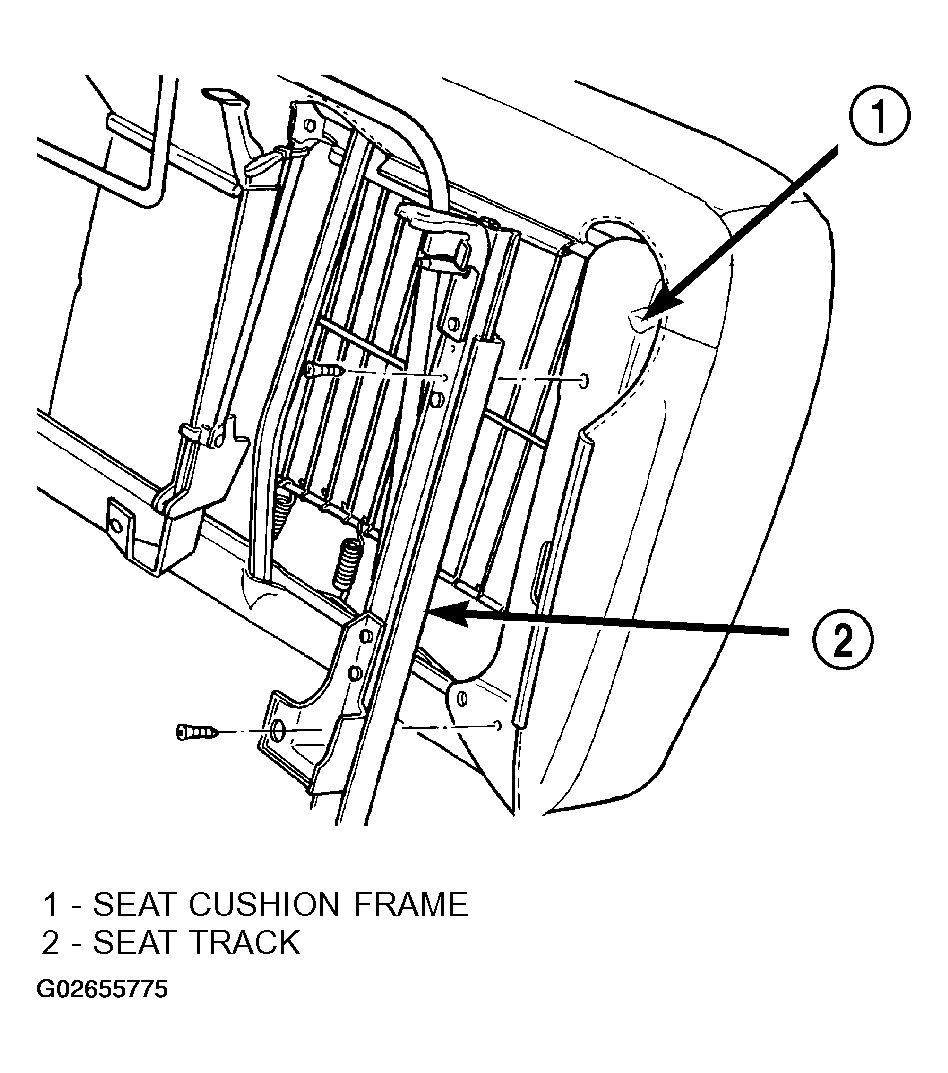

    Fig 1: Removing Bolts Attaching Seat Tracks To Cushion Frame
    G02655775Courtesy of DAIMLERCHRYSLER CORP.
