Seat Back-Rear/Club Cab: Removal
WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

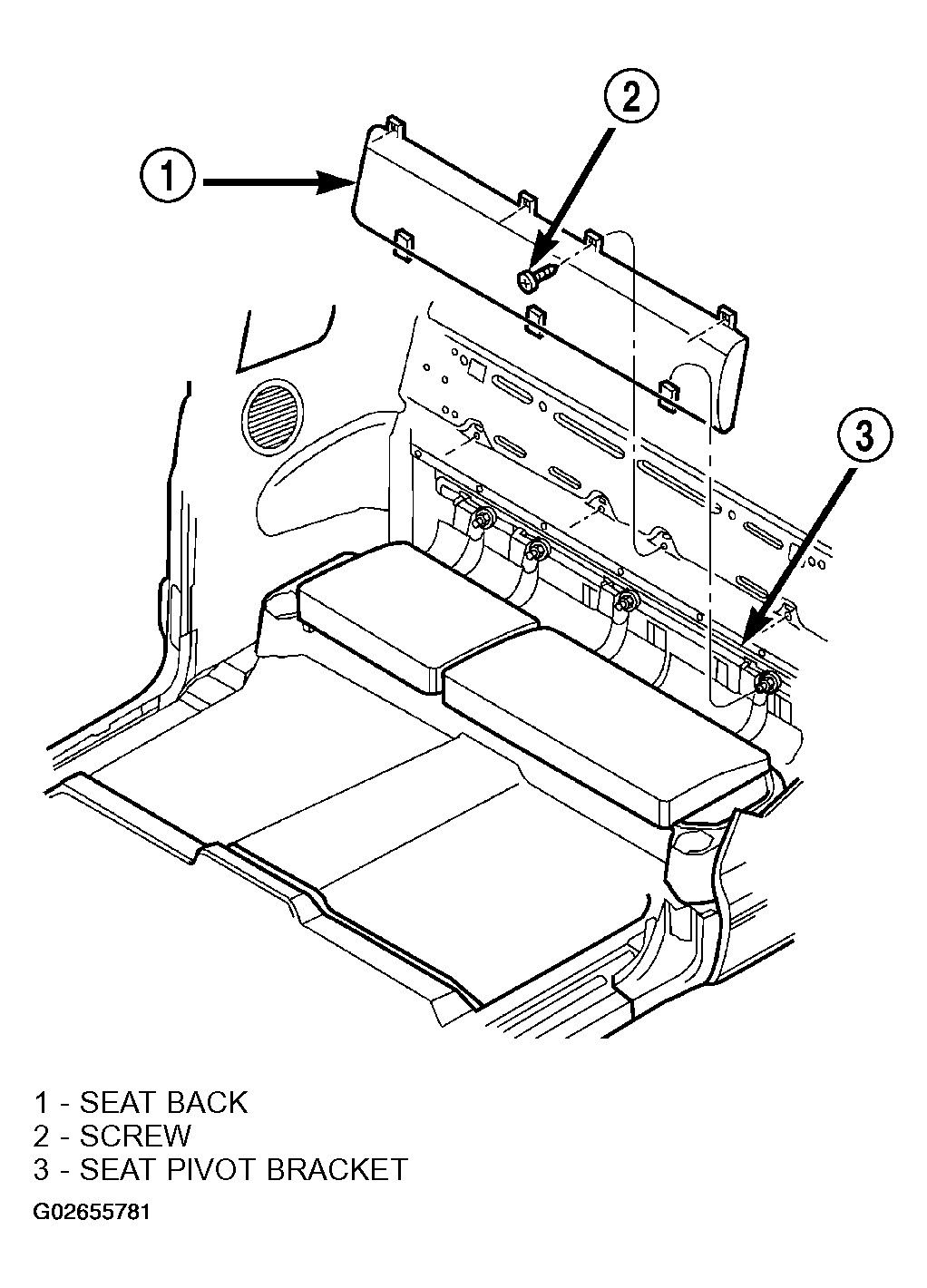

- Unsnap upper bolster assembly by pulling forward, and remove rear panel (Fig 1
).
- Push seat back firmly downward to disengage retaining tabs on seat back lower edge.

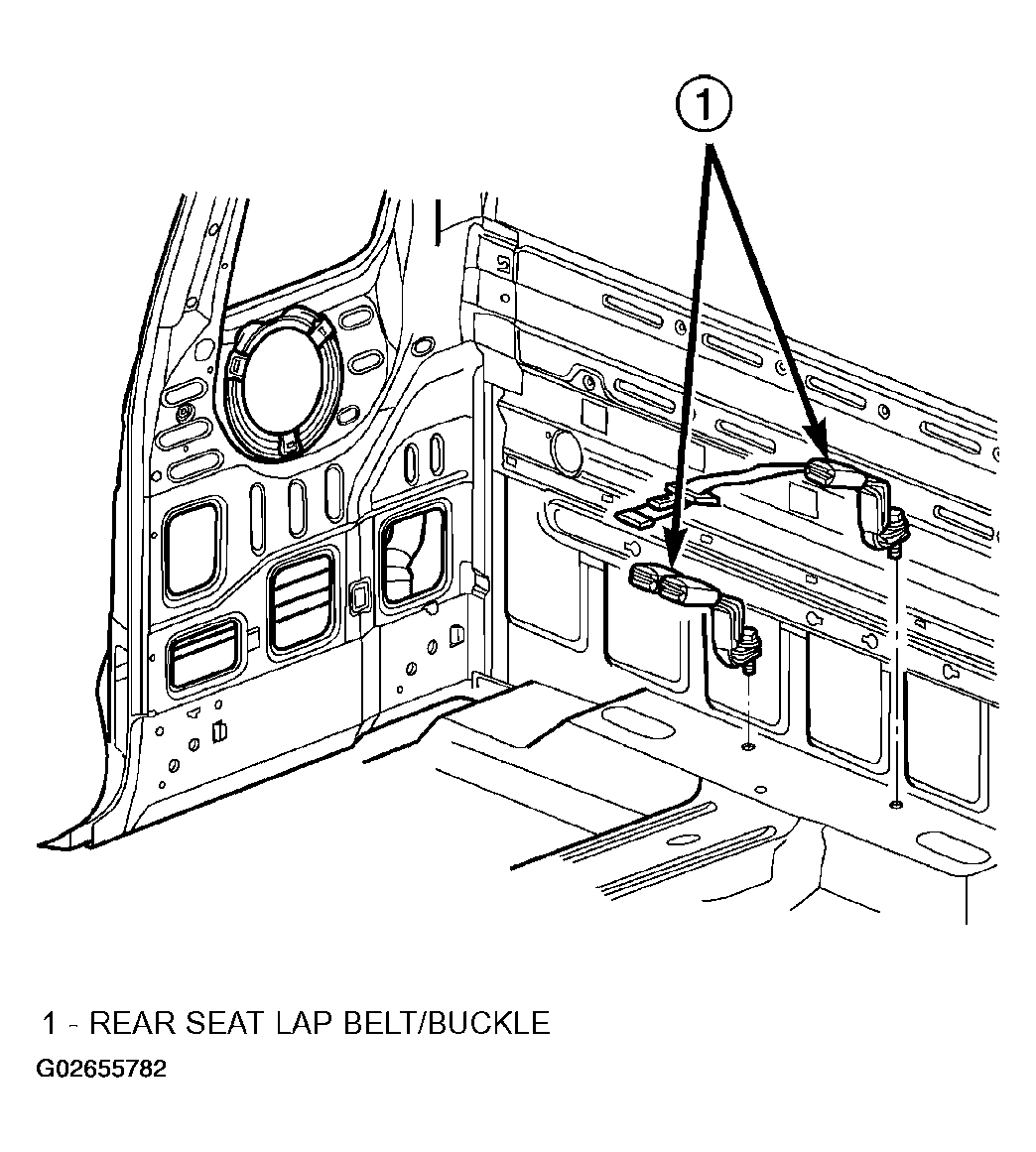

- Disengage seat belt/buckle retaining loops (Figure
).
- Remove cab back bolster assembly.
Courtesy of DAIMLERCHRYSLER CORP.
