Seat Back-Front Bench: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Move seat to full forward position.

Fig 1: Removing Bolts Attaching Seat Track To Floor Pan
Courtesy of DAIMLERCHRYSLER CORP.
Disengage outer, lower J-strap at base of seat back.
Peel back lower corners of seat back cover to expose hinge bolts (Fig 2 ).
Remove the bolts attaching the hinge bracket to the seat back frame.

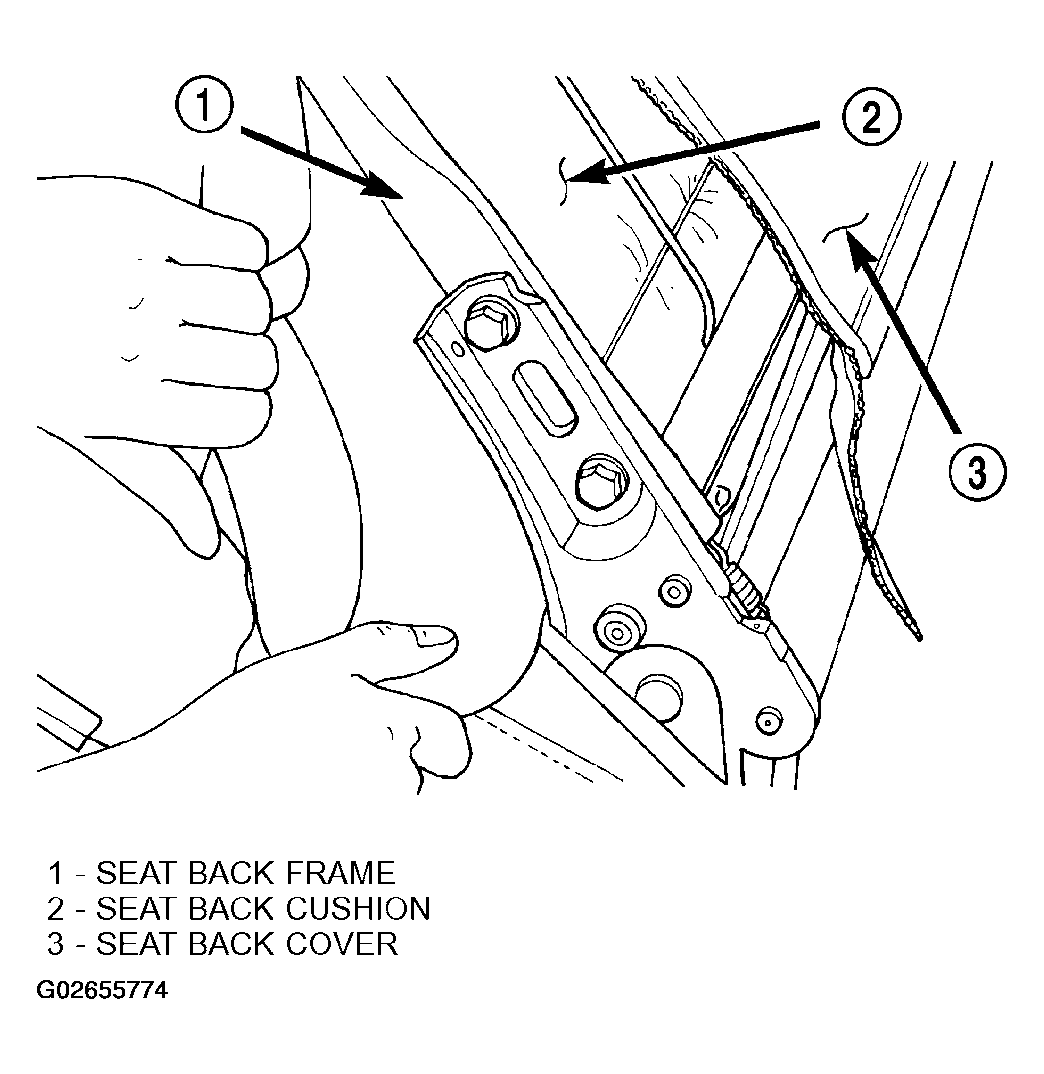

Fig 2: Removing Lower Corners Of Seat Back Cover To Expose Hinge Bolts
Courtesy of DAIMLERCHRYSLER CORP.
