Center Console Lid: Installation

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the console lid/seat back on the seat cushion.
  2. Align the pivot in the pivot bracket.
  3. Install the torx screws attaching the left hinge bracket to the console lid/seat back and tighten to 24 N.m (17 ft. lbs.).
  4. Align the left upper hinge bracket cover and install the bolt.
  5. Install the hinge pivot bolt and tighten to 24 N.m (17 ft. lbs.).

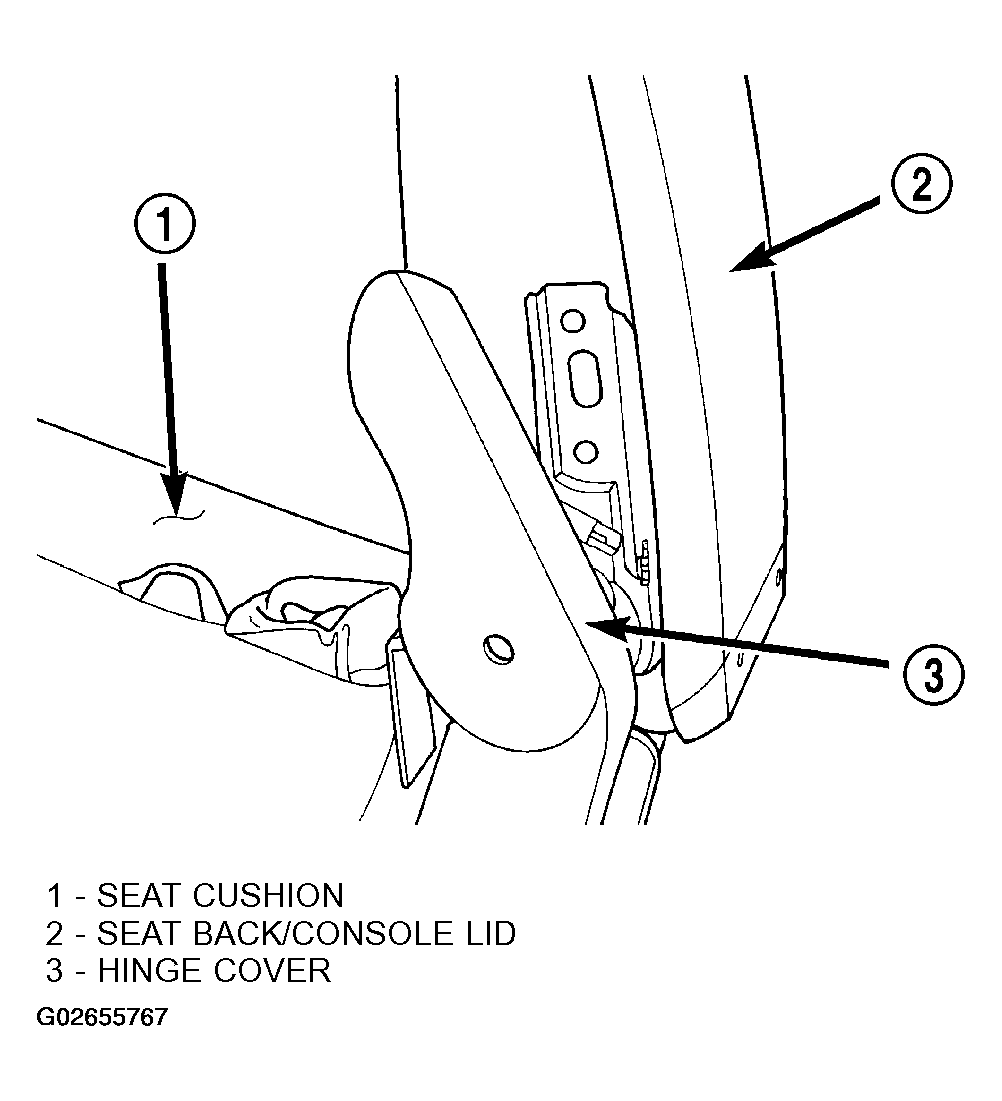

    Fig 1: Removing Hinge Bracket
    G02655767Courtesy of DAIMLERCHRYSLER CORP.

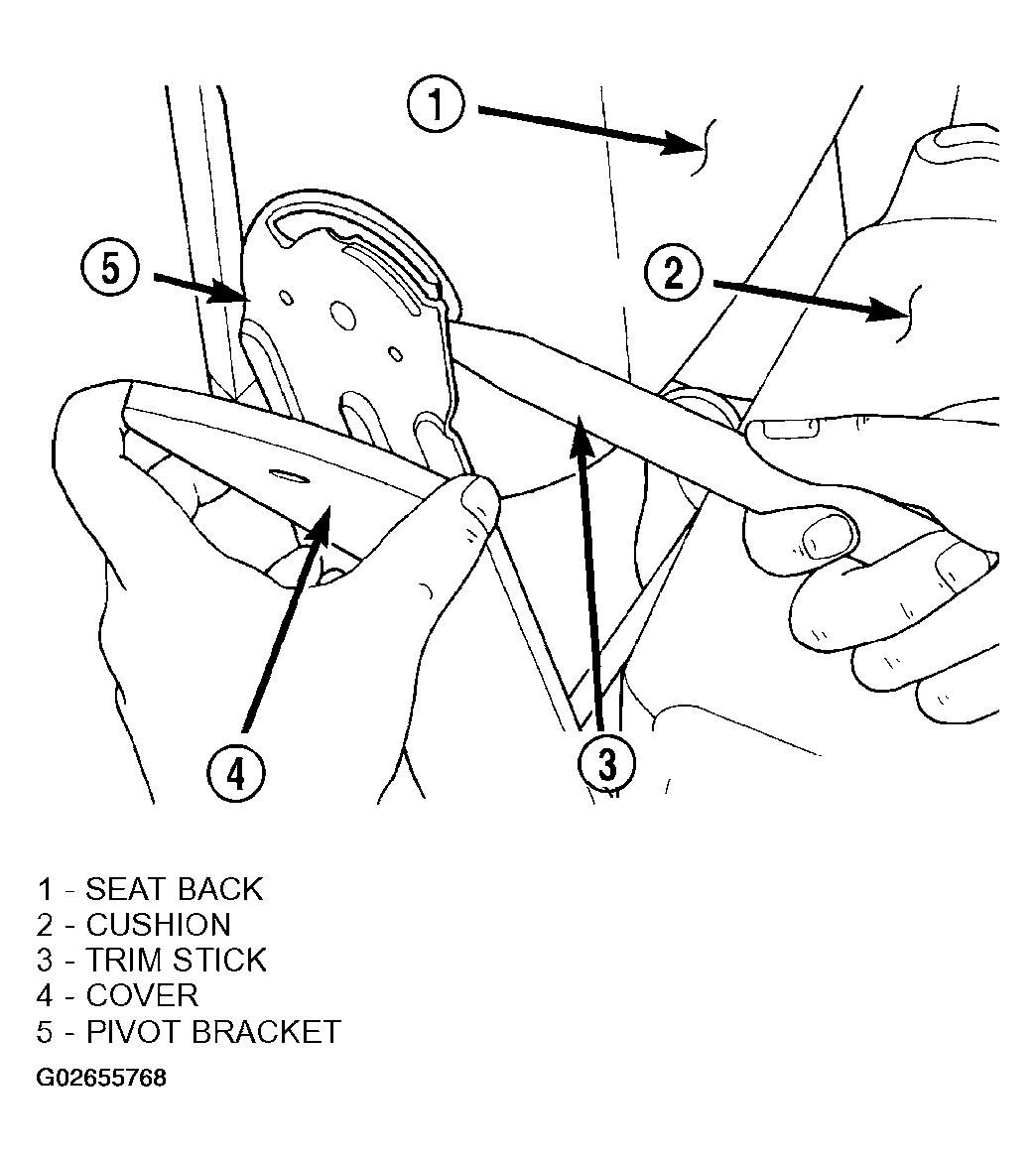

    Fig 2: Removing Pivot Bracket
    G02655768Courtesy of DAIMLERCHRYSLER CORP.
