Rear Storage Box: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift rear seat.
  2. Remove bolts attaching storage box to floor pan (Fig 1 ).
  3. Remove rear seat belt/buckle anchor bolts.
  4. Route rear seat belt/buckle through slots in rear of storage box.
  5. Separate storage box from vehicle.

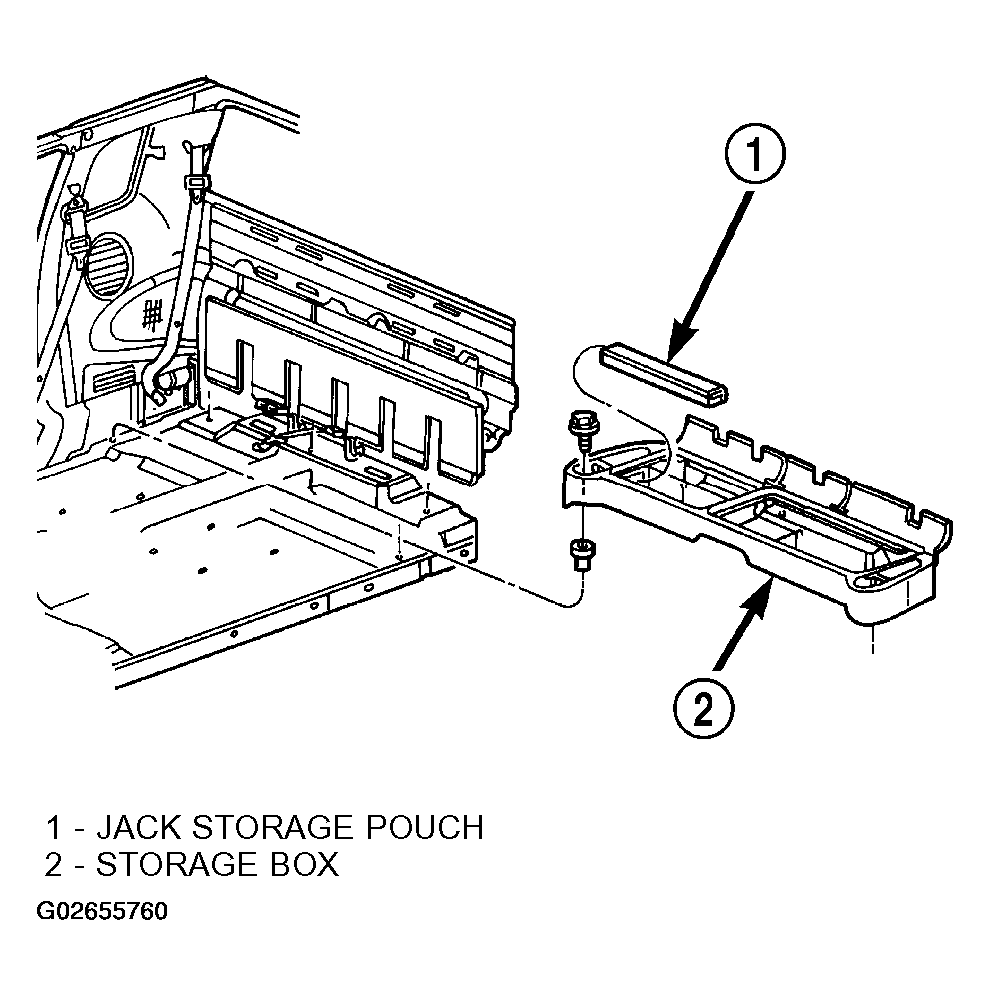

    Fig 1: Removing/Installing Storage Box
    G02655760Courtesy of DAIMLERCHRYSLER CORP.
