Floor Console: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

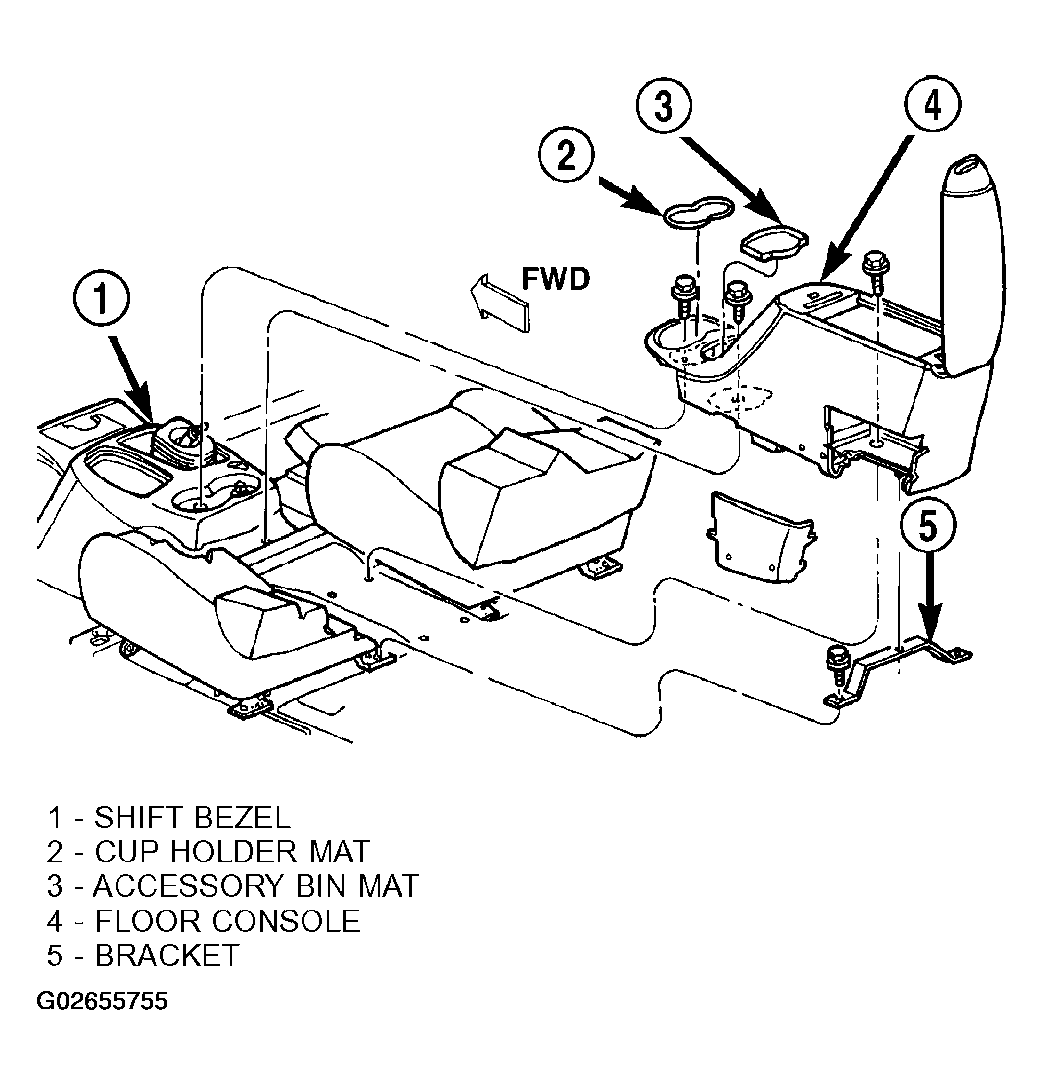

  1. Open console lid and remove bolts attaching console to floor pan (Figure ).
  2. Lift the cup holder bin mat and remove bolt attaching the console to the floor pan.
  3. Lift the cup holder mat and remove the bolts attaching the console to the floor pan.
  4. Lift the rear of the console and pull the console rearward to separate from the shift bezel.
  5. Remove the console from the vehicle.
