Assist Handle: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a trim stick C-4755 or equivalent, remove the trim covering the assist handle attachment screws (Fig 1 ).
  2. Remove the screw attaching the assist handle to the roof structure.
  3. Remove the assist handle.

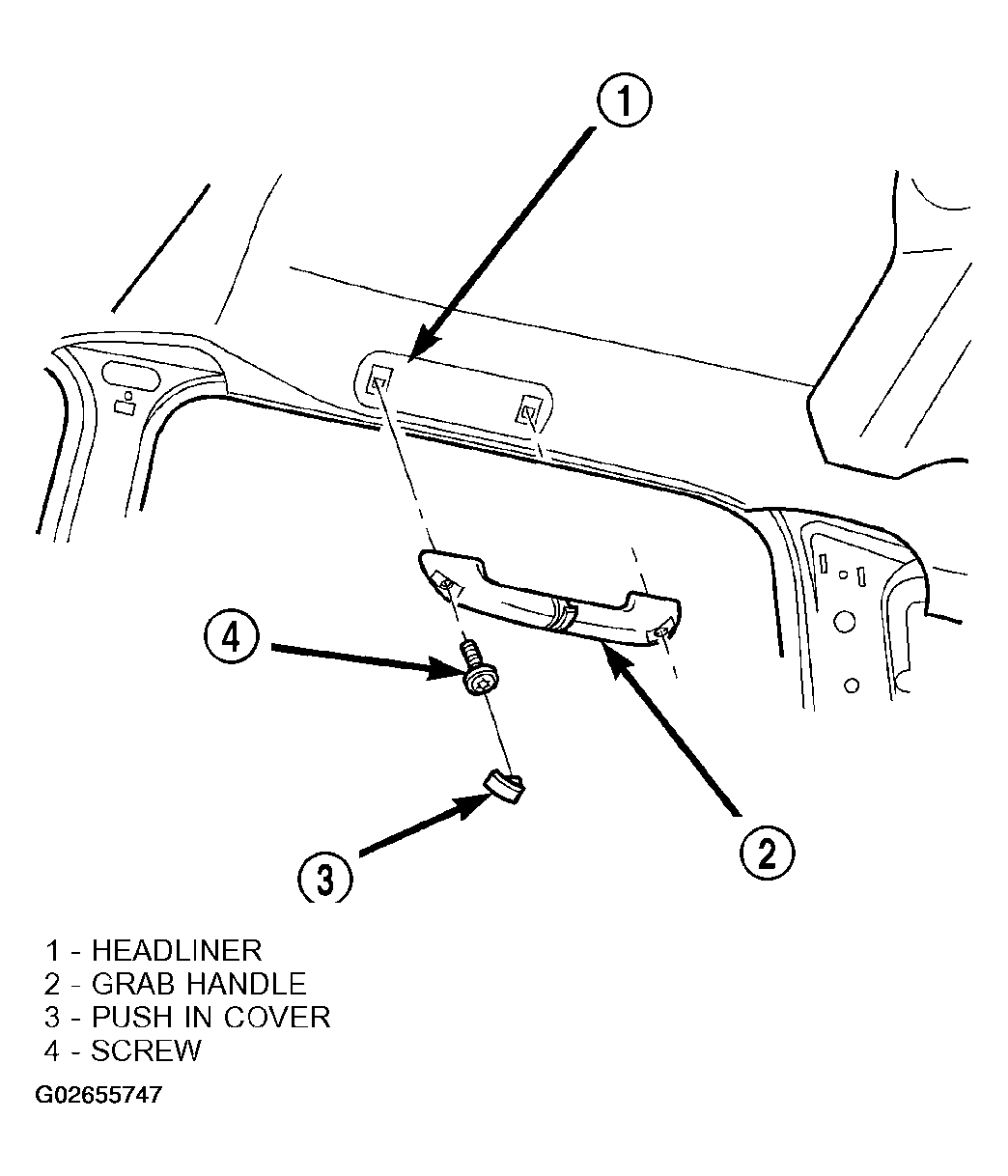

    Fig 1: Removing/Installing Assist Handle
    G02655747Courtesy of DAIMLERCHRYSLER CORP.
