Lower Bezel: Removal
WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
ON VEHICLES EQUIPPED WITH AIRBAGS, DISABLE THE AIRBAG SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, SEAT BELT TENSIONER, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. DISCONNECT AND ISOLATE THE BATTERY NEGATIVE (GROUND) CABLE, THEN WAIT TWO MINUTES FOR THE AIRBAG SYSTEM CAPACITOR TO DISCHARGE BEFORE PERFORMING FURTHER DIAGNOSIS OR SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.
- Disconnect and isolate the battery negative cable.
- Remove the cluster bezel from the instrument panel. (Refer to BODY/INSTRUMENT PANEL/CLUSTER BEZEL-REMOVAL ).
- Remove the steering column opening cover from the instrument panel. (Refer to BODY/INSTRUMENT PANEL/STEERING COLUMN OPENING COVER-REMOVAL ).

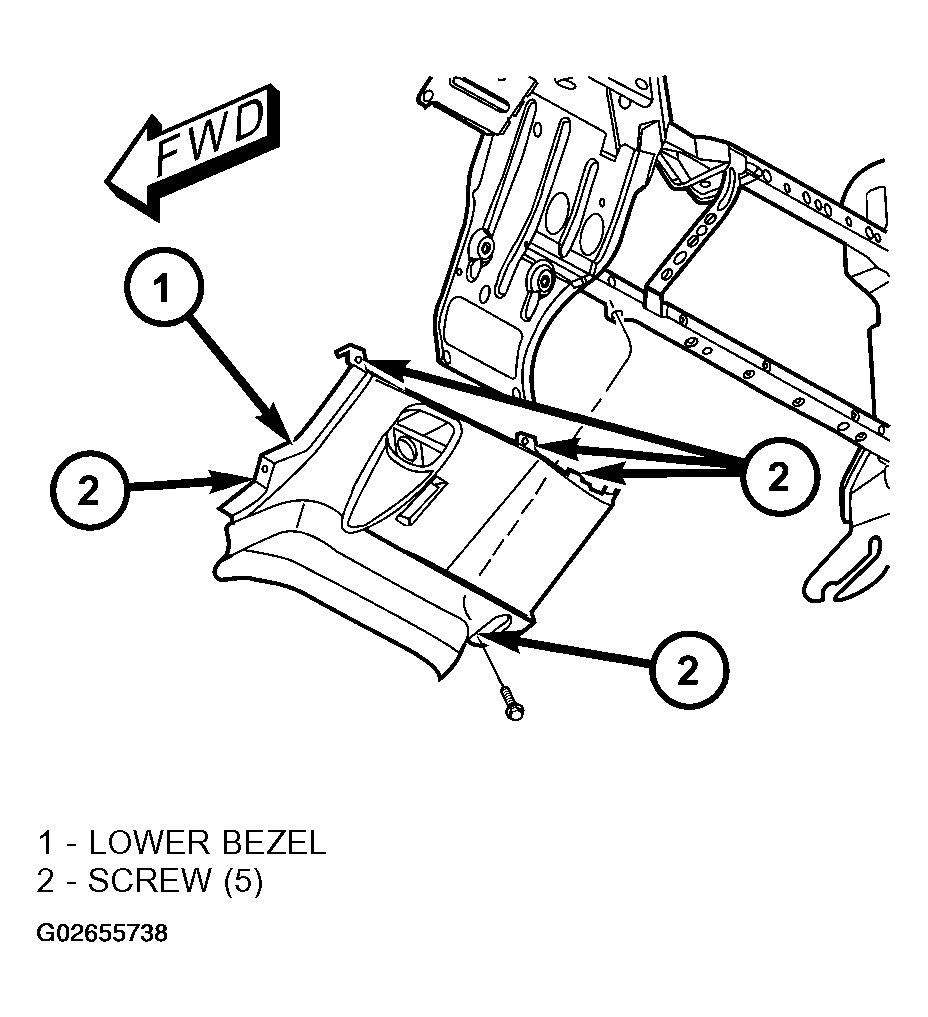

- Remove the two screws that secure the bottom of the lower bezel to the instrument panel structural support (Fig 1 ).
- Remove the three screws that secure the top of the lower bezel to the instrument panel structural support.
- If the vehicle is so equipped, pull the lower bezel away from the instrument panel far enough to access and disconnect the instrument panel wire harness connectors from the receptacles for the accessory power outlet, the lower bezel console lamp, and the cigar lighter.
- Remove the lower bezel from the instrument panel.
