Inside Hood Release Bracket: Installation

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: ON VEHICLES EQUIPPED WITH AIRBAGS, DISABLE THE AIRBAG SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, SEAT BELT TENSIONER, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. DISCONNECT AND ISOLATE THE BATTERY NEGATIVE (GROUND) CABLE, THEN WAIT TWO MINUTES FOR THE AIRBAG SYSTEM CAPACITOR TO DISCHARGE BEFORE PERFORMING FURTHER DIAGNOSIS OR SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.

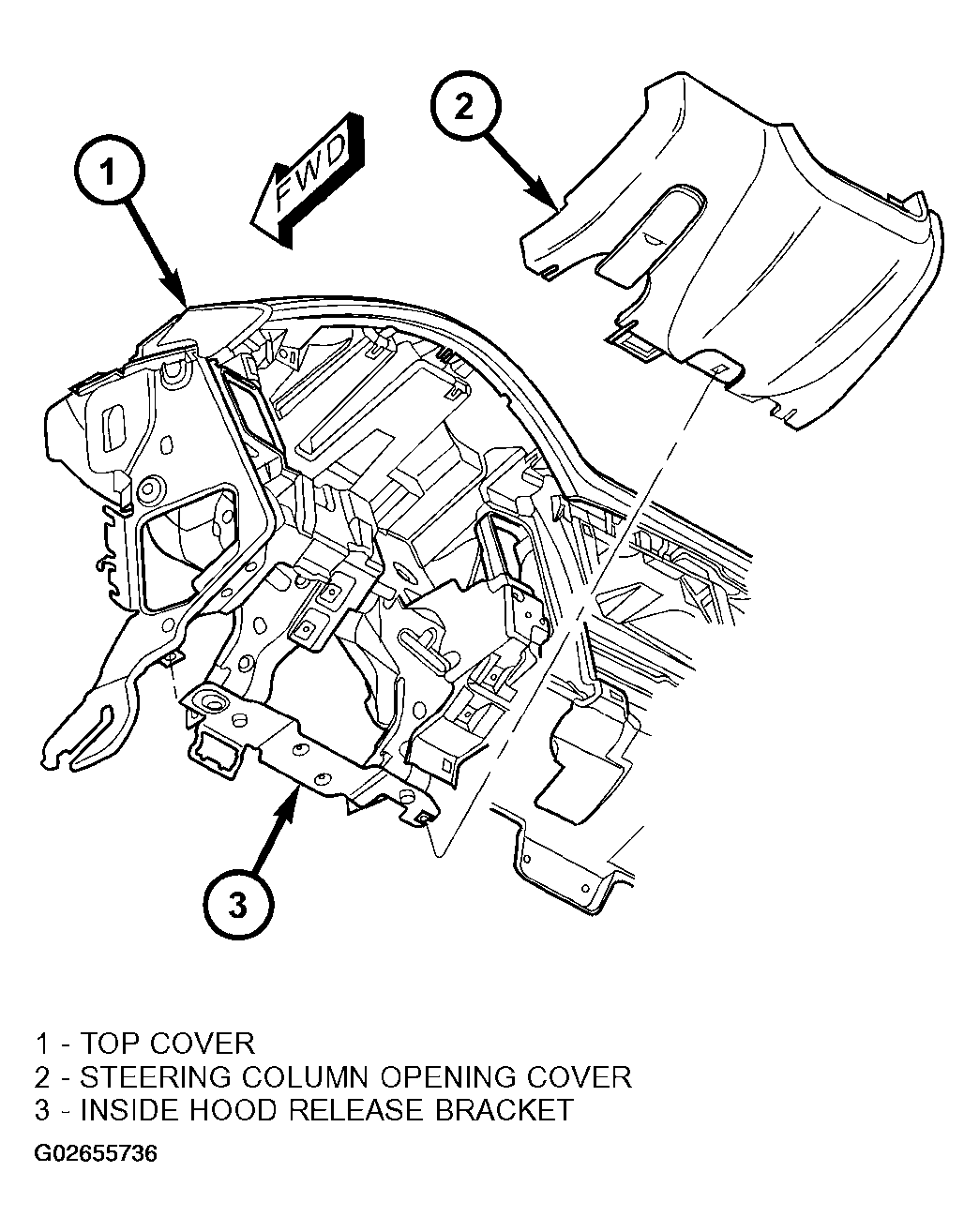

  1. Position the inside hood release bracket onto the instrument panel structural support (Figure ).
  2. Install the two screws that secure the inside hood release bracket to the instrument panel structural support.
  3. Install the 16-way data link connector into the mounting hole on the inside hood release bracket.
  4. Position the inside hood release handle to the instrument panel lower reinforcement.
  5. Install the two screws that secure the inside hood release handle to the inside hood release bracket.
  6. Install the steering column opening cover onto the instrument panel. (Refer to BODY/INSTRUMENT PANEL/STEERING COLUMN OPENING COVER-INSTALLATION  ).
  7. Connect the battery negative cable.
