Removal-Driver Side

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

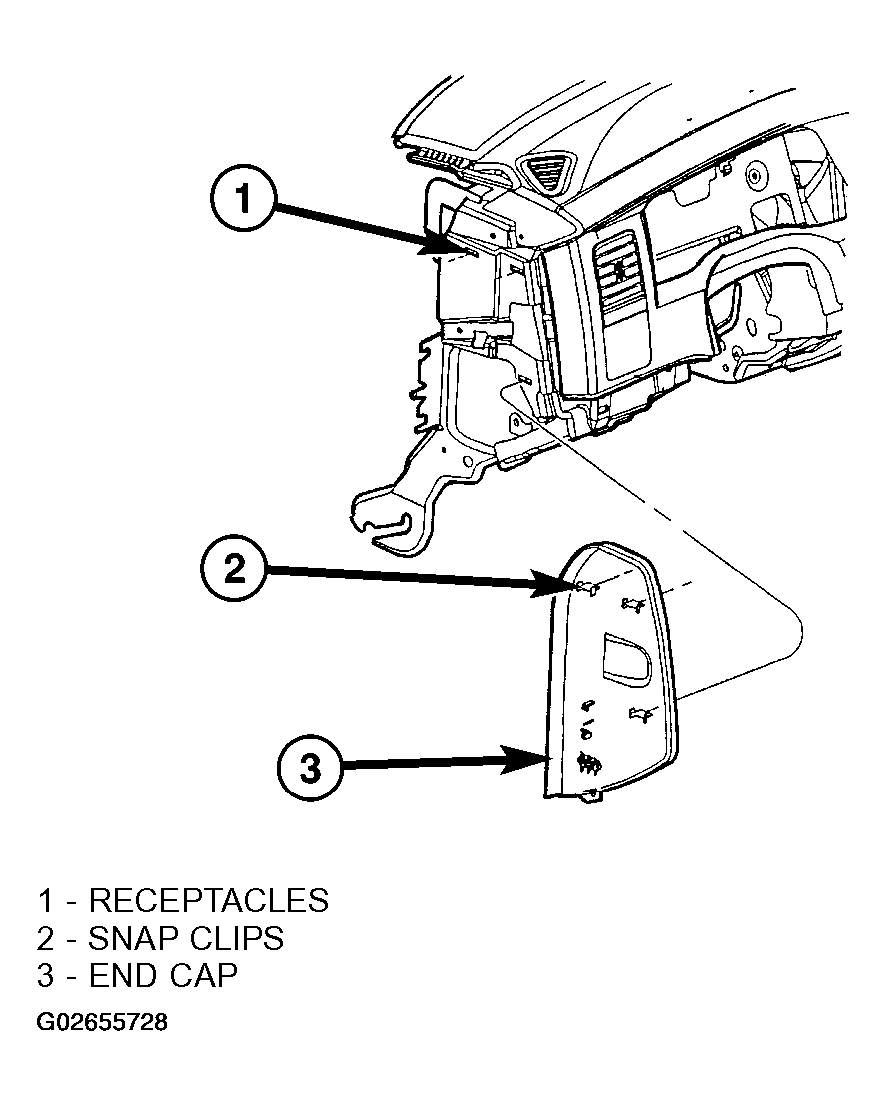

  1. Insert a finger into the pull cup formation molded into the end cap and pull firmly and sharply outward to disengage each of the snap clips that secure the end cap from their receptacles in the instrument panel base trim (Figure )
  2. Remove the end cap from the end of the instrument panel.
