End Cap: Installation
WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
- Position the end cap to the outboard end of the instrument panel.

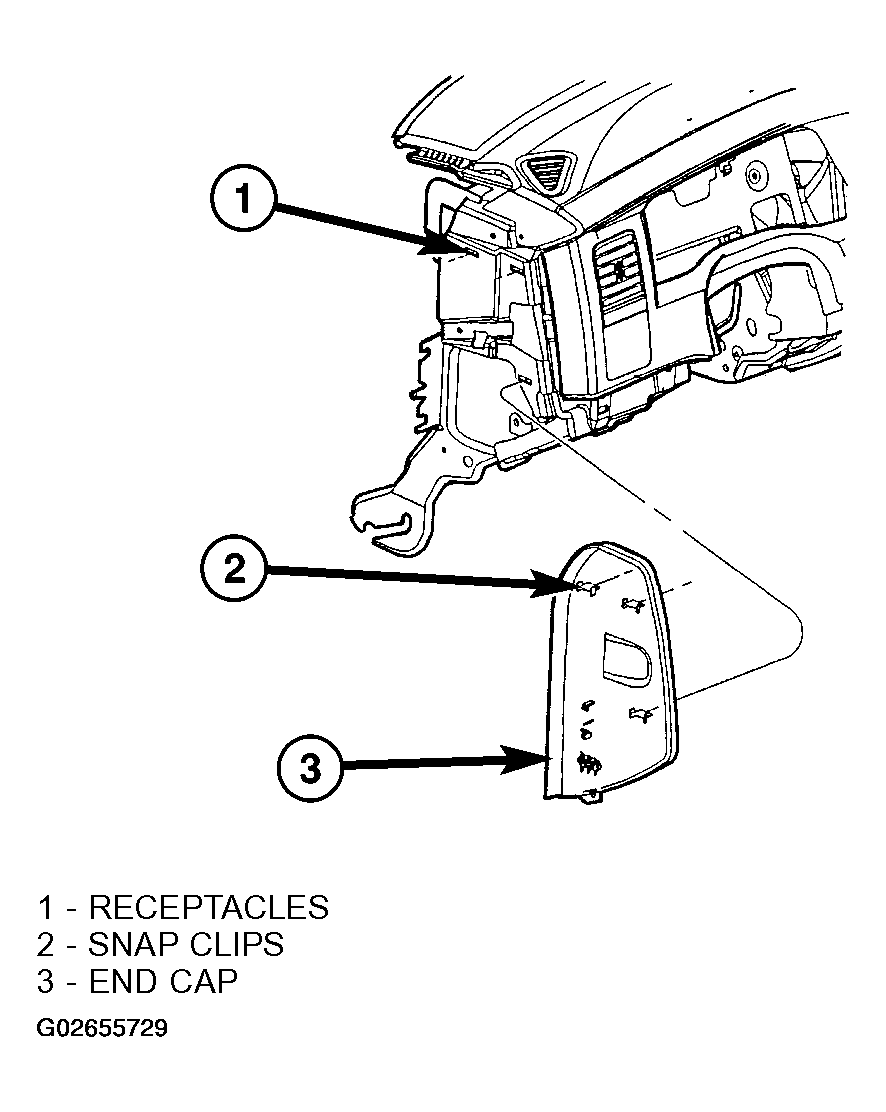

- Align the snap clips on the end cap with the receptacles in the instrument panel base trim (Figure ).
- Using hand pressure, press firmly on the end cap over each of the snap clip locations until each of the snap clips is fully engaged in its receptacle in the instrument panel base trim.
- Using trim stick, reposition door seal trim behind end cap flange as required.
