Rear Wheelhouse Splash Shield: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove bottom screw attaching wheel opening molding to cargo box.
  2. Remove screws attaching splash shield to inner wheel house (Fig 1 ).
  3. Separate splash shield from vehicle.

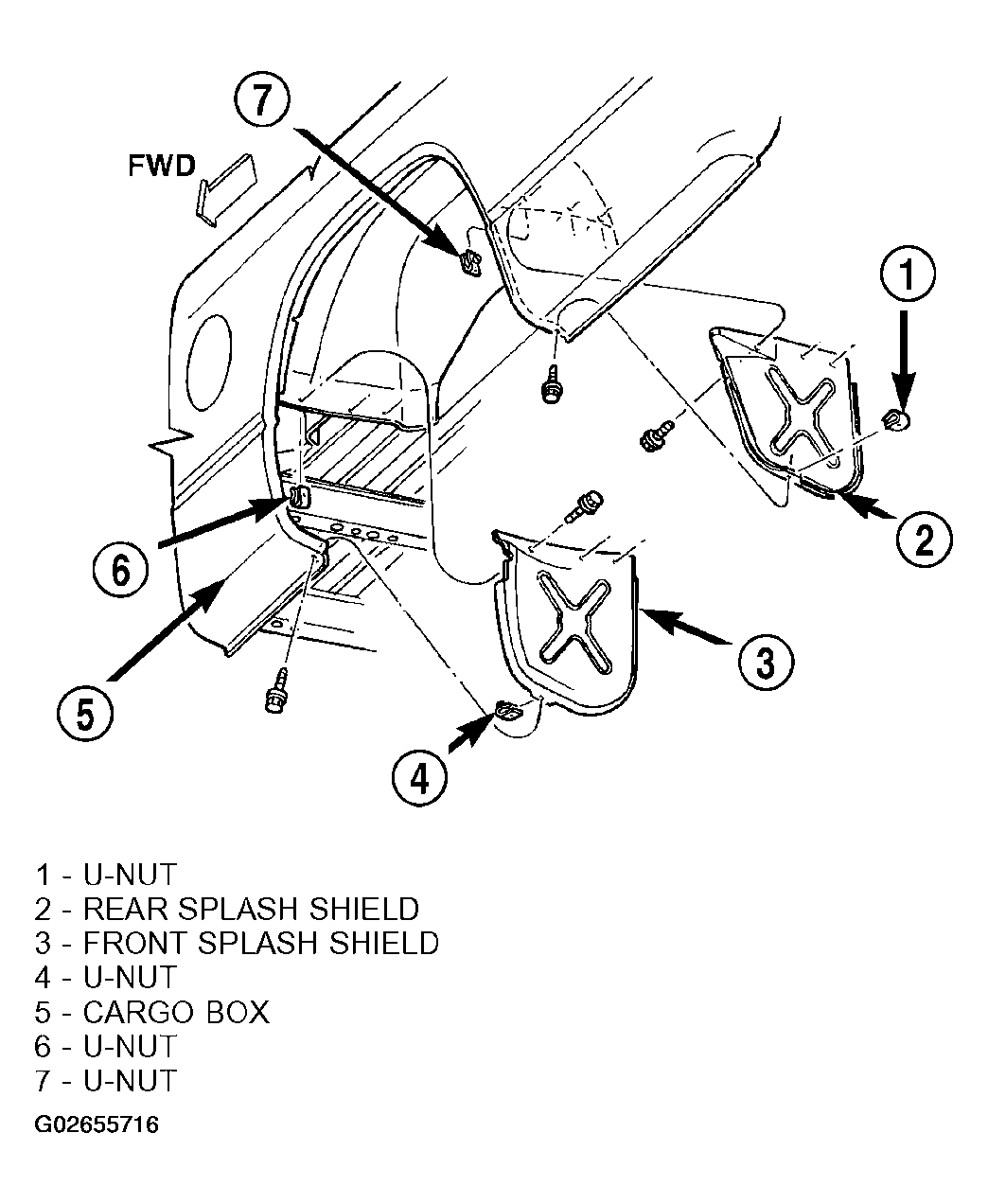

Fig 1: Removing/Installing Rear Wheelhouse Splash Shield
G02655716Courtesy of DAIMLERCHRYSLER CORP.
