Front End Splash Shields: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front wheel.
  2. Remove wheel opening molding.

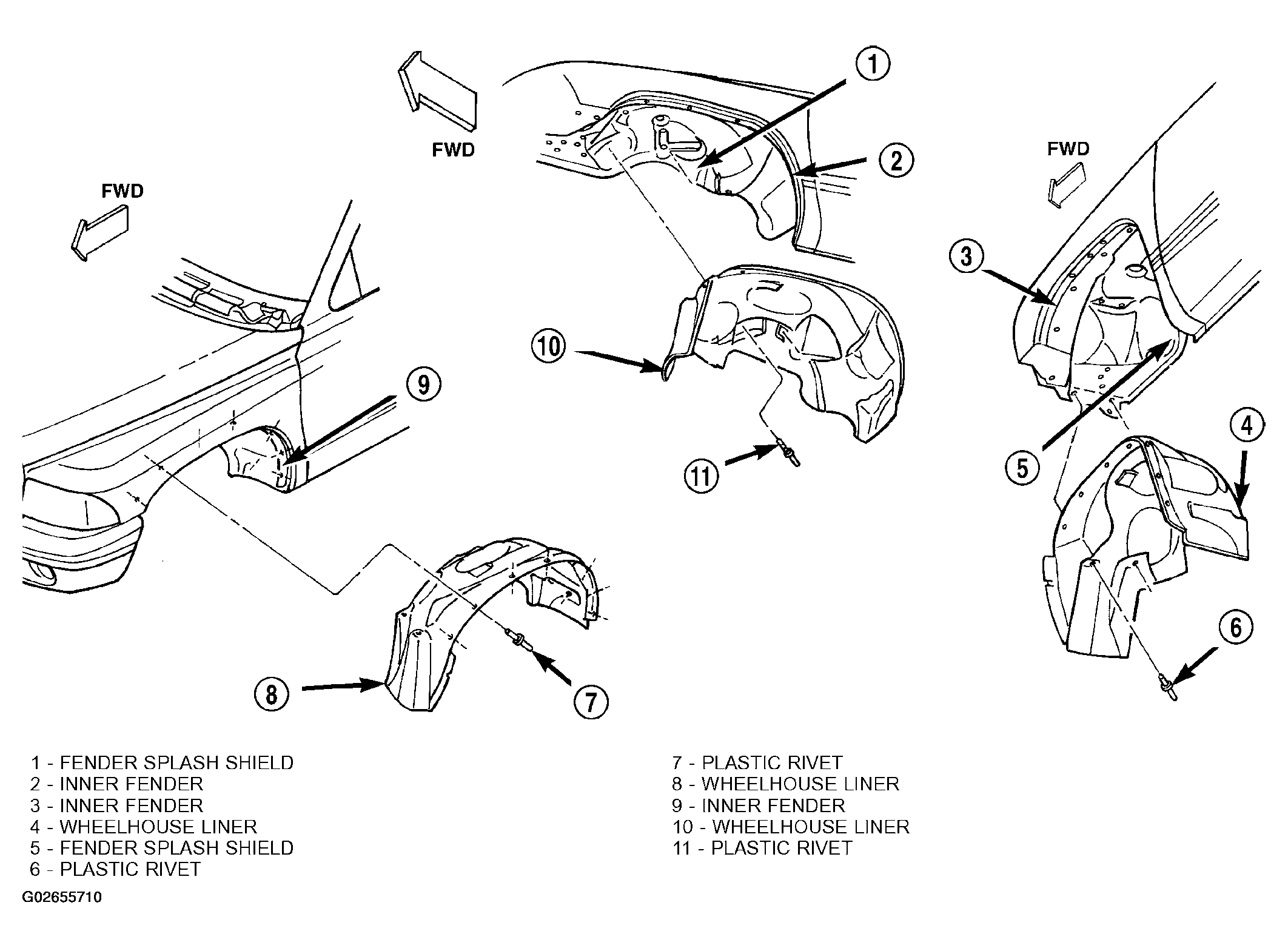

  3. Remove plastic rivets attaching wheelhouse liner to wheelhouse (Figure ).
  4. Separate liner from vehicle.
