Front End Splash Shields: Installation

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position liner in wheelhouse.
  2. Install plastic rivets attaching wheelhouse liner to wheelhouse.
  3. Install wheel opening molding.
  4. Install the front wheel. (Refer to STANDARD PROCEDURE )

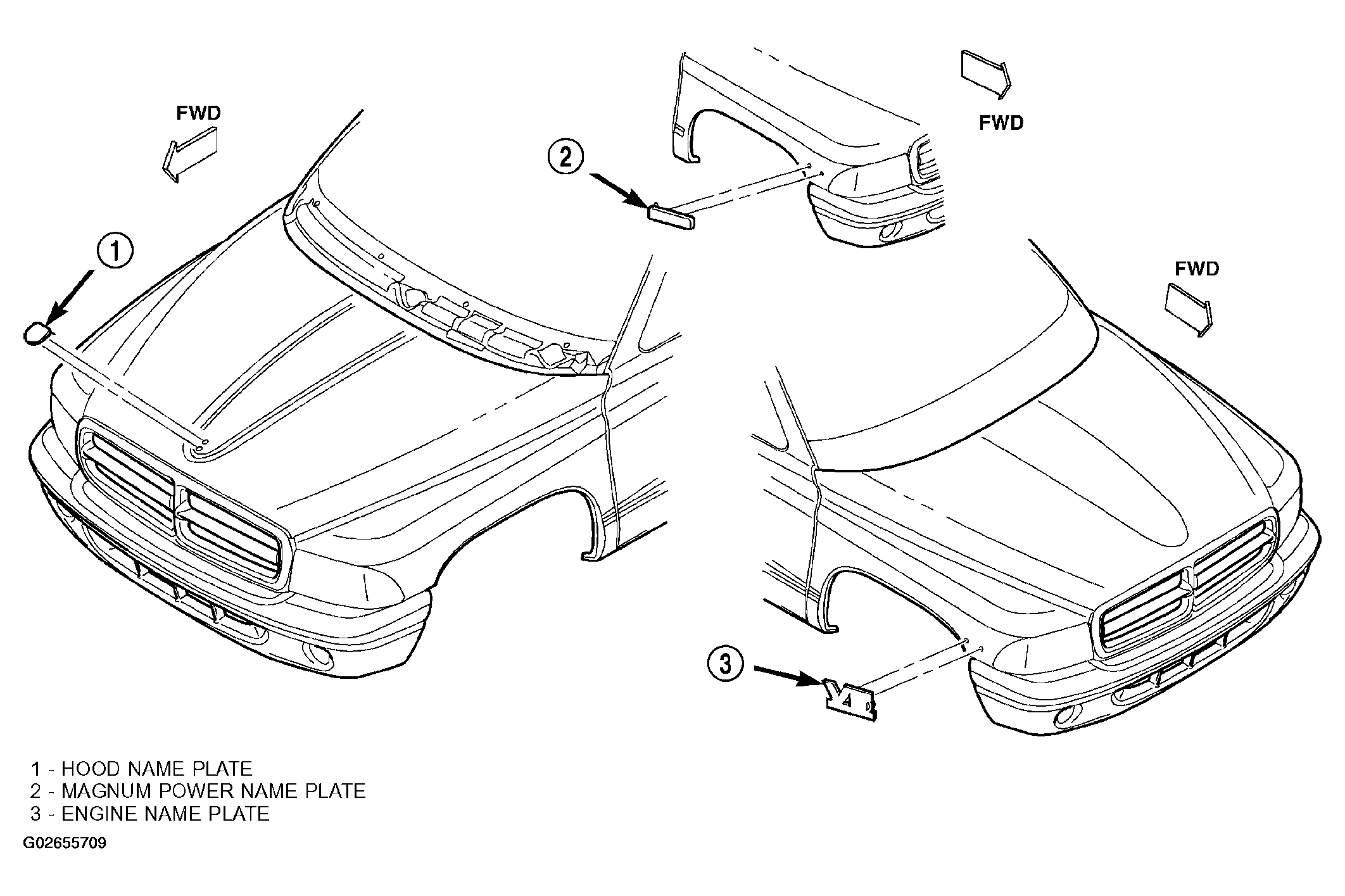

    Fig 1: Removing/Installing Exterior Nameplates
    G02655709Courtesy of DAIMLERCHRYSLER CORP.
    Fig 2: Removing/Installing Front Wheelhouse Liner
    G02655710Courtesy of DAIMLERCHRYSLER CORP.
