Cowl Grille: Installation

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position cowl grille on cowl.
  2. Connect vacuum line to cowl.
  3. Remove the plug and connect windshield washer feed line to cowl.
  4. Install cowl weatherstrip.
  5. Position rivet anchors in place and press down to engage.

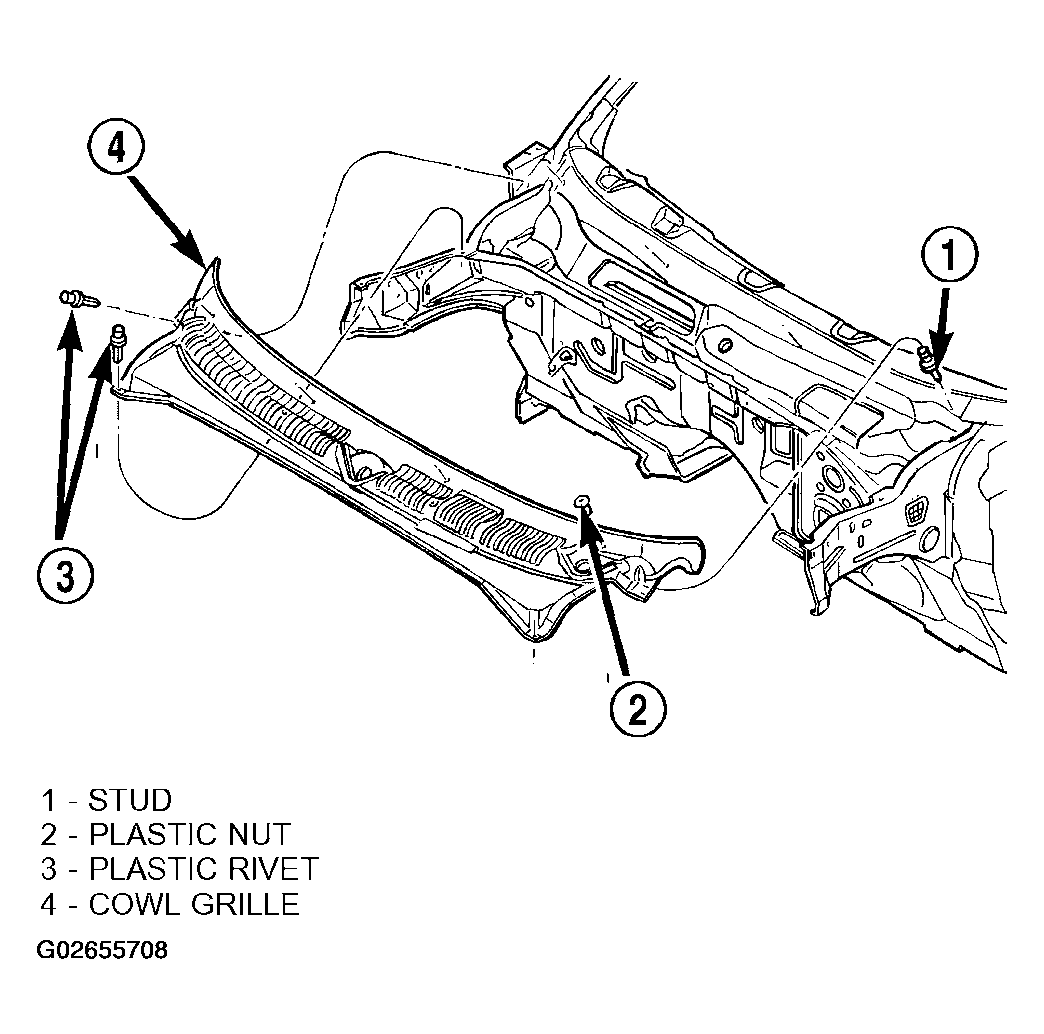

    Fig 1: Removing Cowl Grille
    G02655708Courtesy of DAIMLERCHRYSLER CORP.
  6. Install upper plastic nuts attaching cowl grille to cowl.
  7. Install the wiper arms. (Refer to INSTALLATION (2003) or WIPER ARM (2004))
